JBL CONTROL 227CT, 6.5" 2-WAY Ceiling Speaker w Transformer For Use w Pre-Install Backcan
JBL CONTROL 227CT, 6.5" 2-WAY Ceiling Speaker w Transformer For Use w Pre-Install Backcan
JBL CONTROL 227CT, 6.5" 2-WAY Ceiling Speaker w Transformer For Use w Pre-Install Backcan
JBL CONTROL 227CT, 6.5" 2-WAY Ceiling Speaker w Transformer For Use w Pre-Install Backcan
Roll over image to zoom in Click on image to zoom
JBL CONTROL 227CT, 6.5" 2-WAY Ceiling Speaker w Transformer For Use w Pre-Install Backcan
JBL CONTROL 227CT, 6.5" 2-WAY Ceiling Speaker w Transformer For Use w Pre-Install Backcan
JBL CONTROL 227CT, 6.5" 2-WAY Ceiling Speaker w Transformer For Use w Pre-Install Backcan
JBL CONTROL 227CT, 6.5" 2-WAY Ceiling Speaker w Transformer For Use w Pre-Install Backcan

JBL CONTROL 227CT, 6.5" 2-WAY Ceiling Speaker w Transformer For Use w Pre-Install Backcan

JBLSKU: CONTROL 227CT
Price:
$382.00

Description

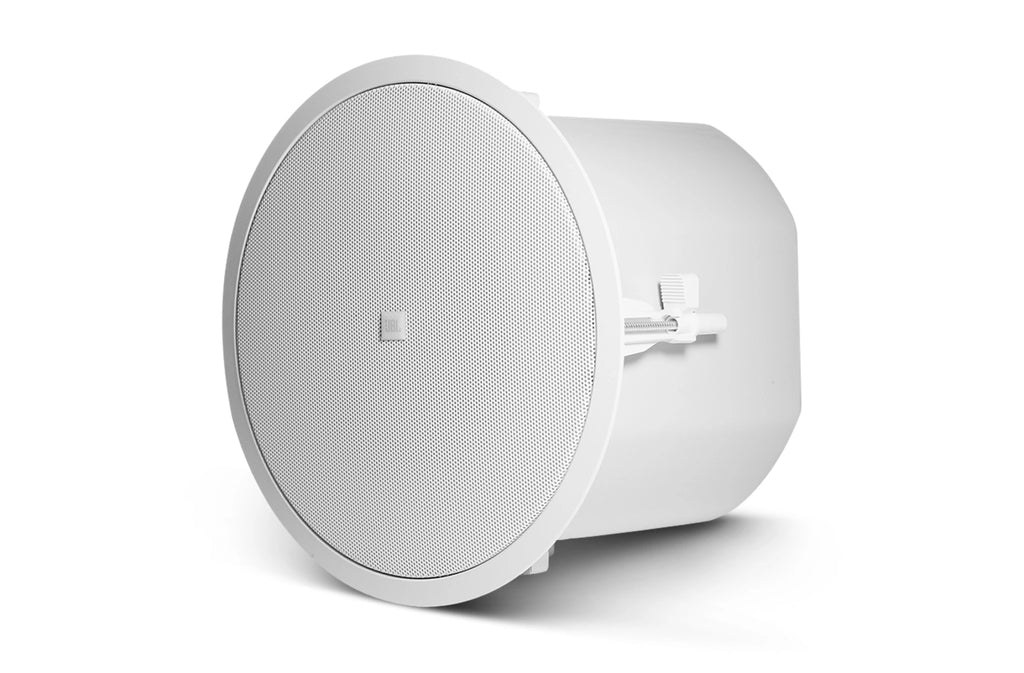

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver with 60W Multi-Tap Transformer The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in-ceiling mount applications.

Features

  • Consistent 120° broadband pattern control for exceptional coverage.
  • Coaxial design featuring: Kevlar-reinforced 165 mm (6.5 in) woofer. 25 mm (1 in) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 150 Watts Power Handling.

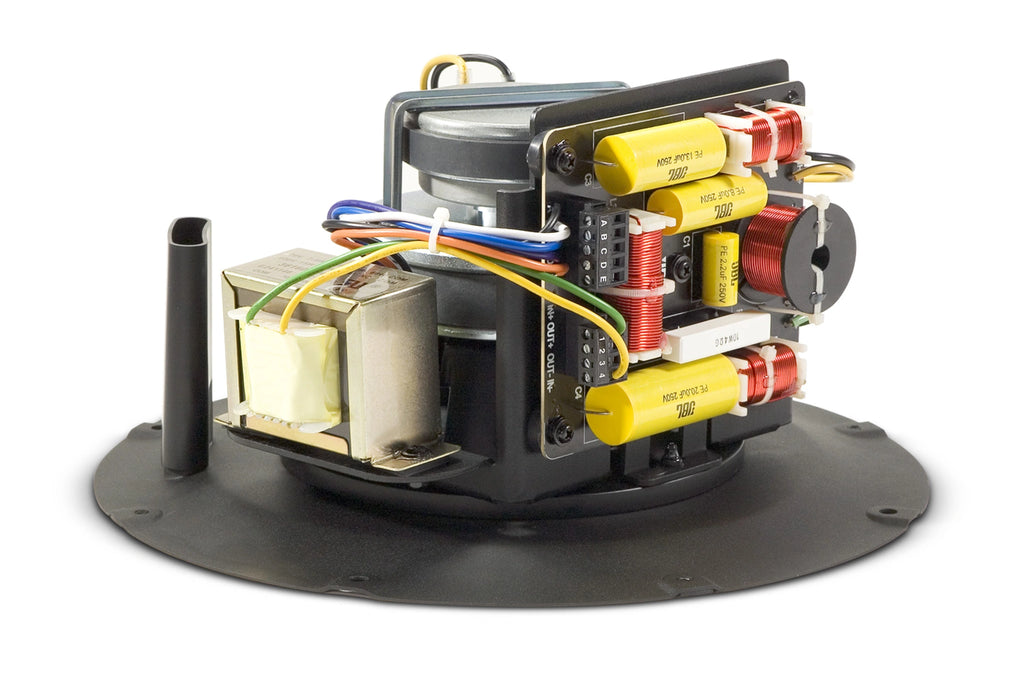

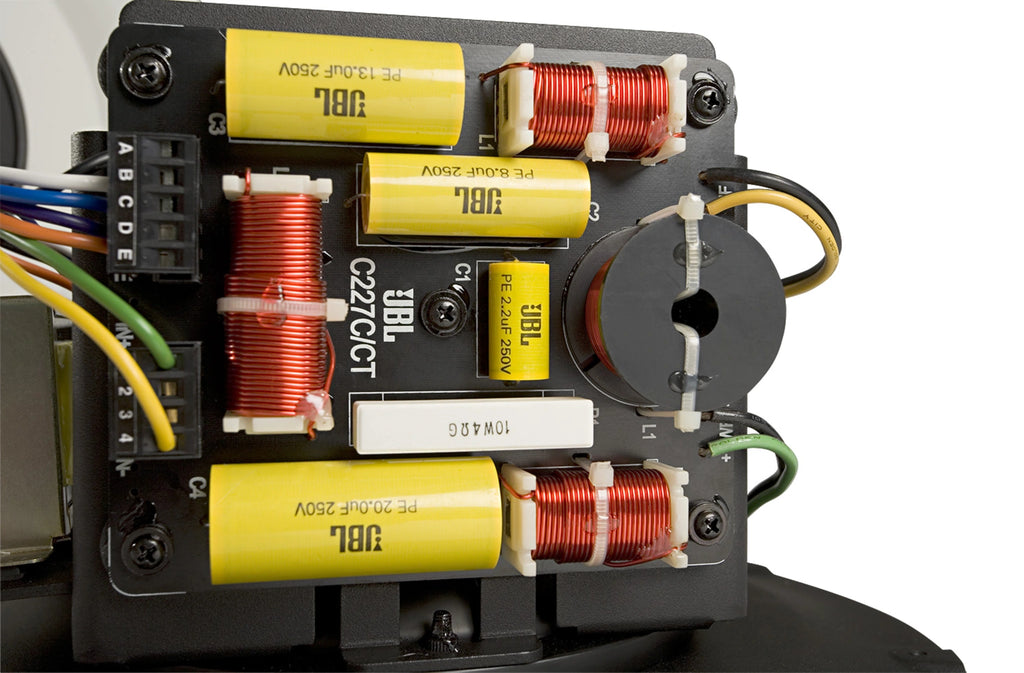

  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Separate back can and contemporary grille available. (sold separately)

Specifications

  • Model: CONTROL 227CT
  • Frequency Range (-10dB): 43 Hz - 19 kHz
  • Transformer Taps: 68W, 34W, 17W (& 8.5W @ 70V)
  • Sensitivity: 90 dB (1 kHz - 16 kHz)
  • Coverage Angle: 120° conical, constant directivity
  • Frequency Response (-3 dB): 75 Hz - 17 kHz
  • Drivers: LF Driver: 165 mm (6.5 inch) HF Driver: compression driver, 25 mm (1 inch) coil
  • Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  • Dimensions (H x Dia): Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
  • Net Weight (each): 5.2 kg (11.5 lb)
  • Shipping Weight (pair): 6.6 kg (14.5 lb)
  • Power Rating: See transformer taps
  • Maximum SPL (1m): 108 dB (top 70V/100V tap)
  • Input Connectors: Screw locking barrier strip for bare wire
  • Color: White

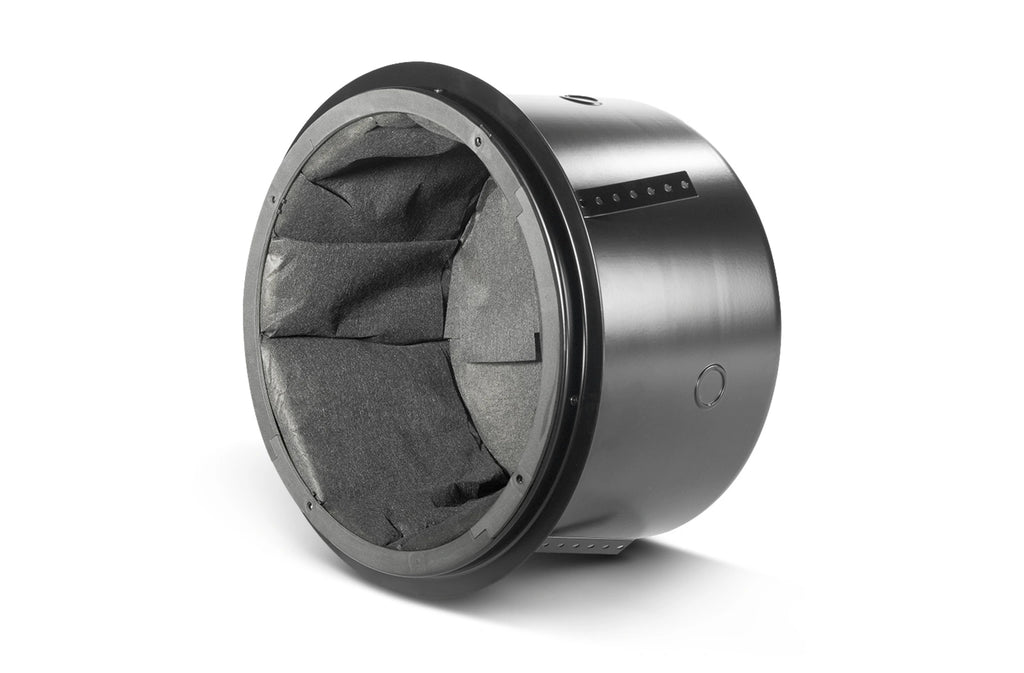

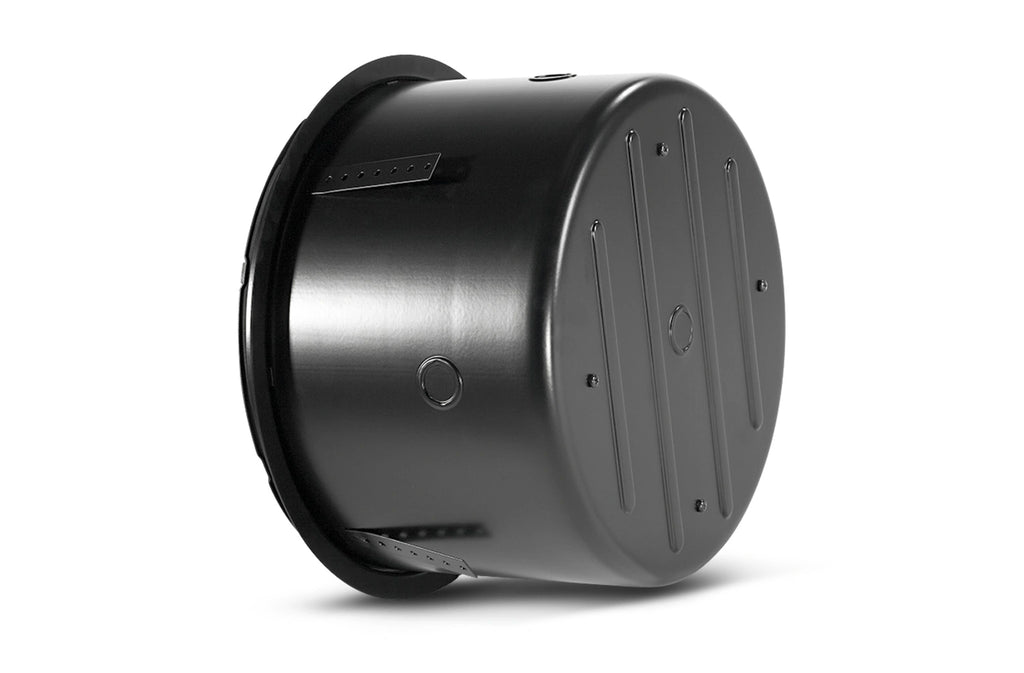

  • Backcan: formed steel (wood-lined; accessory)
  • Baffle/Rim: Metal, round, driver pre-mounted to baffle, ported.
  • Ceiling Cutout Size: 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
  • Included Accessories: Ported baffle pre-attached, transformer on 227CT
  • Optional Accessories: MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft)
  • Plenum Usage: Yes, with accessory backcan
  • Weight: 14.65 lb
  • Dimensions (L x W x H): 16 x 16 x 10 in
  • UPC: 50036905121
  • Country of Origin: CN
