Description

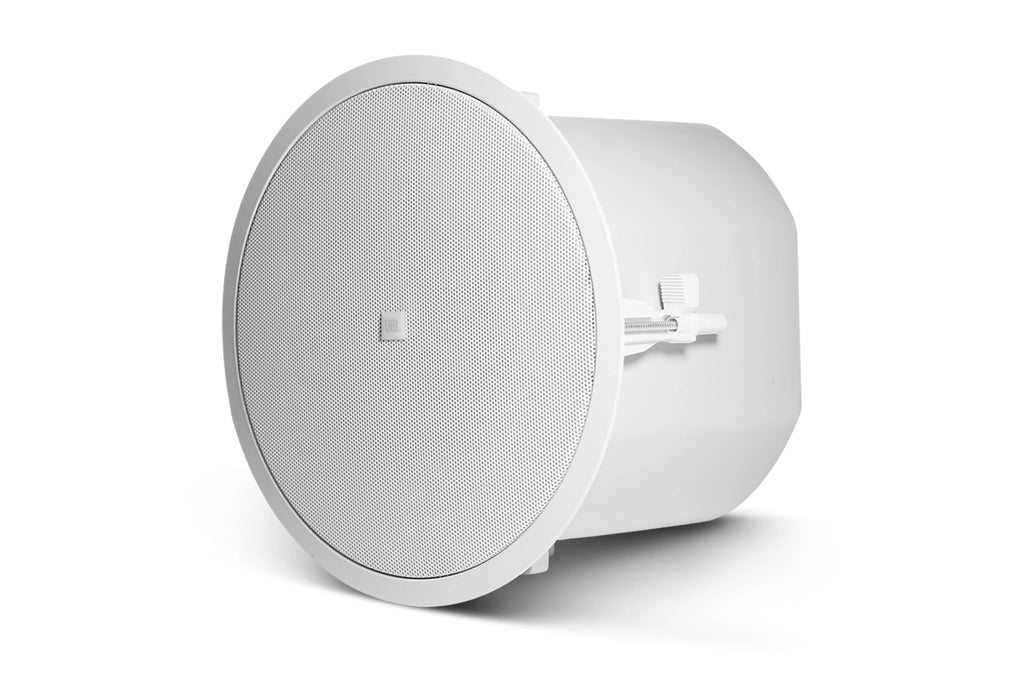

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver For Use with Pre-Install Backcan The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in ceilingmount applications.
Features
- Consistent 120° broadband pattern control for exceptional coverage.

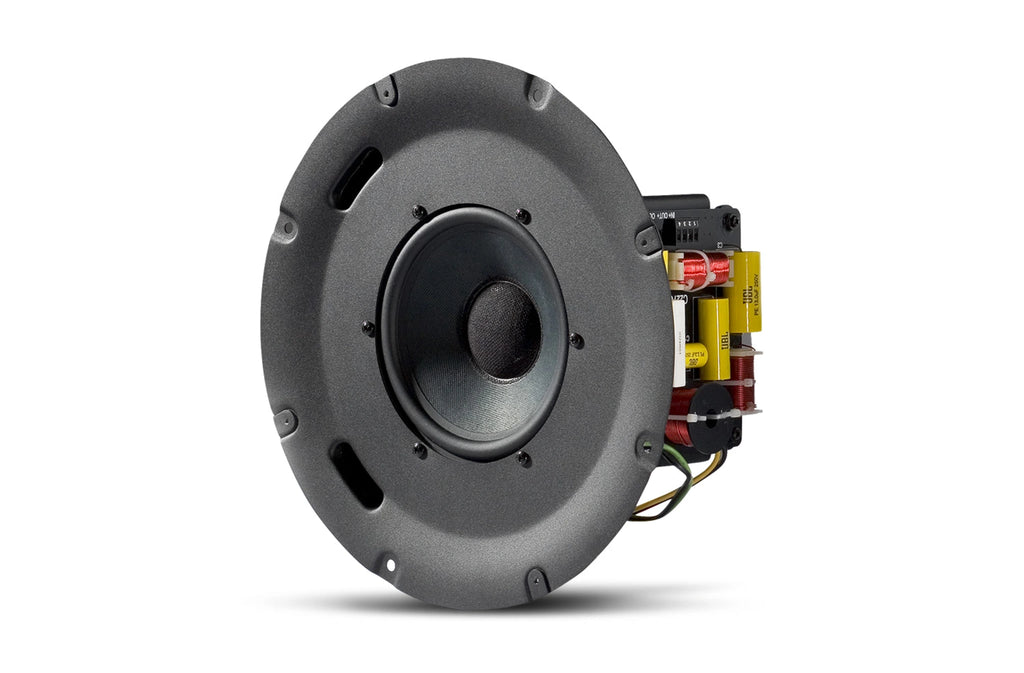

- Coaxial design featuring: Kevlar-reinforced 165 mm (6.5 in) woofer. 25 mm (1 in) compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music.
- 150 Watts Power Handling.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Separate back can and contemporary grille available. (sold separately)
Specifications
- Model: CONTROL 227C
- Frequency Range (-10dB): 43 Hz - 19 kHz
- Power Rating: IEC Long-Term System Power Rating: 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise (400 W peak), 100 hrs
- Sensitivity: 90 dB (1 kHz - 16 kHz)
- Coverage Angle: 120° conical, constant directivity
- Frequency Response (-3 dB): 75 Hz - 17 kHz
- Impedance: 8 ohms
- Drivers: LF Driver: 165 mm (6.5 inch) HF Driver: compression driver, 25 mm (1 inch) coil
- Color: White
- Dimensions (H x Dia): Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
- Net Weight (each): 4.1 kg (9.0 lb)
- Shipping Weight (pair): 227C: 5.4 kg (12.0 lb)
- Maximum SPL (1m): 112 dB (118 dB peak)
- Input Connectors: Screw locking barrier strip for bare wire
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

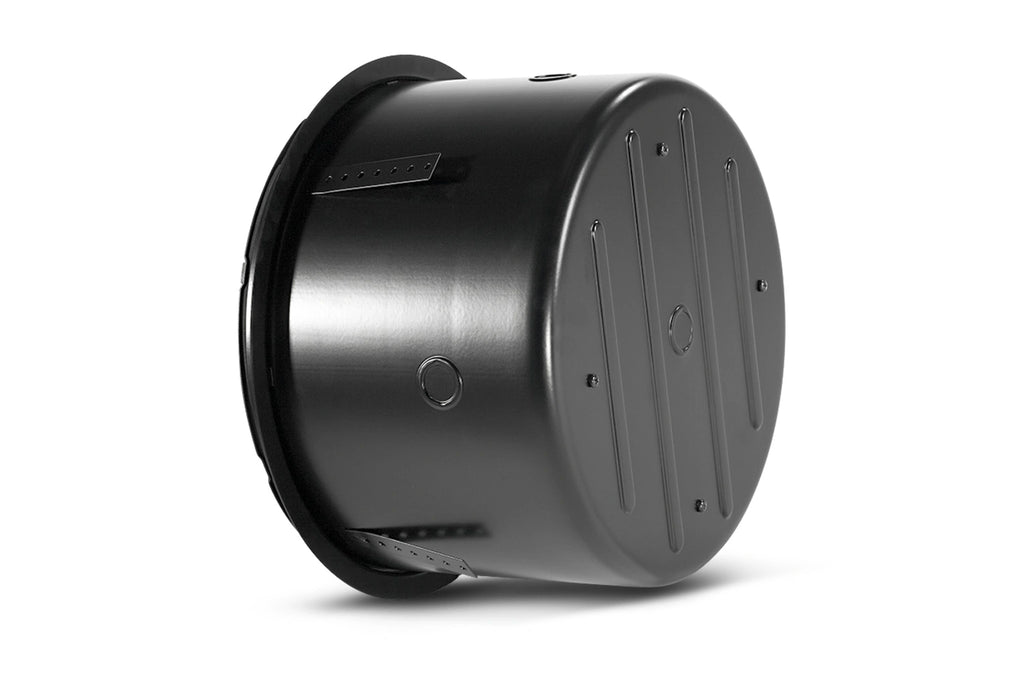

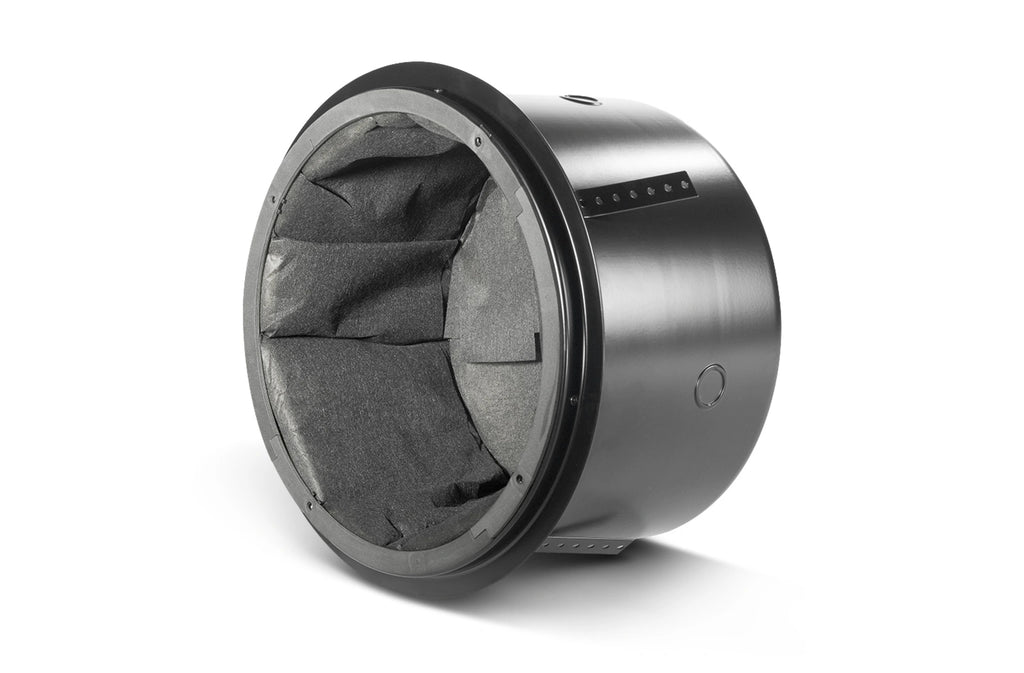

- Backcan: formed steel (wood-lined; accessory)
- Baffle/Rim: Metal, round, driver pre-mounted to baffle, ported.
- Ceiling Cutout Size: 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
- Optional Accessories: MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft)
- Plenum Usage: Yes, with accessory backcan
- Weight: 12.2 lb
- Dimensions (L x W x H): 15.5 x 15.5 x 10 in
- UPC: 50036905114
- Country of Origin: CN
