Description

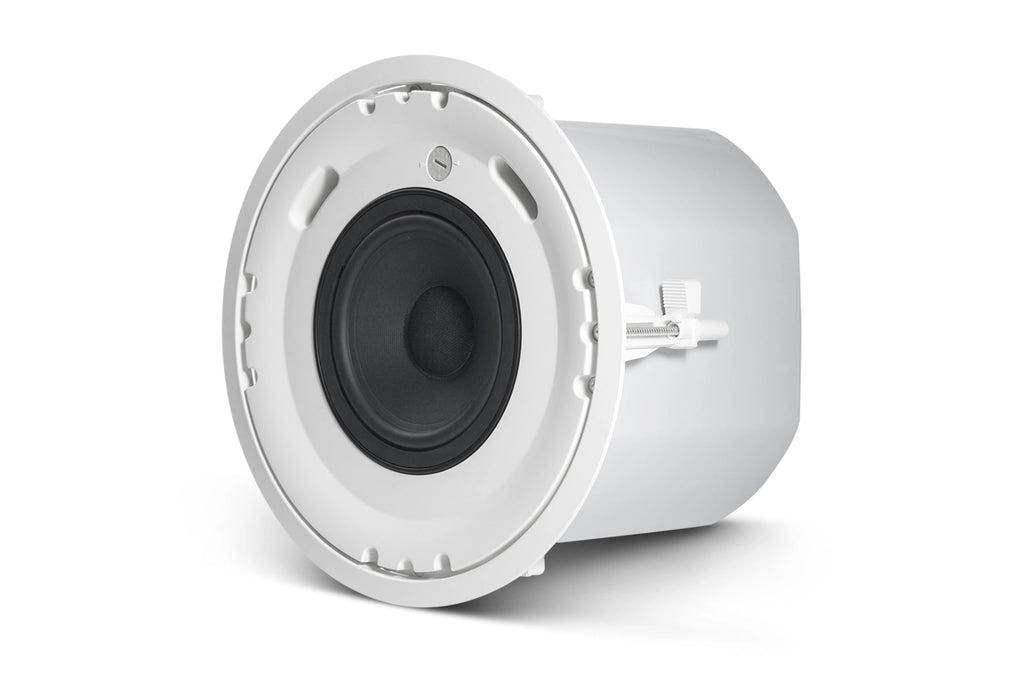

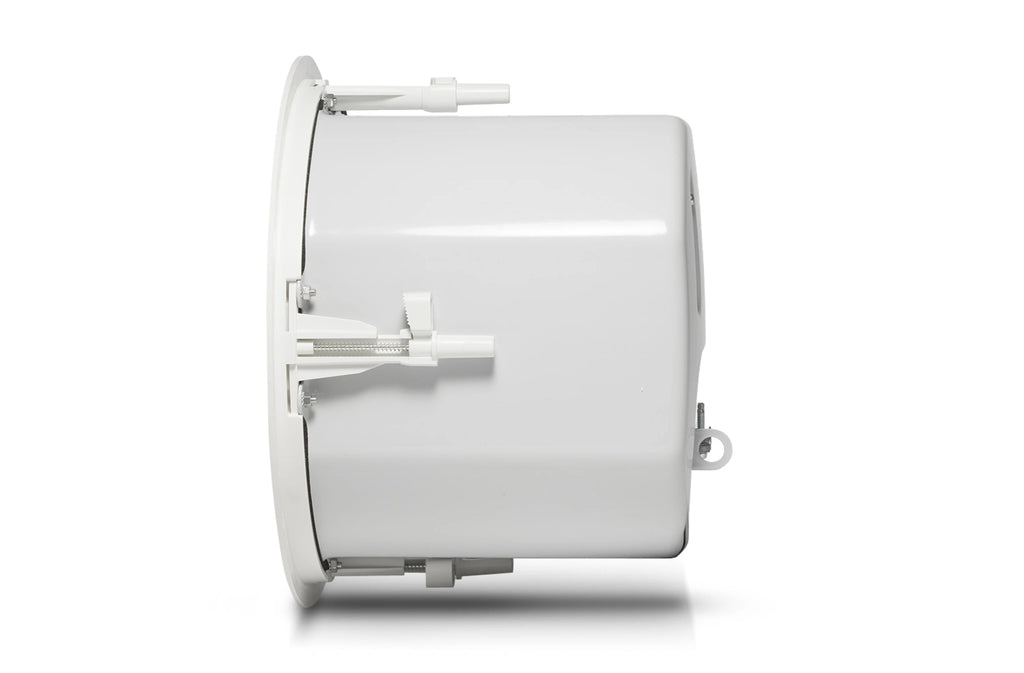

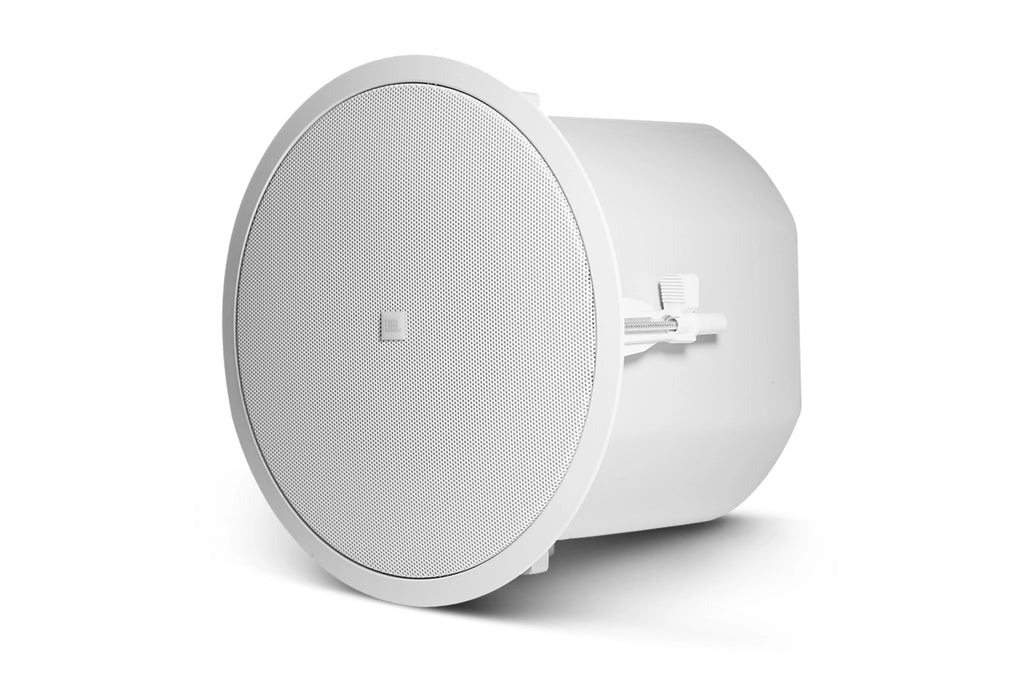

6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.
Features
- Consistent 120° broadband pattern control for exceptional coverage
- Coaxial design featuring: Kevlar-reinforced 165 mm (6.5 in) woofer 25 mm (1 in) compression driver
- Extraordinary clarity for speech and vocals with extended frequency response for music
- 150 Watts Power Handling
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- Integrated back can with clean, contemporary grille
Specifications
- Model: CONTROL 226C/T
- Frequency Range (-10dB): 47 Hz - 19 kHz
- Power Rating: IEC Long-Term System Power Rating: 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise (400 W peak), 100 hrs
- Transformer Taps: 68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass
- Sensitivity: 90 dB (1 kHz - 16 kHz)
- Coverage Angle: 120° conical, constant directivity
- Drivers: LF Driver: 165 mm (6.5 inch) HF Driver: compression driver, 25 mm (1 inch) coil
- Dimensions (H x Dia): Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in)
- Net Weight (each): 9.1 kg (20.0 lb)
- Shipping Weight (pair): 23.9 kg (52.5 lb)
- Maximum SPL (1m): 112 dB (low-impedance, 118 dB peak) 108 dB (top 70V/100V tap)
- Impedance: 8 ohms (in direct/bypass setting)

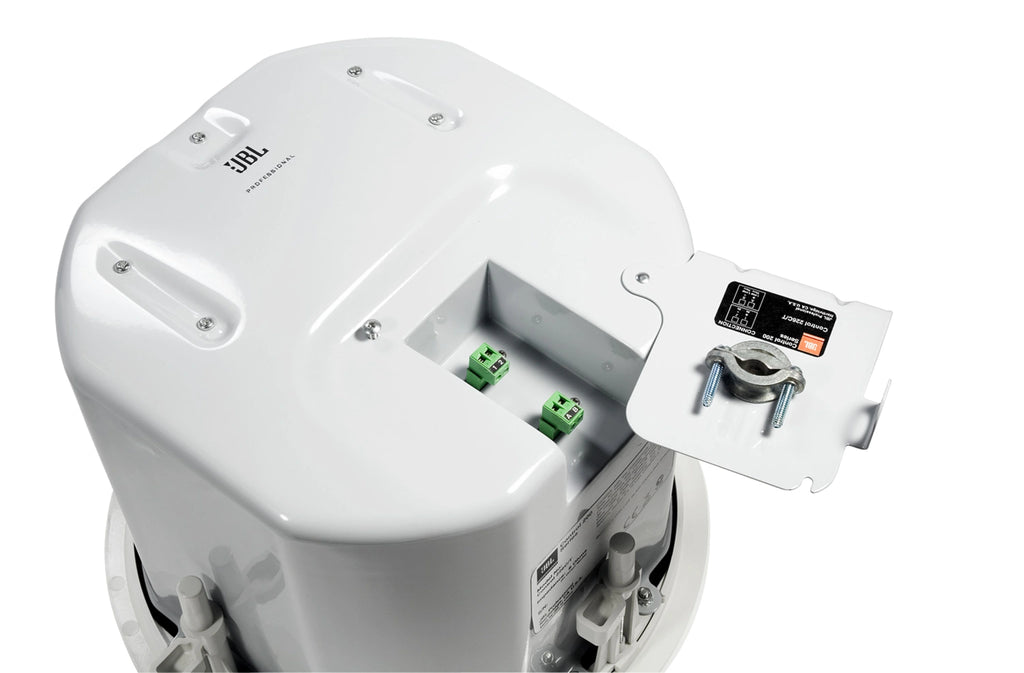

- Input Connectors: Removable locking connector with screw-down terminals.
- Color: White
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan: formed steel (included "blind-mount")
- Baffle/Rim: ABS baffle with UL94-V0 flame class fire rating.
- Ceiling Cutout Size: 307 mm (12.1 in) diameter (cardboard cutout template included)
- Included Accessories: Press-in Grille, C-Ring, Tile Rails.
- Optional Accessories: MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket
- Plenum Usage: Yes, backcan included
- Weight: 25 lb
- Dimensions (L x W x H): 15.5 x 7 x 8.5 in
- UPC: 50036905107
- Country of Origin: CN
