Description

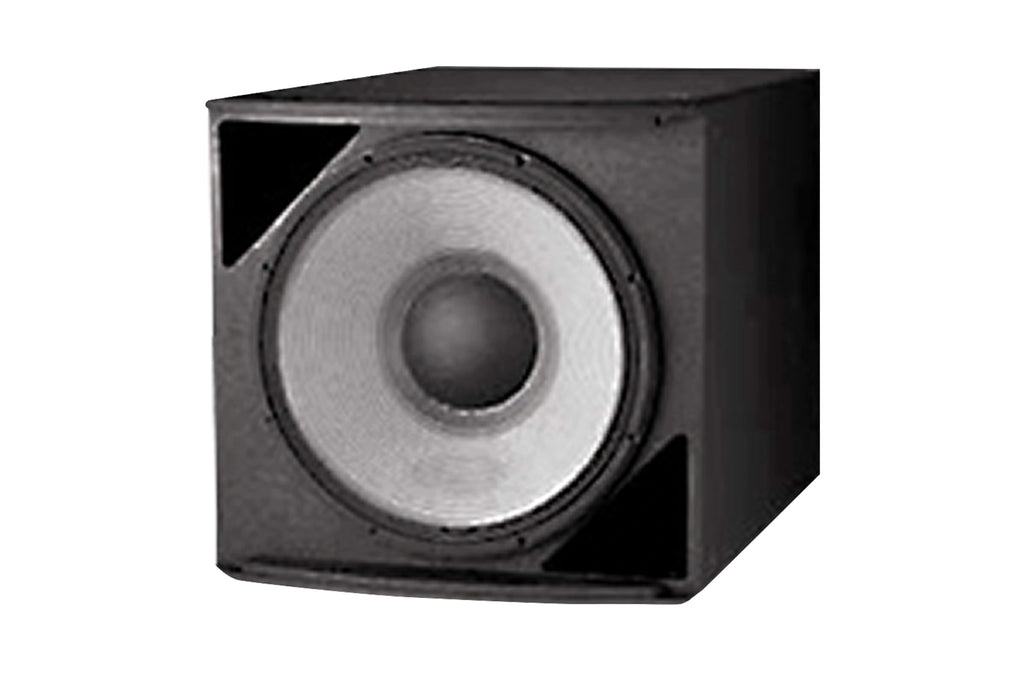

High Power 18-inch Subwoofer ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.
Features
- Large vent area for high output.
- FIR Tuning Set Matches Phase Profile to Full-Range Models
- For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
Specifications
- Model: ASB6118
- Frequency Range (-10dB): 28 Hz - 1 kHz
- Frequency Response (±3 dB): 35 Hz - 1 kHz
- Transducer Power Rating (AES): 1200 W (4800 W peak), 2 hrs
- System Power Rating: 800 W (3200 W peak), 100 hrs
- Maximum SPL (1m): 30 Hz - 100 Hz: 129 dB-SPL cont avg (135 dB peak)100 Hz - 500 Hz: 129 dB-SPL cont avg (135 dB peak)
- System Sensitivity (1w @ 1m): 30 Hz - 100 Hz: 98 dB100 Hz - 500 Hz: 98 dB
- Nominal Impedance: 8 ohms
- LF Driver: 1 x JBL 2242H 460 mm (18 in) SVG™ driver with 100 mm (4 in) voice coil
- Nominal LF Driver Impedance: 8 ohms
- Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
- Suspension Attachment: 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
- Environmental: Mil-Std 810; IP-x3 per IEC529.
- Net Weight (each): 98 lbs. (44.5 kgs)
- Weight: 108.4 lb
- Dimensions (L x W x H): 36 x 26 x 24 in
- UPC: 691991011702
- Country of Origin: MX
