JBL AC895-WH, 8" 2-way full-range system, White

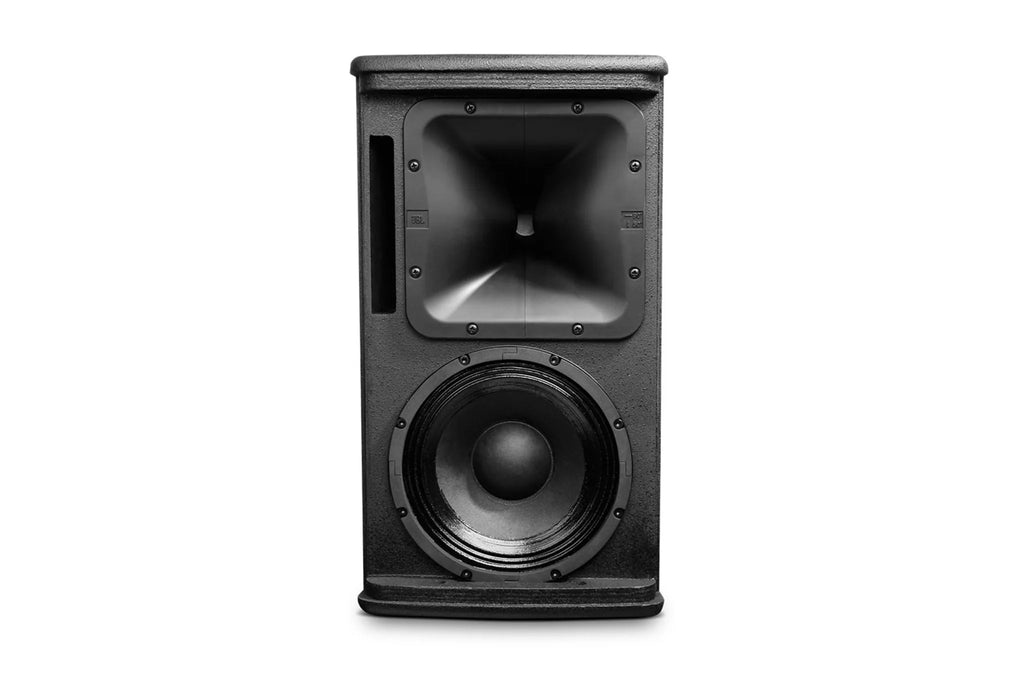

8-inch 2-Way Speaker with 90° x 50° Horn AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Features

• Compact enclosure
• 209 mm (8 in) LF transducer
• 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple Attachment Points for Ultimate Flexibility
• Performing Spaces
• Clubs & Bars
• Houses of Worship
• Multi Media Spaces
• Retail & Hospitality Spaces
• Presentation Suites
• Educational Facilities

Specifications

• Model: AC895-WH
• Frequency Range (-10dB): 70 Hz - 20 kHz
• Frequency Response (±3 dB): 90 Hz - 18 kHz
• System Sensitivity (1w @ 1m): 94 dB
• Nominal Impedance: 8 ohms
• Maximum SPL (1m): 116 dB (122 dB peak)
• System Power Rating: 250W (1000W peak), 2 hrs (AES rated) 150 W/300 W/600 W (Continuous/Program/Peak) (IEC rated)
• Coverage Pattern: 90° x 50° (H x V)
• Crossover: 2 kHz
• LF Driver: 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil
• HF Driver: 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure: 15 mm multi-ply hardwood plywood
• Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension Attachment: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
• Dimensions (H x W x D): 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in
• Net Weight (each): 10.2 kg (22.4 lbs)
• Crossover Modes: Passive
• Nominal LF Driver Impedance: 8 ohms
• Nominal HF Driver Impedance: 8 ohms
• Weight: 31 lb
• Dimensions (L x W x H): 12 x 13 x 22 in
• UPC: 691991004308
• Country of Origin: CN
