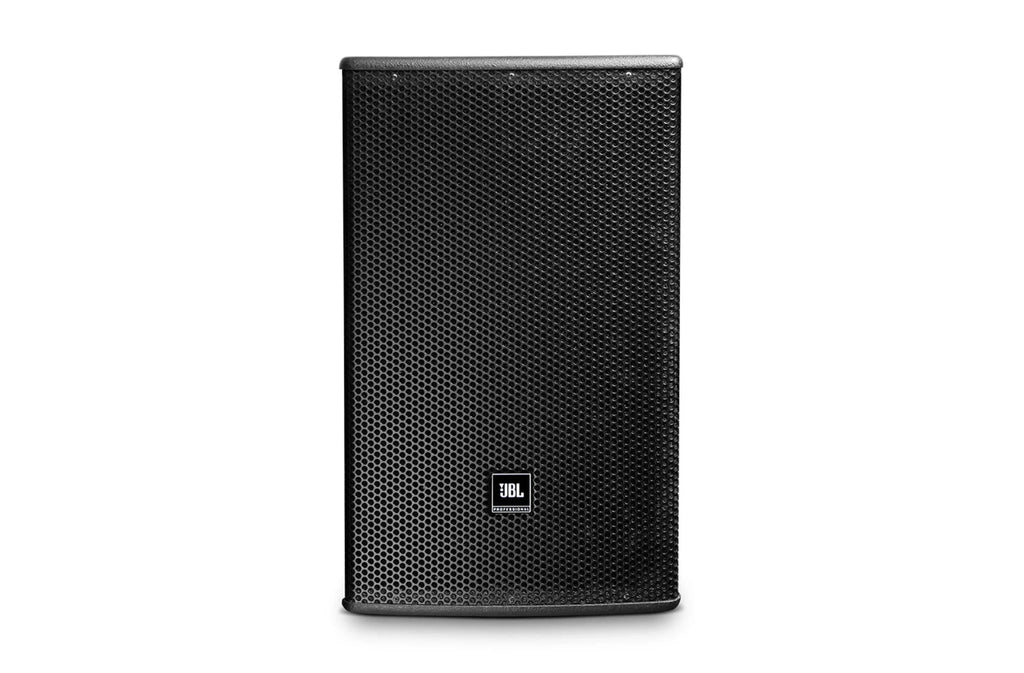

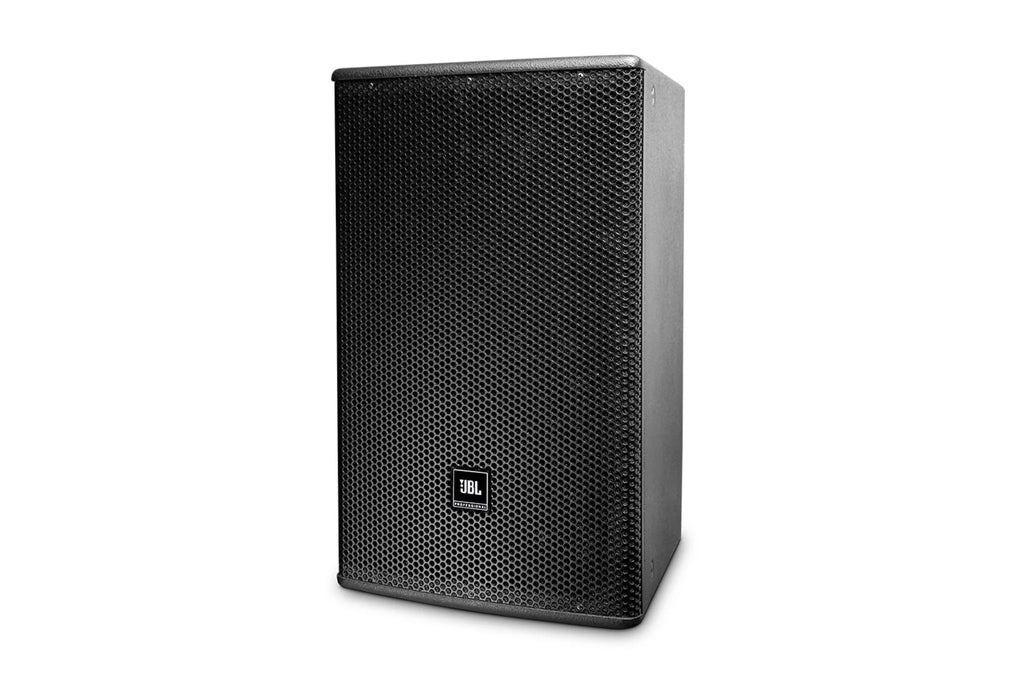

JBL AC266, 12" 2-way full-range system

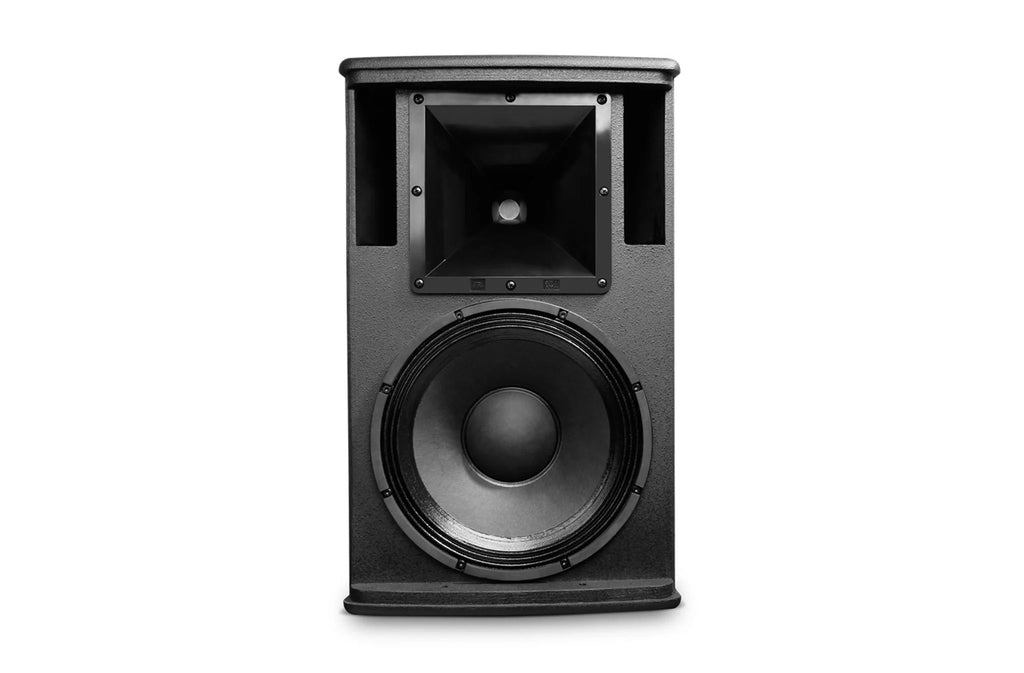

12-inch 2-Way Speaker with 60° x 60° Horn AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features

• Robust 15mm enclosure with black textured finish
• 310 mm (12 in) LF transducer
• 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple attachment points for ultimate flexibility
• Performing Spaces
• Clubs & Bars
• Houses of Worship
• Multi Media Spaces
• Retail & Hospitality Spaces
• Presentation Suites
• Educational Facilities

Specifications

• Model: AC266
• Frequency Range (-10dB): 63 Hz - 20 kHz
• Frequency Response (±3 dB): 80 Hz - 18 kHz
• System Sensitivity (1w @ 1m): 97 dB
• Nominal Impedance: 8 ohms
• Maximum SPL (1m): 121 dB (127 dB peak)
• System Power Rating: 350W (1400W peak), 2 hrs (AES rated) 250 W/500 W/1000 W (Continuous/Program/Peak) (IEC rated)
• Coverage Pattern: 60° x 60° (H x V)
• Crossover: 1.5 kHz
• LF Driver: 1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
• HF Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure: 15 mm multi-ply hardwood plywood
• Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.

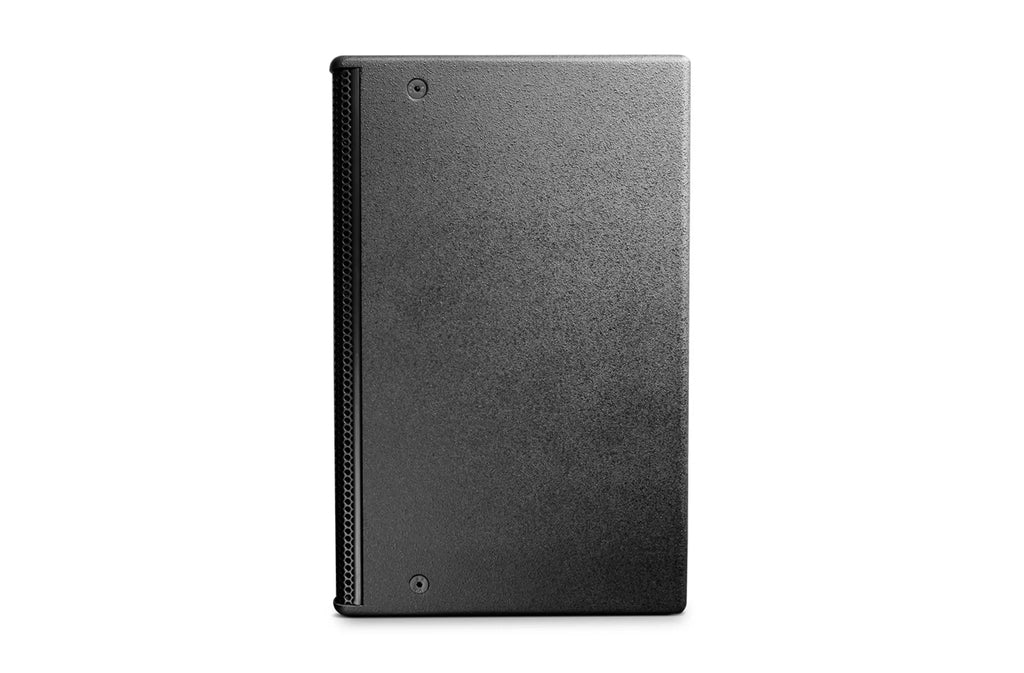

• Suspension / Mounting: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
• Dimensions (H x W x D): 600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in
• Net Weight: 17.4 kg (38.3lbs)
• Crossover Modes: Passive
• Nominal LF Driver Impedance: 8 ohms
• Nominal HF Driver Impedance: 8 ohms
• UPC: 691991001277
• Country of Origin: CN
