Description

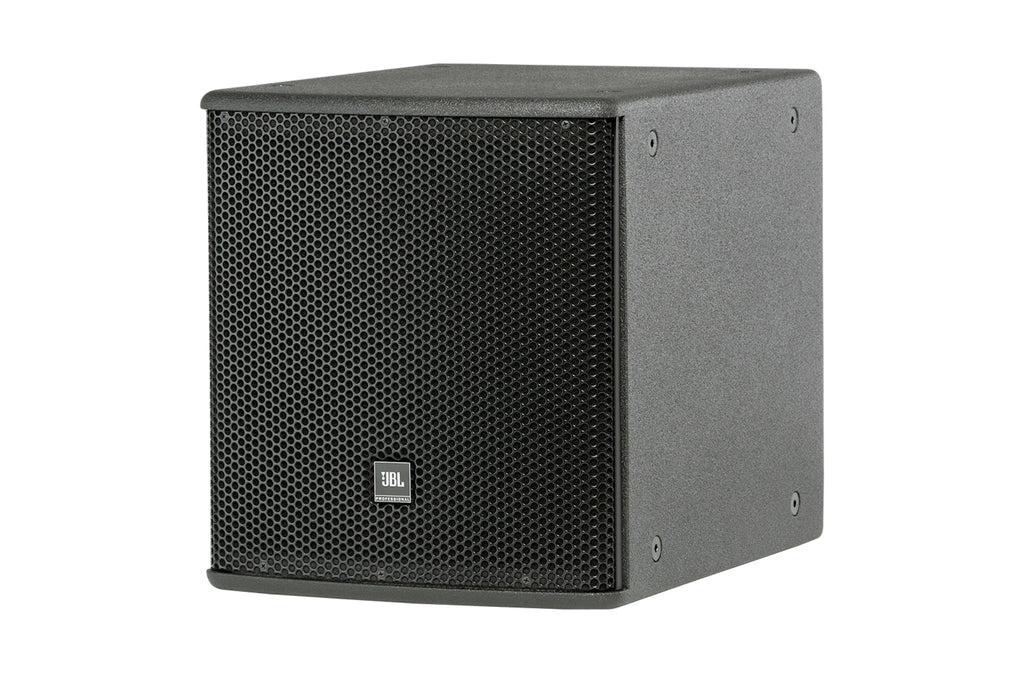

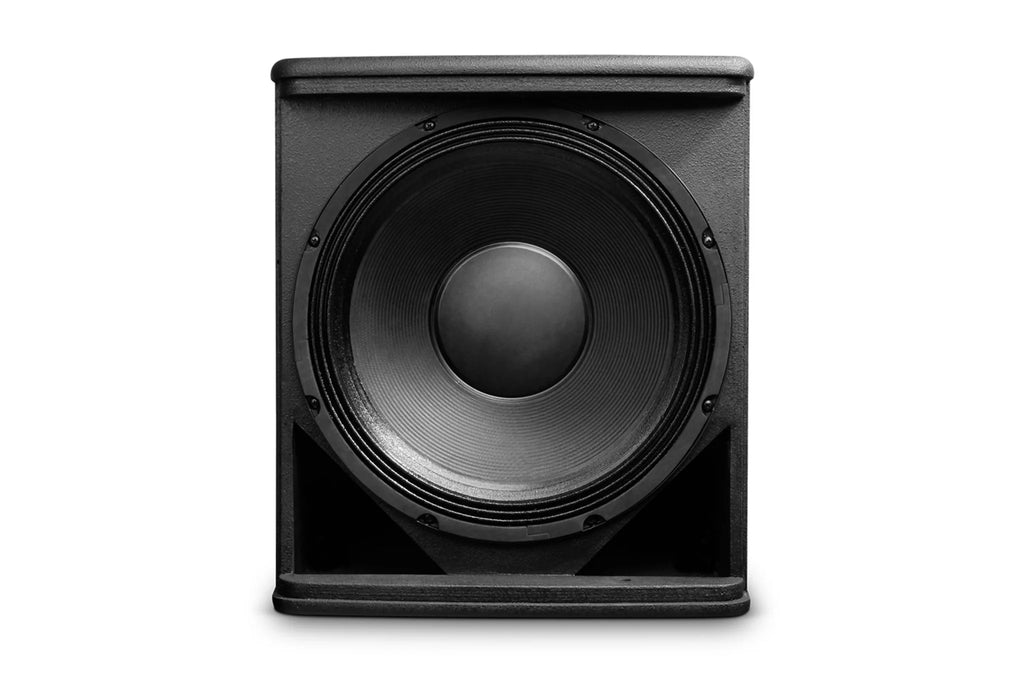

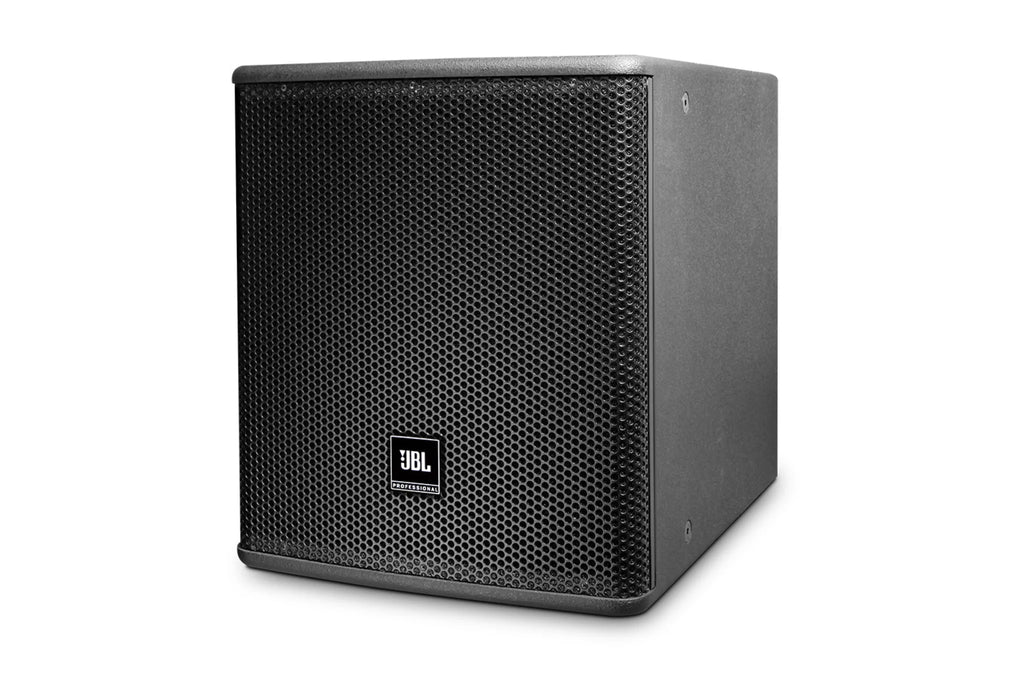

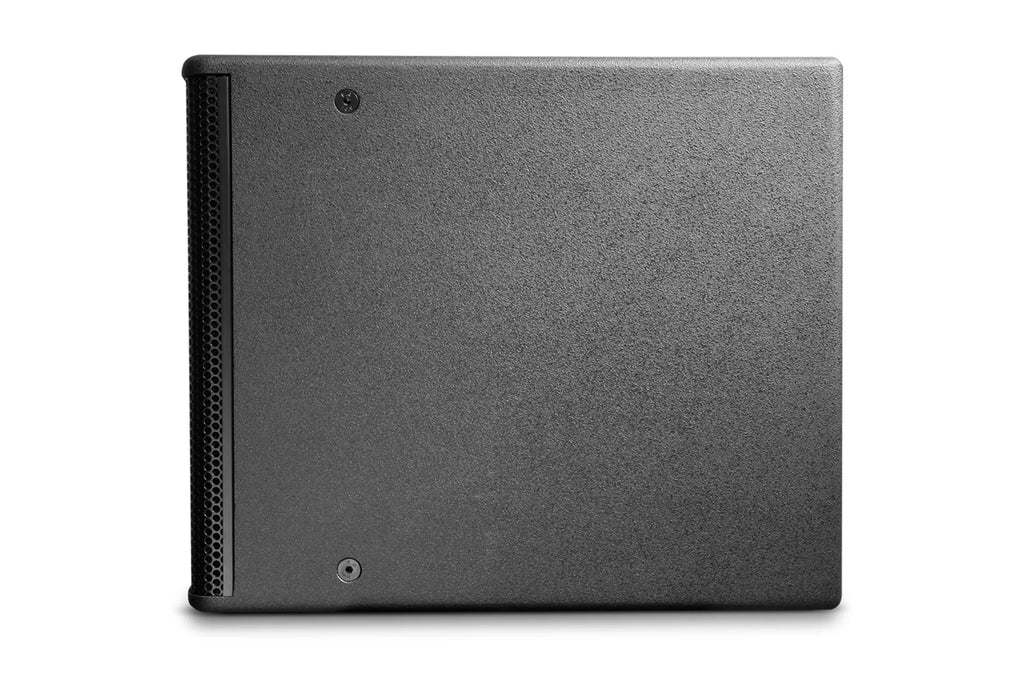

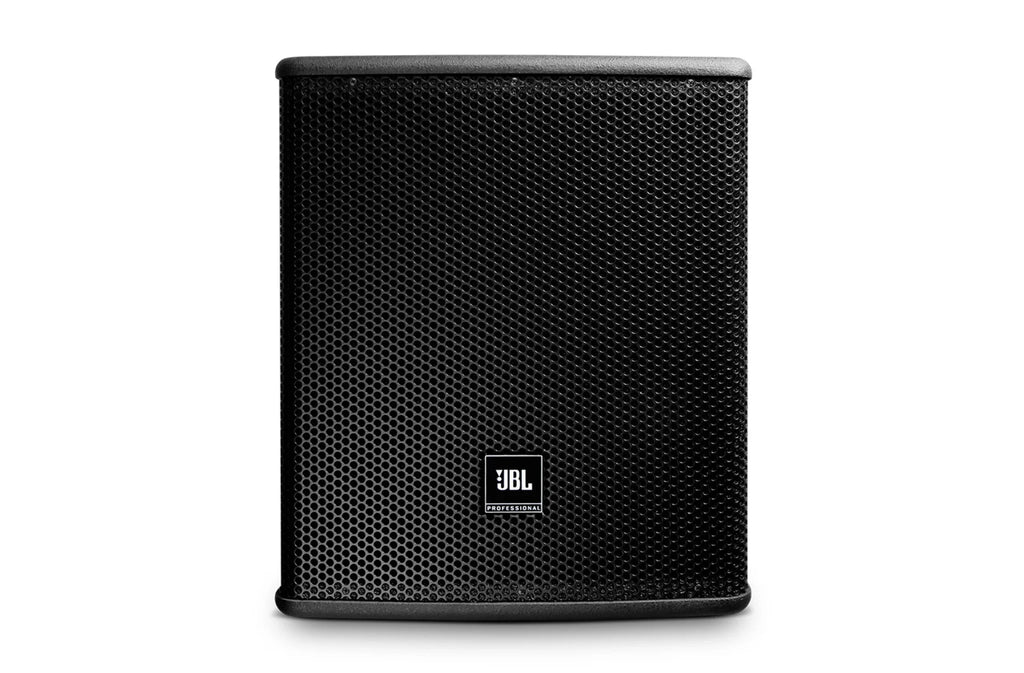

15-inch Subwoofer AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility. As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.
Features
- High power and long excursion driver for lower frequency reproduction
- High sensitivity with lower power compression
- Large port for high output and low-frequency reinforcement
- Multiple Attachment Points for Ultimate Flexibility
- Robust 18 mm multiply hardwood with textured black finish
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
Specifications
- Model: AC115S-WH
- Frequency Range (-10dB): 32 Hz - 250 Hz
- Frequency Response (±3 dB): 40 Hz - 250 Hz
- System Sensitivity (1w @ 1m): 94 dB
- Nominal Impedance: 8 ohms
- Maximum SPL (1m): 120 dB (126 dB peak)
- System Power Rating: 500W (2000W peak), 2 hrs (AES rated) 400 W/800 W/1600 W (Continuous/Program/Peak) (IEC rated)
- LF Driver: 1 x 15″ woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil
- Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
- Enclosure: 18 mm multi-ply hardwood plywood
- Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
- Suspension Attachment: 12 x M10 threaded suspension points
- Dimensions (H x W x D): 483 mm x 419 mm x 600 mm19 in x 16.5 in x 23.6 in
- Net Weight (each): 24 kg (52.9 lbs)
- Nominal LF Driver Impedance: 8 ohms
- Weight: 62 lb
- Dimensions (L x W x H): 19 x 26 x 22 in
- UPC: 691991005022
- Country of Origin: CN
