Blackmagic Intensity Pro 4K, Incredible quality PCI Express capture and playback in SD, HD and Ultra HD for HDMI, YUV, S-Video and NTSC/PAL devices!

Incredible quality PCI Express capture and playback in SD, HD and Ultra HD for HDMI, YUV, S-Video and NTSC/PAL devices!

Incredible quality capture and playback in SD, HD and Ultra HD for your HDMI, YUV, S-Video and NTSC/PAL devices!

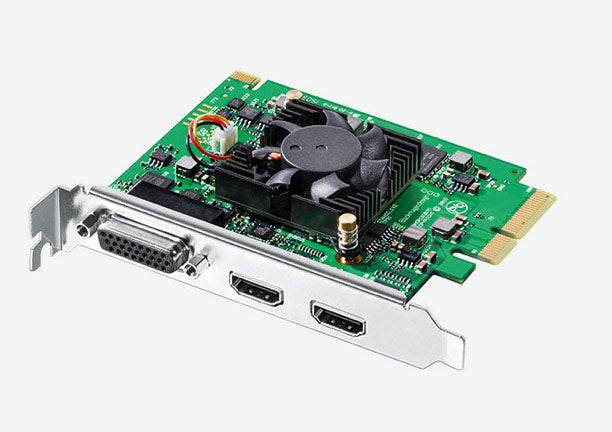

Introducing the new Intensity Pro 4K, the easiest and highest quality way to capture video on your computer! Intensity Pro 4K has all the same great features of the original Intensity Pro capture card but now you also get Ultra HD and 1080p60 high frame rate support! Now you can capture Ultra HD images at up to 30 frames per second or 1080HD at an incredible 60 frames per second! You can save files with or without compression and use it with the most popular Mac and Windows video software. Intensity Pro 4K also includes DaVinci Resolve so you get a full capture and playback solution along with professional video editing and color grading, without having to buy any extra software!

Connect and Capture from Anything Edit and stream video, capture gameplay or convert old tapes! Whether you're editing video and you need a realtime preview on a big screen TV, if you're a hardcore gamer creating high frame rate walk throughs of your latest gameplay, or you're trying to save family videos from old VHS tapes, Intensity Pro 4K has all the video connections and features you need! Intensity Pro 4K includes both analog and digital connections that let you easily plug in everything from older VHS decks to the latest big screen 4K televisions! You can even connect your cameras and use Intensity Pro 4K for live streaming, video conferencing, presentations and more!

Connect to all of your SD, HD and Ultra HD devices!

Intensity Pro 4K features the highest quality HDMI and analog connections so you always get the best looking video possible. Intensity Pro 4K includes HDMI connectors for working with the latest HD and Ultra HD equipment, as well as analog YUV, S-Video, and NTSC/PAL connections for working with older analog televisions, videotape players and more. That means Intensity Pro 4K works with everything from your old VHS decks and DVD players all the way up to the latest gaming consoles and big screen Ultra HD televisions!

SD, HD and Ultra HD Supports video formats up to 1080p60 and 2160p30! Intensity Pro 4K works with everything from NTSC, PAL, 720HD, 1080HD and all the way up to Ultra HD, the world's newest video standard. Ultra HD has a massive resolution of 3840 x 2160 pixels which is four times the resolution of regular 1080HD! That means you get an amazing, lifelike experience because the images are incredibly sharp, colors literally pop off the screen and you'll be able to see more detail than ever! With Intensity Pro 4K you can capture full 10-bit quality YUV video and deep color from the latest game consoles!

Specifications

Connections

• HDMI Video Inputs: 1 x HDMI type A connector.
• HDMI Video Outputs: 1 x HDMI type A connector.
• HDMI Audio Inputs: 8 Channels embedded in SD, HD and Ultra HD.
• HDMI Audio Outputs: 8 Channels embedded in SD, HD and Ultra HD.
• Analog Video Inputs: Component, Composite or S-Video.
• Analog Video Outputs: Component, Composite or S-Video.
• Analog Audio Inputs: 2 Channel RCA HiFi audio in 24-bit.
• Analog Audio Outputs: 2 Channel RCA HiFi audio in 24-bit.
• Multiple Rate Support: HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.
• Computer Interface: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots.

Software

• Software Included: DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
• Physical Installation: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
• Color Space: REC 601, REC 709.
• HDMI Video Sampling: 4:4:4, 4:2:2 & 4:2:0.
• HDMI Color Precision: 8, 10-bit (Deep Color) RGB 4:4:4 in all modes up to 1080p60, 8, 10-bit YUV 4:2:2 in all modes.
• HDMI Configuration: HDMI 1.4b supports Deep Color and automatically configures to connected display.
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Physical

• Weight: 0.78 lb
