Description
Avante Audio's Imperio mini line array system is a great fit for small to mid-size venues. If more bass is required, the Imperio Sub 210 is the perfect fit.
Avante Audio's Imperio mini line array system is a great solution for small to mid-sized venues and can be expanded by adding additional Imperio units as your needs require. The Imperio system consist of the Imperio mid/high unit which features dual 4.75" woofers and 6 inverted dome tweeters (IDVAT - Inverted Dome Vertical Array Technology) HF drivers, a 240 watt RMS class D power amplifier, and 24 bit DSP, the Imperio sub which has a 10" woofer along with a 350 watt RMS class D power amplifier and for when more bass is required, we recommend the Imperio SUB210 which features dual 10" woofers with 700 watts RMS (2 x 350 watt RMS, 2100 watt peak) class D power amplifier
Imperio accessories include: Imperio Flybar Lg (IMP265), Imperio Flybar Sm (IFB205), Imperio Pole w/mounting bracket (IMP194), Link Pin Kit (IMP340)
Specifications

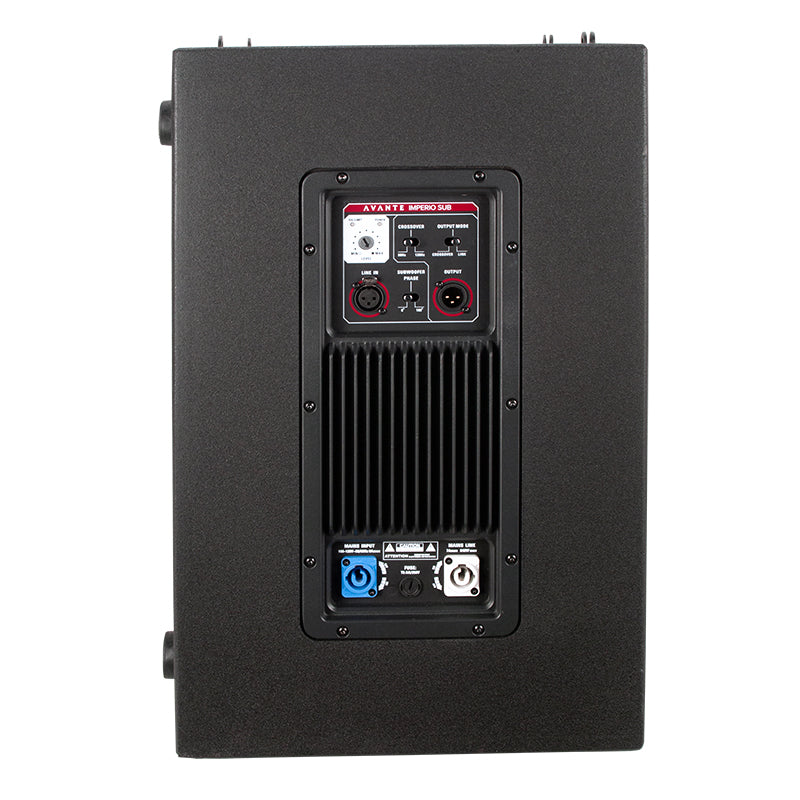

AMPLIFIER
Power (RMS): 700W, 1400W Peak
100-120V / 220-240V ~ 50/60Hz (country specific)
LED Power / Signal / Clip Indicator
Input: 1x 3pin XLR and Locking Power Connector
Output: 1x 3pin XLR and Locking Power Connector
Phase Switchable (0 / 180)
Internal Selectable X-Over 90Hz or 120Hz)
Volume Control Dial
DRIVER
Driver: Two 10" woofers with 2.5" Voice Coils
selectable crossover point: optional 90Hz/120Hz
Max SPL: 124dB
Flyable with optional flybar
Inputs: 1 XLR
Outputs: 1 XLR
6th Order Bandpass Design
(2) M20 Screw Pole Mount (Can be used vertically or horizontally)
Grill: 1.2mm steel
Cabinet: plywood
DIMENSIONS / WEIGHT
Dimensions (LxHxW): 26.4" x 14.25" x 22.6" / 670x362x575mm
Weight: 76 lbs. / 34.5kg.
APPROVALS
ETL Approved
