Description

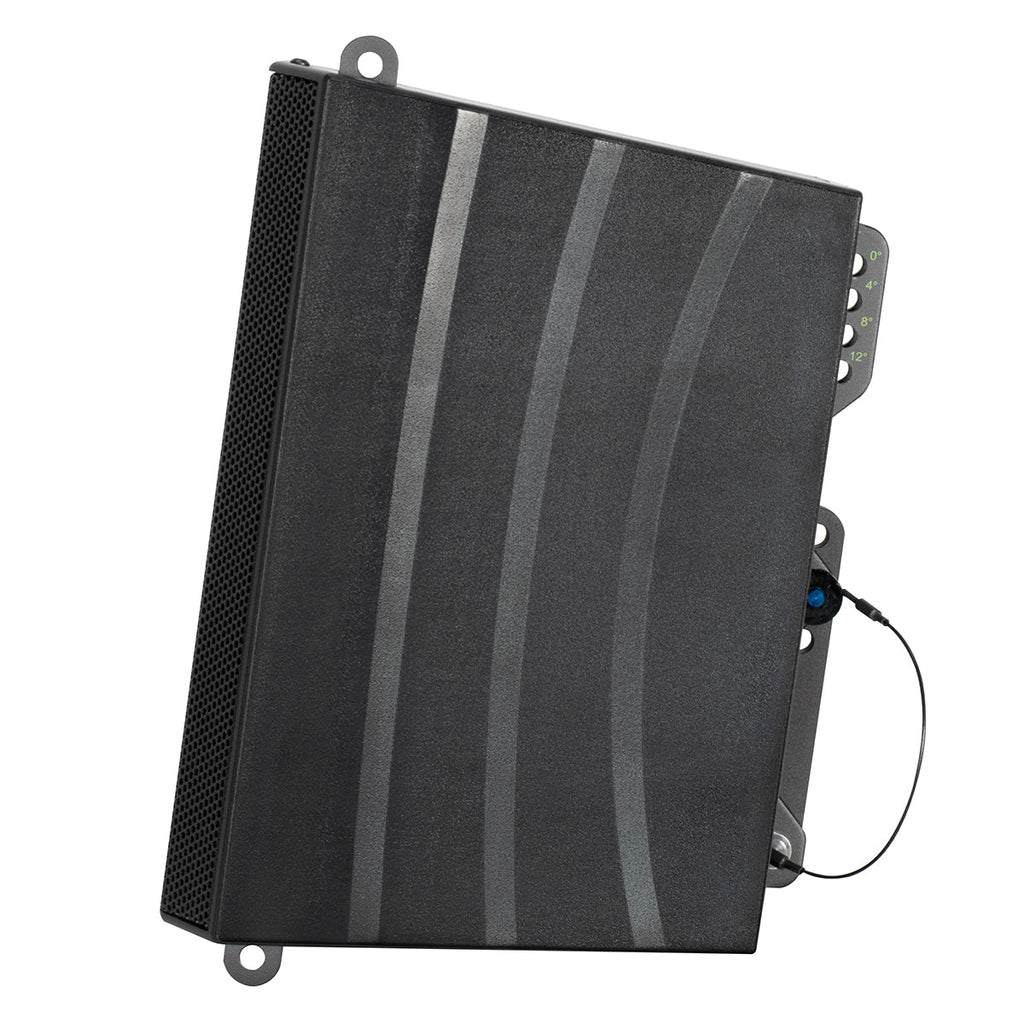

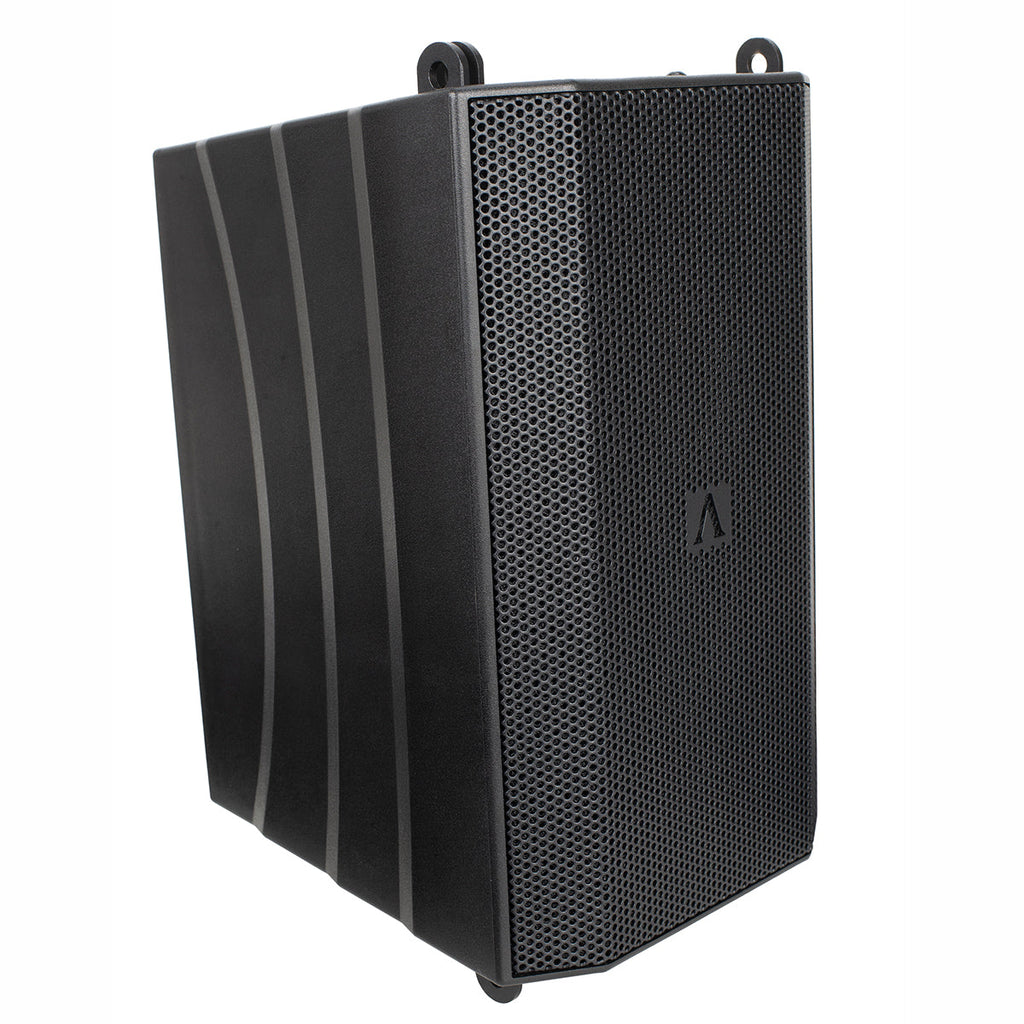

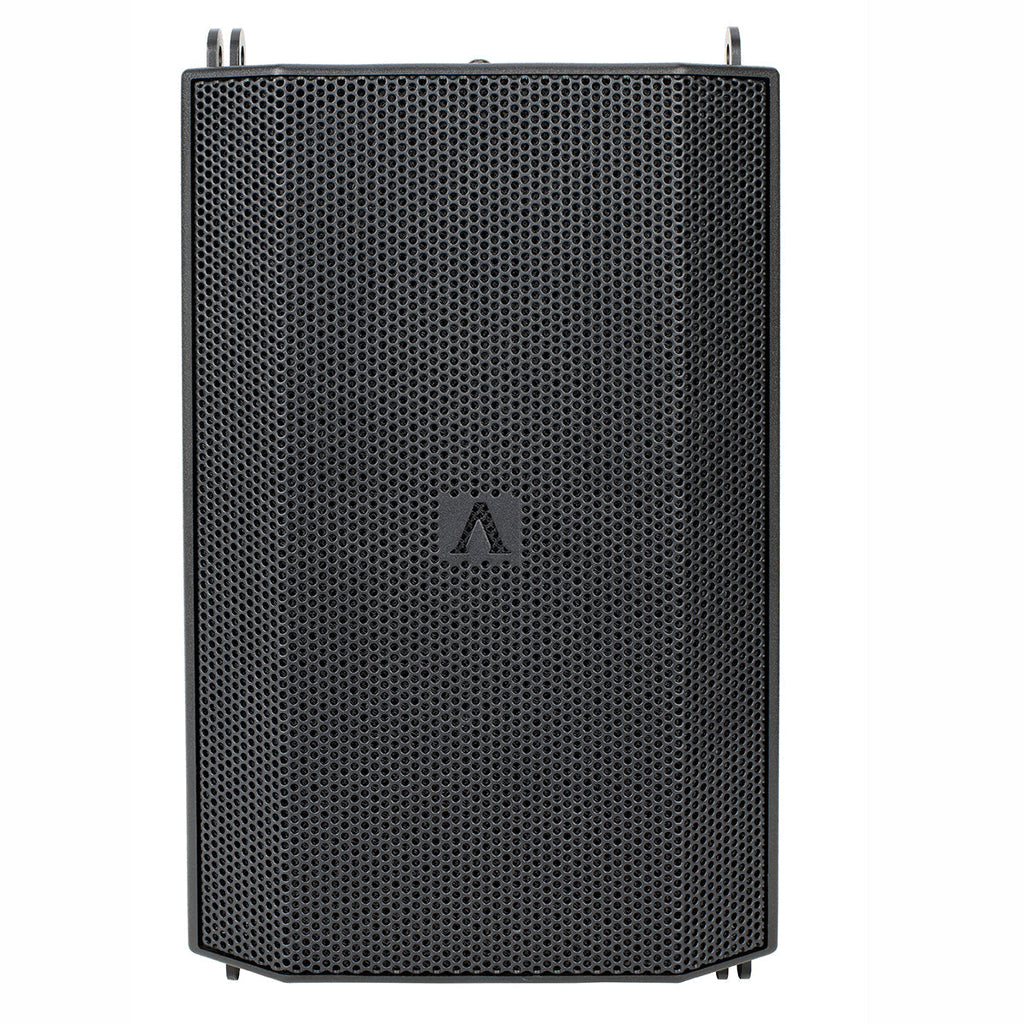

The Imperio Pro Series builds on the success of Avante Audio's original Imperio Series. Designed for very fast deployment and versatility, the Imperio Pro IMP205 is a light-weight compact, high output active line array system fully equipped with neodymium components: Dual 5-inch Low-Mid transducers and Six 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology). Each array module of IMP205 is driven by 440W RMS (880W Peak) Class-D Power Amplifier with PFC Switching power supply.
Imperio Pro IMP205 features include: 32-bit DSP with advanced FIR digital filter technology. Controls include selectable DSP and input sensitivity. Rigging offers seven Splay Angles: 0, 2, 4, 6, 8,10, & 12-degrees. The Imperio Pro IMP205 cabinets can also be configured as a flown array with the sub on top or ground stacked on subs.
Imperio Pro accessories include: Imperio Pro IFB205 Flybar (IFB205), Imperio Pro NEW Flybar (IFB205), Imperio Flybar LG (IMP265), Imperio Pole (IMP194) and Link-pin 2 (IMP340), Imperio Pro T-Adapter (IMP224), Imperio QRC Road case (IMP670) Imperio Pro Ground Stack mount and base (IGS205).
Call Sales Rep for more information.
Specifications

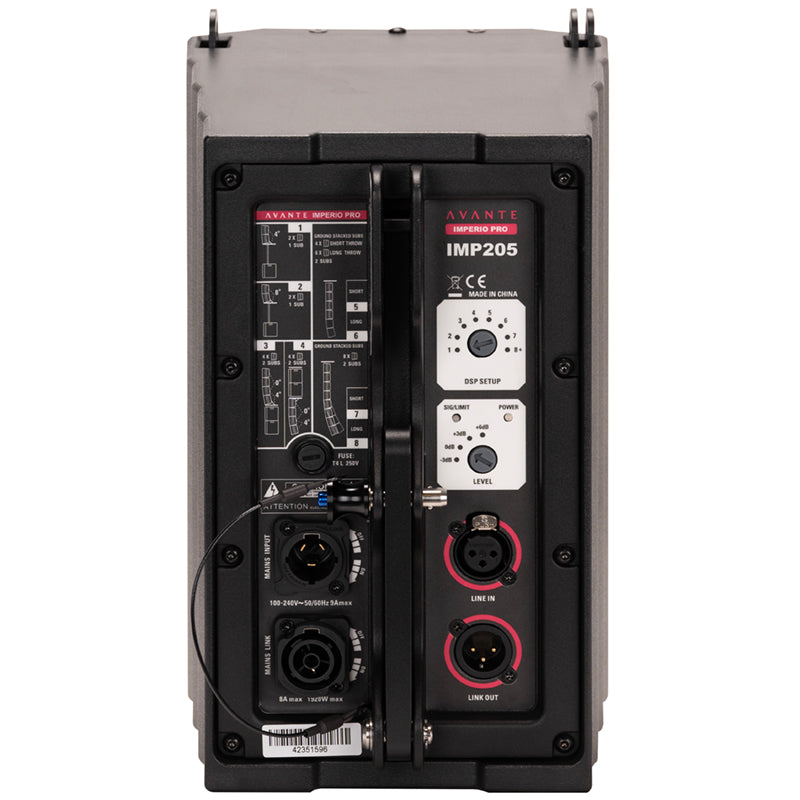

AMPLIFIER
440W RMS, 1700W Peak Class D Amplifier Module
Switching Power Design
LED Power / Signal / Clip Indicator
32-bit DSP with FIR digital filters
Selectable System Configurations
Input: 1x XLR and IP Locking Power Connector
Output: 1x XLR and IP Locking Power Connector
Gain: Selectable Input Sensitivity
Power Input: 100-240V ~ 50/60Hz
Power Linking
SUB210 @ 120V: up to 2 units
IMP118 @ 120V: up to 2 units
IMP118 @ 208: up to 4 units
SPEAKER
2x 5.0" Neodymium Low-Mid transducers.
6x 1.75" IDVAT HF Neodymium drivers (Inverted Dome Vertical Array Technology)
Type: 2-Way Active Closed Design
Frequency Response: 100Hz - 20KHz
Max Output SPL: 128dB (single box measured on Axis @1m)
Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
Cabinet: ABS Plastic
Grille: Powder coated Steel

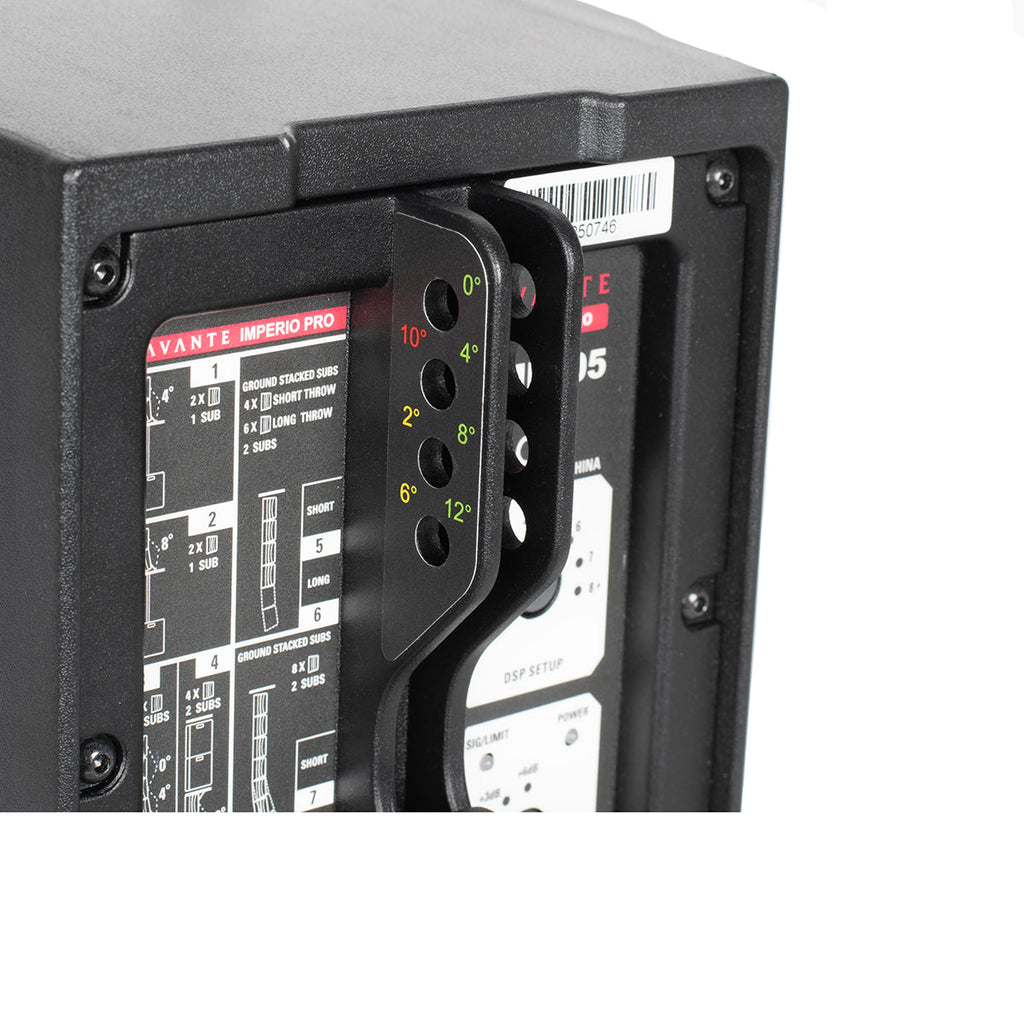

Splay Angles: 0, 2, 4, 6, 8,10, 12-degrees
Integrated Rigging: Yes
Horizontal Dispersion Angle: 100⁰
Power Linking
120V, low demand (e.g. talking heads): up to 8 units
120V, high demand(e.g. rock, EDM) up to 4 units
208V, low demand: up to 16 units
208V, high demand: up to 8 units
Dimensions (LxWxH) 8.8" x 7.3" x 12.8" / 224mm x 185mm x 324mm
Weight: 12.5 lbs. / 5.6 kg.
INCLUDED ITEMS
(1) IMP205 line-source speaker
(1) IP Locking power link cable
(1) Link-pin set
(1) XLR link cable
(1) User Manual
Main power cord not included.
