Blackmagic HyperDeck Shuttle 4K Pro, Advanced HyperDeck with large 7" LCD, mechanical transport controls and search dial

Advanced HyperDeck with large 7" LCD, mechanical transport controls and search dial. Supports 12G-SDI, HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT and network recording.

The desktop HyperDeck that's the perfect live production clip player!

HyperDeck Shuttle is a recorder and player that's designed to be used on the desktop! It's more than a master recorder, as it's also a clip player. The large search dial lets you quickly scroll through media to find the clip you want. Depending on the model, you get support for ProRes, DNx, H.264 and H.265 files in NTSC, PAL, 720p, 1080p, and 2160p video standards. It even has a built in teleprompter! There are models with 12G-SDI and HDMI so you can connect to switchers and cameras. Plus it records to SD cards, UHS-II cards or USB-C disks. The HyperDeck Shuttle 4K Pro model has 10G Ethernet and internal M.2 storage, so it can share media on your local network or record to network storage.

HyperDeck Shuttle HD Desktop recorder features a large search dial for easy clip searching and playback. It's the perfect media player for ATEM Mini! Supports H.264, ProRes or DNxHD files on SD/UHS-II cards or USB disks.

Powerful touchscreen model records to H.265, ProRes and DNx in all SD, HD and Ultra HD standards up to 2160p60. Includes 10G Ethernet, scopes, internal network storage, 12G-SDI and HDMI connections.

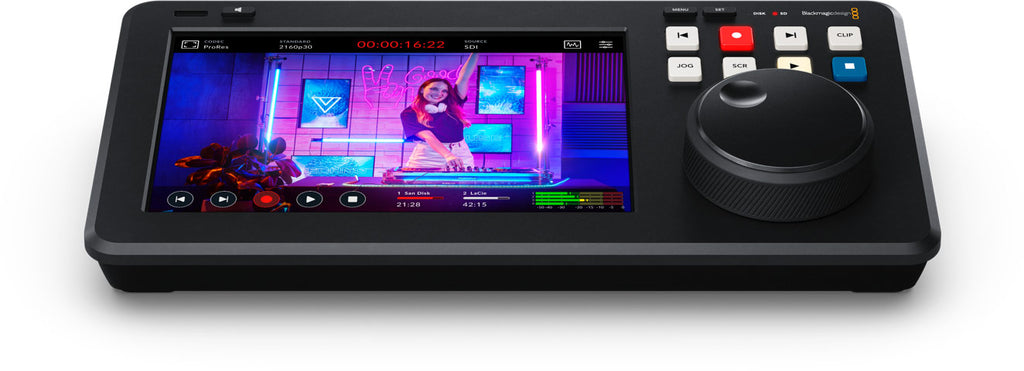

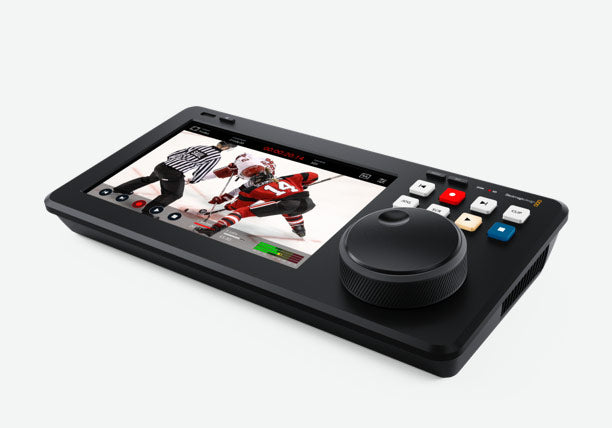

HyperDeck Shuttle is perfectly designed for the desktop. This means the front panel can be operated with a single hand! The gentle angle allows your hand to rest on the search dial, and the control buttons are positioned under your fingertips. Scrolling media is fast as the machined metal search dial has a natural inertia, and the soft rubber surface feels nice to the touch. That's perfect when you're searching through lots of media. The HyperDeck Shuttle 4K Pro model boasts a large 7-inch LCD screen for live monitoring, complete with a "heads up display" overlay. Plus, it features full menus with all the deck settings! The rear panel includes all video, audio and network connections.

Record true broadcast masters in high quality ProRes, H.264, H.265 and DNx files. You can also select between PCM or AAC audio. That's perfect for higher quality mastering when used with ATEM Mini switchers. You get everything needed to send shows to broadcasters and upload them to YouTube.

Specifications

Connections

• SDI Video Inputs: 1
• SDI Loop Outputs: 1
• SDI Video Outputs: 2
• SDI Monitor Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• HDMI Monitor Outputs: 1
• Built in Speaker: Mono
• Audio Output: 1 x 6.35 mm headphone jack
• Screen: 7 inch LCD.
• Reference Input: 1 x BNC In, Tri-Sync/Black Burst and Timecode.
• Reference Output: 1 x BNC Out. Tri-Sync or Black Burst.
• SDI Audio Inputs: 64 channels embedded audio.
• SDI Audio Outputs: 64 channels embedded audio.
• HDMI Audio Inputs: 8 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Remote Control: 1 x RS-422 In.
• Recorder Configuration: Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol.
• Ethernet: 1 x 10Gb/s RJ-45 connector supporting 1000/10G BASE-T.
• External Recording: 1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording.
• Computer Interface: 1 x USB-C for software updates.

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1.
• SDI Metadata Support: Television standard 24-bit, 48 kHz sample rate.
• Supported HDMI Formats: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
• Audio Sampling: Television standard 24-bit, 48 kHz sample rate.
• Video Sampling: 4:2:2 YUV
• Color Precision: REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out.
• HDR Support: Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
• Multi Rate Support: Auto detection of SD, HD, 6G-SDI and 12G-SDI.
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

• Cache Recording: Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. Slot supports 60mm 80mm and 110mm cards.
• Media: 1 x SD card slot 1 x USB-C 3.1 Gen 1 expansion port for external recording of SD, HD, Ultra HD and 4K DCI.
• Media Type: UHS-I and UHS-II SD cards.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

• Video Codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2160p formats up to 60fps. H.265 High 4:2:0 10-bit, H.265 Medium 4:2:0 10-bit, H.265 Low 4:2:0 10-bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10-bit, H.264 High 4:2:0 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all formats up to 1080p60.
• Audio Codecs: AAC 2 Channels. PCM 2, 4, 8, 16, 32 or 64 Channels.

Scopes

• Scopes: Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit .
• Viewing Modes: Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.

Control

• Built in Control Panel: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. 11 buttons for transport and device control with search dial
• External Control: 11 buttons for transport and device control with search dial.

Teleprompter

• Multi Rate Support: Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
• Supported File Formats: Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)

Software

• Software Included: Blackmagic OS Blackmagic HyperDeck Setup
• Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.

Power Requirements

• Power Supply: 1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
• Power Usage: 60 W max.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32°to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 4.45 lb
