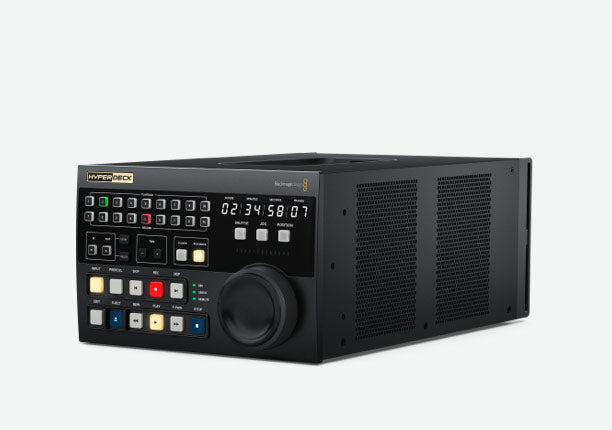

Blackmagic HyperDeck Extreme Control, HyperDeck Extreme Control adds traditional broadcast deck controls to HyperDeck Extreme 8K

HyperDeck Extreme Control adds traditional broadcast deck controls to HyperDeck Extreme 8K. It works like a traditional broadcast deck with a familiar layout. Control up to 8 decks via industry standard RS-422 control.

Introducing HyperDeck Extreme HyperDeck Extreme features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs and HDR support! With the ability to record up to native 8K in H.265, you get reduced storage costs and amazing image quality. The large touch screen ensures a perfect view of your recording as well as control over all deck settings. You can then add HyperDeck Extreme Control to transform it into a traditional broadcast deck! This means HyperDeck Extreme is the perfect solution for the next generation of broadcast, live production and digital signage!

HyperDeck Extreme 4K HDR Powerful Ultra HD touchscreen HyperDeck records and plays H.265 and ProRes files in all SD, HD and Ultra HD standards up to 2160p60. Includes scopes, upgradable cache plus SDI, HDMI and analog video.

Advanced 8K model includes all the features of the 4K model, plus adds 8K 4320p60 recording and playback in H.265 and ProRes files. Includes touchscreen, scopes, user cache, and Quad Link 12G SDI.

HyperDeck Extreme has an innovative touch screen user interface with deck controls as well as a large screen to view your recording. Then add a HyperDeck Extreme Control for traditional broadcast deck controls and a large shuttle knob that feels incredibly luxurious to use! You can even rack mount the HyperDeck and the controller! HyperDeck Extreme also includes 2 media slots, 12G-SDI, analog connections for archiving, USB-C external disk recording, plus a front panel speaker and headphone jack! There's also an optional cache that eliminates dropped frames if your media becomes full or is too slow. Both AC and DC power connections are also included for studio or on location use.

Touch Screen User Interface

Perfect for Live Production, Digital Signage and Archive With its amazing versatility, HyperDeck Extreme is also great for live production as a master recorder, clip player and for recording ISO cameras. The analog inputs allow you to record from old video tapes, so legacy programming can be used on the latest streaming services or for use in editing. Digital signage is easy with HyperDeck Extreme as it has 10G Ethernet for fast media uploads, plus it features a simple remote control protocol. You can even use it as a field recorder as it includes HDMI, SDI and analog inputs with built in scopes and 3D LUTs! The scopes also help you QA masters to ensure compliance with broadcast standards before streaming and broadcast!

Specifications

Connections

• Deck Control Outputs: 8 x RS-422
• Reference Input: Tri-Sync or Black Burst.
• Reference Output: Follows reference input.
• Ethernet: 1Gb/s
• Computer Interface: 1 x USB-C for software updates.

Supported Protocols

• Control Protocols: Sony

Software

• Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.

Power Requirements

• Power Supply: 1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.
• Power Usage: 20W max.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32°to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 8.05 lb
