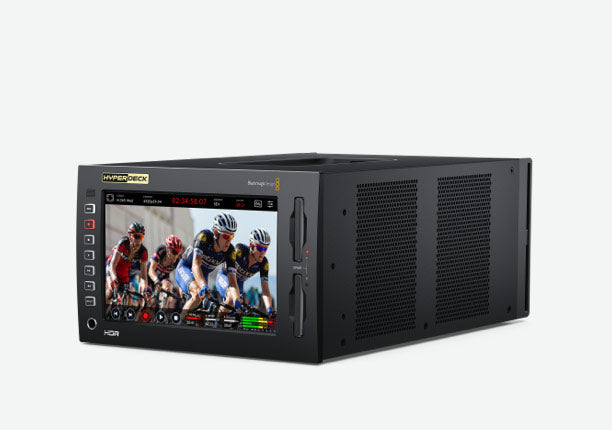

Blackmagic HyperDeck Extreme 8K HDR, Advanced 8K model includes all the features of the 4K model, plus adds 8K recording and playback up to 4320p60 in H.265 and ProRes formats

Advanced 8K model includes all the features of the 4K model, plus adds 8K recording and playback up to 4320p60 in H.265 and ProRes formats. Includes HDR touchscreen, scopes and quad link 12G-SDI.

Introducing HyperDeck Extreme HyperDeck Extreme features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs and HDR support! With the ability to record up to native 8K in H.265, you get reduced storage costs and amazing image quality. The large touch screen ensures a perfect view of your recording as well as control over all deck settings. You can then add HyperDeck Extreme Control to transform it into a traditional broadcast deck! This means HyperDeck Extreme is the perfect solution for the next generation of broadcast, live production and digital signage!

HyperDeck Extreme 4K HDR Powerful Ultra HD touchscreen HyperDeck records and plays H.265 and ProRes files in all SD, HD and Ultra HD standards up to 2160p60. Includes scopes, upgradable cache plus SDI, HDMI and analog video.

Advanced 8K model includes all the features of the 4K model, plus adds 8K 4320p60 recording and playback in H.265 and ProRes files. Includes touchscreen, scopes, user cache, and Quad Link 12G SDI.

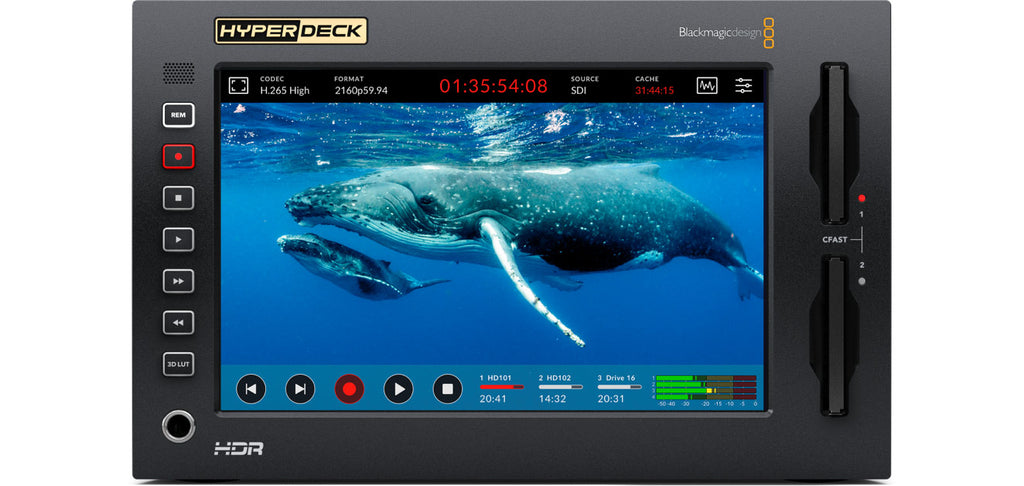

HyperDeck Extreme has an innovative touch screen user interface with deck controls as well as a large screen to view your recording. Then add a HyperDeck Extreme Control for traditional broadcast deck controls and a large shuttle knob that feels incredibly luxurious to use! You can even rack mount the HyperDeck and the controller! HyperDeck Extreme also includes 2 media slots, 12G-SDI, analog connections for archiving, USB-C external disk recording, plus a front panel speaker and headphone jack! There's also an optional cache that eliminates dropped frames if your media becomes full or is too slow. Both AC and DC power connections are also included for studio or on location use.

Touch Screen User Interface

Perfect for Live Production, Digital Signage and Archive With its amazing versatility, HyperDeck Extreme is also great for live production as a master recorder, clip player and for recording ISO cameras. The analog inputs allow you to record from old video tapes, so legacy programming can be used on the latest streaming services or for use in editing. Digital signage is easy with HyperDeck Extreme as it has 10G Ethernet for fast media uploads, plus it features a simple remote control protocol. You can even use it as a field recorder as it includes HDMI, SDI and analog inputs with built in scopes and 3D LUTs! The scopes also help you QA masters to ensure compliance with broadcast standards before streaming and broadcast!

Specifications

Connections

• SDI Video Inputs: 4
• SDI Video Outputs: 5 (12G-SDI A, B, C, D and 3G-SDI Monitor Out)
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• Analog Video Inputs: 1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC.
• Analog Video Outputs: None
• Analog Audio Inputs: 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
• Built in Speaker: Mono
• Screen: 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
• Timecode Connections: 1 x XLR in and 1 x XLR out.
• Reference Input: Tri-Sync or Black Burst.
• SDI Audio Inputs: 64 channels embedded audio.
• SDI Audio Outputs: 64 channels embedded audio.
• HDMI Audio Inputs: 8 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Remote Control: 1 x RS-422 In, 1 x RS-422 Out.
• Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.
• Ethernet: 10Gb/s
• External Recording: 1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
• Computer Interface: 1 x USB-C for software updates.

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K DCI Video Standards: 1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K DCI Video Standards: 2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI
• 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60
• 8K DCI Video Standards: 4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.
• SDI Metadata Support: HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
• Audio Sampling: Television standard 24-bit, 48 kHz sample rate.
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab.
• Multi Rate Support: Auto detection of SD, HD, 6G-SDI, 12G-SDI, 2SI Quad Link 12G-SDI.
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

• Cache or Internal Recording: Slot for optional M.2 PCIe NVMe card for cache recording or internal recording. Slot supports 60mm 80mm and 110mm cards up to 16Gb/s.
• Media: 2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra HD and 8K.
• Media Type: CFast card and external USB-C flash drives.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Recording

• Source: Input options include SDI, 4 x SDI (simultaneously records 4 SDI inputs up to 2160p60 as separate files), HDMI, Component, Composite.

Supported Codecs

• Video Codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 4320p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 Medium 4:2:0 10-bit, H.265 Low 4:2:0 10-bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10-bit, H.264 High 4:2:0 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all formats up to 1080p60.
• Audio Codecs: AAC 2 Channels. PCM 2, 4, 8, 16, 32 or 64 Channels.

Scopes

• Scopes: Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit .
• Viewing Modes: Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.

Control

• Built in Control Panel: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
• External Control: RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.

Software

• Software Included: Blackmagic OS Blackmagic HyperDeck Setup
• Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.

Power Requirements

• Power Supply: 1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.
• Power Usage: 190W max.

Accessories

• Optional Accessories: HyperDeck Extreme Control HyperDeck Extreme Rack Kit

Environmental Specifications

• Operating Temperature: 0° to 40° C (32°to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 10.41 lb
