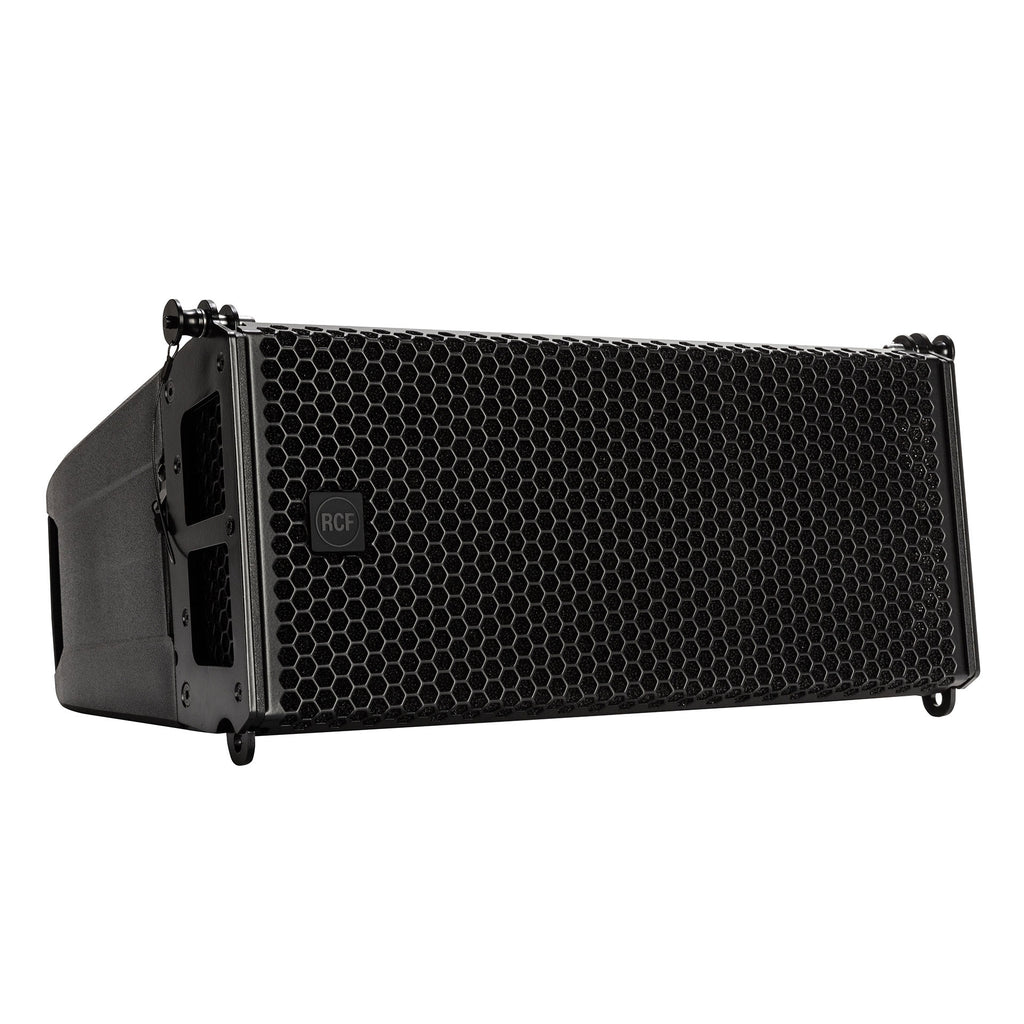

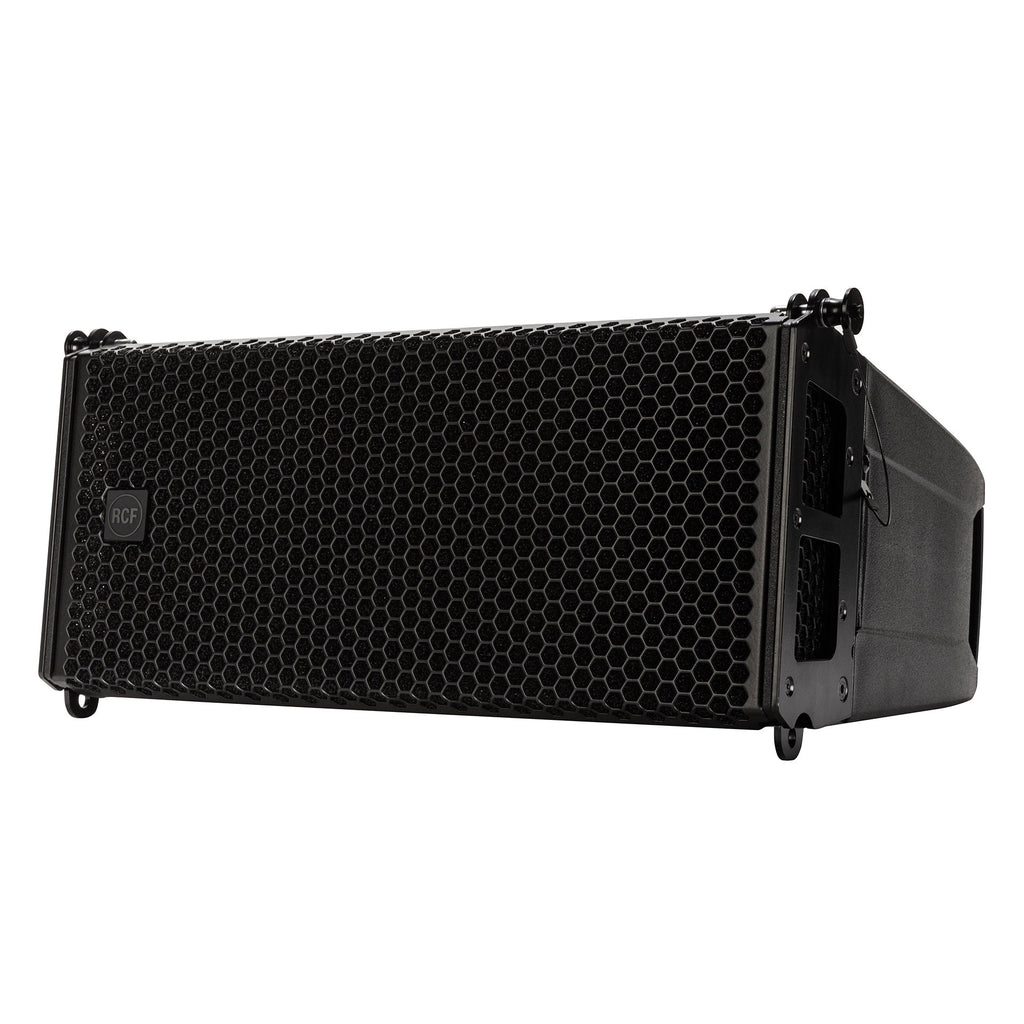

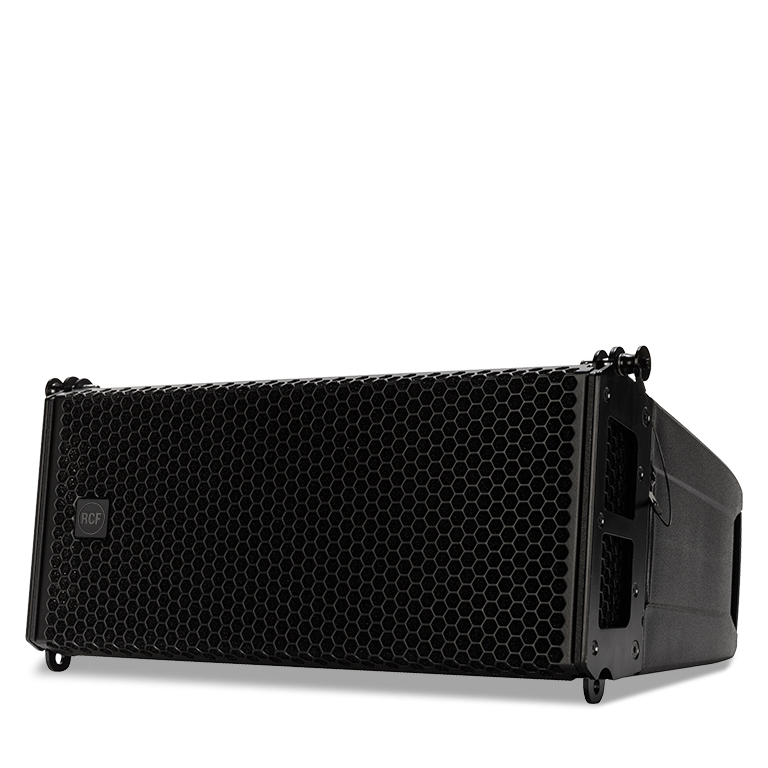

RCF HL 6 Two-Way Line Array Module

The RCF HL 6 is an ultra-compact passive two-way full-range system for small and medium-sized spaces. The 1.75" neodymium compression driver with a constant-directivity waveguide design generates a horizontal constant-directivity coverage of 100 degrees over the entire vocal range with remarkable clarity. Two high-power 6" woofers deliver extended low-end up to 131 dB SPL for a wide range of applications, both alone, or in line-array configuration.

Features

• 1000W Peak Power Handling
• 131 dB Max SPL
• 65 ÷ 20000 Hz Frequency Range
• 100° x 10° Coverage Angles
• 1.75" Neodymium Compression Driver
• 2 x 6" High-Powered Neodymium Woofers
• Constant Directivity Waveguide
• Extremely Low Weight

Proprietary Power Amp

XPS SERIES

40-bit Floating-point Processing at 96 kHz

Ready-to-Use Configurations and presets for RCF speakers

2U Rack Space

Flexible 32-bit Routing with analog, digital and Dante I/O

Advanced Fault Protections for each amplifier channel and power supply

Legendary transducers

The RCF HL 6 features RCF transducers with neodymium magnets. RCF's experienced engineering teams have specially developed and matched each component. An entire set of protections preserve product life and reliability.

High frequencies

High-performance RCF ND340 1.75-inch diaphragm neodymium compression driver 900 Hz crossover point

Low frequencies

Two 6" neodymium woofers Low frequencies handling down to 65 Hz Water resistant fiber doped cone Polycotton M-roll surround Hypervented magnetic structure

Constant directivity waveguide

The custom-designed waveguide allows a precise coverage of 100° x 10°, while also delivering a completely linear high-frequency response. The constant directivity waveguide delivers consistent coverage from 900 Hz to the highest audible frequencies.

Perfect for installation

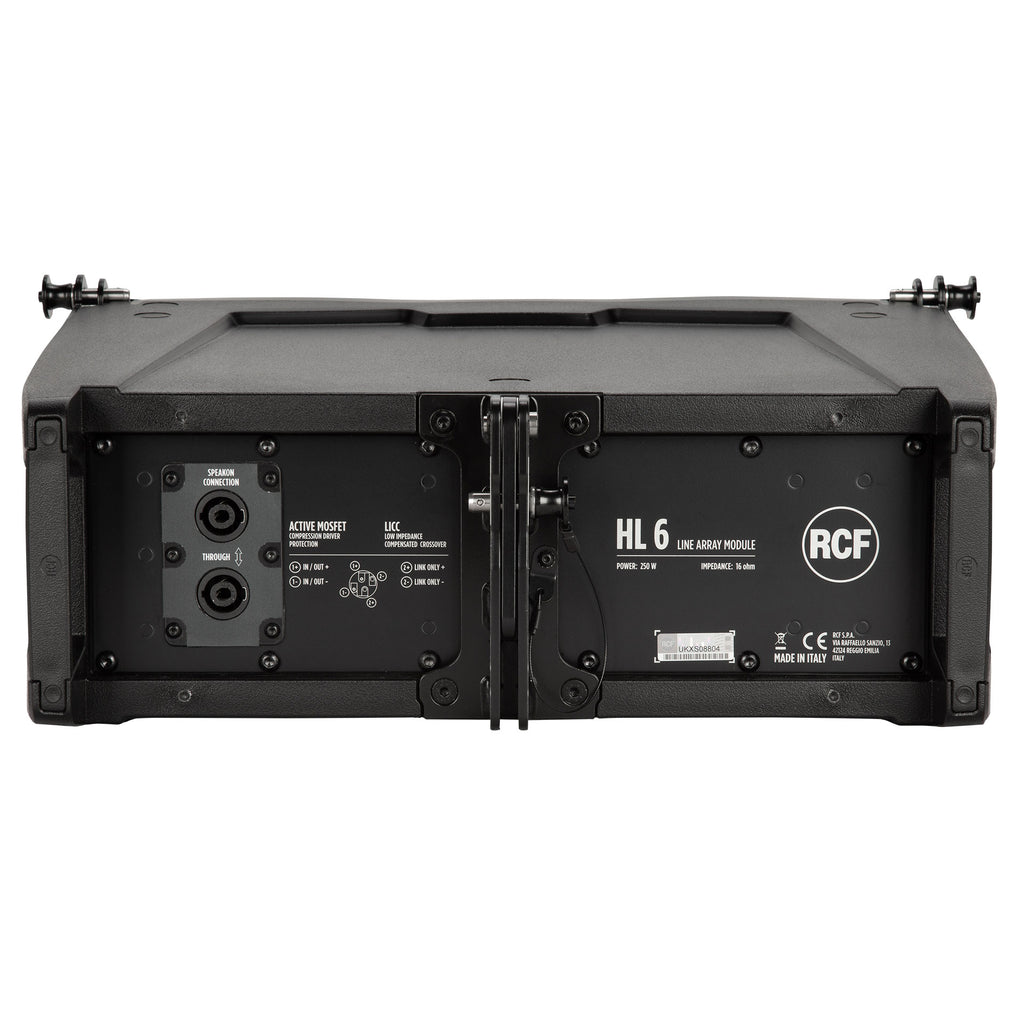

The passive architecture makes the HL 6 one of the lightest line array modules on the market. Combined with flexible rigging options and a wide range of accessories, it's the ideal line array for installation both in corporate environments or music venues. HL 6 provides plenty of sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.

Advanced design

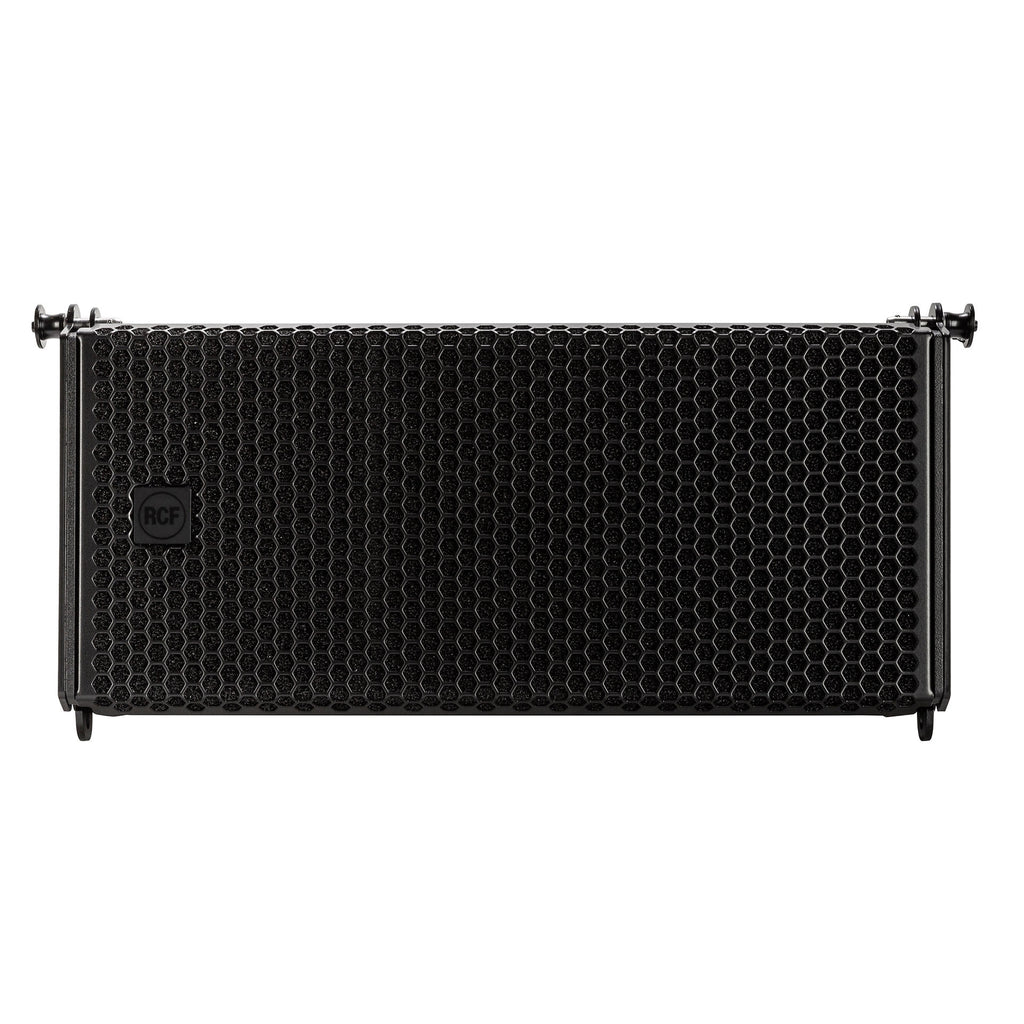

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting at 1° angle. The hardware is designed for easy and fast setup. Up to 16 HL 6 modules can be fastened on a single flybar. The heavy-duty front grille is powder-coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust and debris.

The HL 6's perfect low-frequency companion

Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array, the low-frequency companion designed for the HL 6 is the high-performance flyable single 15" HL 35-S. The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6 lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. HL 35-S provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
