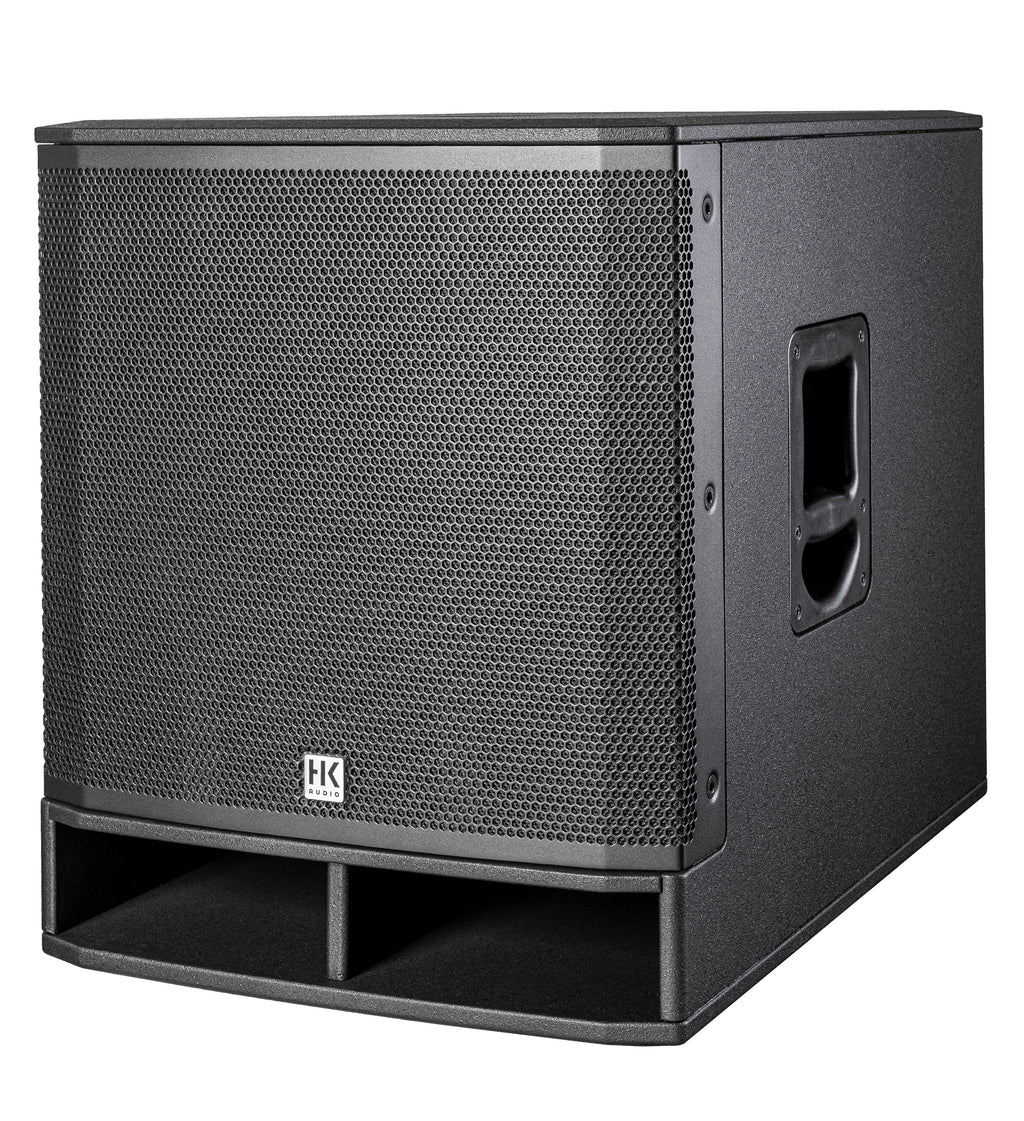

The PORTABLE SUB 118 A is a powerful solution that delivers extended low-end response and noticeably more punch in the lower bass range. With its 18-inch woofer, it is ideal for applications where maximum bass performance is required.
The PORTABLE SUB series delivers powerful, precise bass and a thoroughly thought-out system design. Built as the perfect complement to the HK Audio LUNAR, POLAR MK2 and SONAR series, it excels wherever flexible integration, rapid deployment and reliable performance are required. A simple preset selector adapts the subwoofer to each setup for perfectly coordinated interaction, with no extra configuration.
Features
- Preset-based system adaptation: LUNAR, SONAR, POLAR, General LPF 100 Hz
- Perfect bass extension for LUNAR, POLAR MK2 and SONAR systems
- 1,400 watts peak power, up to 131 dB max SPL
- 18" woofer with 3" voice coil for precise, punchy bass
- 24-bit DSP for optimised performance and impulse response
- Integrated stereo preamp for 2.1 systems

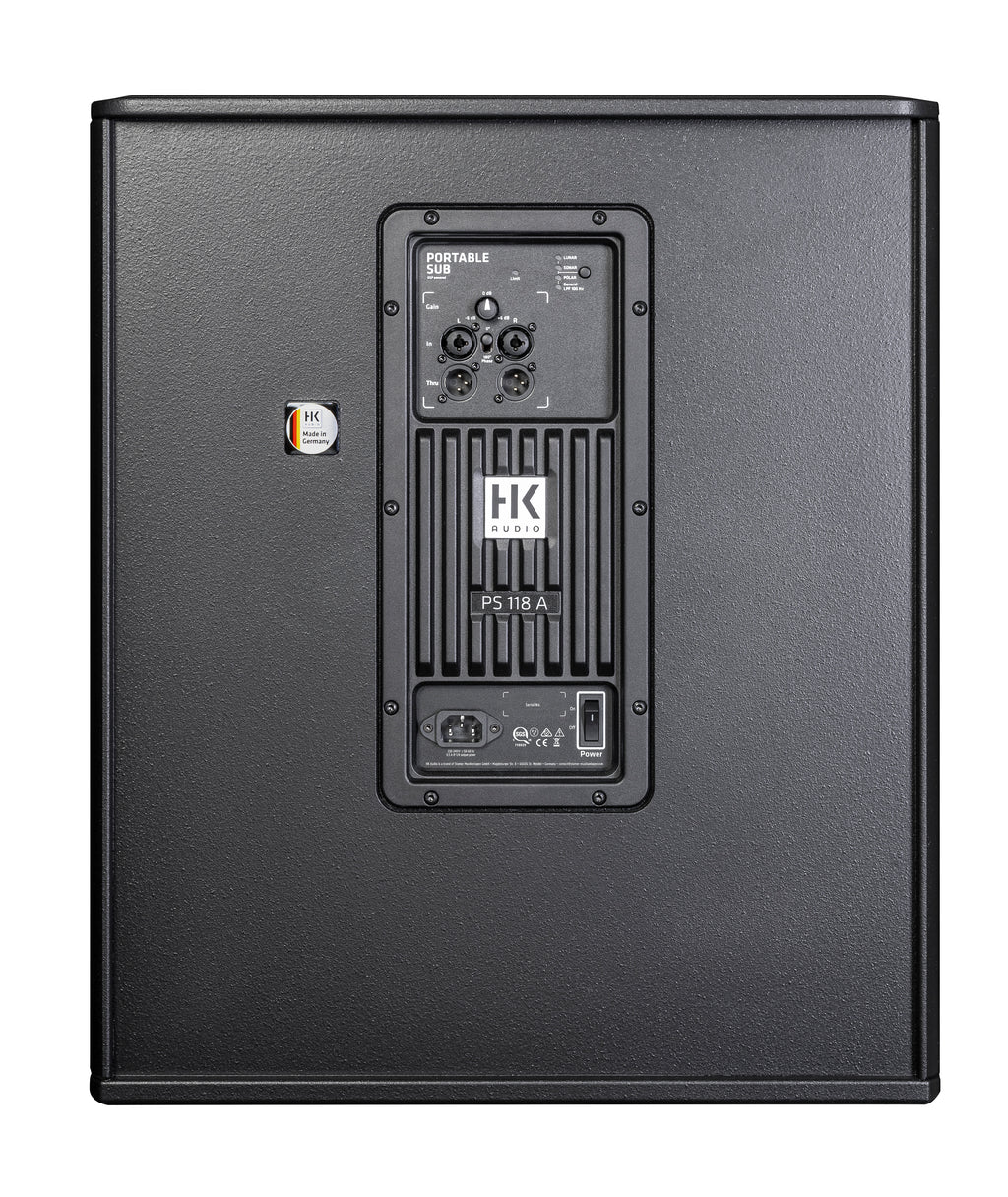

- Input/Thru connections for flexible signal routing
- Gain control and polarity (phase) switch
- Fanless Class-D amplifier, 700 W RMS / 1400 W peak
- Robust MDF wooden cabinet with open port design

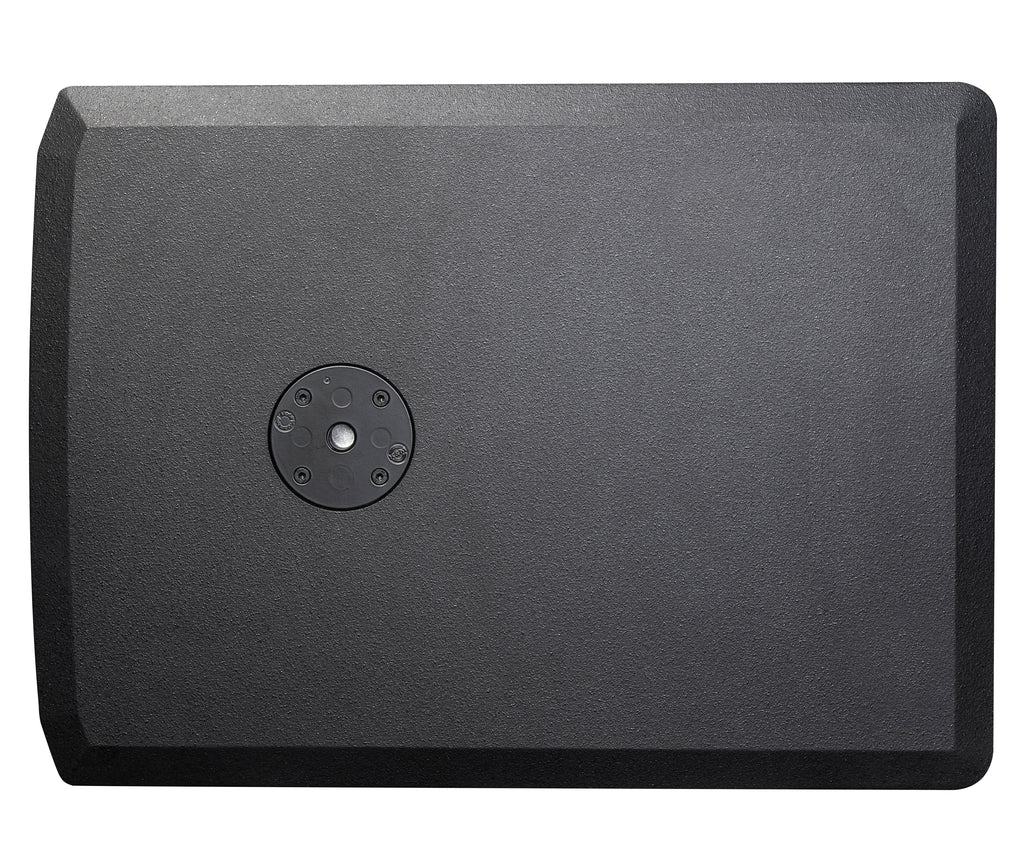

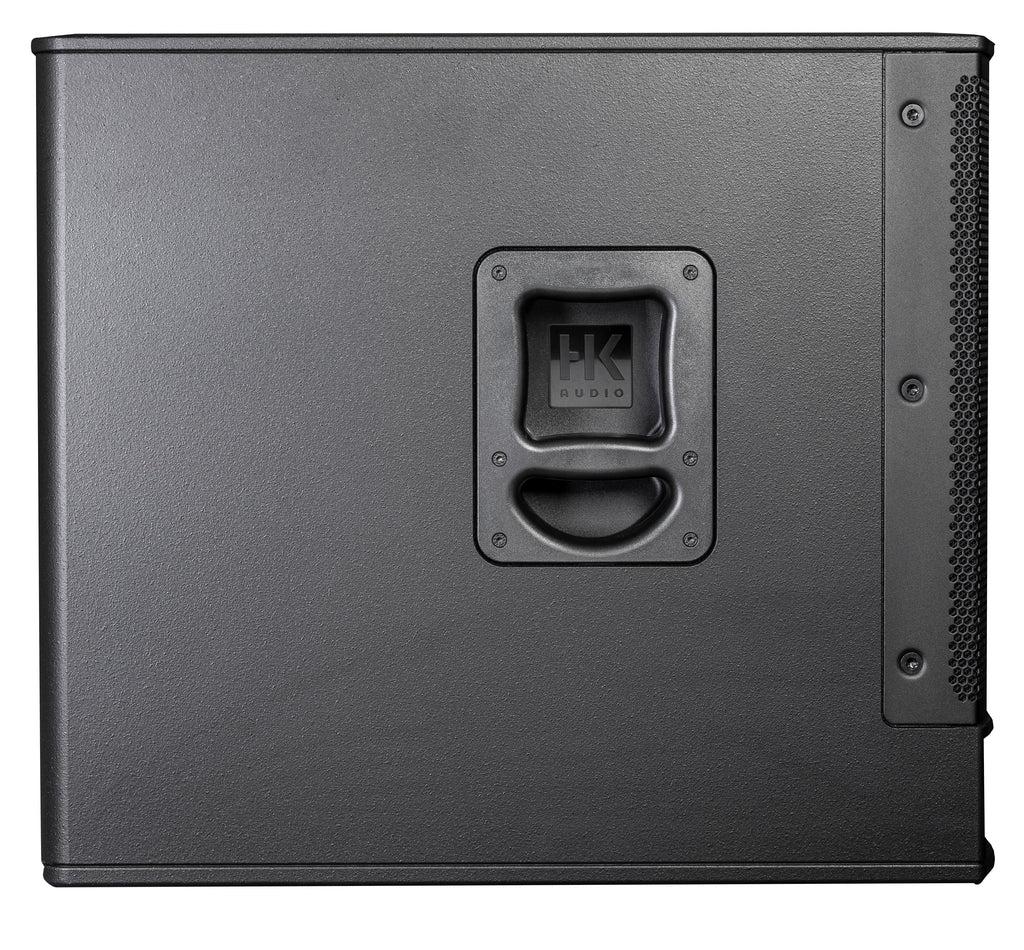

- Ergonomic MultiGrip carrying handles, M20 pole mount
- Made in Germany
- 5-year manufacturer's warranty (upon registration)
Specifications
| Concept |
Active subwoofer |
| Cabinet principle |
Bass reflex |
| Max. SPL peak |
131 dB |
| LF driver |
1 x 18" with 3" voice coil |
| Crossover |
X-Over, 24 dB/oct. (100 Hz / 80 Hz, preset dependent) |
| Frequency range (-6 dB) |
35 Hz - X-Over |
| Frequency range (-10 dB) |
31 Hz - X-Over |
| Power amp |
Class D, 700 W RMS / 1400 W peak, fanless |
| DSP |
24-bit, 48 kHz |
| Presets |
LUNAR, SONAR, POLAR, General LPF 100 Hz |
| Preamp |
Stereo preamp (2.1) |
| Inputs |
2 x XLR/jack combo |
| Outputs |
2 x XLR Thru |
| Rigging |
1 x M20 pole mount, 2 x MultiGrip handles |
| Cabinet |
MDF, jet black (RAL 9005) |
Dimensions & Weight
| Dimensions (W x H x D) |
51 x 61.5 x 70.3 cm / 20-5/64 x 24-3/16 x 27-21/32 in |
| Weight |
39.3 kg / 86.65 lbs |
