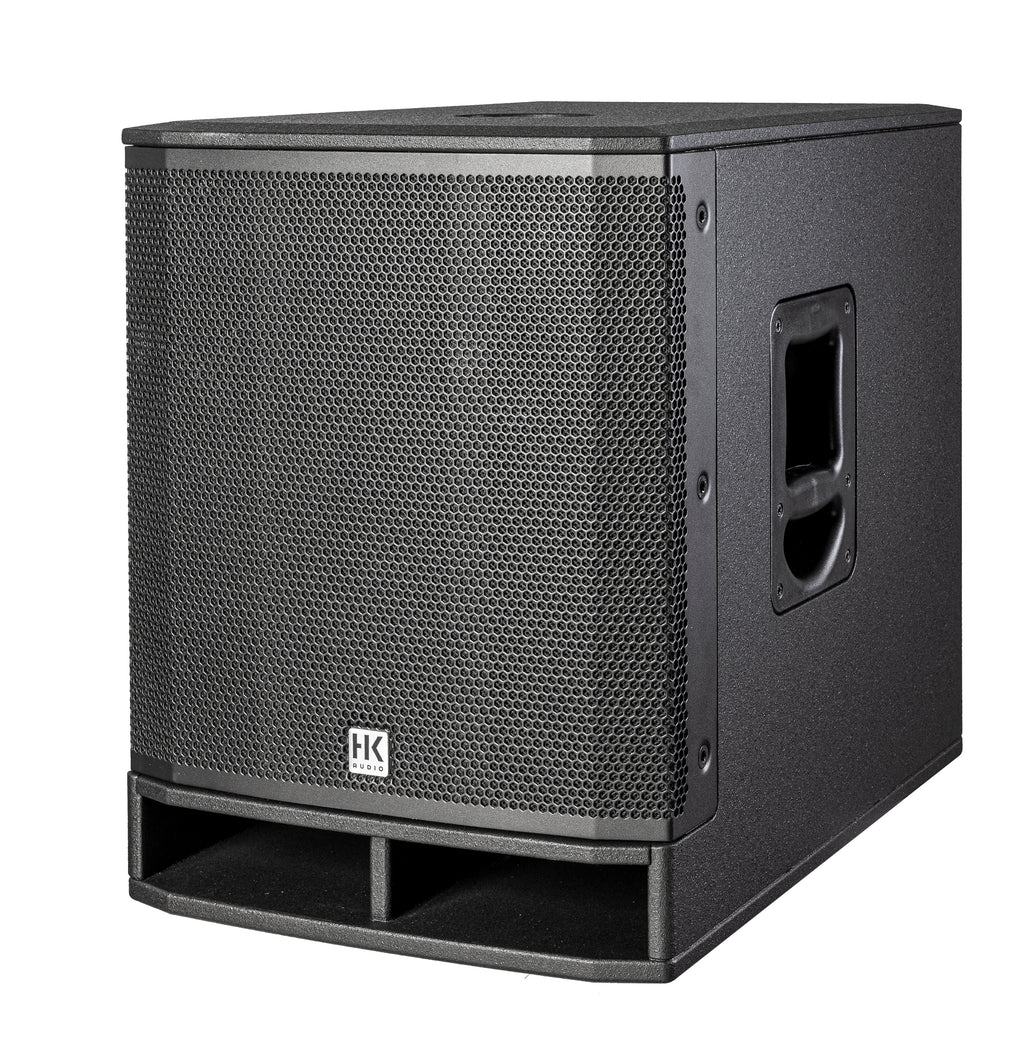

The PORTABLE SUB 115 A is an impressive, compact yet powerful solution for mobile applications and flexible setups. Despite its compact size, it delivers precise, controlled and punchy bass.
The PORTABLE SUB series delivers powerful, precise bass and a thoroughly thought-out system design. Built as the perfect complement to the HK Audio LUNAR, POLAR MK2 and SONAR series, it excels wherever flexible integration, rapid deployment and reliable performance are required. A simple preset selector adapts the subwoofer to each setup for perfectly coordinated interaction, with no extra configuration.
Features
- Preset-based system adaptation: LUNAR, SONAR, POLAR, General LPF 100 Hz
- Perfect bass extension for LUNAR, POLAR MK2 and SONAR systems
- 1,400 watts peak power, up to 131 dB max SPL
- 15" woofer with 3" voice coil for precise, punchy bass
- 24-bit DSP for optimised performance and impulse response
- Integrated stereo preamp for 2.1 systems
- Input/Thru connections for flexible signal routing
- Gain control and polarity (phase) switch
- Fanless Class-D amplifier, 700 W RMS / 1400 W peak
- Robust MDF wooden cabinet with open port design

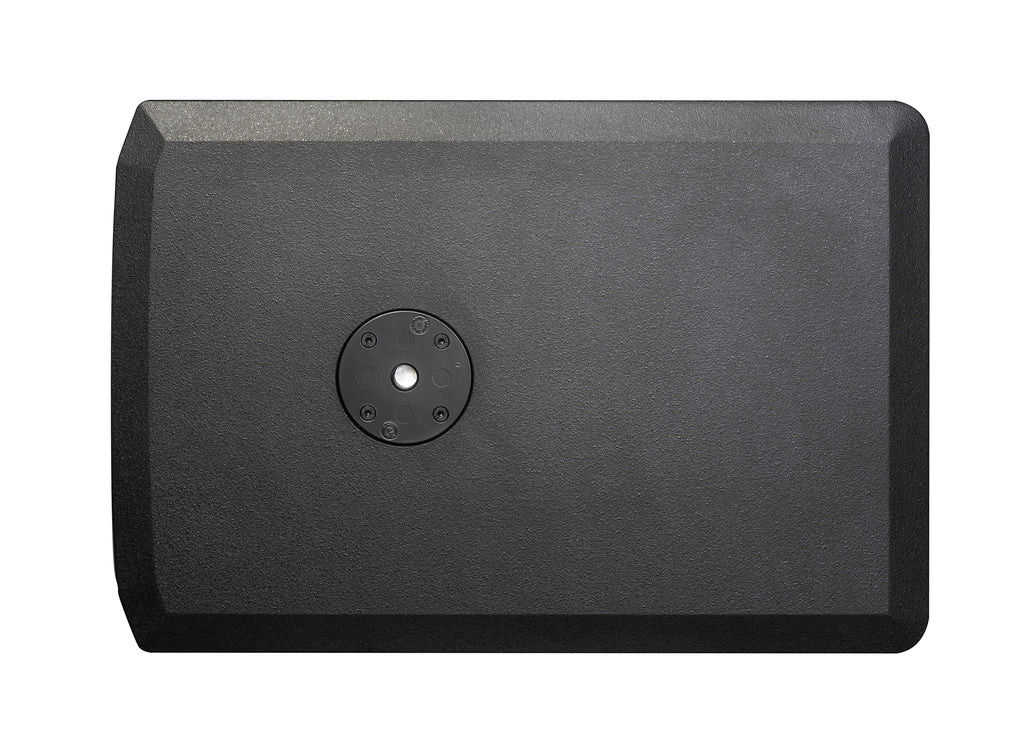

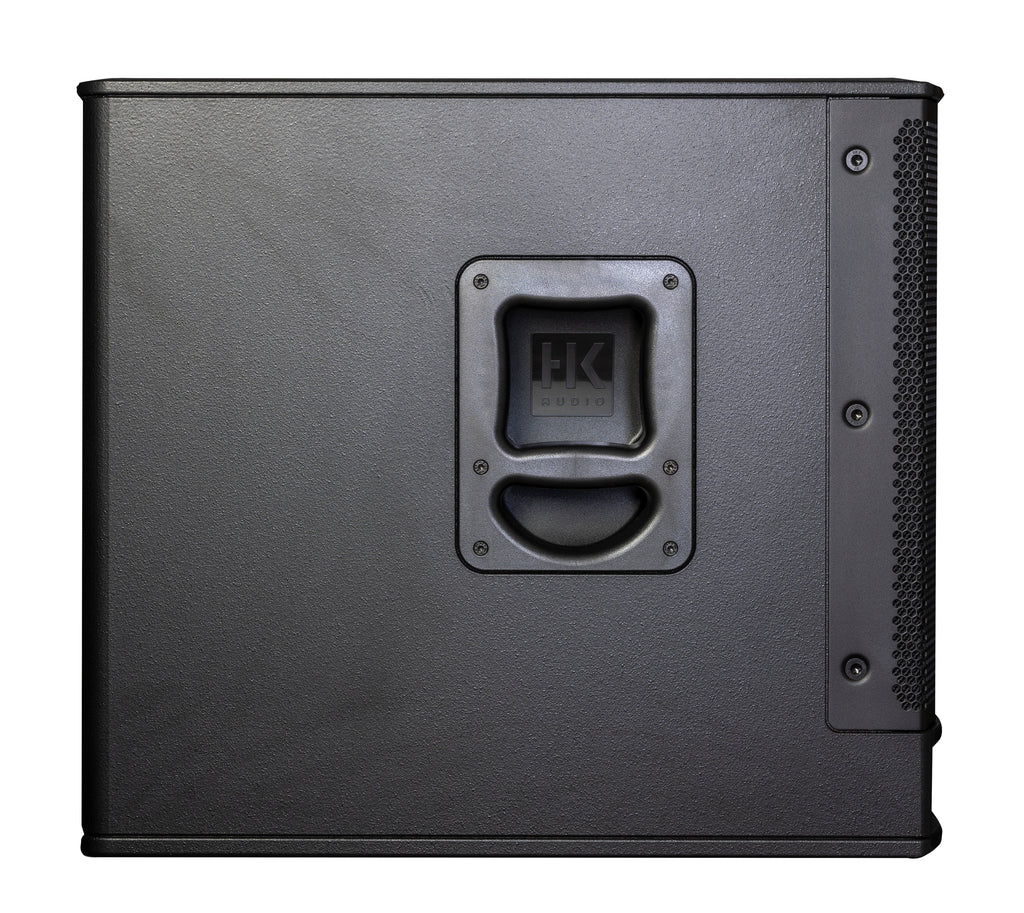

- Ergonomic MultiGrip carrying handles, M20 pole mount
- Made in Germany
- 5-year manufacturer's warranty (upon registration)
Specifications
| Concept |
Active subwoofer |
| Cabinet principle |
Bass reflex |
| Max. SPL peak |
129 dB |
| LF driver |
1 x 15" with 3" voice coil |
| Crossover |
X-Over, 24 dB/oct. (100 Hz / 80 Hz, preset dependent) |
| Frequency range (-6 dB) |
42 Hz - X-Over |
| Frequency range (-10 dB) |
38 Hz - X-Over |
| Power amp |
Class D, 700 W RMS / 1400 W peak, fanless |
| DSP |
24-bit, 48 kHz |
| Presets |
LUNAR, SONAR, POLAR, General LPF 100 Hz |
| Preamp |
Stereo preamp (2.1) |
| Inputs |
2 x XLR/jack combo |
| Outputs |
2 x XLR Thru |
| Rigging |
1 x M20 pole mount, 2 x MultiGrip handles |
| Cabinet |
MDF, jet black (RAL 9005) |
Dimensions & Weight
| Dimensions (W x H x D) |
43 x 56.5 x 63.8 cm / 16-59/64 x 22-7/32 x 25-3/32 in |
| Weight |
32.8 kg / 72.32 lbs |
