Description

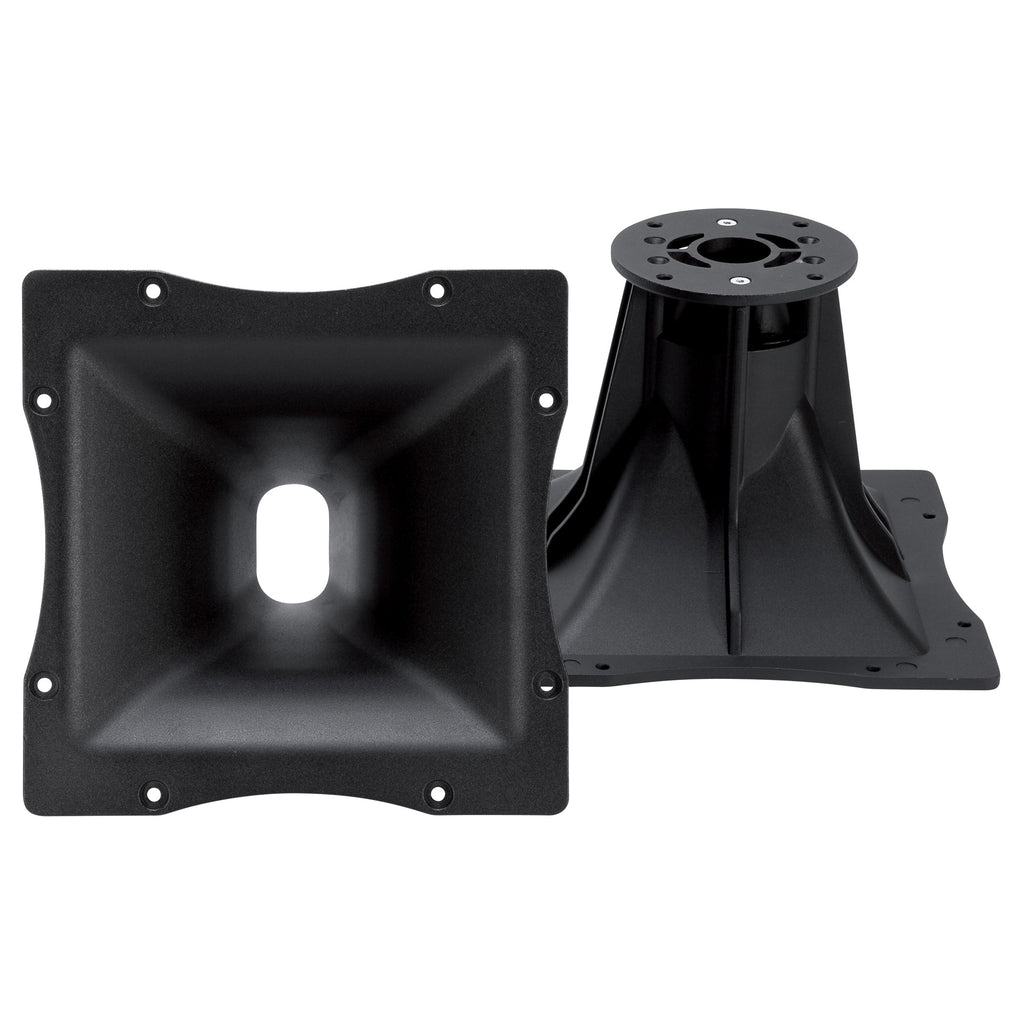

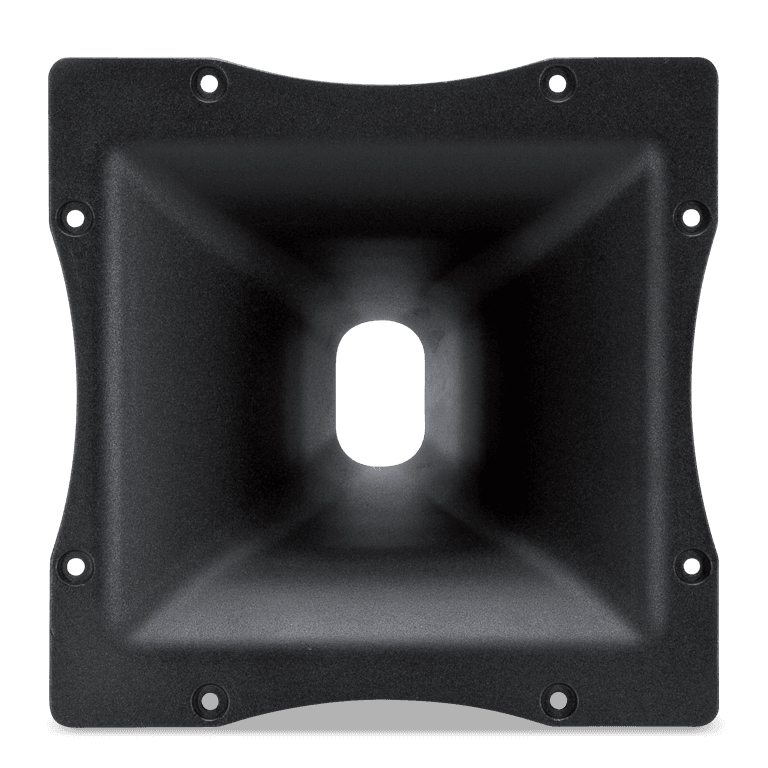

1-inch/1.4 inch Throat Adaptor.60° x 40° Constant Directivity Coverage. Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers.
Features
- 1-inch/1.4 inch Throat Adaptor
- 60° x 40° Constant Directivity Coverage
- Loading down to 500 Hz
- Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers
- Perfectly Controlled Dispertion
Specifications
| General specifications | |
| Throat Diameter | 25-36 mm / 1.0-1.4 inch |
| Horizontal coverage angle | 60° |
| Vertical coverage angle | 40° |
| Cut-off Frequency | 500 Hz |
| Material | Aluminum |
| Mounting information | |
| Overall height | 250 mm / 9.84 inches |
| Overall width | 25 mm / 0.98 inches |
| Overall depth | 179 mm / 7.05 inches |
| Baffle Cut-out height | 205 mm / 8.07 inches |
| Baffle Cut-out width | 205 mm / 8.07 inches |
| Mounting | 4 x 7 mm holes, interaxes 101 mm/76 mm |
| Standard compliance | |
| Safety agency | CE compliant |
| Size / Weight | |
| Height | 186 mm / 7.32 inches |
| Diameter | 250 mm / 9.84 inches |
| Weight | 1.48 kg / 3.26 lbs |
| Shipping information | |
| Package Height | 195 mm / 7.68 inches |
| Package Width | 265 mm / 10.43 inches |
| Package Depth | 260 mm / 10.24 inches |
| Package Weight | 2.4 kg / 5.29 lbs |
