Description

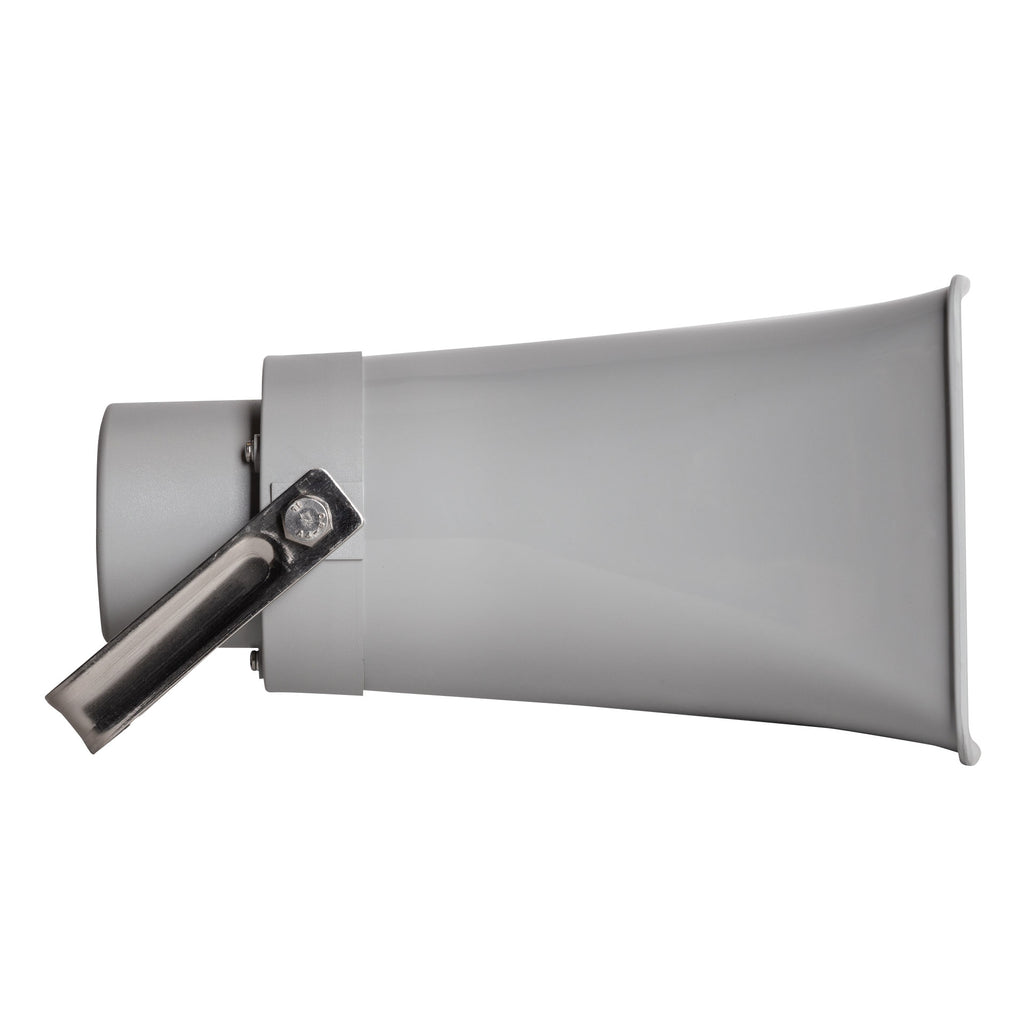

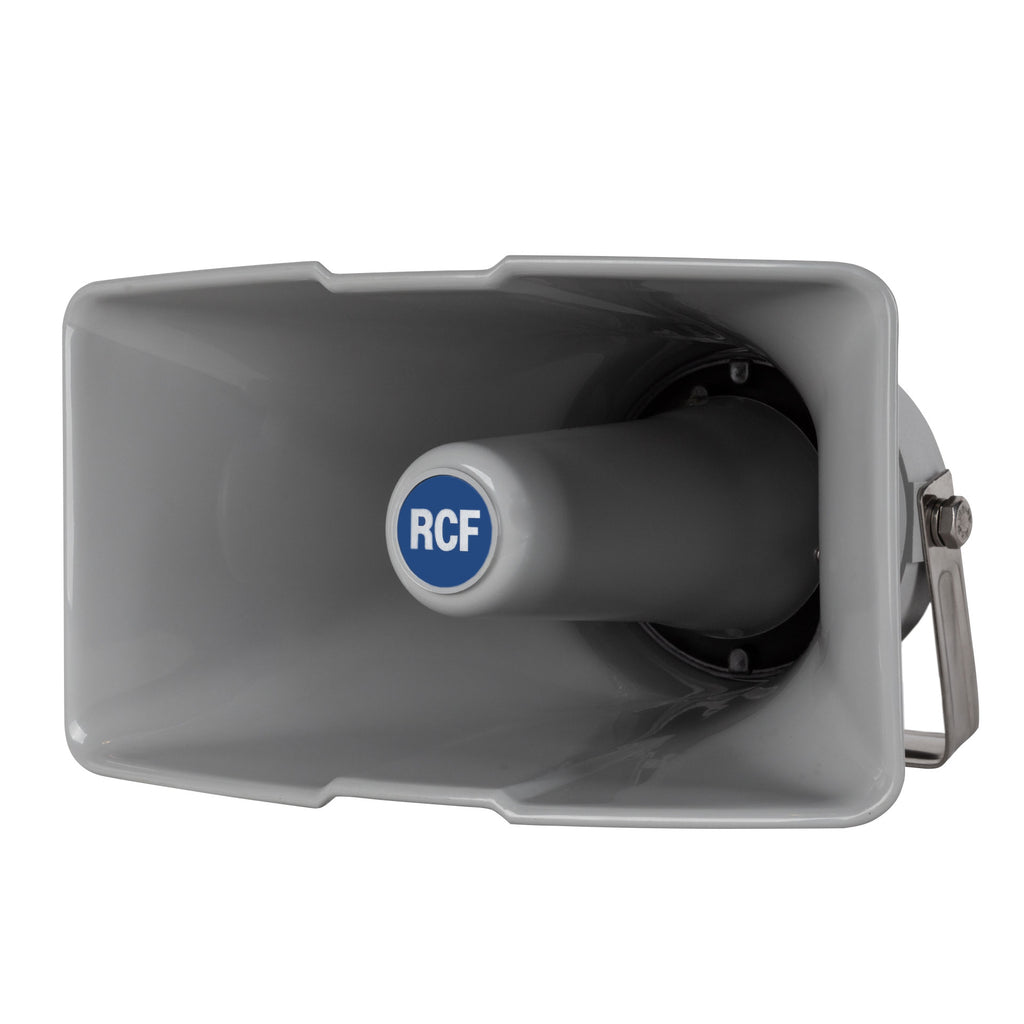

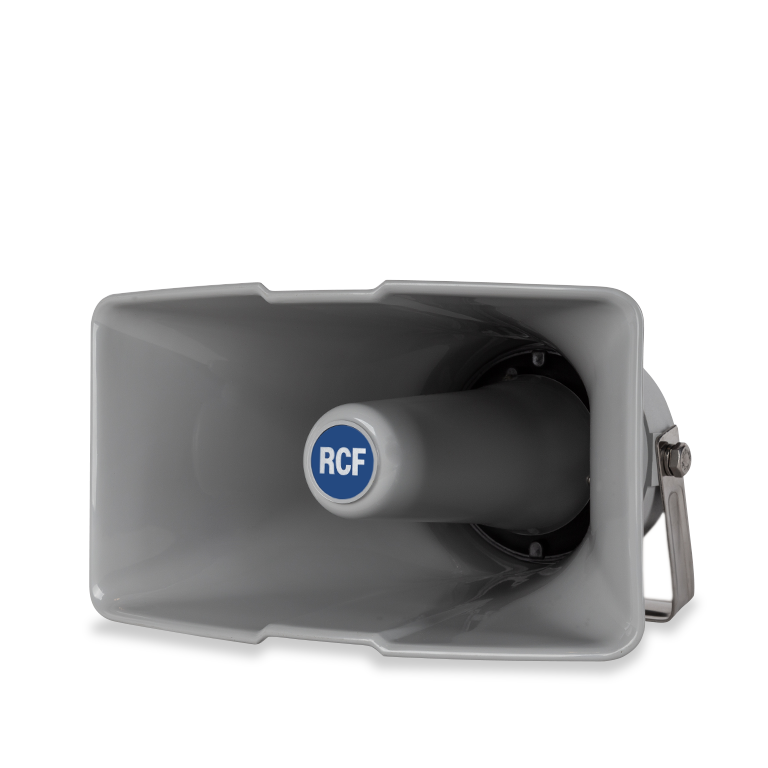

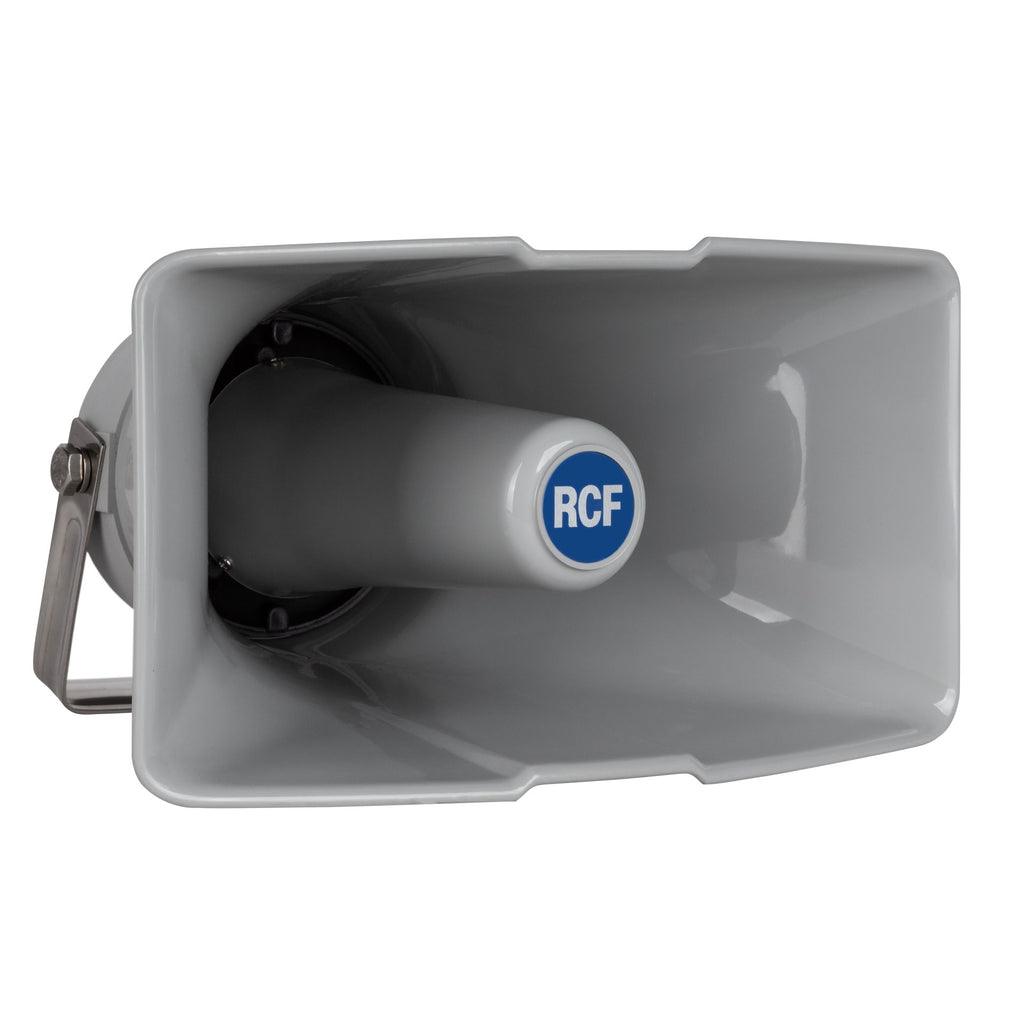

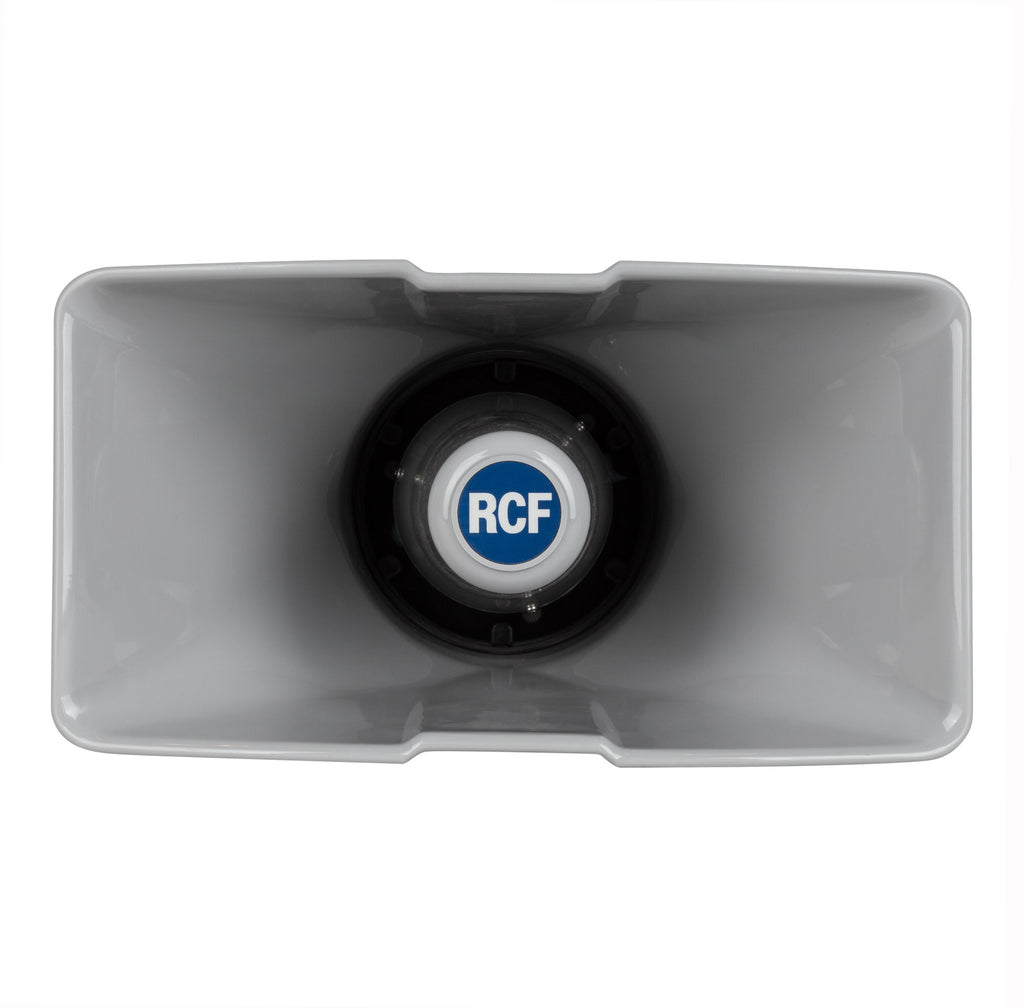

The HD 3216/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion. The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover
Features

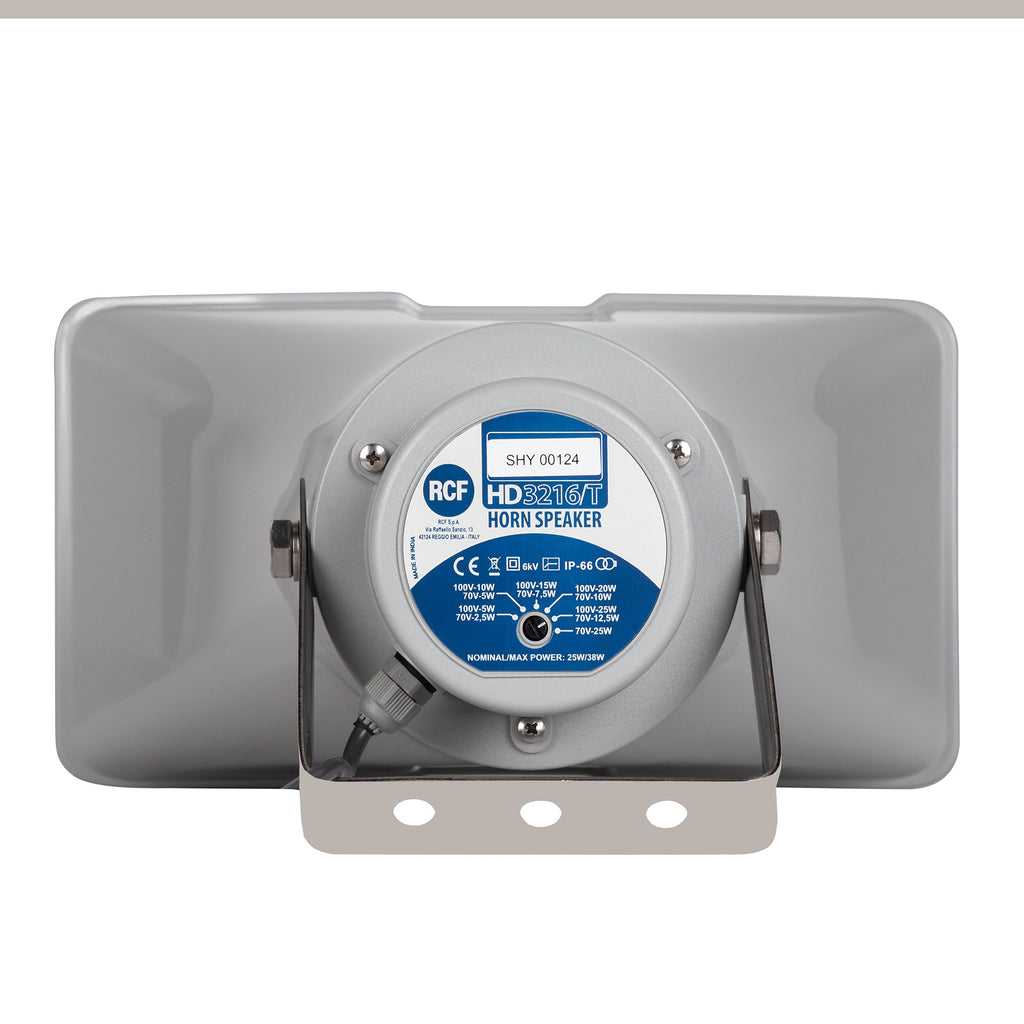

- Built-in line transformer with multitap power selector on rear cover
- Hi-pass filter for protecting driver against out-of-range low-freq
- IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
- UV-stabilized autoextinguishing UL-HB ABS plastic
- Colour RAL 7035
- Stainless-Steel mounting hardware
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 250 Hz - 10000 Hz |
| Max SPL @ 1m | 122 dB |
| Horizontal coverage angle | 130° |
| Vertical coverage angle | 60° |
| System Sensitivity | 108 dB |
| Power section | |
| Nominal Impedance | 8 ohm |
| Power Handling | 25 W |
| Peak Power Handling | 100 W PEAK |
| Transducers | |
| Compression Driver | 1 x 1.5'' |
| Input/Output section | |
| Input connectors | Cable |
| Output connectors | Cable |
| Constant Voltage Transformer | 70/100 V |
| Power selection 1 | 25 W - 400 ohm |
| Power selection 2 | 20 W - 500 ohm |
| Power selection 3 | 15 W - 667 ohm |
| Power selection 4 | 10 W - 1000 ohm |
| Power selection 5 | 5 W - 2000 ohm |
| Power selection 6 (100 V) | 2.5 W - 4000 ohm |
| Standard compliance | |
| IP protection grade | IP 66 |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | ABS |
| Hardware | Stainless steel U bracket |
| Color | Grey - RAL 7035 |
| Size / Weight | |
| Height | 175 mm / 6.89 inches |
| Width | 310 mm / 12.2 inches |
| Depth | 322 mm / 12.68 inches |
| Weight | 2.5 kg / 5.51 lbs |
| Shipping information | |
| Package Height | 390 mm / 15.35 inches |
| Package Width | 330 mm / 12.99 inches |
| Package Depth | 180 mm / 7.09 inches |
| Package Weight | 3.1 kg / 6.83 lbs |
