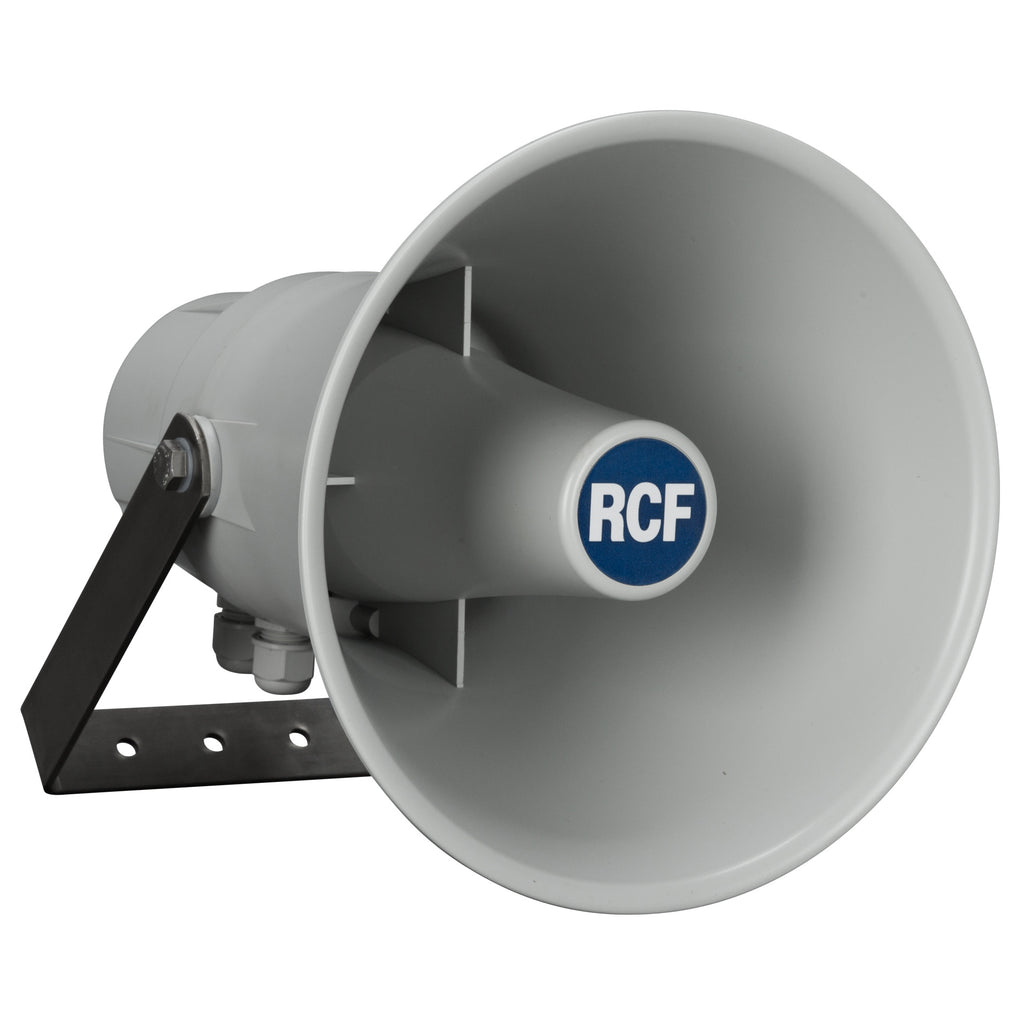

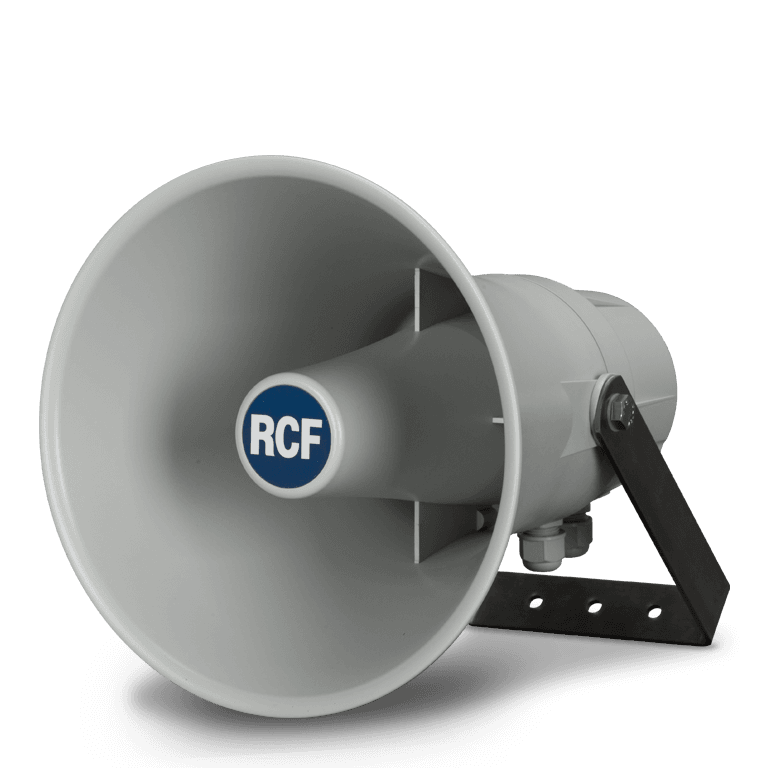

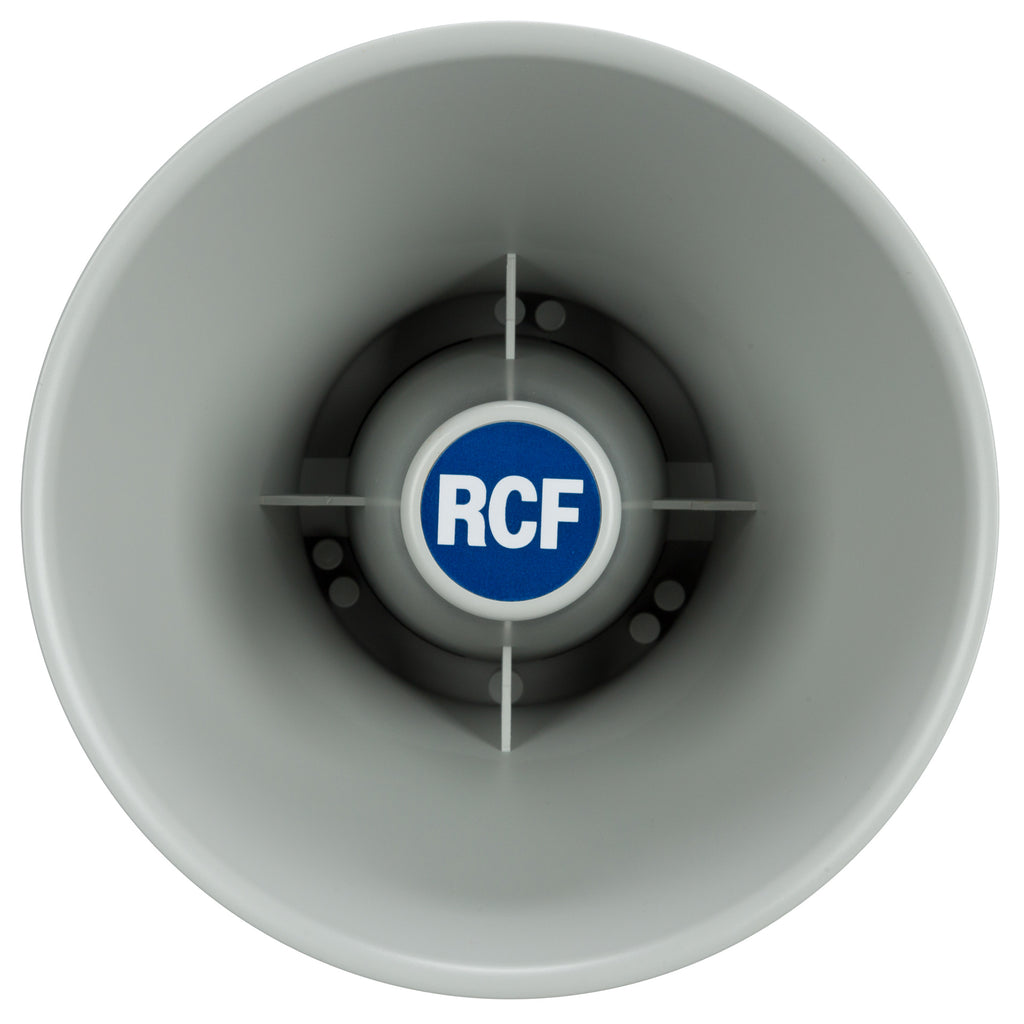

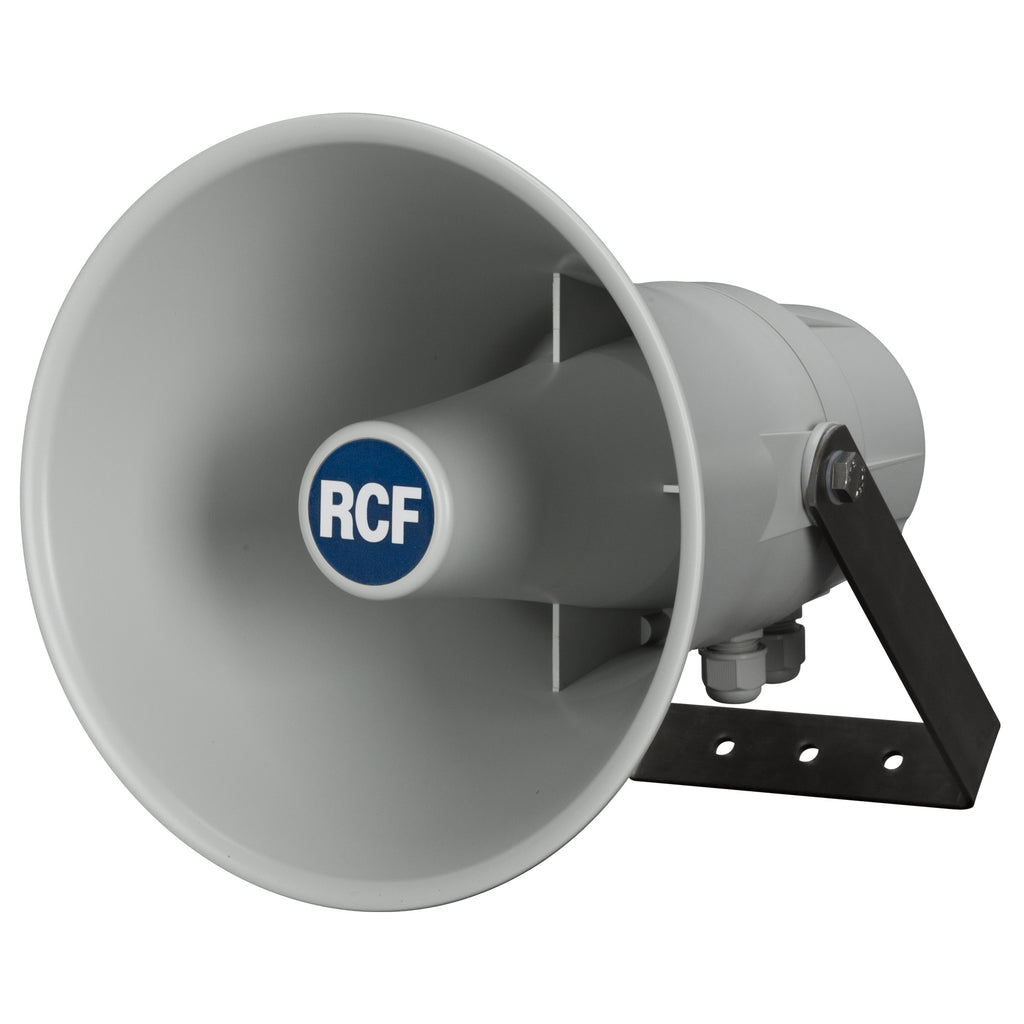

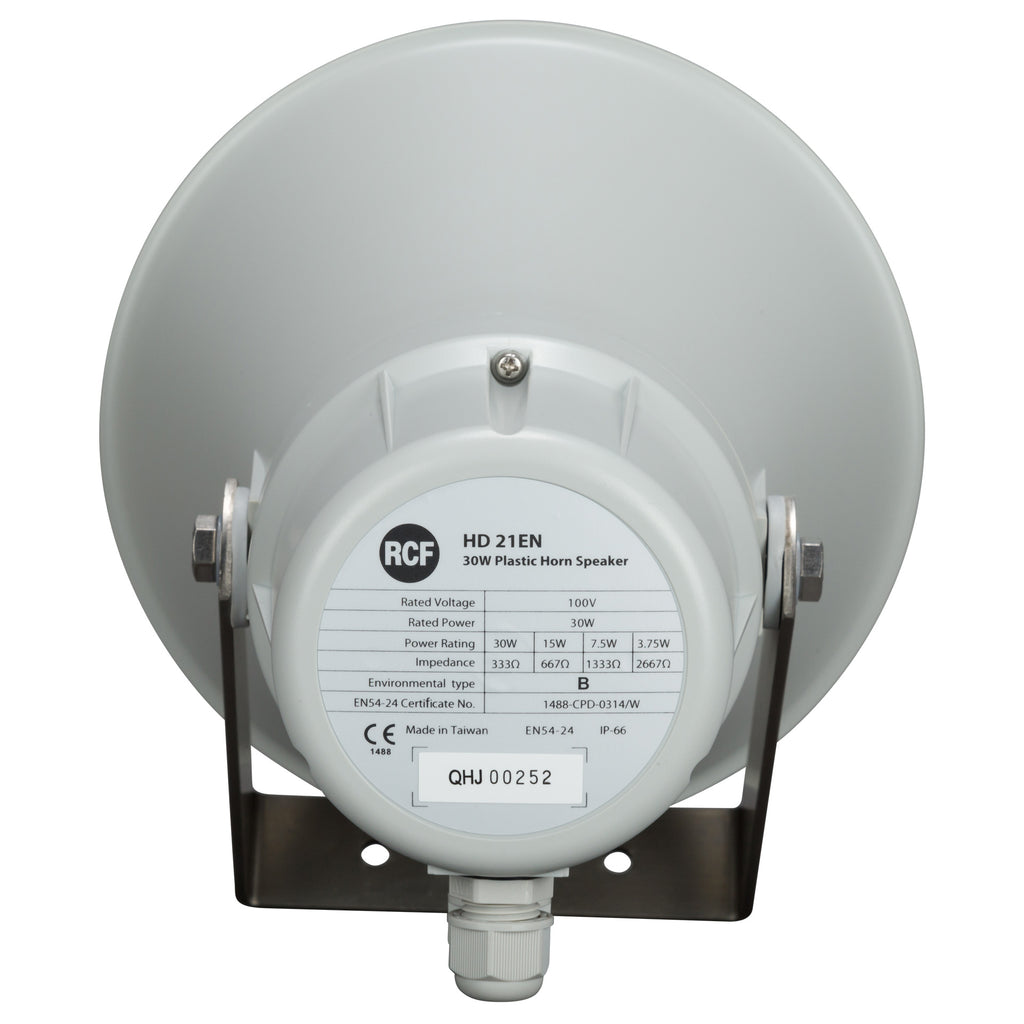

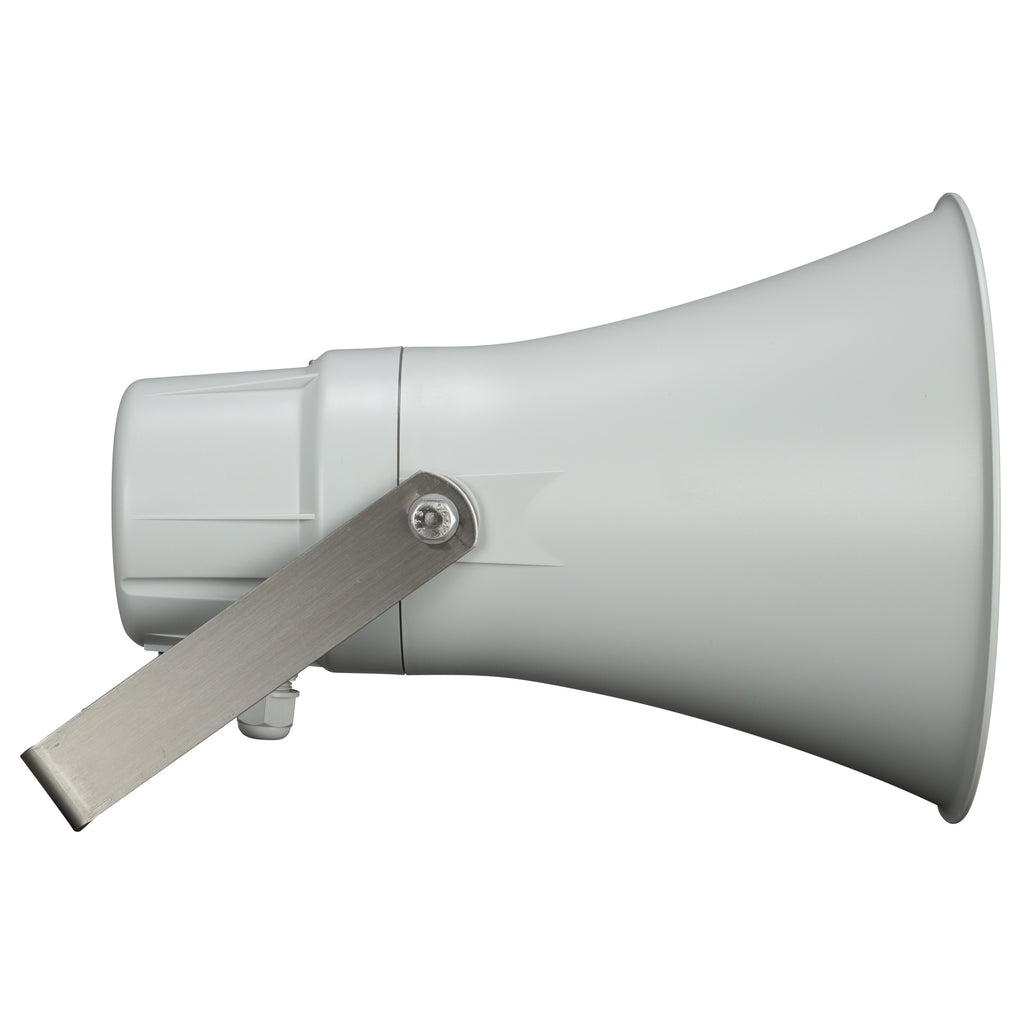

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | HD 21EN | PLASTIC HORN SPEAKER | 1.5" compression driver.
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
340 Hz - 9000 Hz |
| Max SPL @ 1m |
117 dB |
| Max SPL @ 4m |
105 dB |
| Coverage angle |
135° |
| System Sensitivity |
104 dB |
| System Sensitivity 1W @ 4m |
92 dB |
| Power section |
| Power Handling |
30 W |
| Peak Power Handling |
120 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
| Transducers |
| Compression Driver |
1 x 1.5'' |
| Input/Output section |
| Input connectors |
Ceramic screw terminals |
| Output connectors |
Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 30 W - 333 ohm |
Power selection 2 |
| 15 W - 667 ohm |
Power selection 3 |
| 7.5 W - 1333 ohm |
Power selection 4 |
| 3.75 W - 2667 ohm |
| Standard compliance |
| IP protection grade |
IP 66 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
1488-CPR-0652/W |
| Physical specifications |
| Cabinet/Case Material |
ABS |
| Hardware |
Stainless steel bracket |
| Color |
Grey - RAL 7035 |
| Size / Weight |
| Height |
212 mm / 8.35 inches |
| Depth |
280 mm / 11.02 inches |
| Weight |
2.1 kg / 4.63 lbs |
| Shipping information |
| Package Height |
220 mm / 8.66 inches |
| Package Width |
320 mm / 12.6 inches |
| Package Depth |
Package Weight |
| 2.7 kg / 5.95 lbs |
