Description

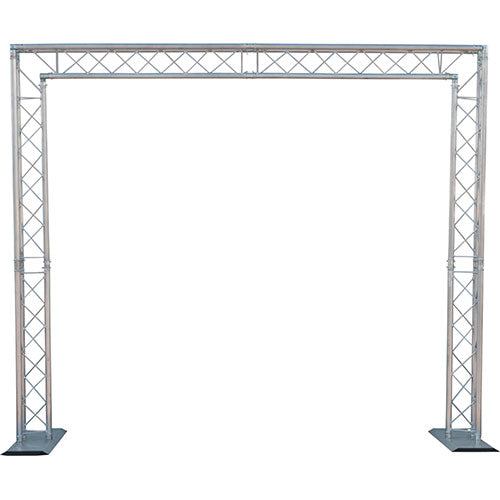

Global Truss TRUSS/SYSTEM: 8 x 8 ft F23 Goal Post Portable Truss System
F23 Goal Post Style Portable Truss System.
Specifications
- Exterior Dims: 8.25' Wide x 7.81' High
- Interior Dims: 6.96' W x 7.10' H
- Base Dims: 10.5" W x 46.25" L x .75" H
- Truss size: 220mm (8 5/8") OUTER DIAMETER
- Main Chords: 35mm (1-1/3") OD x 1/3" BRACING
- Load Capacity: 400lbs evenly distributed
- Unit Weight: 70lbs
- Width and Height can be increased using F23 Series Truss
Series Specifications
EXTERNAL DIMENSION: 220mm; TUBES: 35x2mm; BRACES: 8mm; MATERIAL: EN-AW 6082 T6. Connecting hardware is included with each truss.
