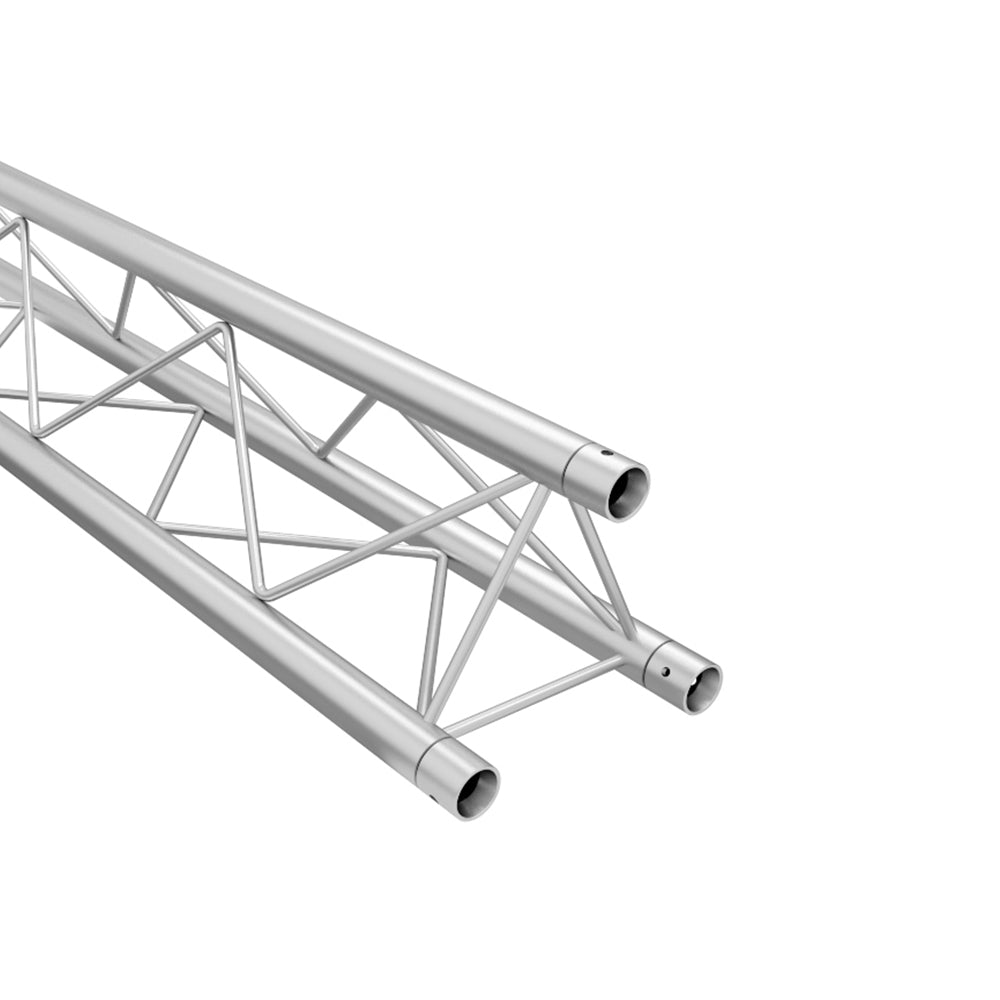

Global Truss TR96105: 8.2 ft (2.5m) F23 8.66 in Triangular Truss Segment
F23 Triangular Truss: 8.66" Light Duty Triangular Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.
FABRICATED BY CERTIFIED TUV WELDERS.
Specifications
- EQUIPPED WITH CONNECTING HARDWARE
- ALLOY: EN-AW 6082 T6
- 8.66" (220mm) OVERALL WIDTH
- 1.37" (35mm) OUTER DIAMETER TUBING
- 0.31" (8mm) DIAGONAL BRACING
- 0.078" (2mm) WALL THICKNESS
- UNIT WEIGHT 15.40 Lbs.
Series Specifications
EXTERNAL DIMENSION: 220mm; TUBES: 35x2mm; BRACES: 8mm; MATERIAL: EN-AW 6082 T6. Connecting hardware is included with each truss.
