Description

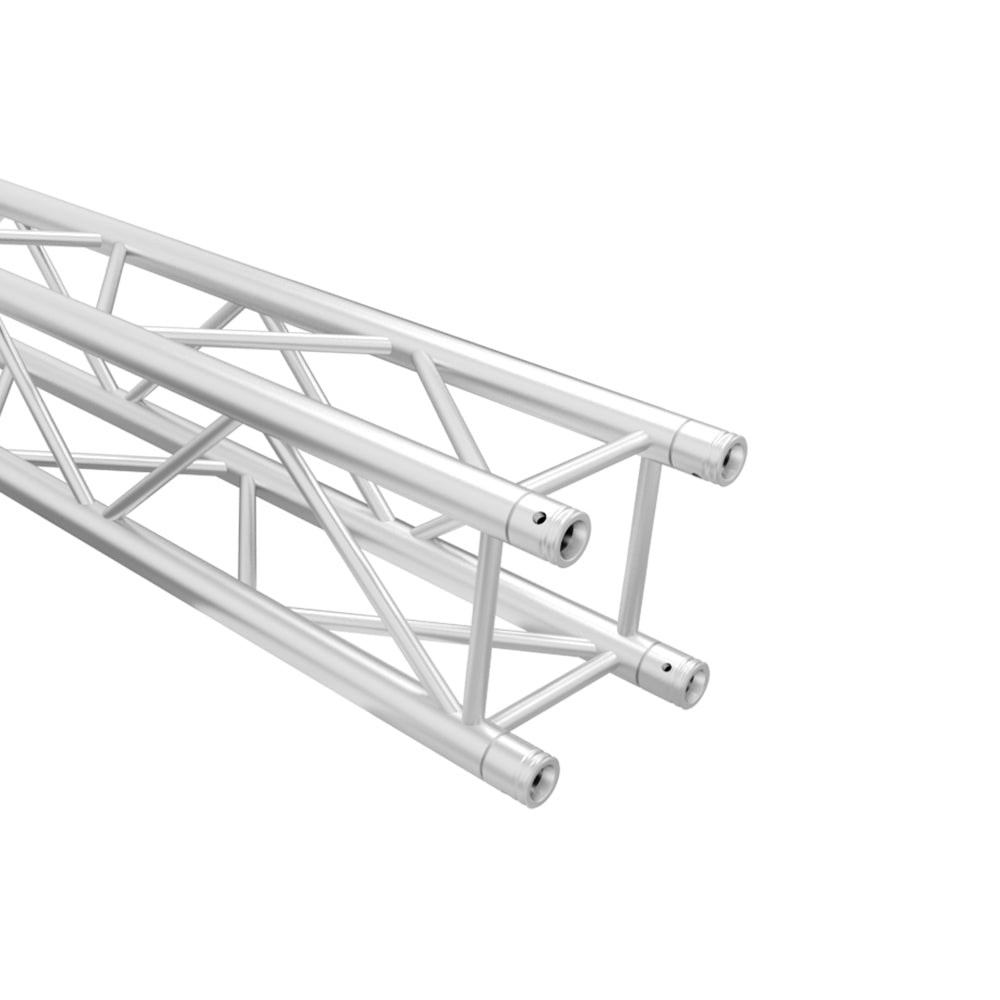

Global Truss SQ-4113: 8.2 ft (2.5m) F34 11.42 in Square Box Truss Straight Segment
F34 Square Truss: 11.42" Box Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.
Specifications
- 8.20ft / 2.5m Overall Length
- 11 7/16" (290mm) Overall Width
- 2" (50mm) Outer Diameter Tubing
- 3/4" (20mm) Diagonal Bracing
- 0.08" (2mm) Wall Thickness
- 15.44 kgs / 34 Lbs
Series Specifications
EXTERNAL DIMENSION: 290mm; TUBES: 50x2mm; BRACES: 20x2mm; MATERIAL: EN-AW 6082 T6. Connecting hardware is included with each truss.
