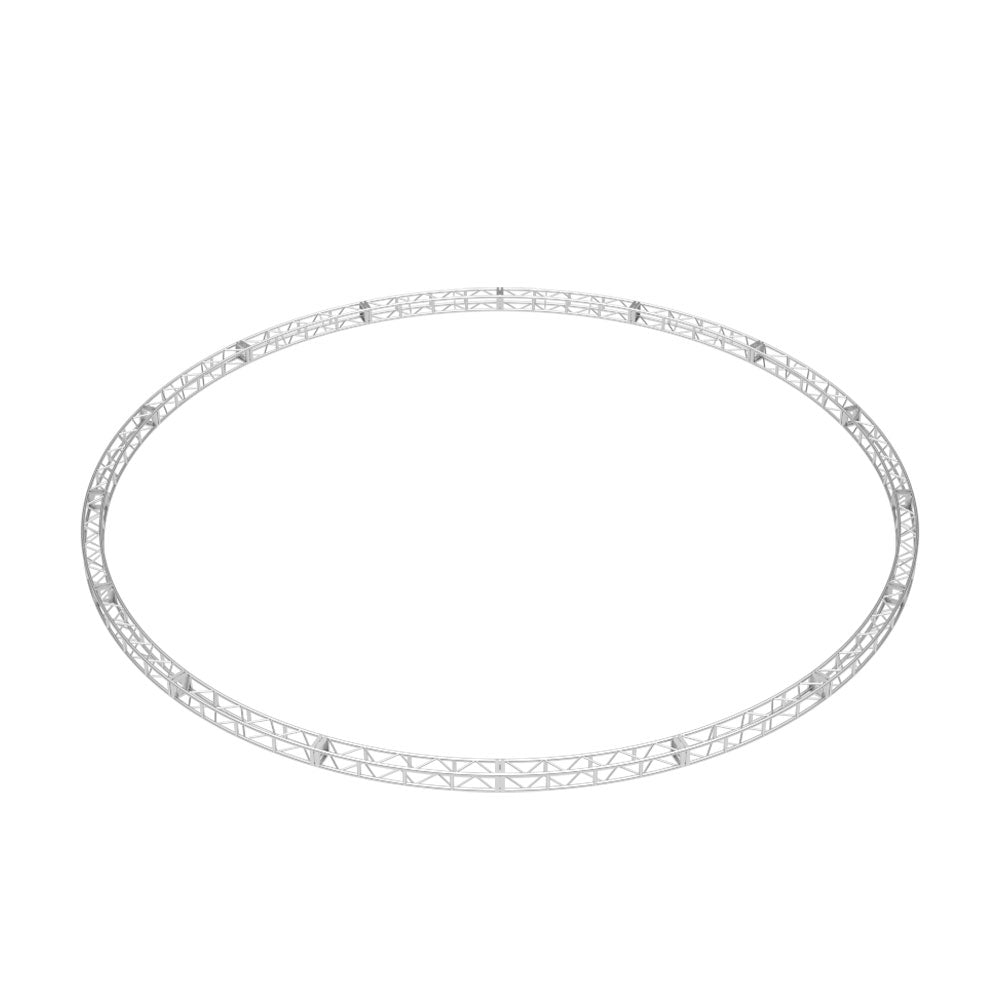

Global Truss DT-GP40-22C-KIT, 40 ft OD DT-GP 12 in End Plate Truss Circle Kit, 16 x 22.5 Degree Arcs
Global Truss DT-GP40-22C-KIT, 40 ft OD DT-GP 12 in End Plate Truss Circle Kit, 16 x 22.5 Degree Arcs
Roll over image to zoom in Click on image to zoom
Global Truss DT-GP40-22C-KIT, 40 ft OD DT-GP 12 in End Plate Truss Circle Kit, 16 x 22.5 Degree Arcs
Global Truss DT-GP40-22C-KIT, 40 ft OD DT-GP 12 in End Plate Truss Circle Kit, 16 x 22.5 Degree Arcs

Global Truss DT-GP40-22C-KIT, 40 ft OD DT-GP 12 in End Plate Truss Circle Kit, 16 x 22.5 Degree Arcs

Save $8,731.95
GLOBAL TRUSS AMERICASKU: GP0482
Price:
$17,463.00 $26,194.95

Description

Global Truss DT-GP40-22C-KIT: 40 ft OD DT-GP 12 in End Plate Truss Circle Kit, 16 x 22.5 Degree Arcs

DT-GP Square Truss: 12" Bolt Together Box Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.

Specifications

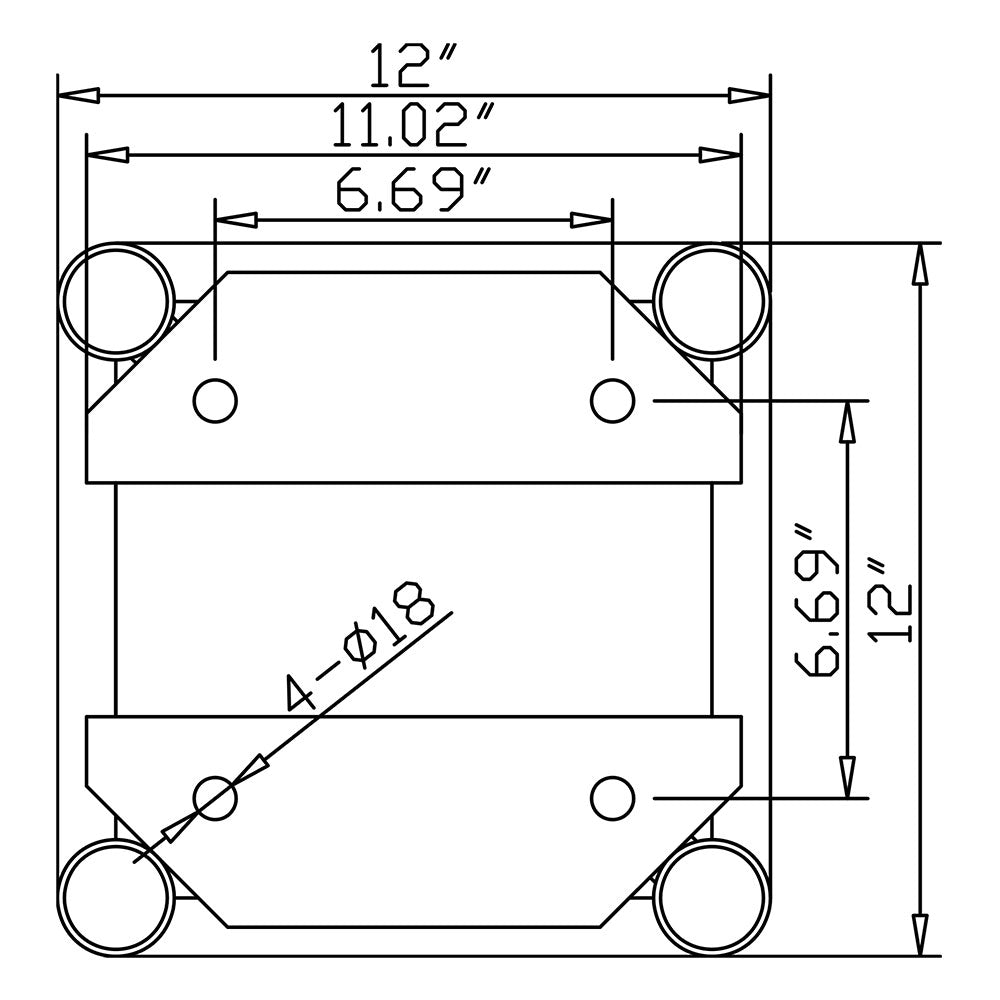

  • 12-Inch End Plate Bolt Together Truss
  • Outside Diameter: 40ft
  • Inside Diameter: 38ft
  • 12" Overall Truss Width
  • 22.5 Degree Arcs (16 Arcs)
  • 1.96" 50mm Outer Diameter Tubing
  • 0.11" 3mm Wall Thickness
  • 0.98" 25mm Diagonal Bracing
  • 0.08" 2mm Wall Thickness
  • 5/8" Grade 8 Bolts, Nuts and Washer Included
  • Kit Components: 16x DT-GP40-22ARC
  • Unit Weight: 784 Lbs.
