Description

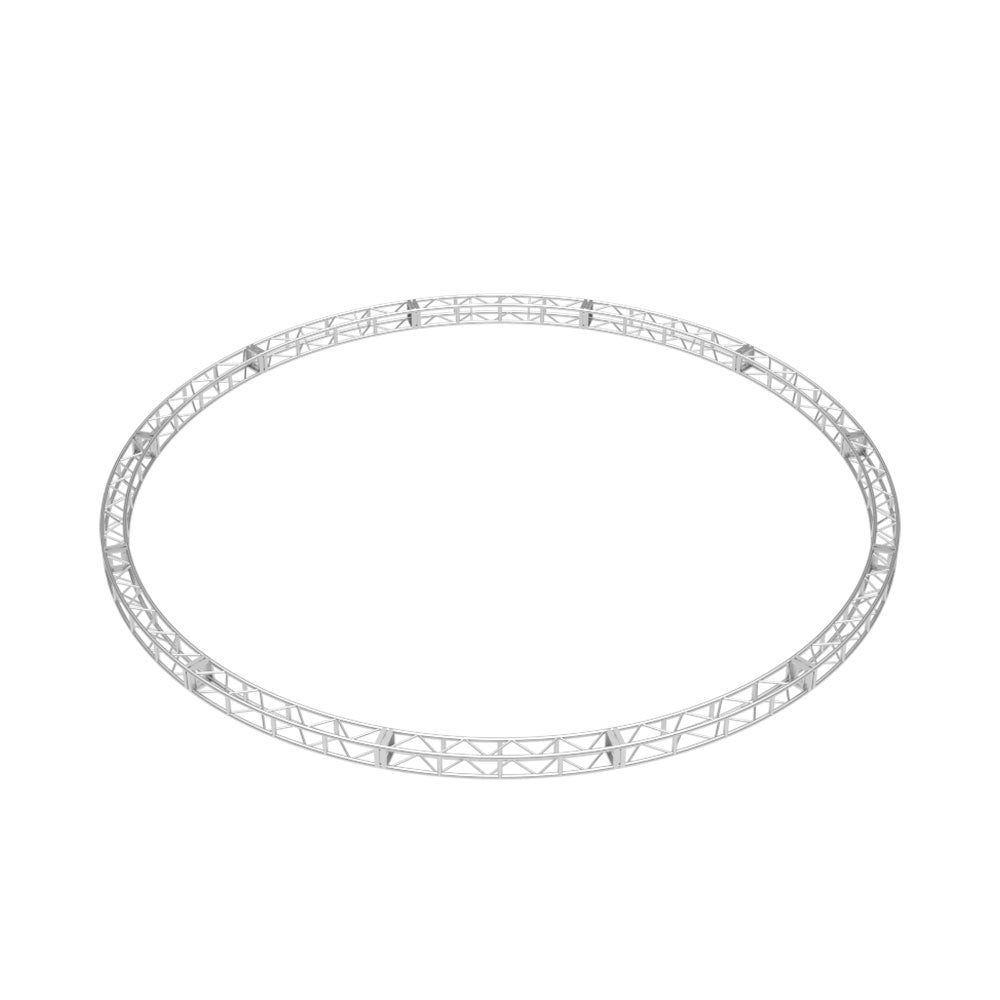

Global Truss DT-GP30-30C-KIT: 30 ft OD DT-GP 12 in End Plate Truss Circle Kit, 30 Degree Arcs
DT-GP Square Truss: 12" Bolt Together Box Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.
Specifications

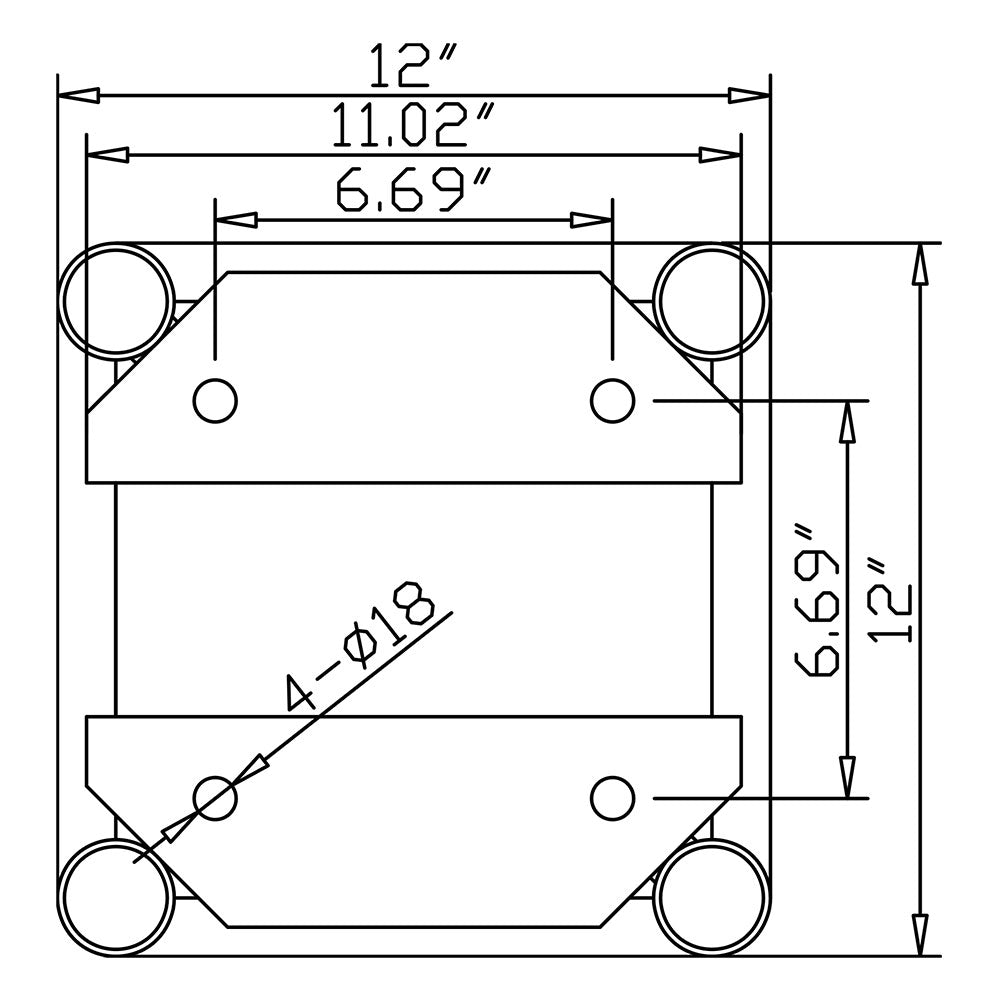

- 12-Inch End Plate Bolt Together Truss
- Outside Diameter: 30ft
- Inside Diameter: 28ft
- 12" Overall Truss Width
- 30 Degree Arcs
- 1.96" 50mm Outer Diameter Tubing
- 0.11" 3mm Wall Thickness
- 0.98" 25mm Diagonal Bracing
- 0.08" 2mm Wall Thickness
- 5/8" Grade 8 Bolts, Nuts and Washer Included
- Kit Components: 12x DT-GP30-30ARC
- Unit Weight: 600 Lbs.
