Description

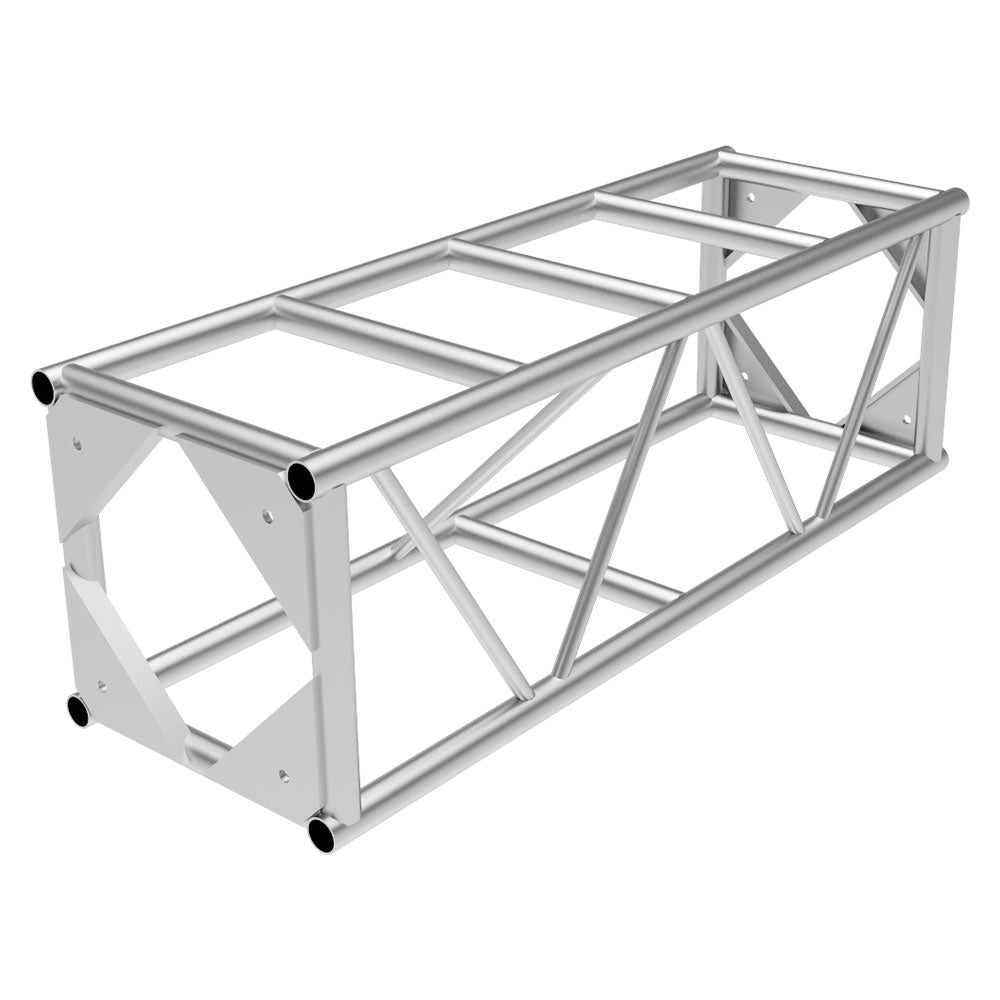

Global Truss DT-GP20-5FT: 5 ft DT-GP 20.5 in End Plate Bolt Together Truss
DT-GP20 Square Truss: 20.5" Bolt Together Box Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.
Specifications
- 20.5-Inch End Plate Trussing
- 5' Straight Segment

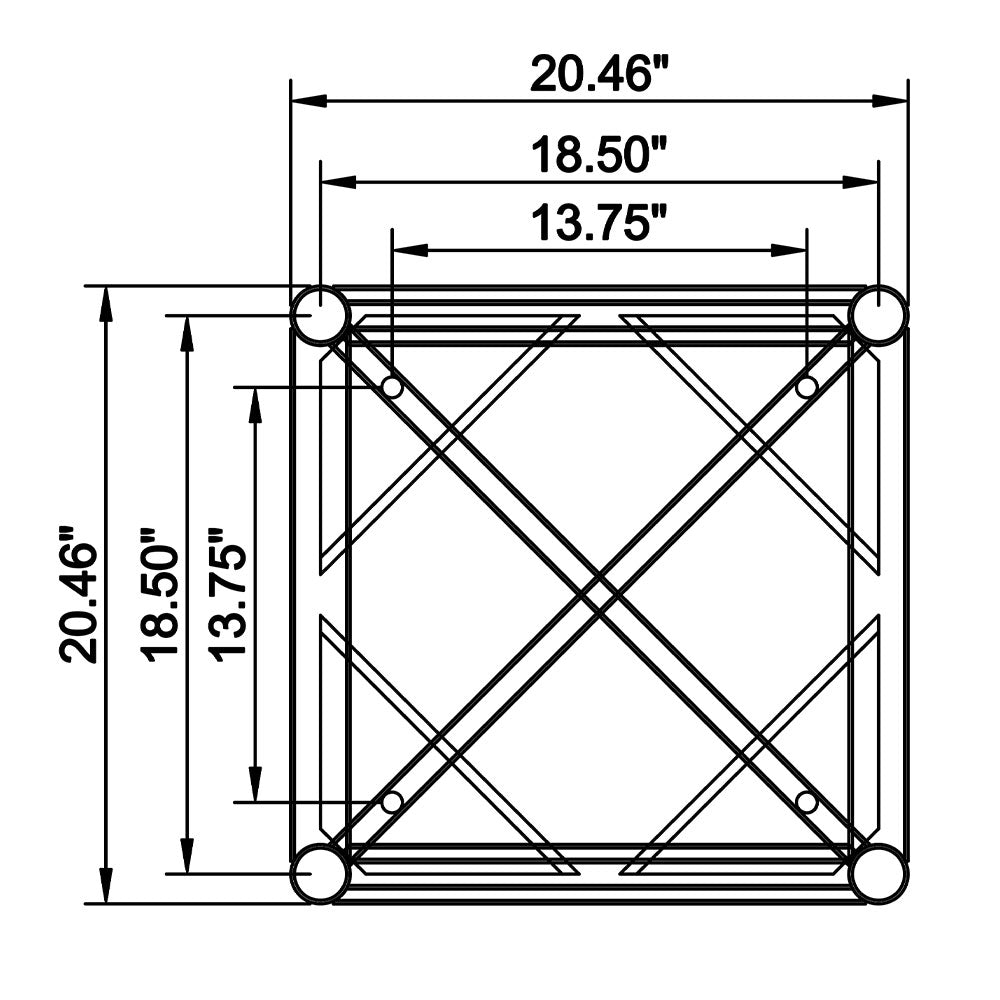

- 20.5" Overall Truss Width
- 1.96" 50mm Outer Diameter Tubing
- 0.11" 3mm Wall Thickness
- 0.98" 25mm Diagonal Bracing
- 0.08" 2mm Wall Thickness
- Connecting Hardware Included
- Weight - 52.80 Lbs.
