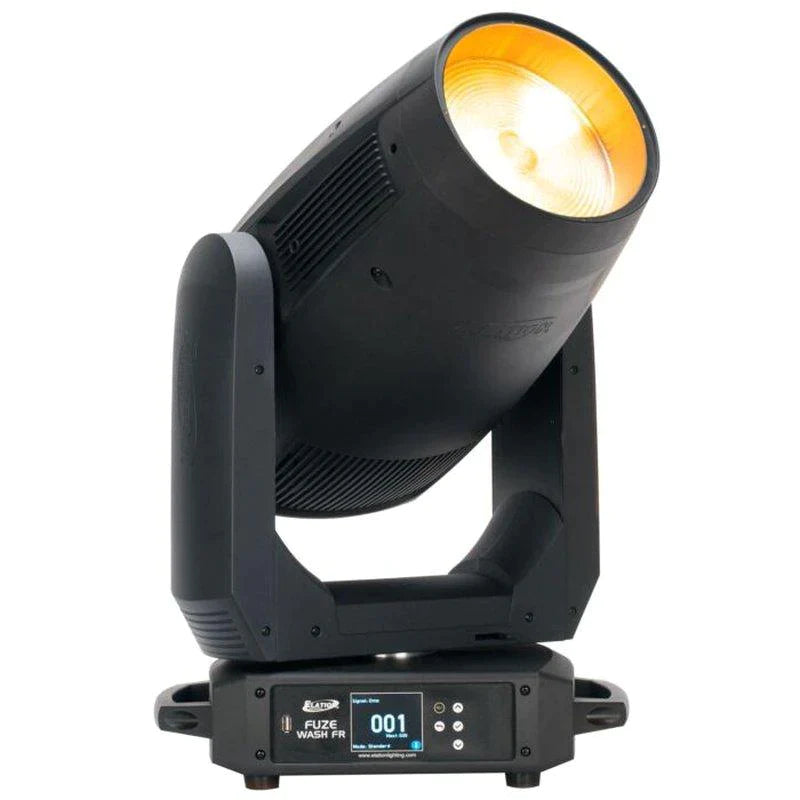

Fuze Wash FR 480W RGBMA Full Color Spectrum LED Wash + Framing

Save $1,099.00
Elation LightingSKU: FUZ501

Sale price$4,396.00 Regular price$5,495.00


The FUZE WASH FR™ is an automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 15,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE WASH FR is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and framing beam control with a soft field is required.

  • 480W Full Spectrum RGBMA LED Engine
  • Up to 15,000 Total Lumen Fixture Output @ 6500K
  • CRI up to 92
  • Internal 4-Blade Framing Module
  • Variable Frost and Iris for advanced beam control
  • Wide Zoom Range from 9° to 60°
  • Variable 16-bit Dimming Curve Modes
  • CMY Emulation
  • Virtual Color Correction
  • Green/Magenta Shift
  • Virtual Gel Swatch Book
480W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

15,000 Total Lumen Fixture Output
CRI 92
Zoom Range 9° - 60°
Beam Angle 8.2° - 50.3°
Field Angle 13° - 62.4°

Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60 Index
Variable Frost Filter
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° / 630°
Tilt Angle: 270°

RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

4 DMX Channel Modes (RGBMA 29 / 47) (CMY 27 / 43)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector Power In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network

Length: 16.06" (408mm)
Width: 10.08" (256mm)
Vertical Height: 26.74" (679mm)
Weight: 62 lbs. (28.1kg)

AC 100-240V - 50/60Hz
Max Power Consumption 631W
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2151.71

CE | cETLus | IP20

Specifications and documentation subject to change without notice.
