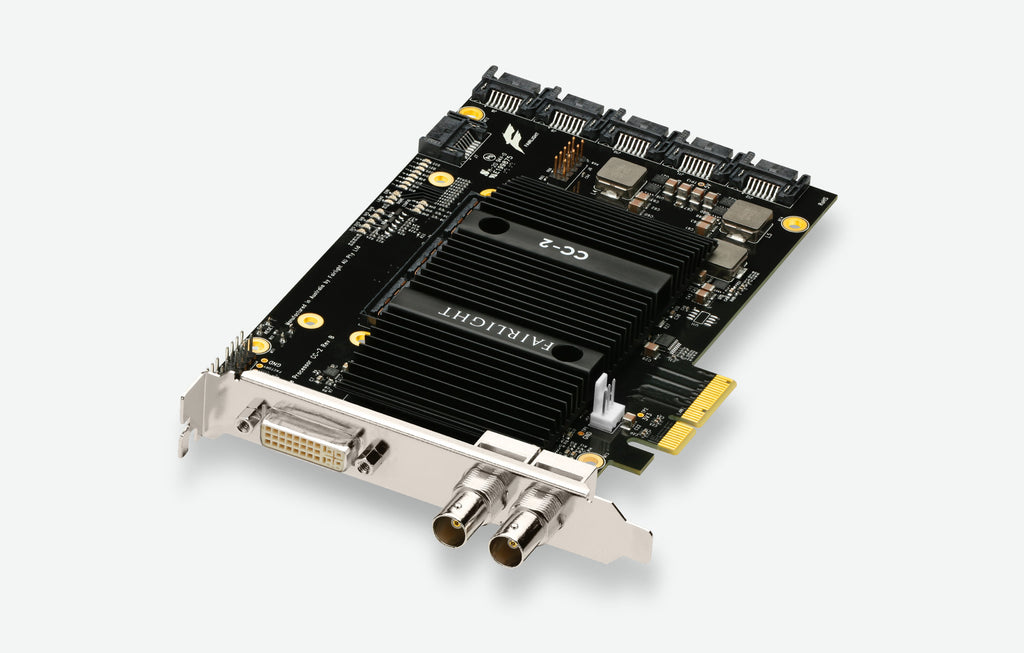

Blackmagic Fairlight Audio Accelerator

Professional Editing, Color, Effects and Audio Post!

DaVinci Resolve is the world's only solution that combines editing, color correction, visual effects, motion graphics, audio post production and now photo editing all in one software tool! Its elegant, modern interface is fast to learn and easy for new users, yet powerful for professionals. DaVinci Resolve lets you work faster, at a higher quality, because you don't have to learn multiple apps or switch software for different tasks. You can work with camera original quality images throughout the entire process. It's like having your own post production studio in a single app! Best of all, by learning DaVinci Resolve, you're learning how to use the same tools used by Hollywood professionals!

Hollywood's #1 Post Solution High end professionals working on feature films and television shows use DaVinci Resolve more than any other solution! That's because it's known for incredible quality and creative tools that are light years beyond the competition. You get DaVinci's Emmy award winning image technology with 32-bit float processing, patented YRGB color science and a massive wide gamut color space for the latest HDR workflows. You also get the legendary quality of Fairlight audio processing for the best sound in the industry! With DaVinci Resolve, you get the same tools professional colorists, editors, VFX artists and sound engineers use every day to finish your favorite films and streaming television shows!

DaVinci Resolve 21 introduces the Photo page, bringing Hollywood's advanced color tools to still photos for colorists and photographers! Plus there's over 100 new motion graphic effects, 50 new features and hundreds of quality of life improvements. New AI tools include IntelliSearch for fast content searching, CineFocus for focal point adjustment, tools for facial refinement, and more. The cut and edit pages have improved keyframing and greater graphic format support. Fusion includes the Krokodove toolset with over 70 new graphics, and Fairlight's folder function simplifies audio track management. MultiMaster trim passes, layer list node graphs and group versions enhance color page workflow.

DaVinci Resolve is the only solution that lets you grow and build your own multi user post production studio! The project libraries are built for real time local and remote collaboration. While the Blackmagic Cloud website lets you host and access your projects and media from anywhere in the world. Now you can collaborate with editors, colorists, visual effects artists, and sound engineers all working together at the same time. Best of all, you no longer have to import and export files, translate projects, lose work, or conform and manage changes. DaVinci Resolve is the only application in the world that lets everyone work together in parallel on the same project and at the same time!

All In One Solution for Post Production DaVinci Resolve is divided into "pages", each of which gives you a dedicated workspace and tools for a specific task. Editing is done on the cut and edit pages, visual effects and motion graphics on the Fusion page, color correction on the color page, audio on the Fairlight page, and media organization and output on the media and deliver pages. All it takes is a single click to switch between tasks!

Specifications

Connections

• MADI Inputs: 1 x MADI input via 75 ohm BNC
• MADI Outputs: 1 x MADI output via 75 ohm BNC

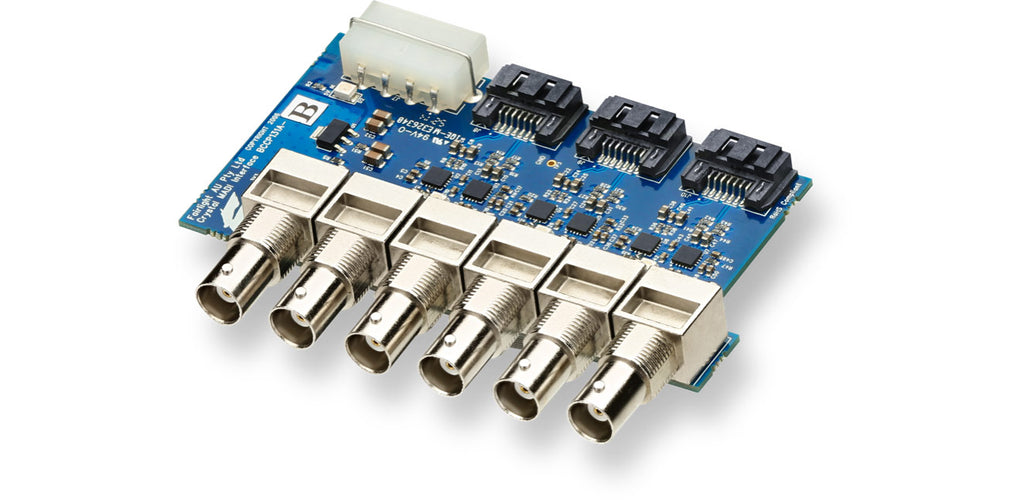

• MADI Expansion: Supports Fairlight Audio MADI Upgrade via SATA connectors 1, 2 and 3.
• I/O Expansion: Supports Fairlight Audio Interface via multi-pin connector on shield.
• PCI Form Factor: Single half length PCIe x4 board

Product Specifics

• Sampling: 44.1, 48, 96 and 192 KHz with minimum 32 bit floating point processing.
• Channel Structure: Verified using Mac Pro 7,1 with Intel CPU.
• Core Audio: Track count organized from mono to 26.0. 2000 Mono Audio Tracks at 48kHz. 1000 Mono Audio Tracks at 96kHz. 500 Mono Audio Tracks at 192kHz.
• Total Busses: 256 Busses plus 512 Bus elements at 48kHz. 256 Busses plus 256 Bus elements at 96kHz. 256 Busses plus 128 Bus elements at 192kHz.
• Record Channels: 128 at 48kHz. 64 at 96kHz. 32 at 192kHz.
• Additional Record Channels: When used with Core Audio plus Fairlight Accelerator. 256 at 48kHz. 128 at 96kHz. 64 at 192kHz.
• Channel Facilities: Elastic wave time warping and sample rate conversion. Six band EQ. Expander/gate, compressor and limiter. Up to six Resolve, VST or AU plugins. Direct out. Four band clip based EQ. Up to six Resolve, VST or AU clip based plugins. Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D channel formats. In place solo. Up to 16 VCA groups.
• FlexBus Structure: Up to 512 mono bus elements, organized in any format from mono to 26.0. Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D bus formats. Up to 10 bus sends per channel and bus with independent level control. Up to 10 post fader bus sends per channel and bus. Automatic and flexible delay compensation.
• Bus Facilities: Four band EQ. Compressor and limiter. Up to six Resolve, VST or AU pre fader plugins. Direct out.
• Plug-ins: Up to six Resolve, VST or AU plug-ins on any channel or bus. Tactile control of plug-ins from the Fairlight audio editor. Plug-ins are fully controllable with automation.
• Monitoring: Up to four simultaneous sources. Source from internal buses or external inputs. Up to 16 different speaker sets. Customizable fold up and fold down when crossing formats. Optional B-Chain processor for cinematic setups with up to 64 speakers.

Power

• Power Usage: 14W

Environmental Specifications

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 0.87 lb
• Dimensions: 12" x 8" x 2"
