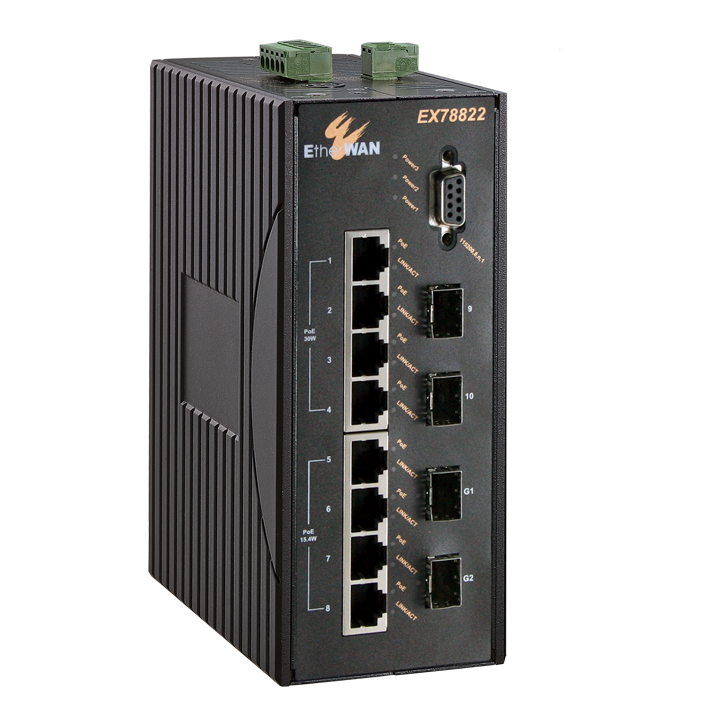

EtherWAN EX78802-0VBT, Hardened Managed 4 to 10-port 10/100BASE (8 x PoE) and 2-port Gigabit Ethernet Switch

This product is discontinued as of 6th Aug. 2026. EtherWAN's EX78000 Series is a hardened DIN-rail mounted managed PoE Ethernet switch platform. Equipped with 8 10/100BASE-TX PoE ports along with 60W power and 2 gigabit fiber ports, the EX78000 Series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial. EtherWAN - "When Connectivity is Crucial."

Highlights

• Hardened-Grade for Non-Ventilated & Harsh Environments: Wide operating temperature range -40 to 75C (-40 to 167F); Fanless operation; High impact, thermal shock, and electrical noise resistance
• PoE Features: Up to 60W/port with 240W total power budget; Long distance PoE up to 250m (820ft); PoE watchdog monitors status of connected PoE devices
• Management/Security Features: Port control; 802.1x port-based network access control and remote authentication through RADIUS; Configure and monitor with eVue and eLite
• Support: Complimentary Technical Support; Free Firmware Upgrades; Limited Lifetime Warranty

Features

• Interface: CLI, Telnet, Web Browser; SNMP v1/v2c/v3
• Management: Firmware and configuration upgrade and backup via TFTP; Supports DHCP Server/Client; RMON (Remote Monitoring) group 1, 2, 3, 9; Port Mirroring TX/RX and both; NTP (Network Time Protocol) synchronization; IEEE 802.1ab LLDP (Link Layer Discovery Protocol); IPv4/IPv6
• Security: MAC Address Filtering; Enable/Disable port; Storm control (Broadcast and multicast types); IEEE 802.1x LAN Access control; Remote authentication through RADIUS and TACACS+; Multi-user login and privileged access management; SSH for CLI and Telnet security; SSL for web security; System log (Remote/Local); ACL
• Quality of Service (QoS): Priority Queues 4 queues per port; Traffic classification based on IEEE 802.1p CoS, DSCP, WRR and strict mode; Rate Limiting (Ingress/Egress)
• Layer 2 Features: Auto-negotiation for port speed and duplex mode; Flow Control - IEEE 802.3x Full duplex mode, Back-Pressure half duplex mode; Redundant Protocols - IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, EtherWAN's Alpha-Ring network fault recovery (<15ms); VLANs - IEEE 802.1Q Tag VLANs (128 groups, 4096 VID), GVRP, GMRP; Link Aggregation - Static Trunk (2 groups, support MAC base), IEEE 802.3ad LACP; IGMP Snooping v1/v2/v3

Specifications

• Ethernet: 4 or 8 x 10/100BASE-T(X) (PoE); 0, 2 or 4 x 100BASE FX; 2 x 100/1000BASE SFP Slot; 2 x Gigabit
• Console: 1 x DB9 RS-232
• Alarm Contact: 1 x Relay output, current capacity 0.5A/48VDC
• LED Indicators: Per Unit Power 1, Power 2, Alarm; Per Port Link/Activity (Green); Per PoE Port (Orange)
• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/100BASE-FX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3x Full duplex and flow control; IEEE 802.1p QoS; IEEE 802.1Q Tag VLANs; IEEE 802.1w RSTP; IEEE 802.1x PNAC; IEEE 802.3af/at/bt Power over Ethernet
• Forward/Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps; 1,488,100pps for 1000Mbps
• Packet Buffer Memory: 12M bits
• Processing Type: Store-and-Forward; Auto-negotiation; Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control; Auto MDI/MDIX
• Address Table Size: 16K MAC Addresses
• Operating Temp.: -40 to 75C (-40 to 167F); Tested @ -40 to 85C (-40 to 185F)
• Storage Temp.: -45 to 85C (-49 to 185F)
• Relative Humidity: 5% to 95% (non-condensing)
• ISO: Manufactured in ISO-9001 facility
• EMI: FCC Part 15B Class A; VCCI Class A; EN 61000-6-4
• EMS: EN 61000-6-2; EN 61000-4-2 (ESD); EN 61000-4-3 (Radiated RFI); EN 61000-4-4 (Burst); EN 61000-4-5 (Surge); EN 61000-4-6 (Induced RFI); EN 61000-4-8 (Magnetic Field)
• Safety: UL 61010
• Vibration: IEC 60068-2-6 Fc
• Shock: IEC 60068-2-27 Ea
• Free Fall: FED STD 101C Method 5007.1
• Industrial Compliance: NEMA TS2
• Power Input: 52-57VDC Redundant (Terminal block)
• Power Consumption: 10.4W Max (without PoE)
• Power Budget: 240W Max.
• PoE Technology: Alternative A & B; Pins 1/2(+), 3/6(-), Pins 7/8(-), 4/5(+)
• PoE Power Output: Port 1 to 8 support PoE+ (15.4W/30W/60W); IEEE 802.3af up to 15.4W/port, 47-57VDC; IEEE 802.3at up to 30W/port, 52-57VDC; 60W/port, 52-57VDC
• Protection: Reverse Polarity Protection
• Casing Material: Metal
• IP Rating: IP30
• Dimensions: 71.4 x 140 x 170mm (W x D x H); 2.85in x 5.6in x 6.8in
• Weight: 1.7kg (3.74lbs)
• Installation Type: DIN-rail mounting
• Warranty: Limited Lifetime; www.etherwan.com/support/warranty-policy
• What's Included: Device Ethernet Switch; Cables 1 Console Cable; Documentation Quick Install Guide
• Ordering: EX78402-0YBT (4-port 10/100BASE-TX PoE + 2-port Gigabit); EX78802-0YBT (8-port 10/100BASE-TX PoE + 2-port Gigabit); EX78822-XZBT (8-port 10/100BASE-TX PoE + 2-port 100BASE-FX + 2-port Gigabit); EX78822-VVBT (8-port 10/100BASE-TX PoE + 2-port 100BASE-SFP + 2-port 100/1000BASE-SFP); DIN-Rail mounting kit included
• 100FX Fiber Options (X): 1 = Multi Mode (SC) 2Km; 2 = Multi Mode (ST) 2Km; A = Single Mode (SC) 20Km
• Gigabit Port Options (Y): 1 = 10/100/1000BASE-TX; 3 = 1000BASE-SX (SC) 550m; 4 = 1000BASE-SX (SC) 2Km; 5 = 1000BASE-SX (ST) 550m; A = 1000BASE-LX (SC) 10Km; R = 1000BASE-BX (SC) WDM-TX 1310nm/RX 1550nm 20Km; S = 1000BASE-BX (SC) WDM-TX 1550nm/RX 1310nm 20Km; V = Support 2-port 100/1000BASE SFP (DDM)
• Gigabit Port Options (Z): 1 = 10/100/1000BASE-TX; 3 = 1000BASE-SX (SC) 550m; 4 = 1000BASE-SX (SC) 2Km; 5 = 1000BASE-SX (ST) 550m; A = 1000BASE-LX (SC) 10Km; R = 1000BASE-BX (SC) WDM-TX 1310nm/RX 1550nm 20Km; S = 1000BASE-BX (SC) WDM-TX 1550nm/RX 1310nm 20Km
• Accessories: Hardened Gigabit SFP Module; DIN-Rail Power Supplies; Recommended Power Supply NDR-480-48 480W 48VDC DIN-Rail Power Supply; EB-232 Configuration Backup and Restoration Tool

• UPC: 847653004302
• Country of Origin: Taiwan
• Tariff Code: 8517.62.0050
