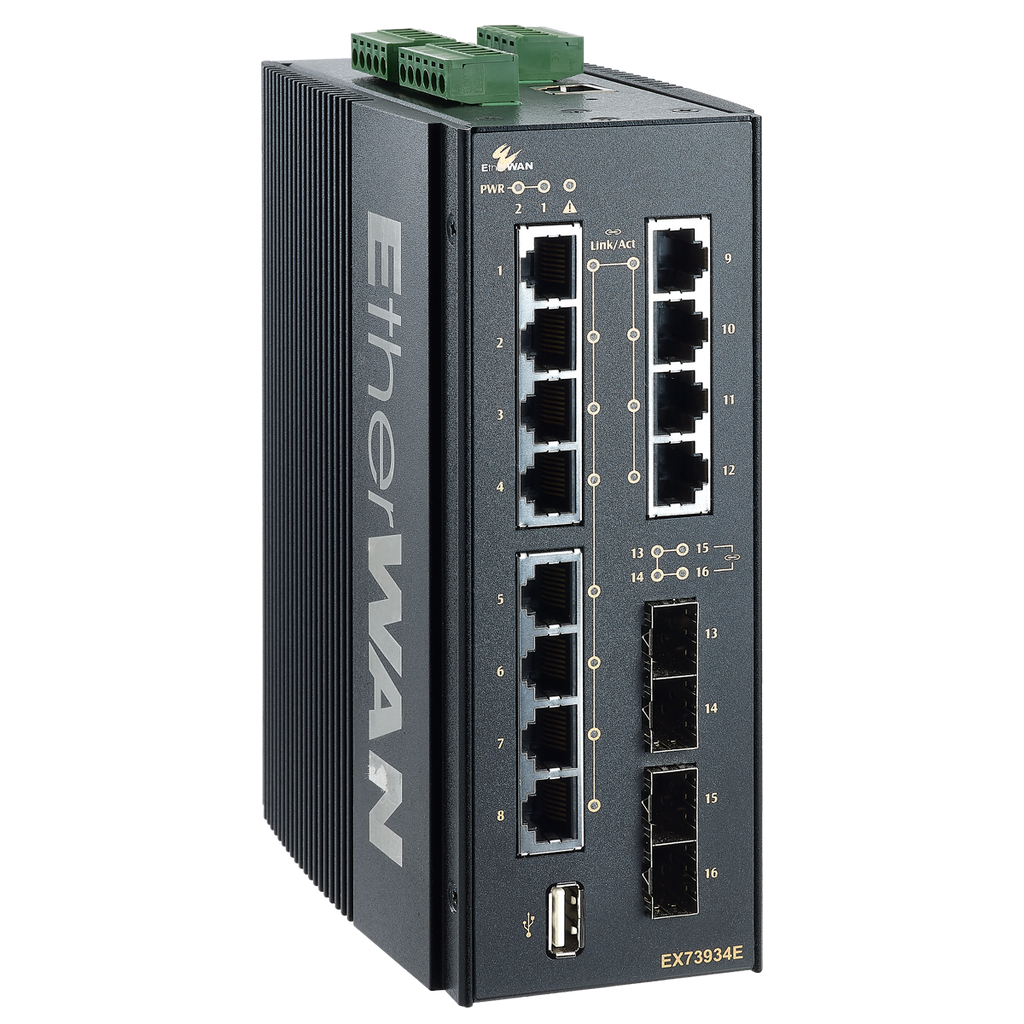

EtherWAN EX73924E-0VB-CC, IEC 61850-3/IEEE 1588 Hardened Managed 12-port Gigabit and 4-port 1G SFP Ethernet Switch

EtherWAN's EX73900E series is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with up to 12 gigabit Ethernet and 4 dual-rate gigabit SFP ports, and the IEEE1588v2 Precision Time Protocol (PTP) that uses network packets and time stamps for network time synchronization. The EX73900E series provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial. IEC 62443-4-2 Certified - Strengthening cyber resilience for critical industrial and infrastructure applications. EtherWAN - "When Connectivity is Crucial."

Highlights

• High Bandwidth and Versatility: 8 or 12 10/100/1000BASE-T(X) ports for high bandwidth connections; Up to 4 dual-rate 100/1000BASE SFP uplink ports for fiber connections; Full capacity switching running at full duplex
• Hardened-Grade for Non-Ventilated and Harsh Environments: Wide operating temperature range -40 to 75C (-40 to 167F); Fanless operation; High impact, thermal shock, and electrical noise resistance
• Lite Layer 3 Functionality: Static routing, RIP v1/v2, and OSPF support; Redundancy with VRRP; Reduces amount of broadcast traffic
• Compliance: IEC 61850-3/IEEE 1613 certified for power substations; NEMA TS2 rated; UL certified for safety
• Management/Security Features: Port control; Dying gasp feature provides SNMP trap upon power off; Configure and monitor with eVue and eLite
• Support: Complimentary Technical Support; Free Firmware Upgrades; Limited Lifetime Warranty

Features

• Interface: CLI, Telnet, Web GUI
• Management: Firmware upgrade; Configuration backup; DHCP Server/Client; RMON; Port Mirroring; NTP synchronization; LLDP; IPv4/IPv6; SNMP v1/v2c/v3; Modbus TCP
• QoS: 8 priority queues per port; IEEE 802.1p CoS, DSCP, WRR, strict mode; Rate Limiting (Ingress/Egress)
• Security: MAC Address filtering; Enable/Disable port; Storm control; System logging; IEEE 802.1x LAN Access Control; RADIUS and TACACS+; Complex password support; Multi-user login and privileged access management; SSH; SSL and HTTPS for web security; ACL up to 4096 entries; IPSG; DAI; DHCP Snooping
• Layer 2: Auto-negotiation; Flow Control; IEEE 802.3x full duplex; Back-pressure half duplex; STP/RSTP/MSTP; EtherWAN Alpha-Ring; IEEE 802.1Q VLANs, GVRP, GMRP; Static Trunk (4 groups), IEEE 802.3ad LACP; IGMP Snooping v1/v2/v3
• Layer 3: IP Packet Routing (max 64 route entries); Static Routing; RIP v1/v2; OSPF v2; Routing Redundancy VRRP
• Performance: Switching Fabric 32Gbps; Forwarding Rate 23.5Mpps; Total VLAN Entries 256 (4096 VID); Jumbo Frame 9KB; MAC Table 16K; Packet Buffer 12M bits

Specifications

• Ethernet: 8 or 12 x 10/100/1000BASE-T(X); 2 or 4 x 100/1000BASE SFP
• Console: 1 x RJ45; Config Backup 1 x USB (Type A)
• Digital Input: 2 x DI; Wet Contact 0-3V State 0, 13-30V State 1, max 8mA; Dry Contact Logic 1 Close to GND, Logic 0 Open
• Alarm Contact: 2 x Relay output, 0.6A/30VDC
• LED Indicators: Per Unit Power 1, Power 2, Alarm; Per Port Link/Activity
• Power Input: 12-48VDC Redundant (Terminal block); Power Consumption 20W Max; Protection Reverse Polarity, Overload Current
• Casing Material: Aluminum; IP Rating IP40
• Dimensions: 72 x 140 x 170mm (W x D x H); 2.8in x 5.5in x 6.7in
• Weight: 1.4kg (3.08lbs); Installation DIN-rail mounting
• Operating Temp: -40 to 75C (-40 to 167F) (-40C to 85C for IEC 60068-2-2 Environmental 16 hours); Storage -45 to 85C; Humidity 5% to 95% non-condensing; MTBF 2,046,665 hours
• Standards: IEEE 802.3/802.3u/802.3ab/802.3ad/802.3z/802.3x; 802.1D/p/Q/s/w/x/ab; IEEE 1588v2 PTP
• System Memory: 2Gb DDR3 SDRAM; Flash 1Gb
• EMI: FCC Part 15B Class A; VCCI Class A; EN 61000-6-4/3-2/3-3; BSMI
• EMS: EN 61000-6-2; EN 61000-4-2/3/4/5/6/8
• Safety: UL 61010; Cybersecurity IEC 62443-4-1/4-2; Traffic NEMA TS2; Railway EN 50121-4; Power Substation IEC 61850-3/IEEE 1613/IEC 60255-27
• Vibration: IEC 60068-2-6; Shock IEC 60068-2-27; Free Fall FED STD 101C Method 5007.1
• Warranty: Limited Lifetime; Included: Ethernet Switch, 1 Console Cable, Mounting brackets and screws, Quick install guide
