EtherWAN EX42005-00-1-A, Industrial Unmanaged 4 to 5-port 10/100BASE-TX and 1-port 100BASE-FX Ethernet Switch

EtherWAN's EX42000 Series is a compact industrial unmanaged Fast Ethernet switch, designed for easy deployment in harsh environments. The EX42000 Series is equipped with 5 Fast Ethernet copper ports, or a combination of 4 Fast Ethernet copper ports and 1 Fast Ethernet fiber port for long distance connectivity. This switch features 10/100Mbps transfer speeds, full/half-duplex auto-negotiation, and auto MDI/MDIX operation, allowing for fast and hassle-free connection and setup. Although unmanaged, the EX42000 is feature-rich with full wire speed Fast Ethernet throughput, QoS (Quality of Service), Broadcast storm protection, IEEE 802.3az EEE (Energy Efficient Ethernet), and 4 kV surge protection. The EX42000 can be DIN rail mounted, and its compact size makes it an ideal solution for factory floors, warehouses, and locations without climate control. EtherWAN - "When Connectivity is Crucial."

Highlights

• Industrial Grade: Supports -10 to 60C (14 to 140F) operating temperature; Supports DIN-Rail mounting
• Fiber Connectivity: Up to one 100BASE-FX port with SC and ST options
• 4kV Surge Protection on Data port: Augmented 4 kV surge protection in accordance with EN 61000-4-5
• Broadcast Storm Protection Threshold: 30 Frames / 10ms for 100Mbps

Specifications

• Standards: IEEE 802.3u 100BASE-TX/FX; IEEE 802.3x full-duplex flow control; IEEE 802.3az Energy Efficient Ethernet; IEEE 802.1p Quality of Service (QoS)
• Forward/Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps
• Packet Buffer Memory: 448K bits
• Processing Type: Store-and-Forward; Auto Negotiation; Half-duplex back-pressure and IEEE 802.3x full-duplex flow control; Auto MDI/MDIX
• Address Table Size: 1K MAC addresses
• Ethernet: 10/100BASE-TX 5 or 4 ports; 100BASE-FX 0 or 1 port
• LED Indicators: Per Unit Power (Green); Per Port Link/Activity (Green), Speed (Yellow)
• Operating Temp.: -10 to 60C (14 to 140F)
• Storage Temp.: -40 to 85C (-40 to 185F)
• Ambient Relative Humidity: 5% to 95% (non-condensing)
• Power Input: 12-48VDC (Terminal Block)
• Power Consumption: 1.82W Max. 0.14A@12VDC, 0.07A@24VDC, 0.038A@48VDC
• Protection: Reverse Polarity Protection
• Casing Material: Plastic Case
• IP Rating: IP30

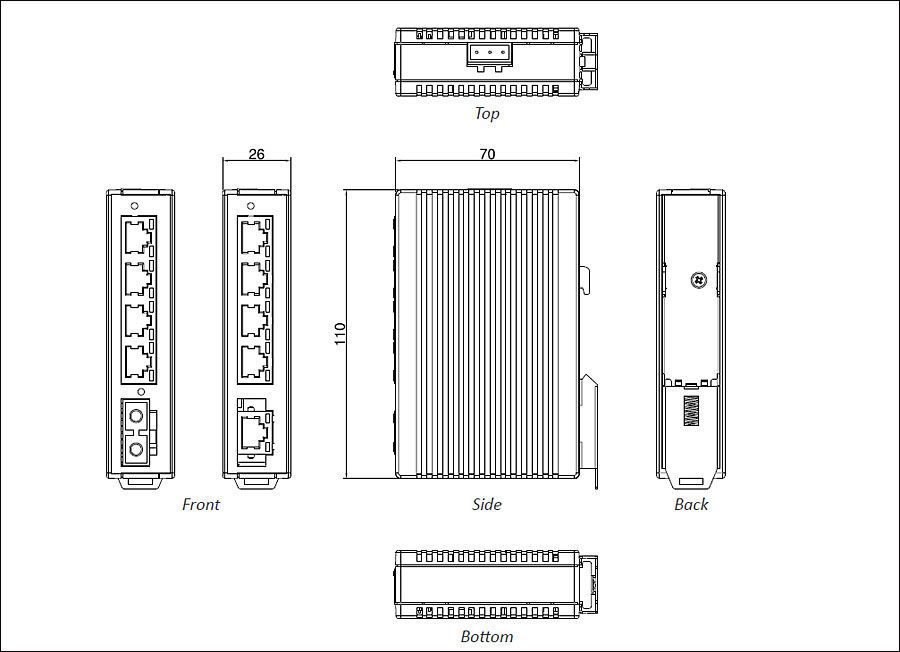

• Dimensions: 26 x 70 x 110mm (W x D x H) (1.02in x 2.76in x 4.33in)
• Weight: 0.2Kg (0.44lbs.)
• Installation Type: DIN-Rail (Top hat type 35mm)
• ISO: Manufactured in ISO-9001 facility
• EMI: FCC Part 15B Class A; VCCI Class A; EN 61000-6-4; EN 61000-3-2; EN 61000-3-3
• EMS: EN 61000-6-2 (EN 61000-4-2 ESD; EN 61000-4-3 Radiated RFI; EN 61000-4-4 Burst; EN 61000-4-5 Surge - Signal ports +/-4kV line-to-ground; EN 61000-4-6 Induced RFI; EN 61000-4-8 Magnetic field)
• Safety: UL 62368
• Environmental Test Compliance: IEC 60068-2-6 Fc (Vibration); IEC 60068-2-27 Ea (Shock); FED STD 101C Method 5007.1 (Free fall w/package)
• MPN: EX42005-00-1-A 1718448
• Ordering: EX42005-00-1-A (5-port 10/100BASE-TX Industrial Unmanaged Ethernet Switch with 4kV surge protection); EX42014-XY-1-A (4-port 10/100BASE-TX + 1-port 100BASE-FX Industrial Unmanaged Ethernet Switch with 4kV surge protection); DIN-Rail mounting kit included
• 100FX Fiber Options (XY): 1A Multi Mode (SC) - 2Km; 1B Multi Mode (ST) - 2Km; 2A Single Mode (SC) - 20Km; 2D Single Mode (ST) - 20Km; 2E Single Mode (SC) WDM-TX 1310nm/RX 1550nm-20Km; 2G Single Mode (SC) WDM-TX 1550nm/RX 1310nm-20Km
• Power Supplies: EPOW-24-60 (Power Supply, Hardened (-40C - +75C) External 100-277 VAC Input; NEMA-TS2 rated; 60W, 24VDC, 0-11.1A with Open Wire (US Plug) - No Deration at High Temps); EPHX-24-60 (60W/2.5A DIN-Rail 24VDC Industrial Power Supply - No Deration at High Temps); EPHX-48-240 (240W/5A DIN-Rail 48VDC (42-56VDC Adjustable) Industrial Power Supply - No Deration at High Temps); EPHX-48-480 (480W/10A DIN-Rail 48VDC (36-55VDC Adjustable) Industrial Power Supply - No Deration at High Temps)

• UPC: 847653000830
• Country of Origin: Taiwan
• Tariff Code: 8517.62.0050
