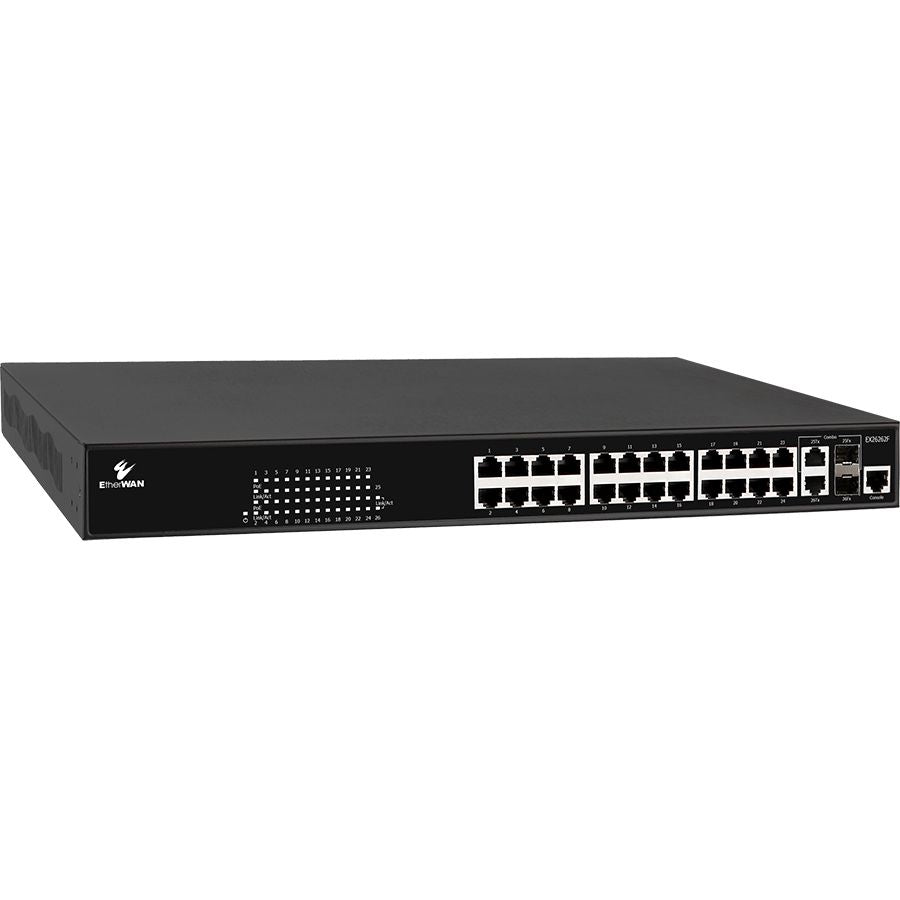

EtherWAN EX26262F, Managed 24-port Gigabit PoE + 2-port 100/1000 SFP Combo Ethernet Switch

EtherWAN's EX26262F is a managed 26-port PoE Ethernet switch platform. Equipped with 24 gigabit PoE ports along with a high total PoE power budget of 450W and 2 gigabit combo RJ45/SFP ports, the EX26262F provides flexibility, speed, and reliability for networks in urban infrastructure, security, and other areas where connectivity is crucial. EtherWAN - "When Connectivity is Crucial."

Highlights

• High Bandwidth and Versatility: 24 10/100/1000BASE-T(X) ports for high bandwidth connections; 2 combo RJ45/SFP connections for uplink; Full capacity switching running at full duplex
• High Power PoE Power Budget: Maximum PoE power budget of up to 450W; Provides up to 30W per port for PTZ cameras and other high power devices
• Management/Security Features: PoE watchdog monitors status of connected PoE devices; 802.1x port-based network access control and remote authentication through RADIUS and TACACS+; Port control and security
• Support: Complimentary technical support; Free firmware upgrades

Features

• Interface: CLI, Telnet and Web Browser; SNMP v1/v2c/v3
• Management: Firmware and configuration upgrade and backup via TFTP; Supports DHCP Server/Client; RMON (Remote Monitoring) group 1, 2, 3, 9; Port mirroring TX/RX and both; NTP (Network Time Protocol) Time Synchronization; IEEE 802.1ab LLDP (Link Layer Discovery Protocol); IPv4/IPv6; PoE Watchdog; Virtual Stacking
• Security: MAC Address Filtering; Enable/Disable Port; Storm Control (Broadcast and Multicast Types); IEEE802.1x LAN Access Control; Remote Authentication through RADIUS & TACACS+; SSH for CLI and Telnet Security; SSL for Web Security; System Log; ACL
• Quality of Service (QoS): Priority Queues 8 Queues per Port; Traffic Classification Based on IEEE802.1p CoS, DSCP, WRR, and Strict Mode; Rate Limiting (Ingress/Egress)
• Layer 2 Features: Flow Control (IEEE802.3x full duplex mode; Back-Pressure half duplex mode); Redundant Protocol (IEEE802.1D Spanning Tree Protocol (STP); IEEE802.1w Rapid Spanning Tree Protocol (RSTP); IEEE802.1s Multiple Spanning Tree Protocol (MSTP)); VLANs (Supports up to 4K VLANs simultaneously (128 groups, 4096 VID); Port-based VLAN; Voice VLAN); Link Aggregation (Static trunk (13 groups, 4 ports per group); IEEE802.3ad Link Aggregation Control Protocol); IGMP Snooping (IGMP snooping v1/v2/v3)

Specifications

• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-T; IEEE 802.3ab 1000BASE-T; IEEE 802.3ad LACP; IEEE 802.3af PoE; IEEE 802.3at PoE+; IEEE 802.3x Full duplex and flow control; IEEE 802.1D STP; IEEE 802.1p QoS; IEEE 802.1Q Tag VLANs; IEEE 802.1s MSTP; IEEE 802.1w RSTP; IEEE 802.1x Port-based Network Access Control; IEEE 802.1ab LLDP; G.0832 ERPS
• Forward/Filtering Rate: 14,800pps for 10Mbps; 148,810pps for 100Mbps; 1,488,100pps for 1000Mbps; 14,881,000pps for 10Gbps
• Packet Buffer Memory: 32M Bits
• Processing Type: Store-and-forward; Auto-negotiation; Half-duplex back-pressure and full-duplex flow control and IEEE 802.3x full-duplex flow control; Auto MDI/MDIX
• Address Table Size: 32K MAC Addresses
• Switching Fabric: 176Gbps
• Forwarding Rate: 130.94Mpps
• Jumbo Frame Size: 9.6KB
• Ethernet: 10/100/1000BASE-T(X) 24 ports; 100/1000 Combo (RJ45 or SFP) 2 ports
• Console: Two Ports; 1 x RJ45
• LED Indicators: Per Unit Power; Per Port Link/Activity, PoE
• Power Input: 100-240VAC
• Power Consumption: 37W Max (without PoE) w/ PoE power budget of 450W up to 30W/port PoE power output
• Casing Material: Aluminum
• Dimensions: EX26262F 17.3in x 12.99in x 1.73in (W x D x H) (440 x 330 x 44mm)
• Weight: 10.56lbs (5.5kg)
• Installation Type: Rack Mounting
• Operating Temp.: 32 to 122F (0 to 50C)
• Storage Temp.: -10 to 158F (-10 to 70C)
• Relative Humidity: 10% to 90% (non-condensing)
• EMI: FCC Part 15B; VCCI Class A; CE Mark Class A
• Safety: UL 62368-1
• Warranty: 3 Years; www.etherwan.com/support/warranty-policy
• What's Included: Device Ethernet Switch; Accessories AC Power Cord, Rack Mounting Kit; Documentation Quick install guide
• MPN: EX26262F 1684349
• Ordering: EX26262F (Managed 24-port Gigabit PoE + 2-port 100/1000 SFP Combo Ethernet Switch); Rack mounting kit included

• UPC: 847653005347
• Country of Origin: Taiwan
• Tariff Code: 8517.62.0050
