EtherWAN EX19244, Smart Managed 24-Port Gigabit PoE Ethernet Switch

EtherWAN's EX19244 is a 24-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19244 is equipped with 24 10/100/1000BASE-T(X) PoE+ ports with 4 being combo ports with 100/1000BASE SFP for fiber. With features such as an easy-to-use management GUI, QoS, VLANs and full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 460W, the EX19244 is the perfect solution for security networks. EtherWAN - "When Connectivity is Crucial."

Highlights

• Smart Management Features: Easy to use web GUI; VLAN configuration; Comprehensive IP configuration and QoS
• Power over Ethernet: Total PoE power budget of 460W to deliver sufficient power to all connected PoE devices; Overloading protection; Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices

Features

• Interface: Web GUI
• Management: Firmware upgrade; Configuration backup and restore; DHCP Client; SNMP Trap; Port Mirroring; LLDP (Link Layer Discovery Protocol)
• Security: MAC address filtering; Enable/Disable PoE per port; Storm control; TCP/UDP filter; Initial login complex password setup requirement
• Quality of Service (QoS): Priority Queues 8 queues per port; Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin)
• Layer 2 Features: Auto-negotiation for port speed and duplex mode (Flow Control; IEEE 802.3x full duplex mode; Back-pressure half duplex mode); VLANs (16 Groups, 4096 VID; Tag-based; Port-based); Link Aggregation (Static Trunk 2 groups); IGMP Snooping (IGMP Snooping v1/v2)
• Software Properties and Performance: Switching Fabric 20Gbps; Forwarding Rate 14.88Mpps; Jumbo Frame 9.6KB; MAC Table Size 8K; Packet Buffer Memory 4Mb

Specifications

• Ethernet: 10/100/1000BASE-T(X) 24 ports; 100/1000BASE SFP 4 ports (combo with ports 21-24)
• LED Indicators: Per Unit Power; Per Port PoE Status; Per Port Link Link/Activity
• Reset Button: Restore factory default settings
• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3x Full duplex and flow control; IEEE 802.1p QoS; IEEE 802.1Q Tag VLANS; IEEE 802.3af Power over Ethernet (PoE); IEEE 802.3at Power over Ethernet (PoE+); IEEE 802.1AB LLDP (Link Layer Discovery Protocol); IEEE 802.3az EEE (Energy Efficient Ethernet)
• Forward and Filtering Rate: 14,880pps for 10Mbps; 148,880pps for 100Mbps; 1,488,000pps for 1000Mbps
• Processing Type: Store-and-Forward; Auto-Negotiation; Half-duplex back-pressure full-duplex flow control; Auto MDI/MDIX
• Casing Material: Metal

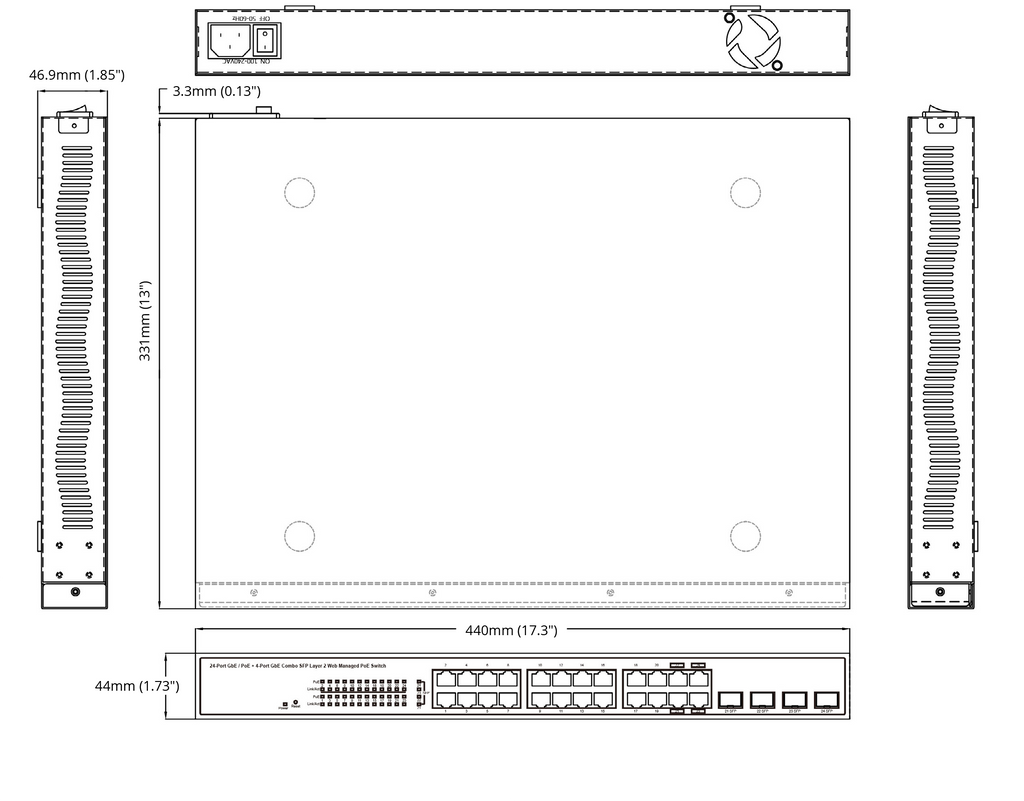

• Dimensions: 440 x 331 x 44mm (W x D x H); 17.3in x 13in x 1.73in
• Weight: 9.75lbs (4.4kg)
• Installation Type: Rack mounting
• Power Input: 100-240VAC, 50/60Hz
• Power Consumption: Device 30W (without PoE); PoE Power Budget 460W
• Operating Temp.: 0 to 50C (32 to 122F)
• Storage Temp.: -10 to 80C (14 to 158F)
• Relative Humidity: 10% to 90% (non-condensing)
• ISO: Manufactured in ISO-9001 facility
• EMI: FCC Part 15 Class B
• Warranty: 3 Years; www.etherwan.com/support/warrantypolicy
• What's Included: Device Ethernet Switch; Power AC power cord; Installation Mounting brackets, screws; Documentation Quick Install Guide
• MPN: EX19244 1683912
• Ordering: EX19244 (24-port 10/100/1000BASE-T(X) PoE, 4-port 100/1000 SFP combo); Rack mounting kit included

• UPC: 847653005149
• Country of Origin: Taiwan
• Tariff Code: 8517.62.0050
