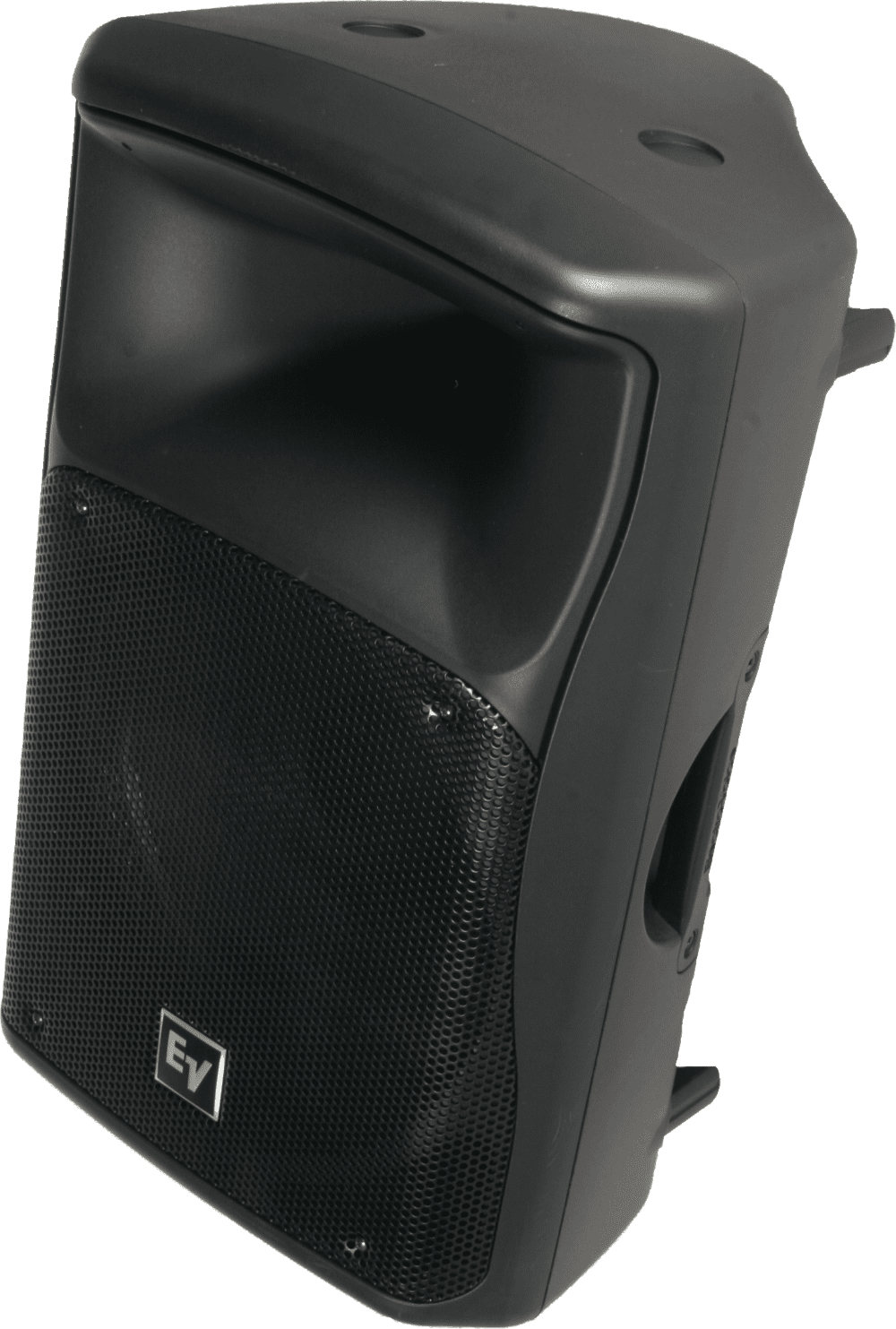

Electro-Voice EV ZX4
Roll over image to zoom in Click on image to zoom
Electro-Voice EV ZX4

Electro-Voice EV ZX4

Save $204.00
Electro-Voice EVSKU: ZX4
Price:
$749.00 $953.00

Description



ZX4

15" Passive Loudspeaker

  • Perfect for portable mains and monitors
  • EVS15-SF woofer
  • 1.25-inch DH3/2010A titanium HF driver
  • Passive crossover
  • 90º x 50º coverage horn
  • High sensitivity, 132 dB maximum SPL
  • Power handling: 400 W continuous, 1600 W peak
  • Lightweight high-impact polypropylene enclosure
  • Wedge shape for monitors at 45º or 55º
  • Integrated pole mount adapter and pocket handle
  • Mounting via attachment plates or eyebolts
  • Black finish

Frequency Range (-10 dB) 42 - 20000kHz
Weight Net 44.53lbs (20.2kg)
Depth 15.98" (406mm)


Width 17.52" (445mm)
Height 27.01" (686mm)
Available Color Black
Chassis Size 381 mm
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 50°
Crossover Frequency 1500Hz
Enclosure Material High Impact Polystyrene Composite
Family ZxZxA
Flying Yes
Frequency Response (-3 dB) 60 - 20000Hz
Grille Polyester Powder Coated, 18GA Galvanized Steel
HF Transducer 1.25-inch DH3/2010A
Input Connections Parallel Neutrik® NL4
Internal Crossover Yes
LF Transducer 15-inch EVS15-SF
Max. SPL/1m (calc) 132dB
Minimum Impedance 6.5?
Nominal Impedance (Passive) 8?
Power Rating 1600W
Powered or Passive Passive
Recommended High-Pass Frequency 42Hz
Sensitivity 1 W/1 m 100dB
Speaker Type Full-Range, Mid-High, Two-Way, Wedges
System Power Handling (Continuous/Program/Peak) 400//1600Watts
Weatherized No
Woofer Size 15inch
