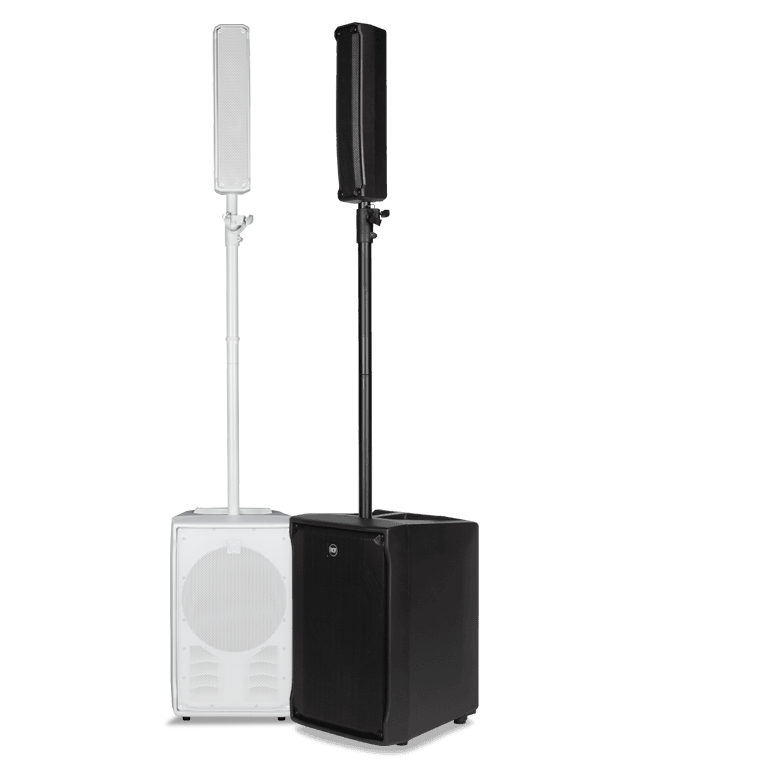

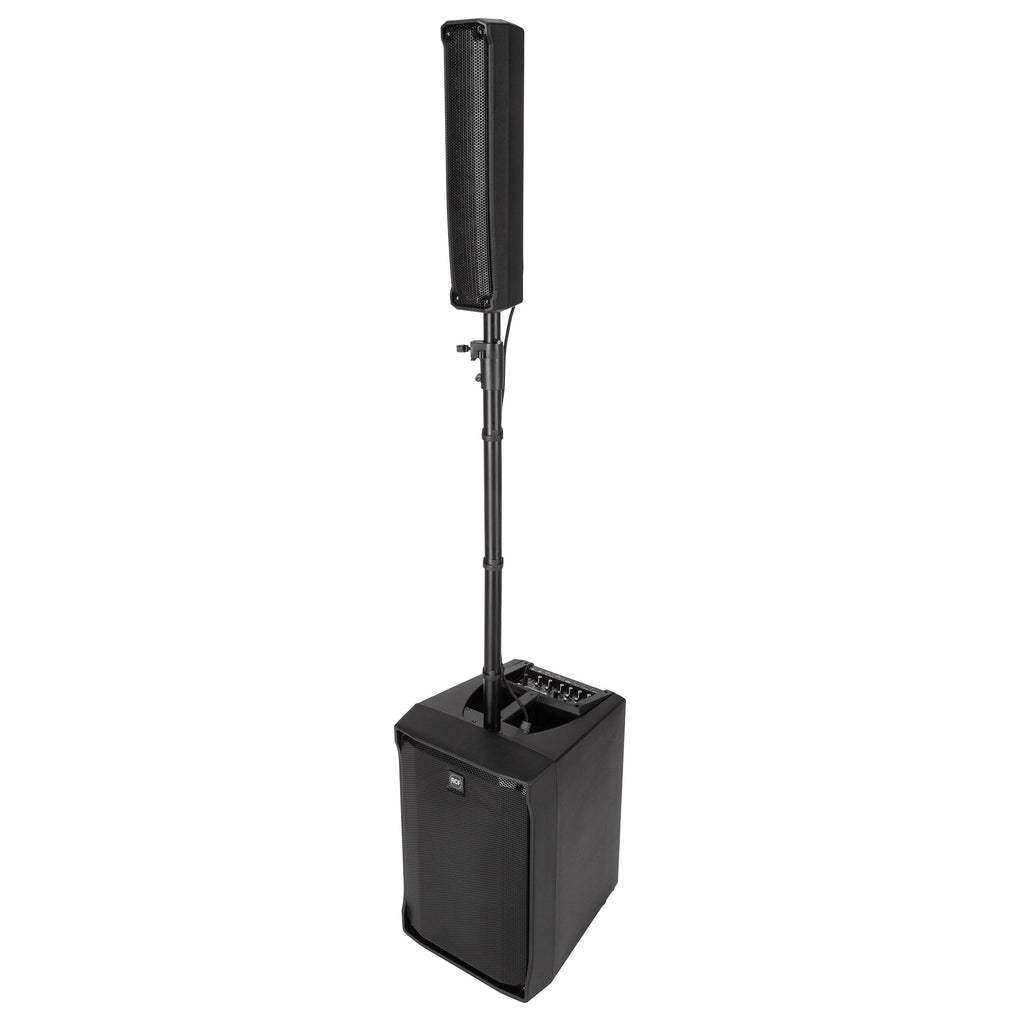

EVOX JMIX8 | ACTIVE TWO WAY ARRAY MUSIC SYSTEM | Technical Specifications | 128 dB Max SPL | 1400 Watt 2-way power | 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
Technical Specifications
| Acoustical specifications |
| Frequency Response |
40 Hz - 20000 Hz |
| Max SPL @ 1m |
128 dB |
| Horizontal coverage angle |
120° |
| Vertical coverage angle |
30° |
| Transducers |

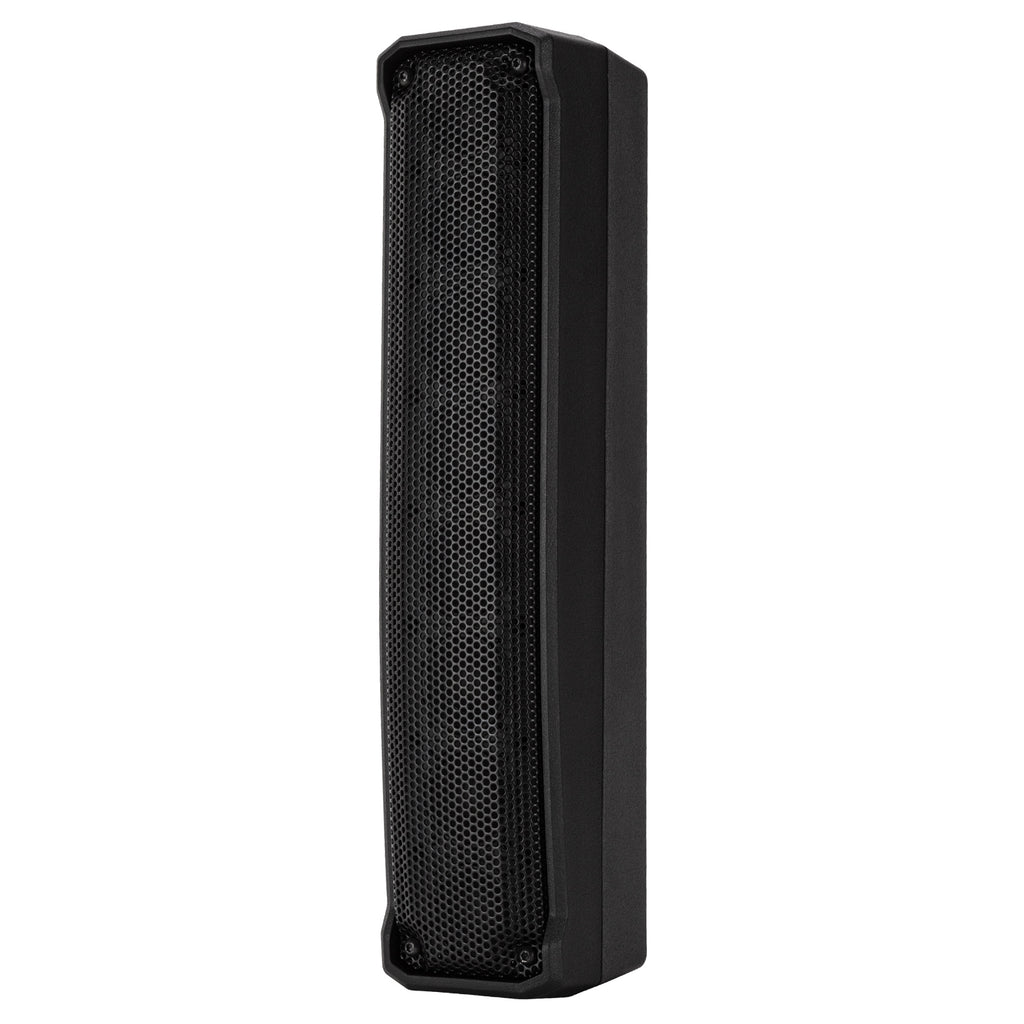

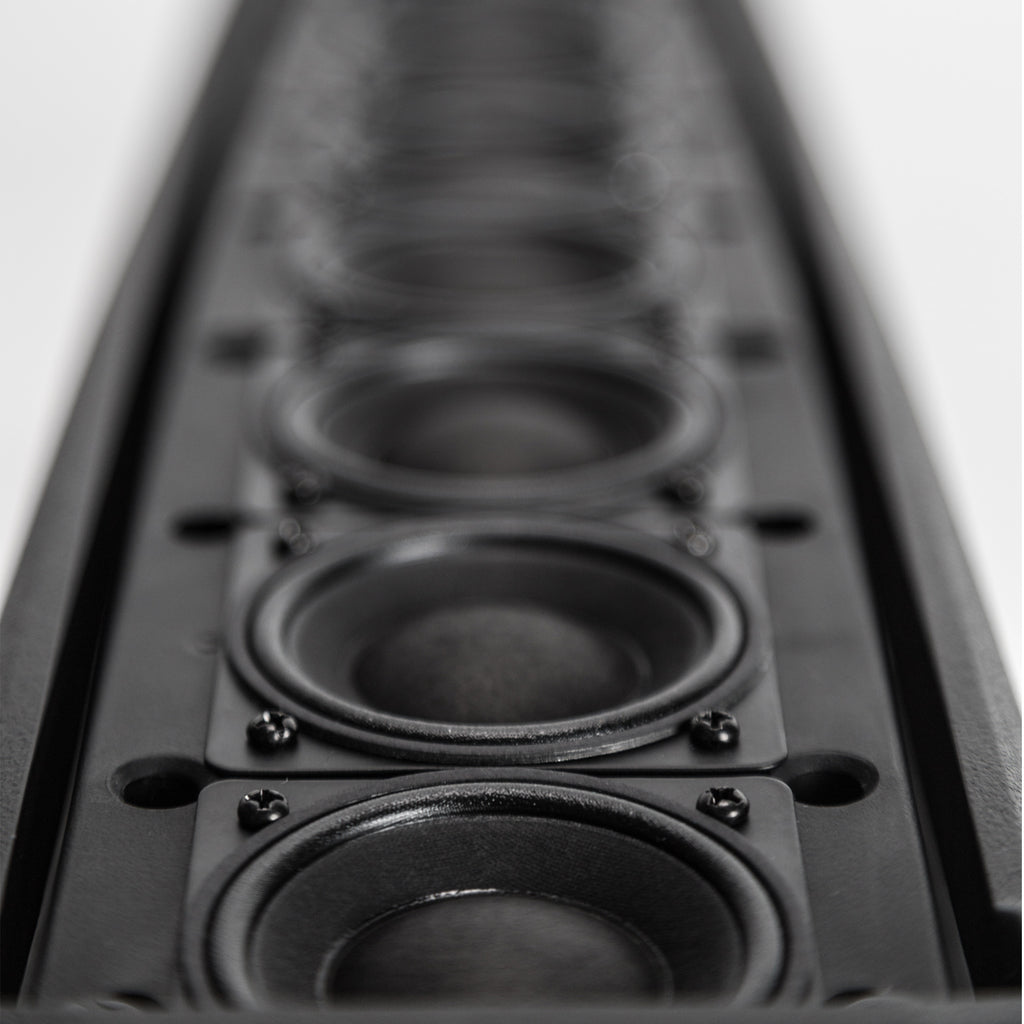

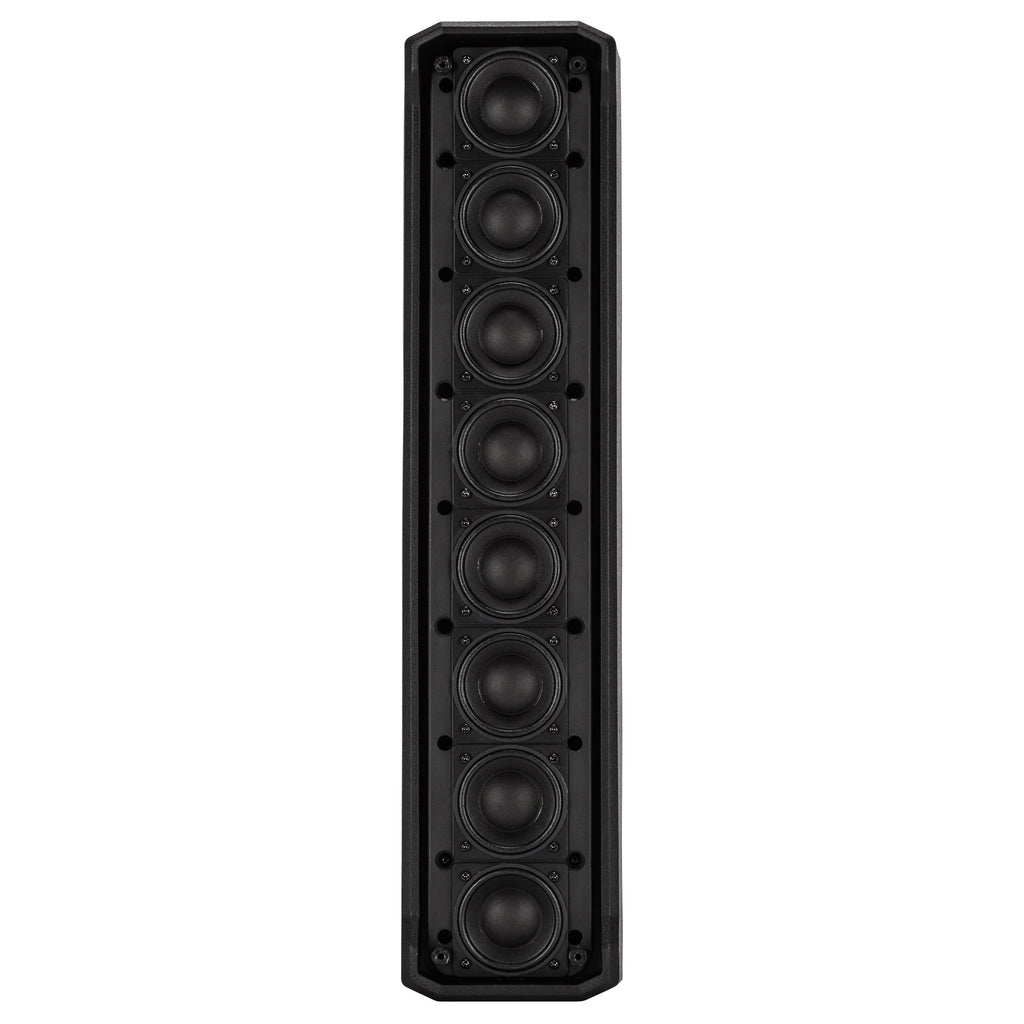

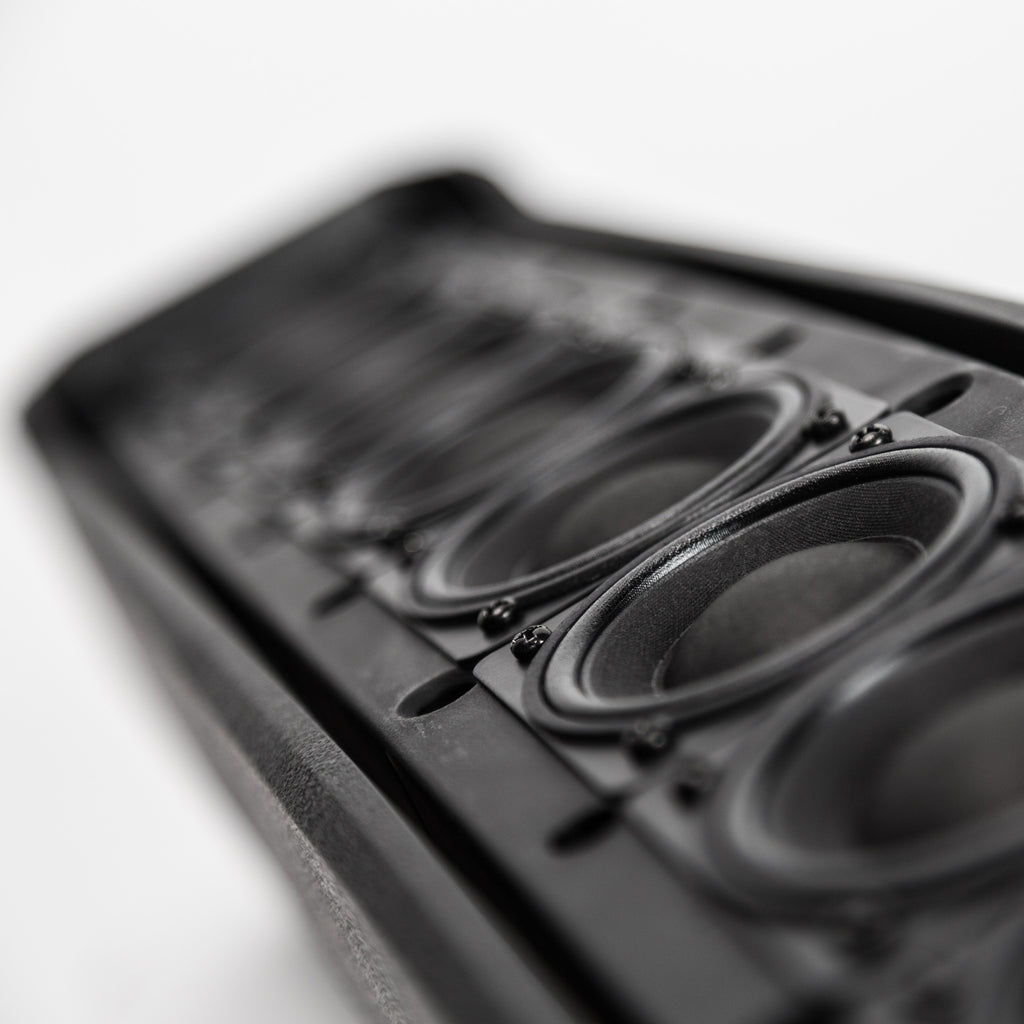

| Fullrange |
8 x 2.0'', 1.0'' v.c |

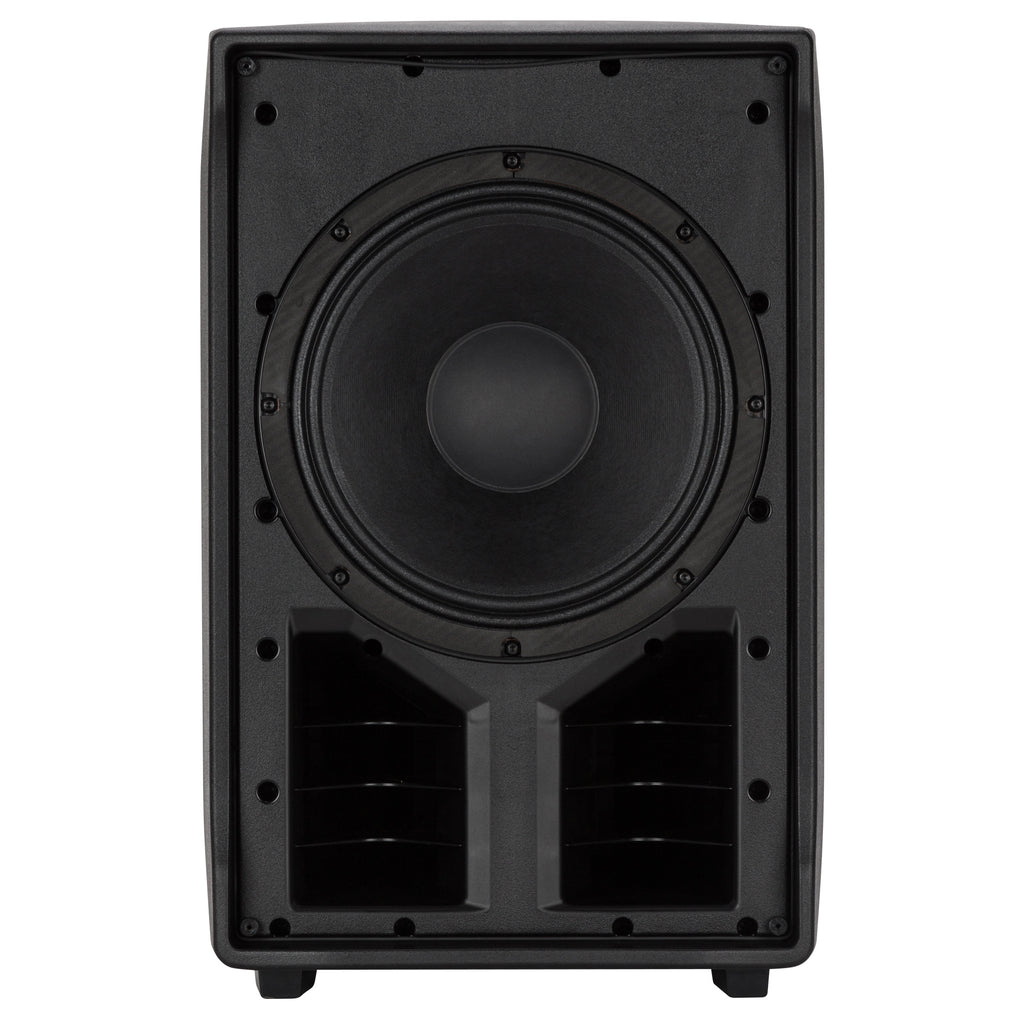

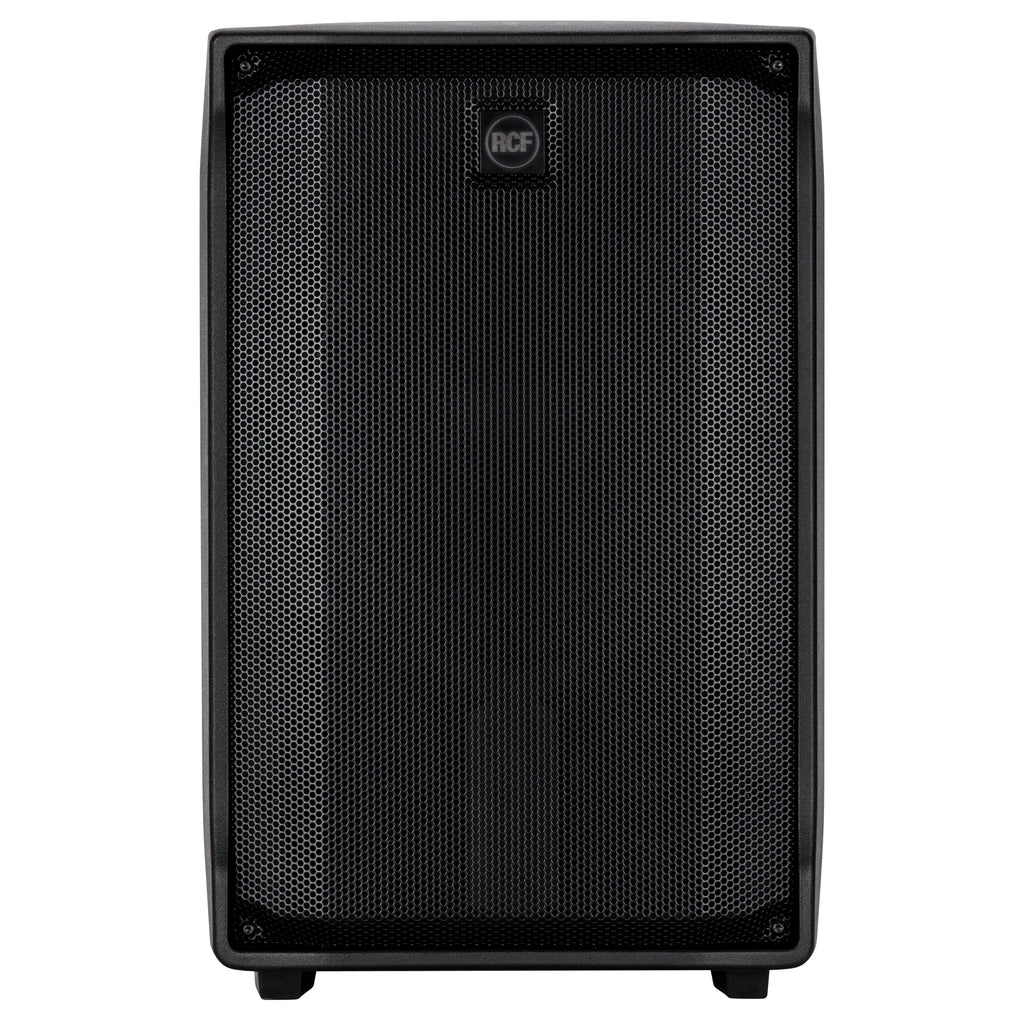

| Woofer |
1 x 12'', 2.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
220 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |

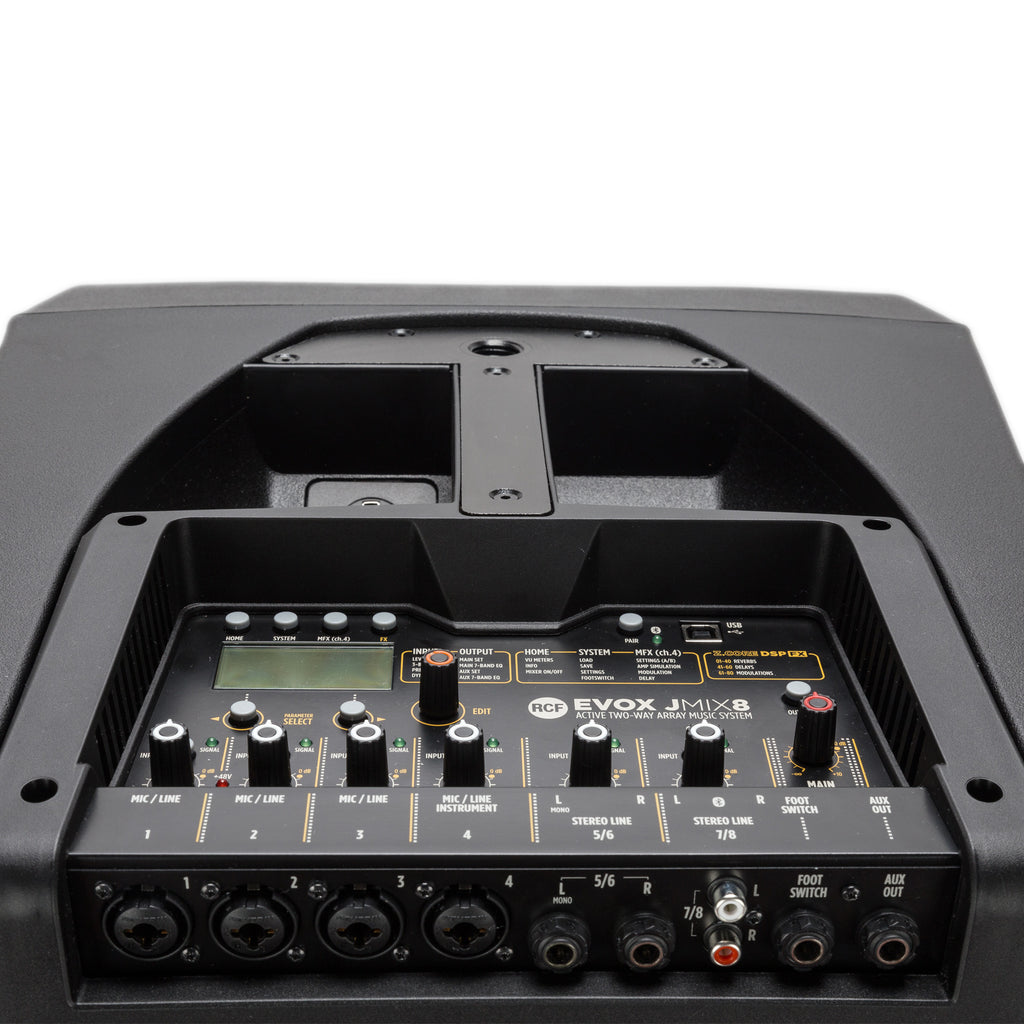

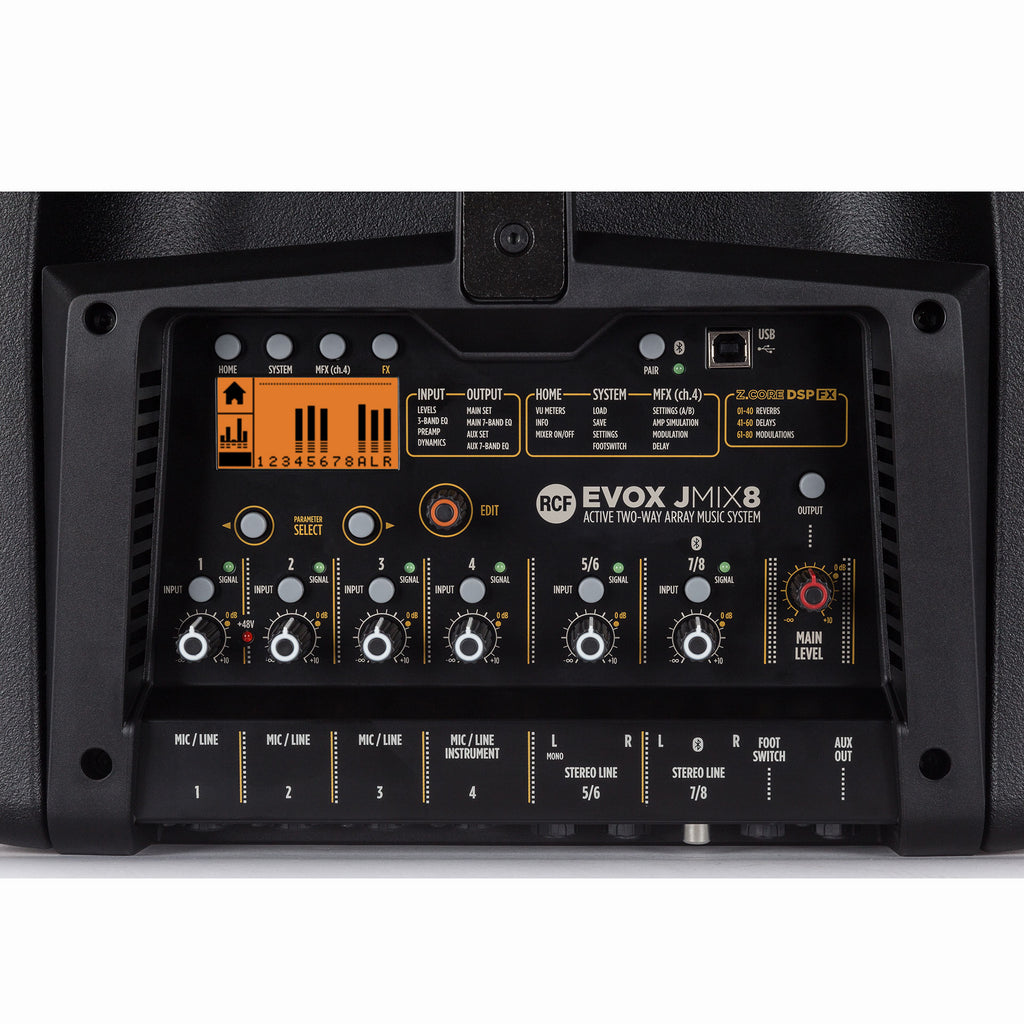

| Controls |
| Volume, Boost, Mic/Line |
| Power section |
| Total Power |
1400 W Peak, 700 W RMS |
| High frequencies |
400 W Peak, 200 W RMS |
| Low frequencies |
1000 W Peak, 500 W RMS |
| Cooling |
Convection |
| Connections |
| VDE |
Electronic specifications |
| 20 Hz - 20 Hz |
THD+N, 20dB gain, 0dBu out |
| 0.004% A-Weighted |
Processing |
| Processing Channels |
8 |
| Signal Processing |
32 Bit Floating Point |
| A/D-D/A conversion |
24 Bit @ 48.0 kHz |
| Dynamic range |
108 |

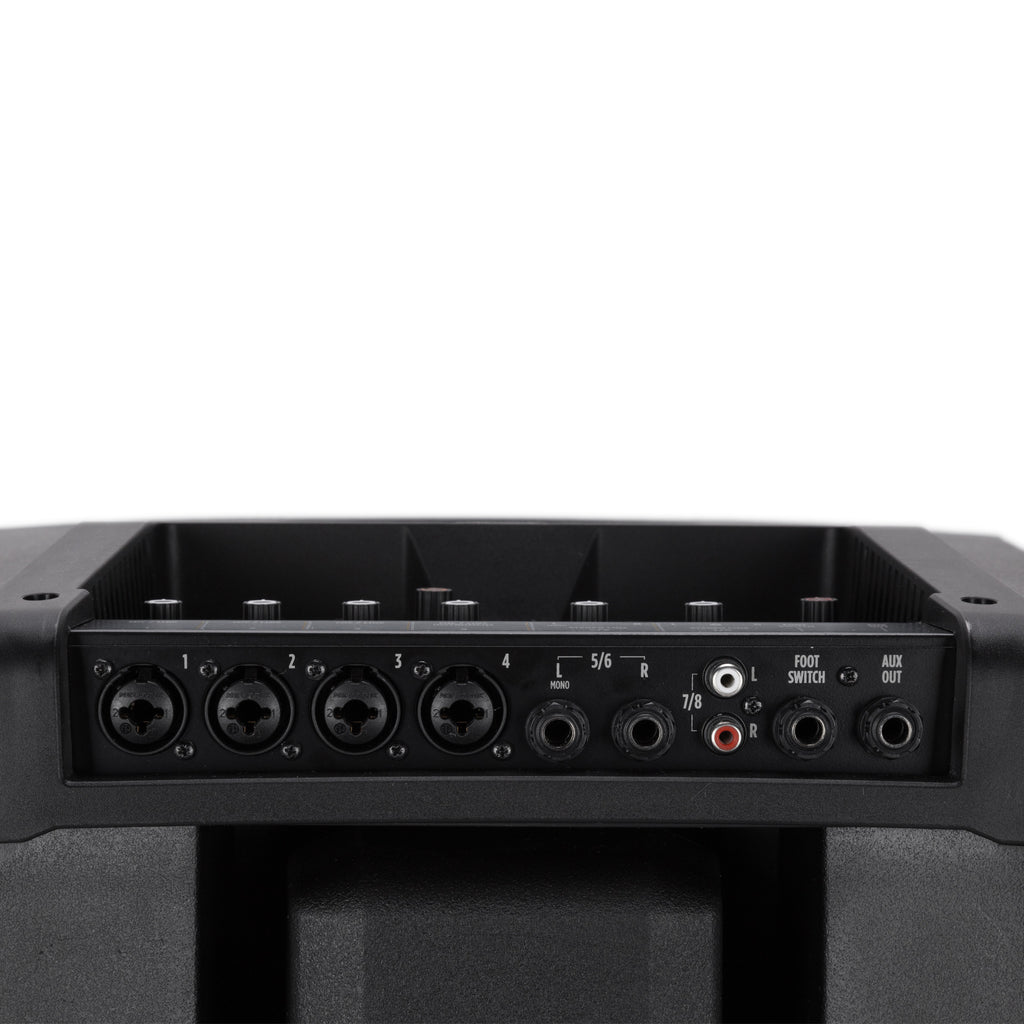

| Inputs |
Mic |
| 4 |
Remote Controlled Storable Gain |
| Yes |
Gain Range |
| 0 dB - 45 dB |
Input Noise Level |
| -114 dBu A-Weighted |
Mic Inputs Impedance |
| 3 kohm |
Low Cut |
| 20 Hz - 1000 Hz |
Phantom Power +48V |
| Mono Line |
Gain Selection |
| Line Input Impedance |
11 kohm |
| HI-Z Line Inputs |
1 |
| HI-Z Line Inputs Impedance (Mohm) |
1 Mohm |
| A/D Dynamic range |
108 dB |
| Stereo Line |
2 |
| Stereo Line Input Impedance (kOhm) |
Outputs |
| AUX Send |
AUX Output |
| Outputs specifications |
Main Out Impedance |
| 150 ohm |
Main Out Level |
| 19 dBu |
Aux Out Impedance (ohm) |
| Aux Out Level |
D/A Dynamic Range |
| Compressors |
RCF Compressors |
| 4 mono (6 preset) |
EQ |
| Input Channels EQ |
1 Semi Parametric / 2 Shelving |
| Description |
| 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency |
Graphic 7 Band EQ on Main Mix and AUX send. |
| Auxiliary sends |
AUX |
| 1 PRE/POST |
FX POST |
| Internal Effects |
Send Effects |
| MultiFX Insert Effects |
Mastering processors |
| Main OUT processors |
USB audio |
| Play trk |
Other features |
| Footswitch |
Electrical specifications |
| Power supply |
Internal |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Handles |
1 Top |

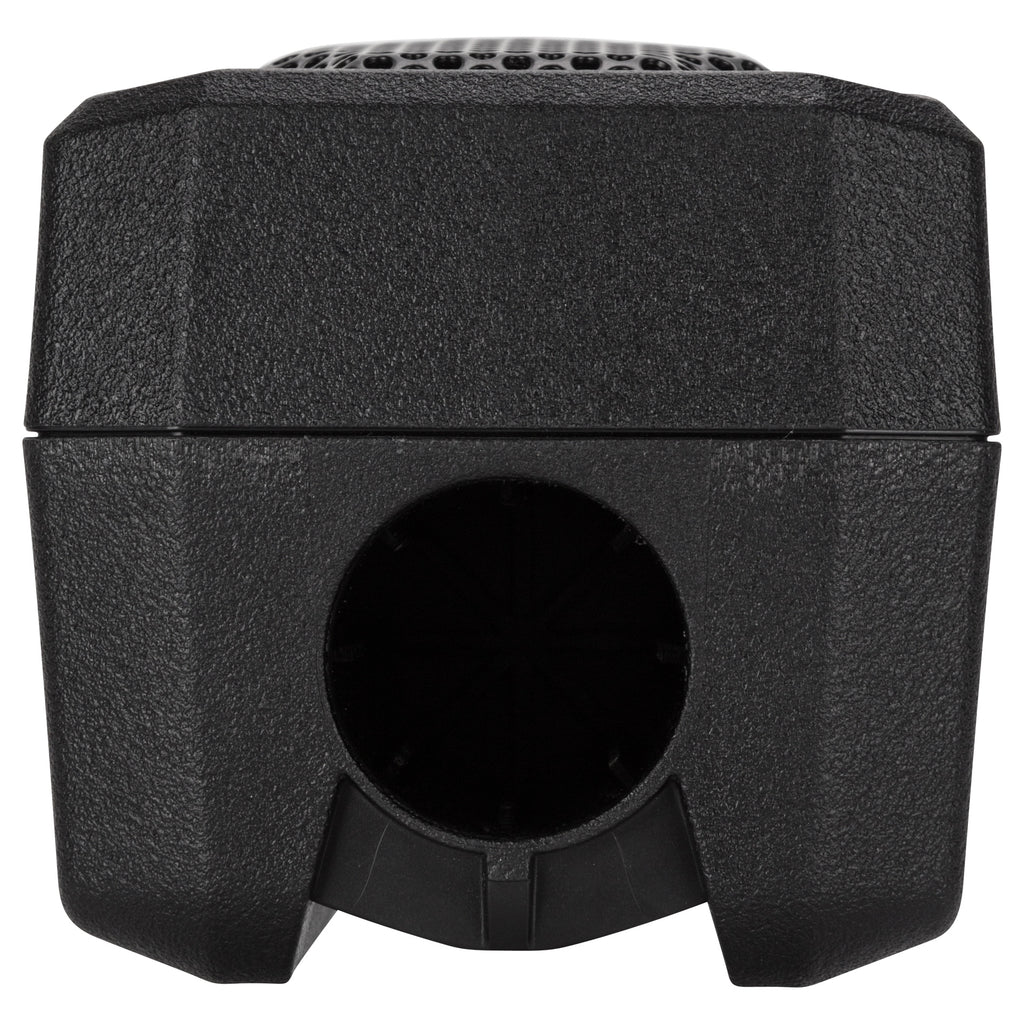

| Pole mount/Cap |
M20 thread |

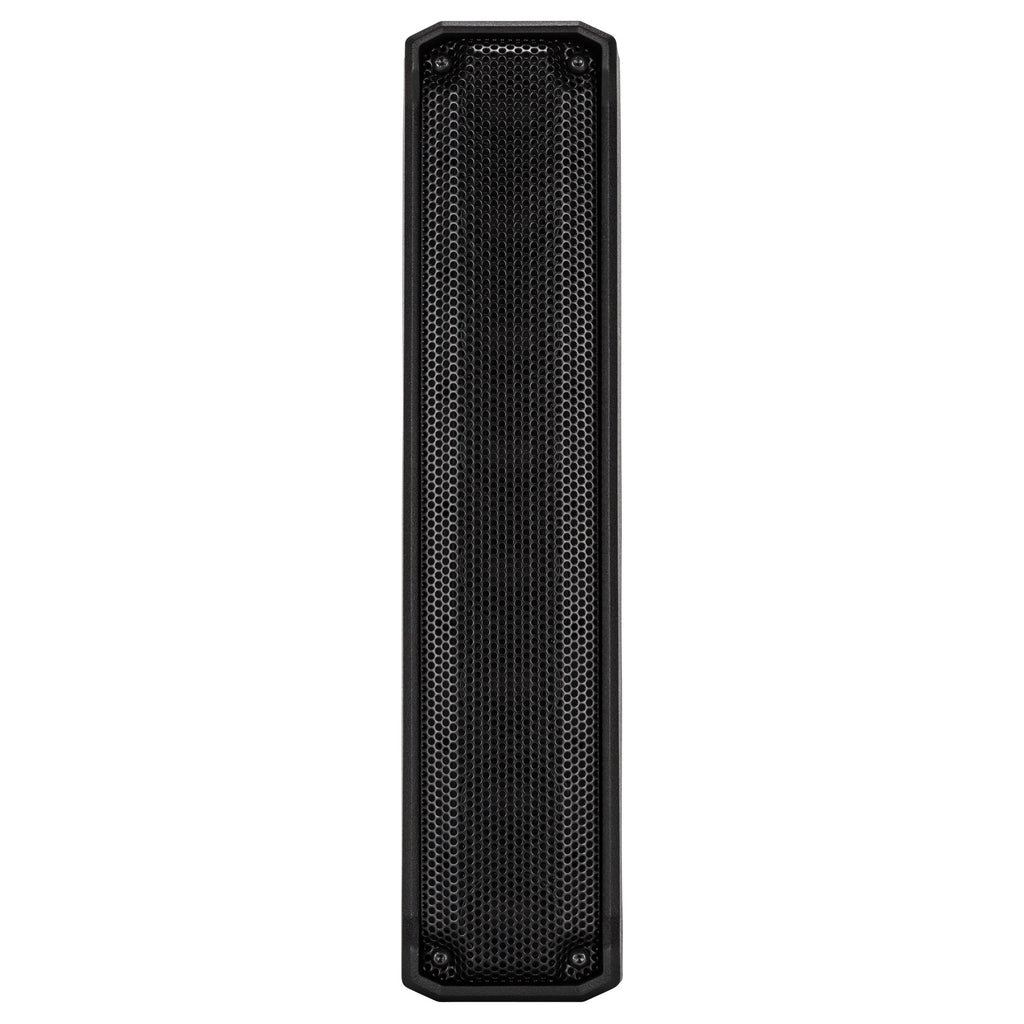

| Grille |
Steel |
| Color |
Black, White |
| Size / Weight |
| Height |
623 mm / 24.53 inches |
| Width |
400 mm / 15.75 inches |
| Depth |
460 mm / 18.11 inches |
| Weight |
22.2 kg / 48.94 lbs |
| Shipping information |
| Package Height |
676 mm / 26.61 inches |
| Package Width |
451 mm / 17.76 inches |
| Package Depth |
581 mm / 22.87 inches |
| Package Weight |
29 kg / 63.93 lbs |
