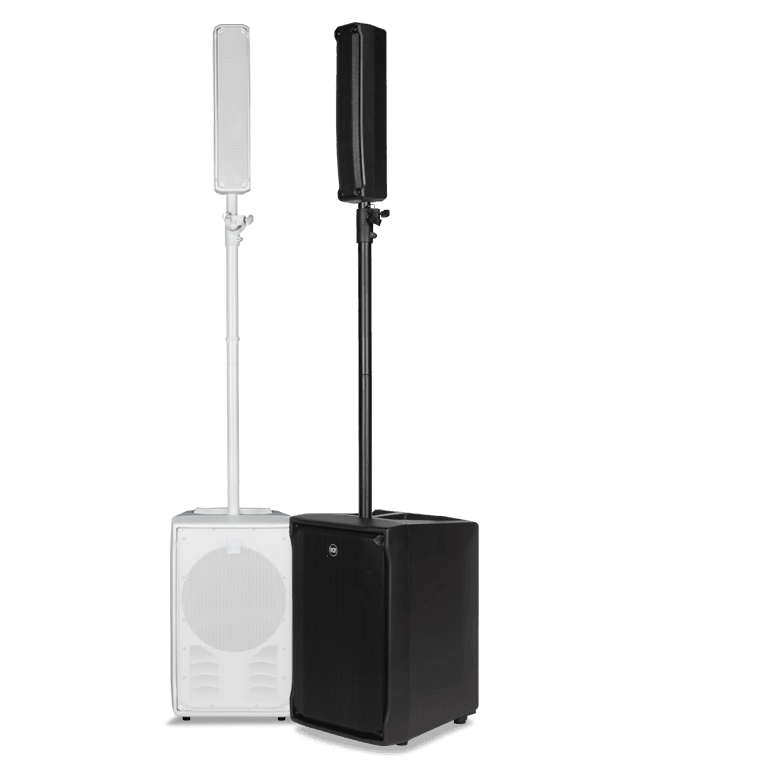

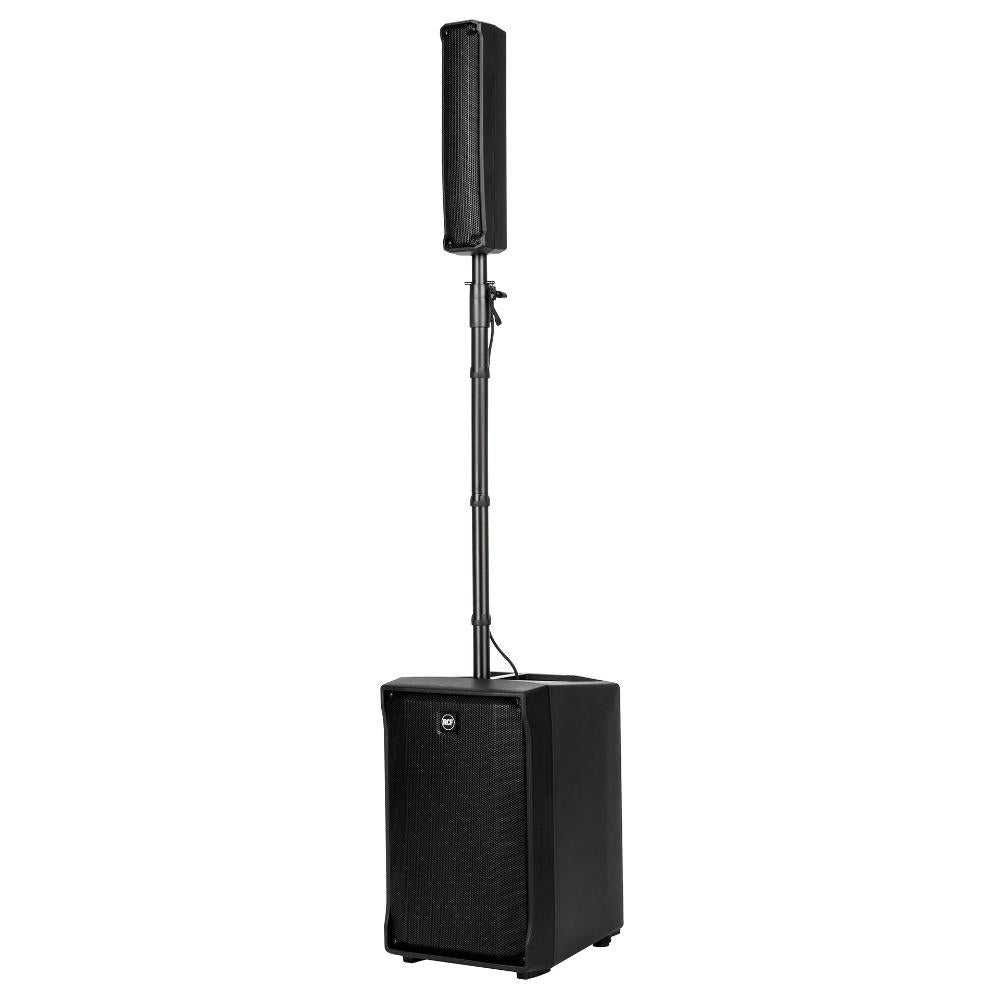

EVOX J8 | ACTIVE TWO WAY PORTABLE ARRAY | Technical Specifications | 128 dB Max SPL | 1400 Watt 2-way power | DSP Processing with FiRPHASE
Technical Specifications
| Acoustical specifications |
| Frequency Response |
40 Hz - 20000 Hz |
| Max SPL @ 1m |
128 dB |
| Horizontal coverage angle |
120° |
| Vertical coverage angle |
30° |
| Transducers |

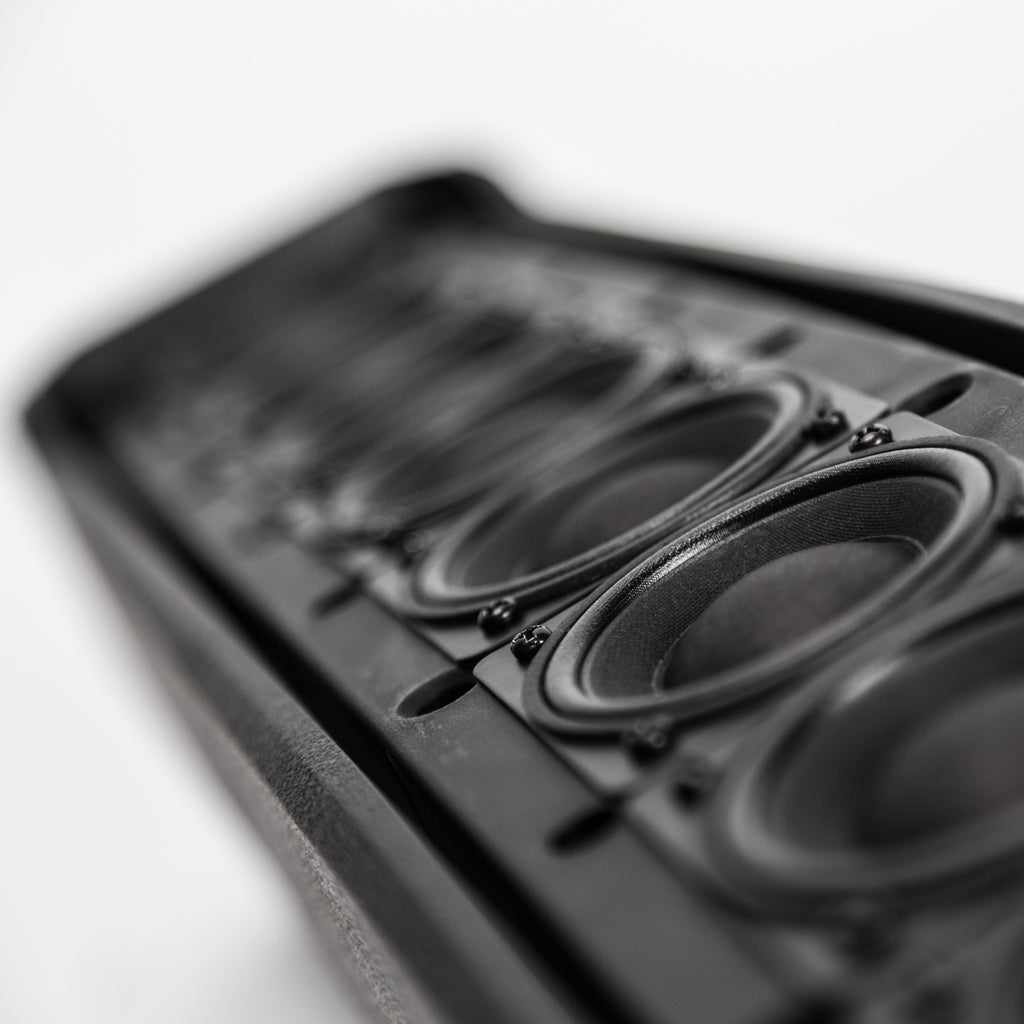

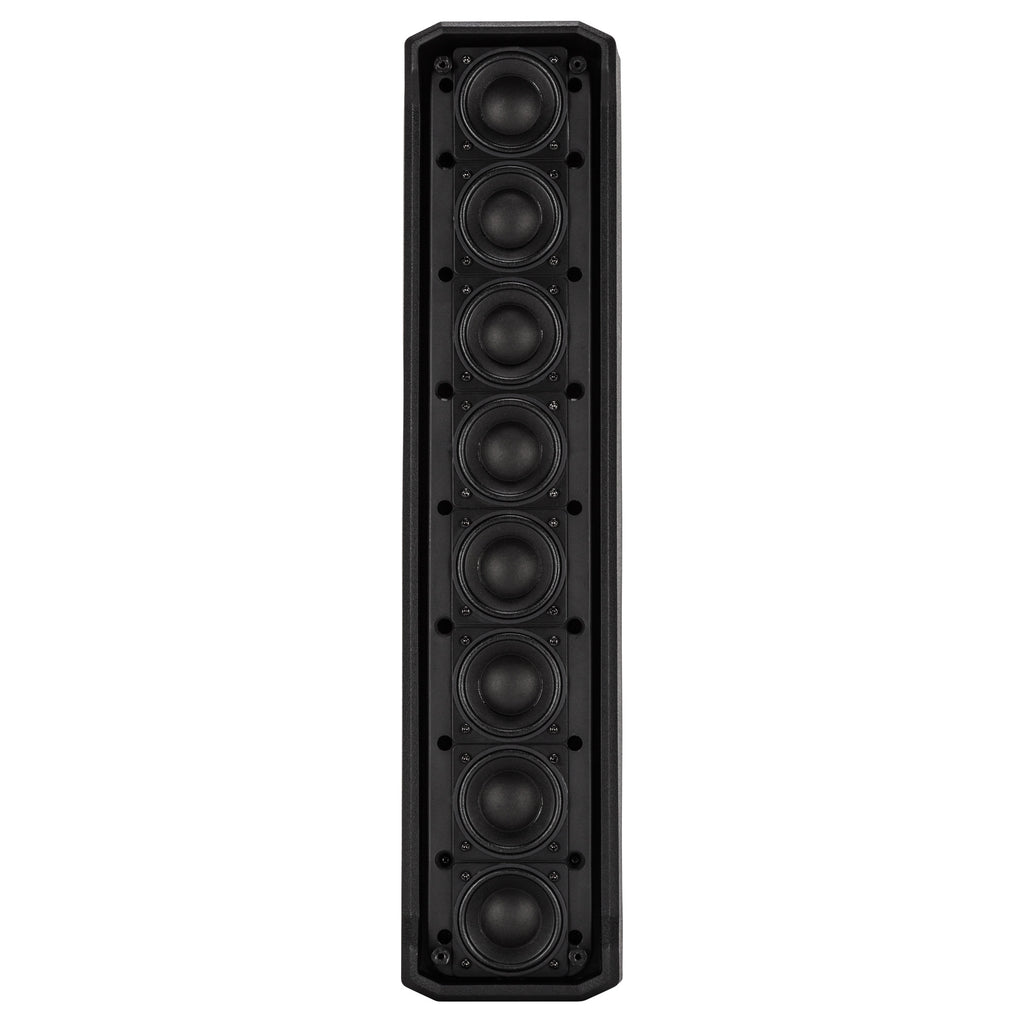

| Fullrange |

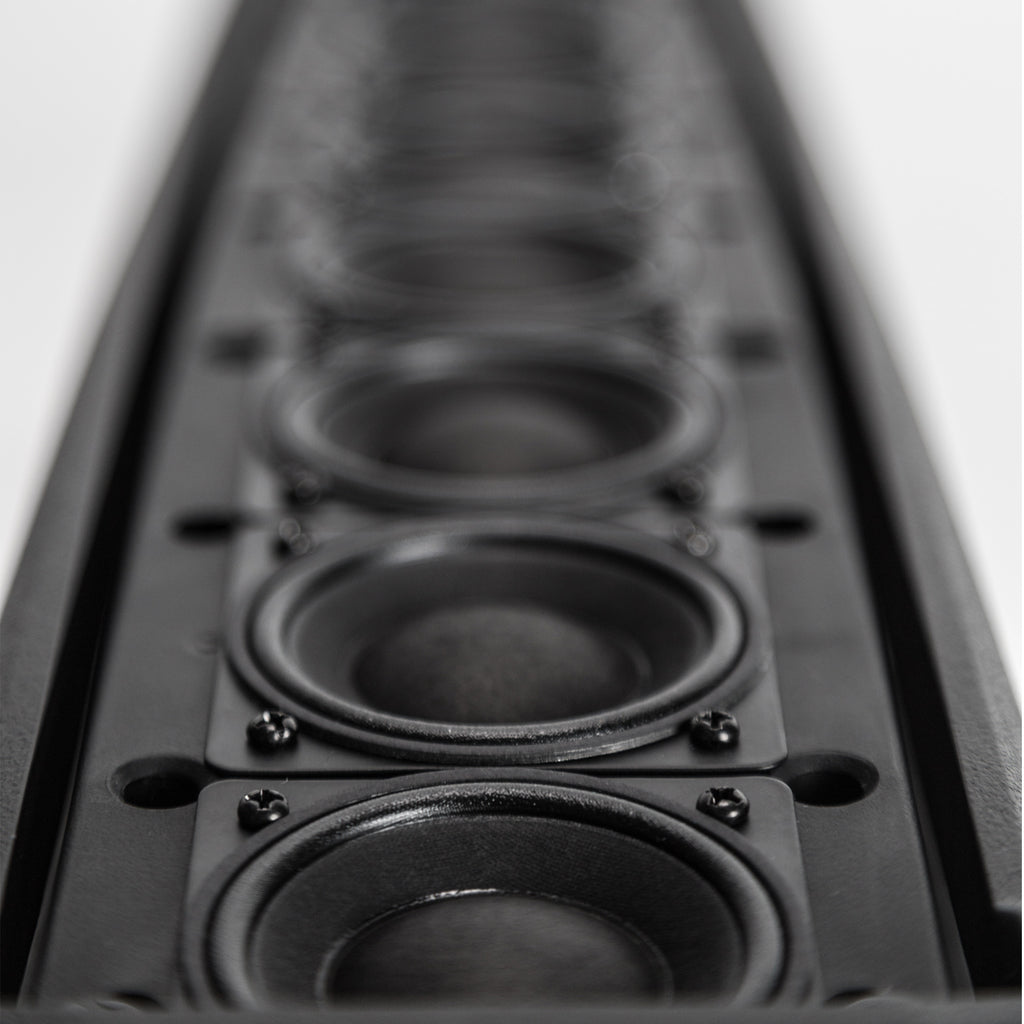

8 x 2.0'', 1.0'' v.c |

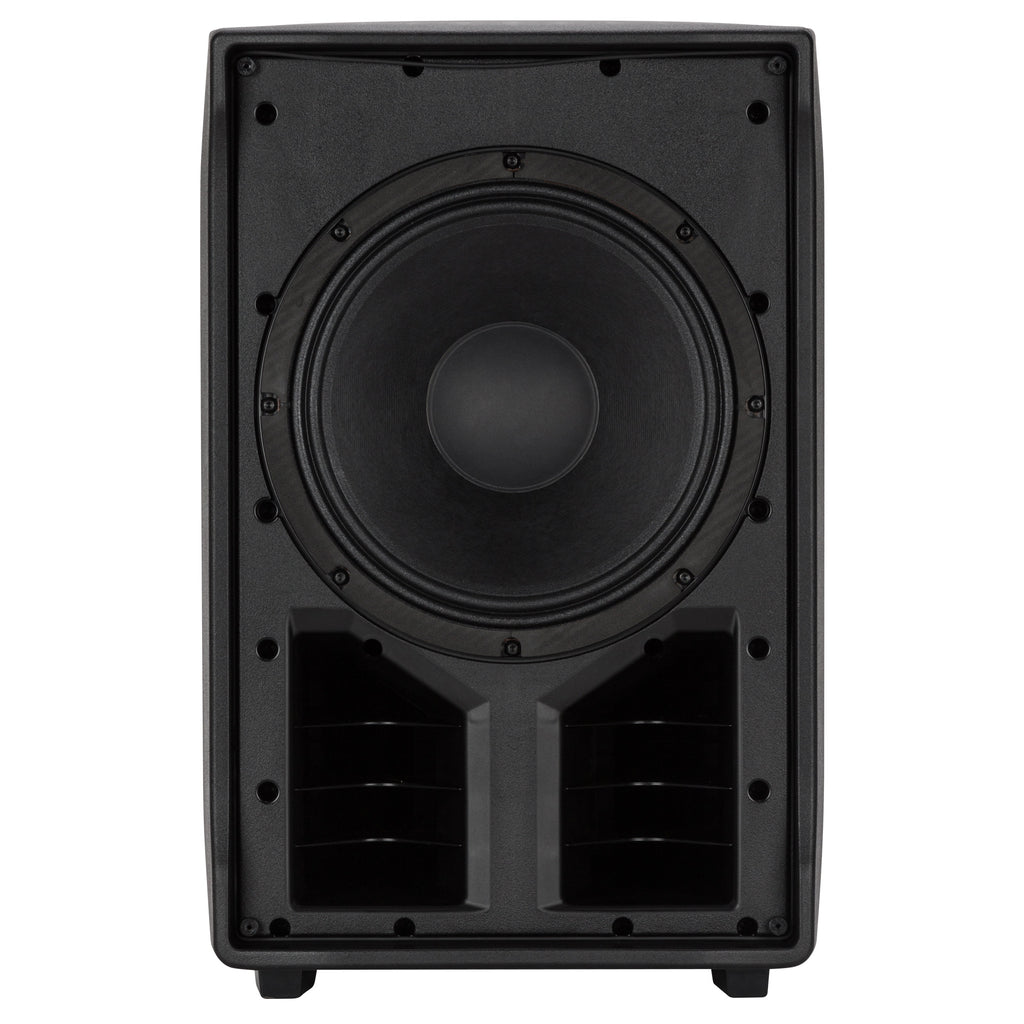

| Woofer |
1 x 12'', 2.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
220 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Volume, Boost, Mic/Line |
| Power section |
| Total Power |
1400 W Peak, 700 W RMS |
| High frequencies |
400 W Peak, 200 W RMS |
| Low frequencies |
1000 W Peak, 500 W RMS |
| Cooling |
Convection |
| Connections |
| VDE |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Handles |
1 Top |
| Grille |
Steel |
| Color |
Black, White |
| Size / Weight |
| Height |
2285 mm / 89.96 inches |
| Width |
400 mm / 15.75 inches |
| Depth |
460 mm / 18.11 inches |
| Weight |
20.2 kg / 44.53 lbs |
| Shipping information |
| Package Height |
676 mm / 26.61 inches |
| Package Width |
451 mm / 17.76 inches |
| Package Depth |
581 mm / 22.87 inches |
| Package Weight |
29.9 kg / 65.92 lbs |
