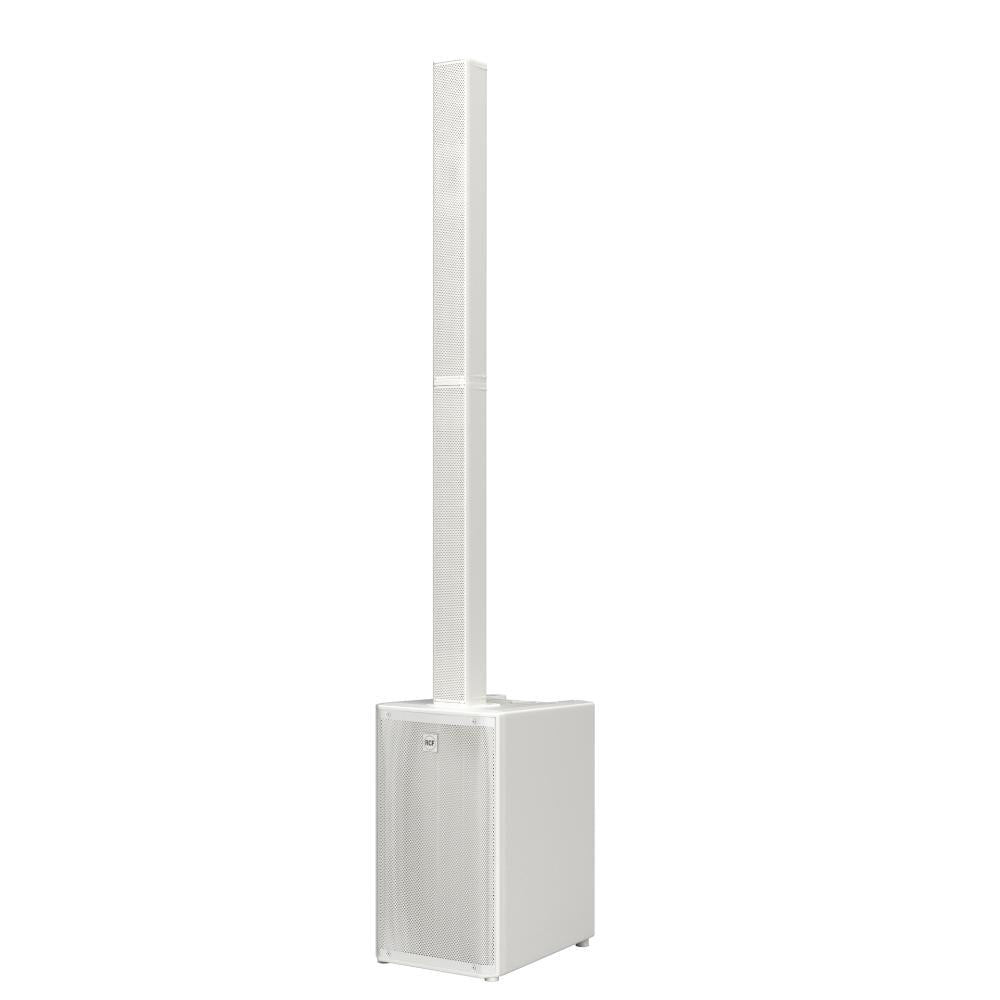

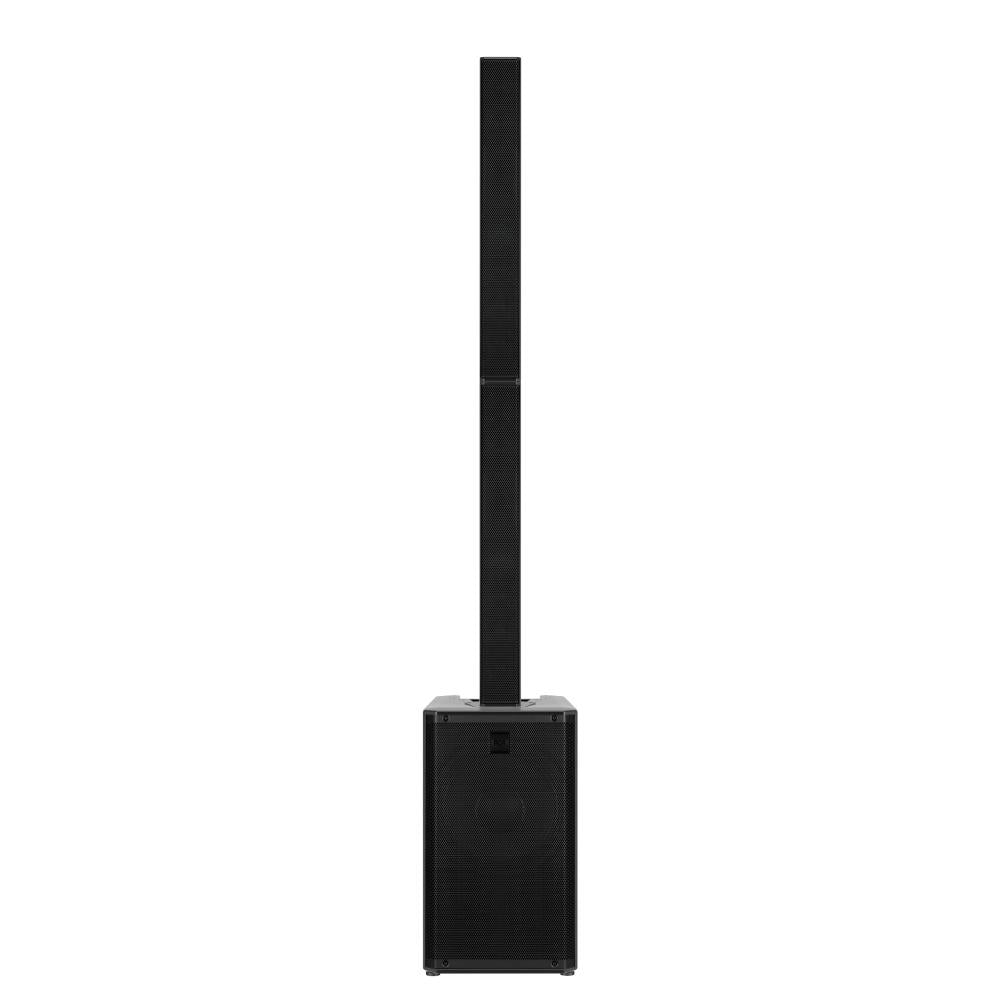

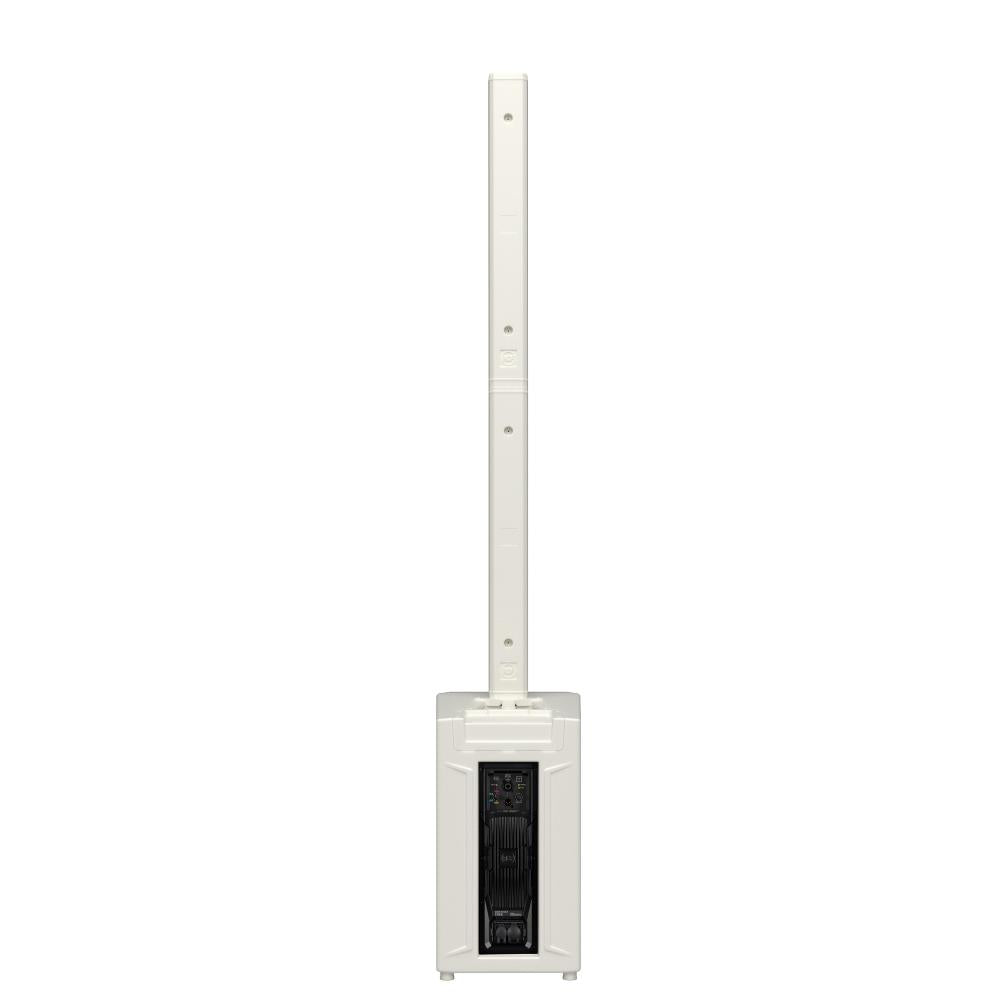

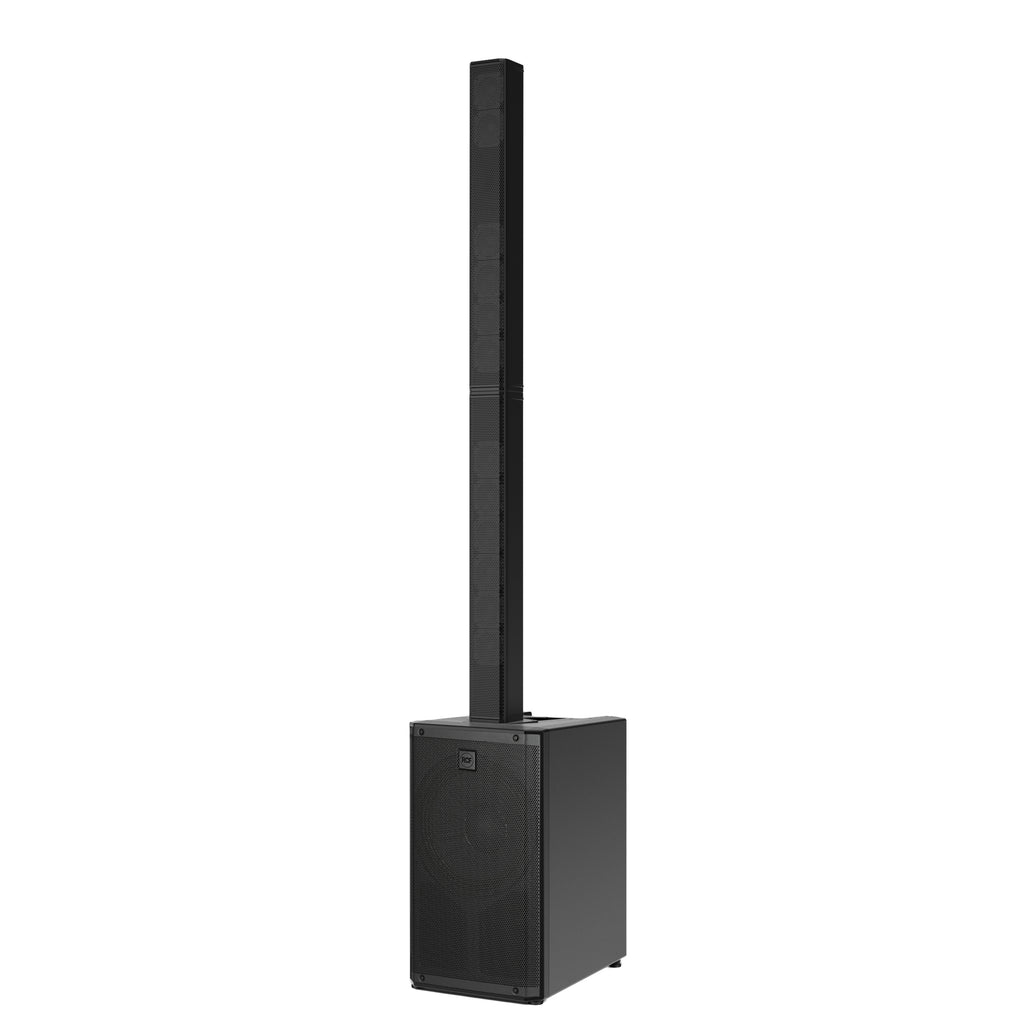

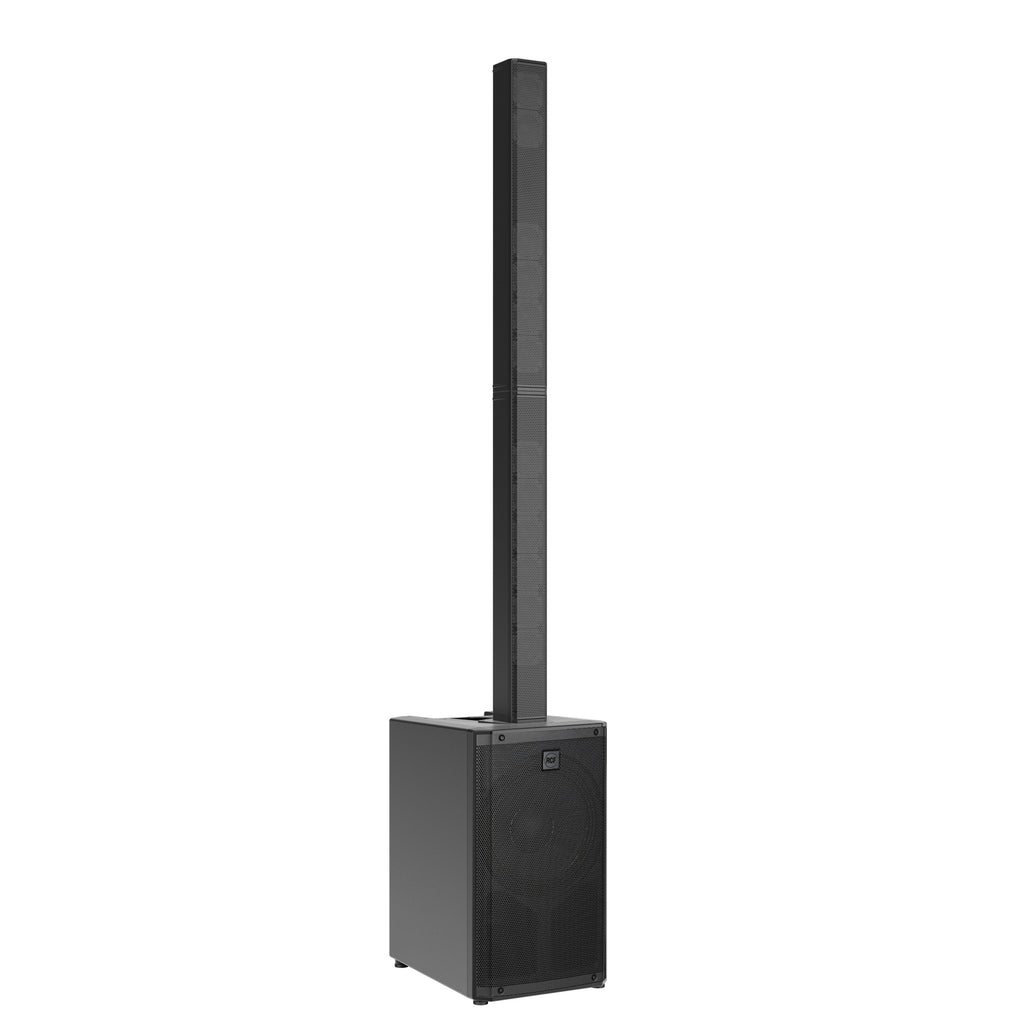

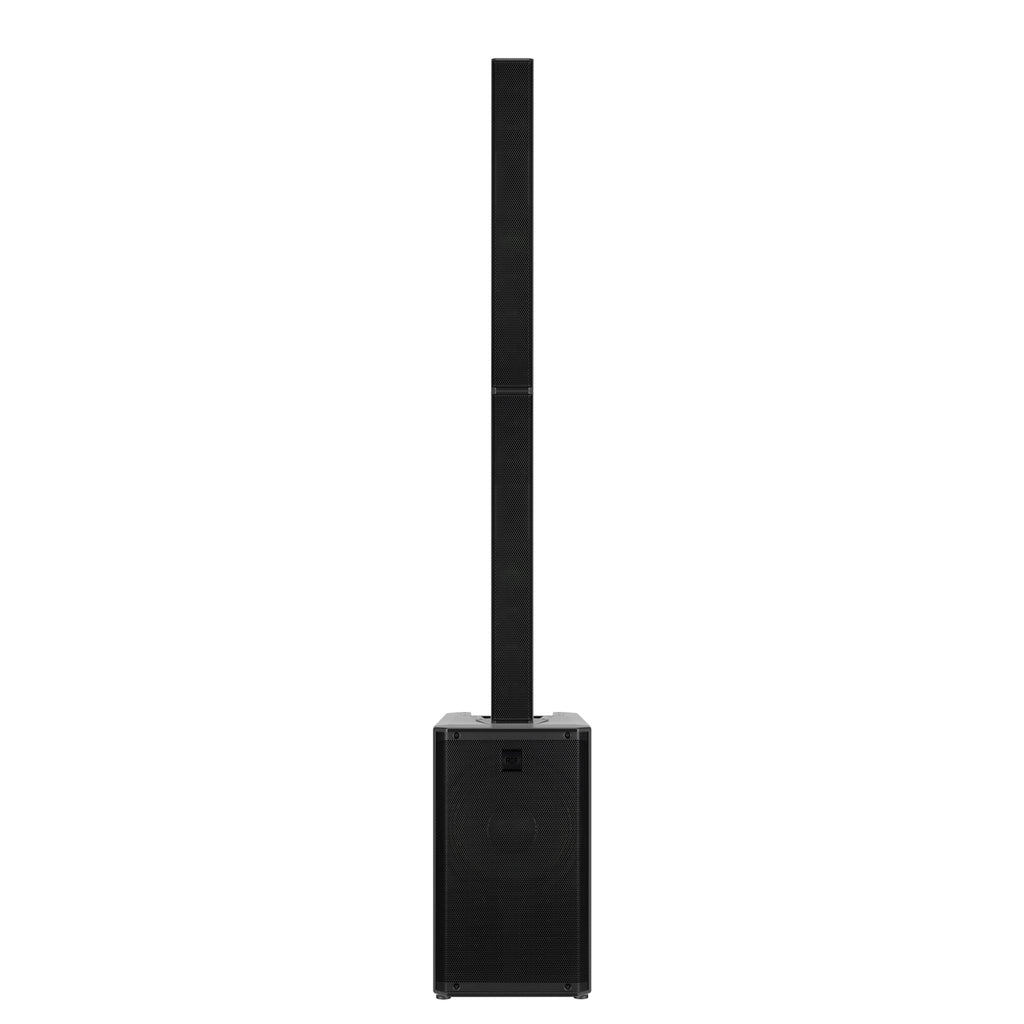

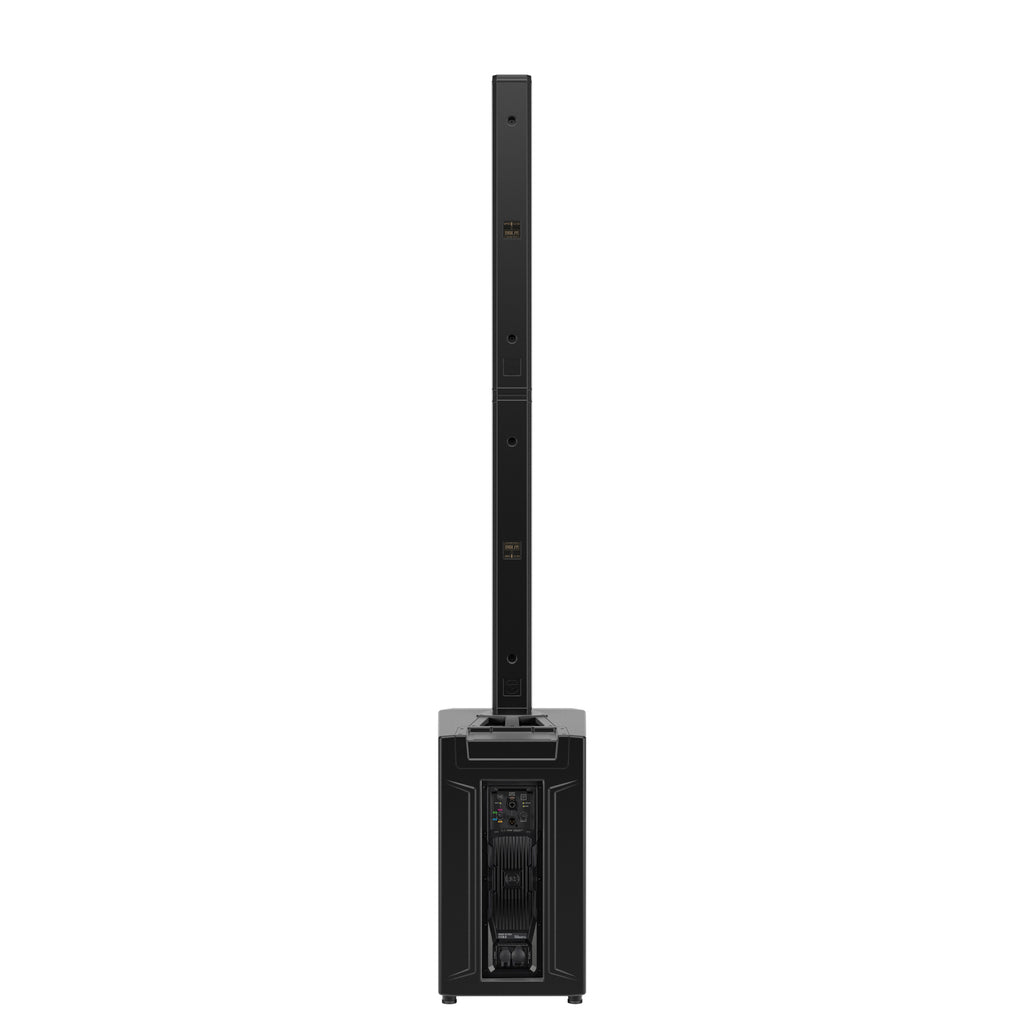

NEW | EVOX J11 | ACTIVE THREE-WAY PORTABLE COLUMN SPEAKER | Technical Specifications | 132 dB Max SPL | 3500 W Class-D Amplifier - Built-In DSP
Technical Specifications
| Acoustical specifications |
| Frequency Response |
37 Hz - 20000 Hz |
| Max SPL @ 1m |
132 dB |
| Horizontal coverage angle |
120° |
| Vertical coverage angle |
40° |

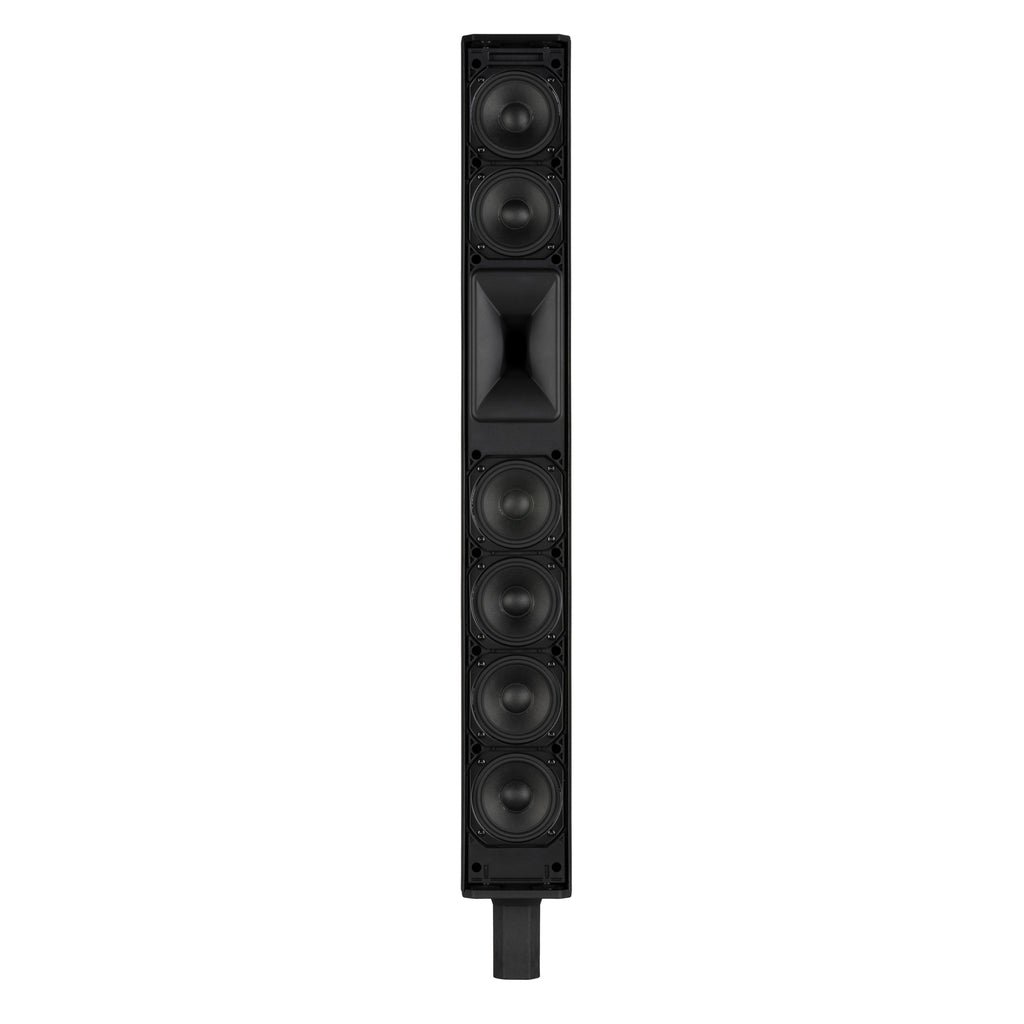

| Transducers |
| Compression Driver |
1 x 0.75'' neo, 1.75'' v.c |
| Fullrange |
12 x 3.0'' neo, 1.0'' v.c |

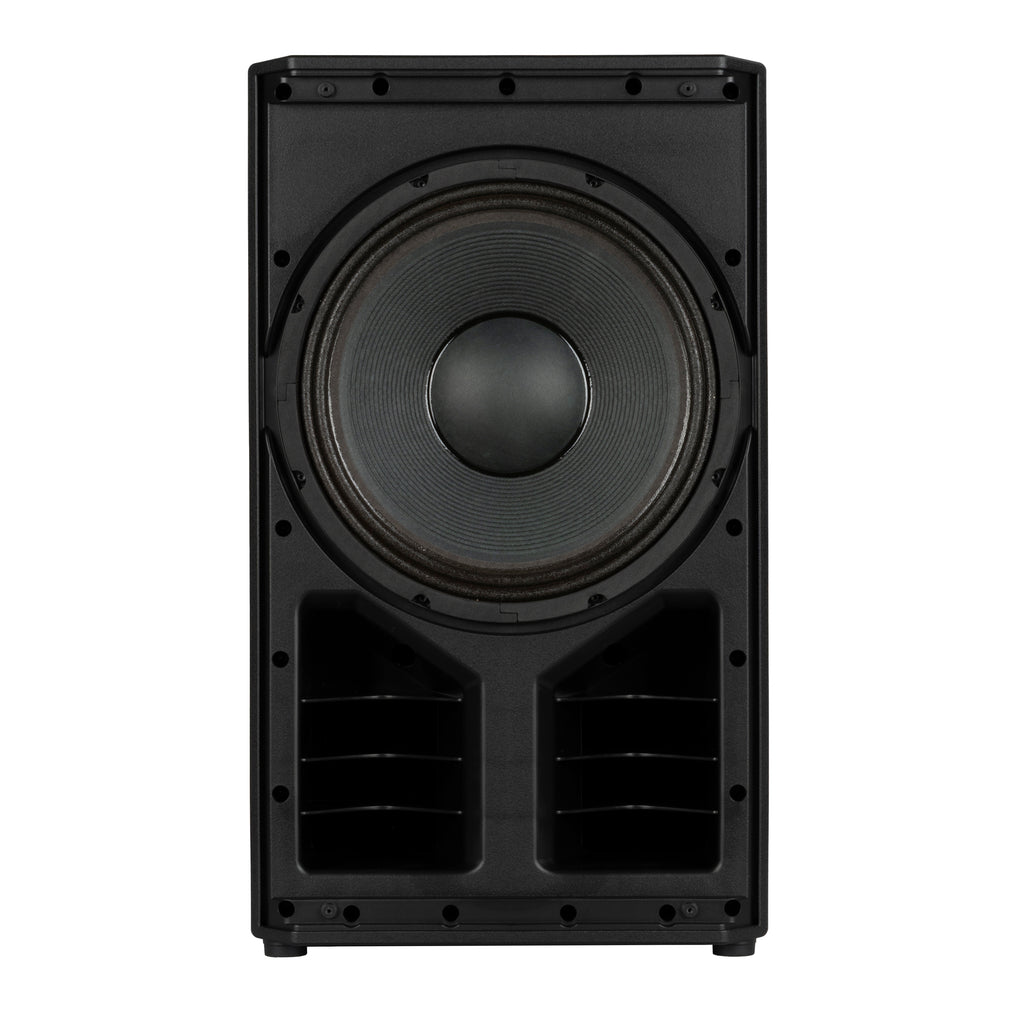

| Woofer |
1 x 12'', 2.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
Combo XLR/Jack |
| Output connectors |
XLR |
| Input sensitivity |
+4 dBu |
| Processor section |
| Crossover Frequencies |
160 Hz/1800 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Volume, Presets: LINEAR/LIVE, CLUB, VOICE |
| Power section |
| Total Power |
3500 W Peak |
| High frequencies |
1500 W Peak |
| Low frequencies |
2000 W Peak |
| Cooling |
Convection |

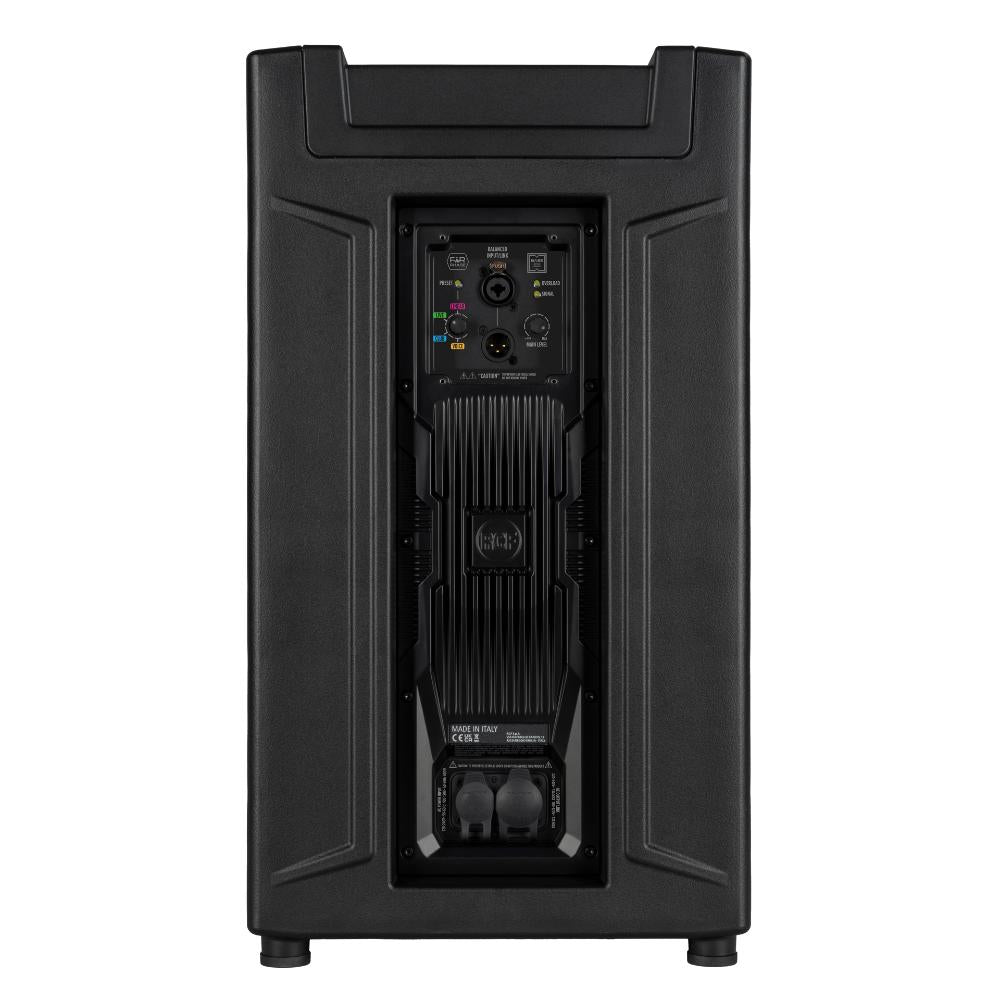

| Connections |
| Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Handles |
1 Top |
| Pole mount/Cap |
Quick-fit socket |
| Grille |
Steel |
| Color |

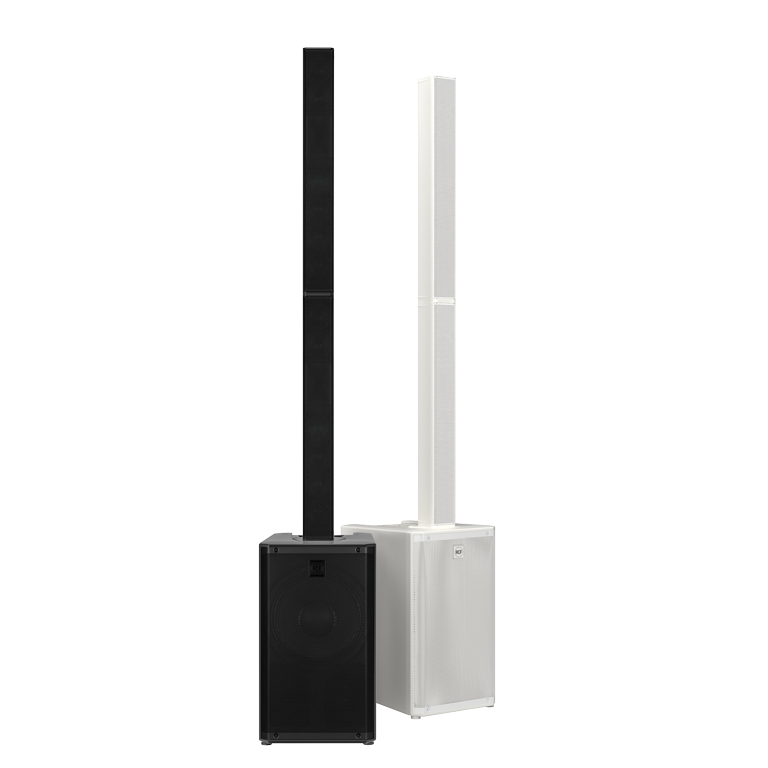

Black, White - RAL 9003 |
| Size / Weight |
| Height |
2080 mm / 81.89 inches |
| Width |
350 mm / 13.78 inches |
| Depth |
463 mm / 18.23 inches |
| Weight |
29 kg / 63.93 lbs |
| Shipping information |
| Package Height |
676 mm / 26.61 inches |
| Package Width |
451 mm / 17.76 inches |
| Package Depth |
581 mm / 22.87 inches |
| Package Weight |
35 kg / 77.16 lbs |
