Electro-Voice EV EVIDC8.2HC (sold only in pairs)
Roll over image to zoom in Click on image to zoom
Electro-Voice EV EVIDC8.2HC (sold only in pairs)

Electro-Voice EV EVIDC8.2HC (sold only in pairs)

Electro-Voice EVSKU: EVID-C8-2HC
Price:
$579.00

Description

8" Waveguide Coupled (patent pending) coaxial speaker with horn loaded Ti coated tweeter - ideal for high ceiling environments - complete with back can enclosure, tile rails, and mounting ring - for 70v/100v or 8-ohm operation. Taps at 60, 30, 15, 7.5, and 3.75 watts (sold and priced per pair)

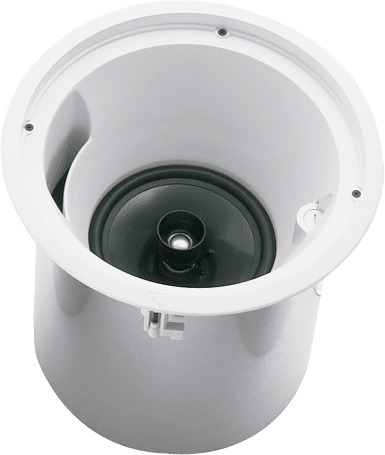

EVID C8.2HC

8" Enhanced Pattern?Control 2?Way Coaxial Ceiling Loudspeaker

  • Maximum fidelity and intelligibility for high ceilings
  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 ? use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

Frequency Range (-10 dB) 50 - 20000kHz
Weight Net 13.23lbs (6kg)
Height 11.93" (303mm)


Available Color White (paintable surface)
Chassis Size 203.2 mm
Coverage (Nominal -6 dB) 75 (conical (@ >1 kHz))
Diameter (Max) 12.6" (320mm)
Enclosure Material Steel enclosure and UL94V-0 rated baffle and bezel
Grille Powder-coated steel
HF Transducer 1-inch (25 mm) Ti Mylar Laminate Dome
Input Formats 8?, 70 V, 100 V
LF Transducer 8-inch polypropylene cone plus waveguide
Mounting Systems Integrated 3-point toggle anchors
Power Rating 300W
Regulatory Approvals UL1480; UL2043
Sensitivity 1 W/1 m 93dB
Speaker Type Ported cabinet, internally damped, two-way (passive crossover included)
System Power Handling (Continuous/Program/Peak) 100Watts (Overload Protected)
Transformer Yes
Transformer Taps (Transformer Version Only) (7.5 - 70 V only), 15, 30, 60
Weatherized No
