Electro-Voice EV EVIDC4.2 (sold only in pairs)

Electro-Voice EVSKU: EVID-C4-2

Price:
Sale price$299.00

Description

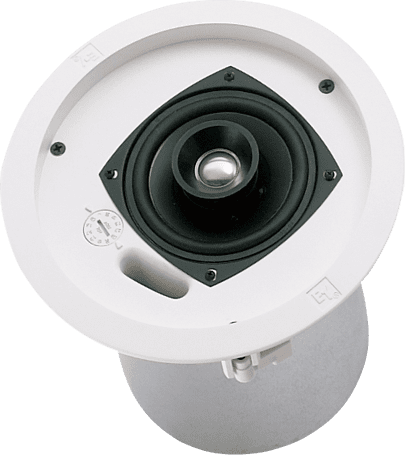

4" Coaxial speaker with horn loaded Ti coated tweeter - complete with back can enclosure, tile rails, and mounting ring - for 70v/100v or 8-ohm operation. Taps at 30, 15, 7.5, 3.75, and 1.88 watts (sold and priced per pair)

EVID C4.2

4" 2?Way Coaxial Ceiling Loudspeaker

  • Designed for air-handling spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 0.75-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 ? use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

Frequency Range (-10 dB) 65 - 20000kHz
Weight Net 5.95lbs (2.7kg)
Height 6.93" (176mm)



Available Color White (paintable surface)
Chassis Size 4" (101.6mm)
Coverage (Nominal -6 dB) 130 (conical)
Diameter (Max) 7.13" (181mm)
Enclosure Material Steel enclosure and UL94V-0 rated baffle and bezel
Grille Powder-coated steel
HF Transducer 0.75-inch (19 mm) Ti Mylar Laminate Dome
Input Formats 8?, 70 V, 100 V
LF Transducer 4-inch polypropylene cone
Mounting Systems Integrated 3-point toggle anchors
Power Rating 200W
Regulatory Approvals UL1480; UL2043
Sensitivity 1 W/1 m 86dB
Speaker Type Ported cabinet, internally damped, two-way (passive crossover included)
System Power Handling (Continuous/Program/Peak) 50Watts (Overload Protected)
Transformer Yes
Transformer Taps (Transformer Version Only) (1.88 - 70 V only), 3.75, 7.5, 15, 30
Weatherized No
