Description

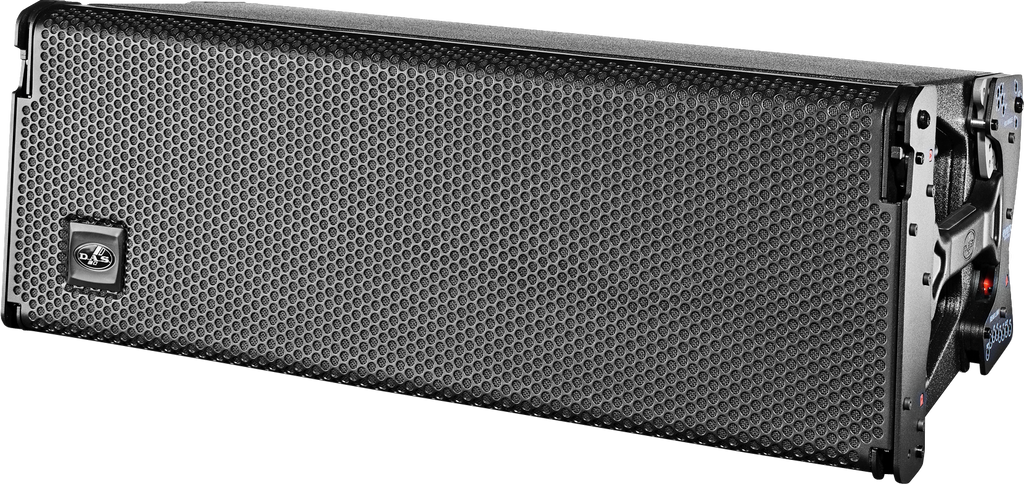

The EVENT-210A Line is a three-way powered line array in a double 10” “dual-band” configuration which provides a wider frequency range. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.
The EVENT-210A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and DAS’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.
Technical Specifications
| Performance | Frequency Range (-10 dB) |
| 70 Hz – 20 kHz | Horizontal Coverage (-6 dB) |
| Splay Dependent | Maximum Peak SPL at 1 m |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 180 W |
| Nominal Amplifier Power LF (peak) | 360 W |
| Nominal Amplifier Power MF (continuous) | 180 W |
| Nominal Amplifier Power MF (peak) | 360 W |
| Nominal Amplifier Power HF (continuous) | 180 W |
| Nominal Amplifier Power HF (peak) | 360 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Input Connector | powerCon NAC3FCA |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | -/3.0 A |
| Certification Number | NRTL US&CA SGSNA/19/SUW/00109 |
| Enclosure | |
| Dimensions ( H x W x D ) | 275 x 735 x 370 mm |
| Net Weight | 32,5 kg ( 71,7 lb ) |
| LF Driver | 10MI4 |
| MF Driver | 10MI4 |
| HF Driver | M-75 |
| Horn/Waveguide | BPS-90AR |
| Carton Dimensions ( H x W x D ) | 800 x 320 x 410 mm |
| Shipping Weight | 34,5 kg ( 76,1 lb ) |
