Electro-Voice EV EKX-15S
Electro-Voice EV EKX-15S
Electro-Voice EV EKX-15S
Electro-Voice EV EKX-15S
Roll over image to zoom in Click on image to zoom
Electro-Voice EV EKX-15S
Electro-Voice EV EKX-15S
Electro-Voice EV EKX-15S
Electro-Voice EV EKX-15S

Electro-Voice EV EKX-15S

Save $100.00
Electro-Voice EVSKU: EKX-15S
Price:
$979.00 $1,079.00

Description

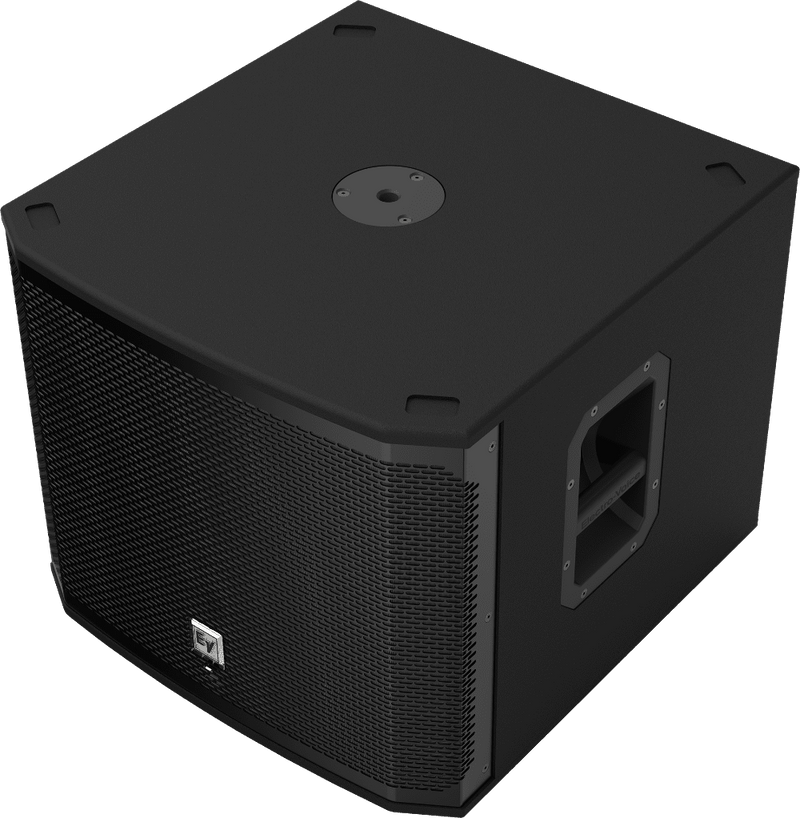

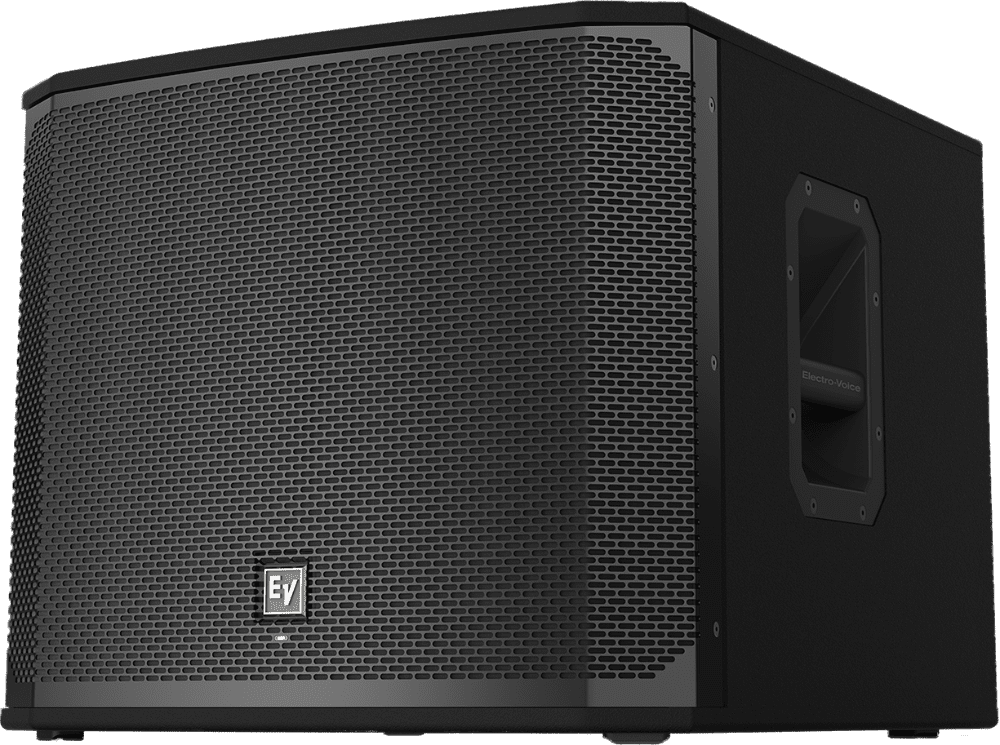

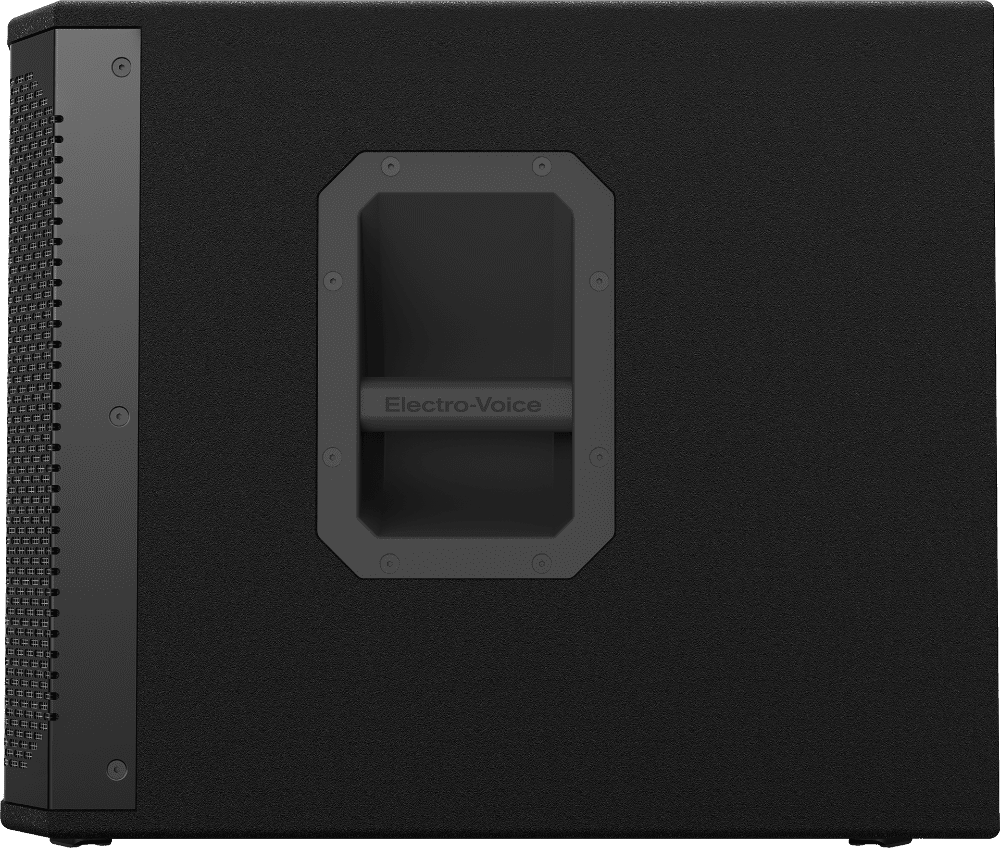

EKX-15S

15" Passive Subwoofer

  • 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
  • Large slot ports for low distortion and excellent bass extension.
  • Metal grille reinforcement bar (two bars on the EKX-18S).
  • M20 threaded pole mount plate.

Frequency Range (-10 dB) 40 Hz - 300kHz (Half Space Measurement)
Weight Net 54.9lbs (24.9kg)
Depth 21.69" (551mm)


Width 20.87" (530mm)
Height 17.91" (455mm)
Axial Sensitivity (SPL, 1 W @ 1 m) 95dB
Connector Type Dual NL4
Enclosure Material 15 mm, plywood with EVCoat
Family EKX
Frequency Response (-3 dB) 60 Hz - 100Hz (Half Space Measurement)
Grille 18 AWG steel with powdercoat
LF Transducer EVS-15C 381 mm (15 in)
Max. SPL/1m (calc) 133dB
Maximum SPL 133dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Minimum Impedance 7.5?
Nominal Impedance 8?
Passive Power Handling 1600W peak
Power Handling (Continuous / Peak) 400 W/1600W
Power Rating 1600W
Powered or Passive Passive
Recommended High-Pass Frequency 35Hz
Shipping Weight 69lbs (31.3kg)
Speaker Type Subwoofer
Woofer Size 15inch
