- 15-inch LF SMX woofer
- 6.5-inch MF driver
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 136 dB peak SPL
Building upon the legendary heritage of Electro-Voice audio engineering, ETX are designed to be the most advanced professional-grade portable loudspeakers available today. The series combines intelligent FIR-Drive technology with innovative industrial design to deliver stunning performance and unbeatable versatility in the most demanding applications. EV-engineered components ensure superior sound quality and the utmost reliability.
| Frequency Response (-3 dB) |
48 Hz - 20 kHz |
| Frequency Range (-10 dB) |
38 Hz - 20 kHz |
| Maximum SPL |
136 dB peak |
| Coverage (H x V) |
60° x 40° |
| Power Rating |
2000 W |
| LF Transducer |
SMX2151 380 mm (15 in) |
| MB Transducer |
EVS-6C 6.5-in mid-bass driver |
| HF Transducer |
DH3-B 1.25-in titanium compression driver |
| Crossover Frequency |
700 Hz, 2900 Hz |
| Connectors |
(2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure |
18mm Plywood with EVCoat |
| Grille |
16AWG steel with powdercoat |

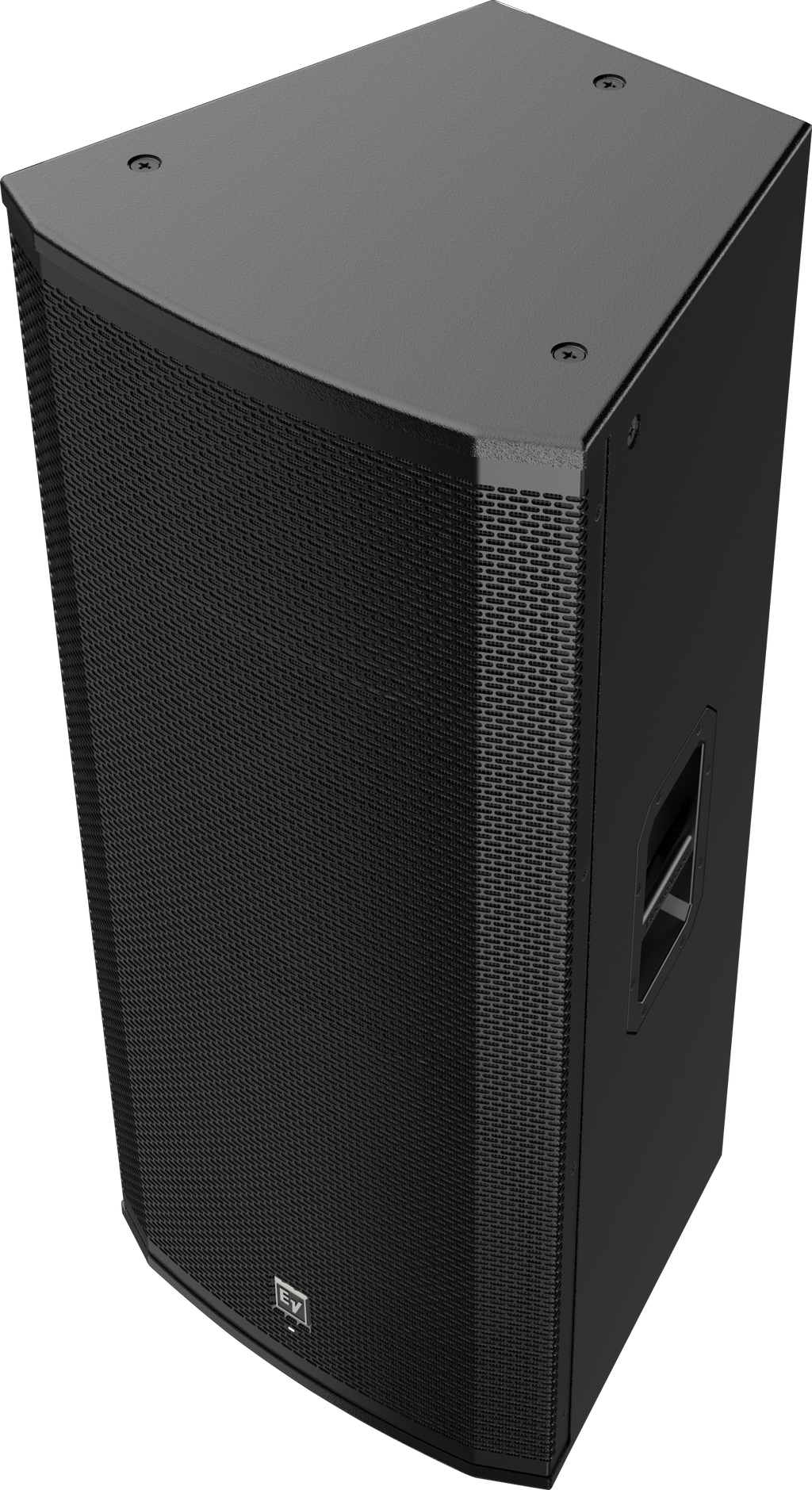

| Suspension |
(8) M10 suspension points |
| Dimensions (H x W x D) |
1023 mm x 469 mm x 426 mm (40 in x 18 in x 17 in) |
| Net Weight |
38.2 kg (84.2 lb) |
| Shipping Weight |
42.8 kg (94.4 lb) |
| Power Consumption |
100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A |
