- 15-inch LF SMX woofer
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 135 dB peak SPL
Building upon the legendary heritage of Electro-Voice audio engineering, ETX are designed to be the most advanced professional-grade portable loudspeakers available today. The series combines intelligent FIR-Drive technology with innovative industrial design to deliver stunning performance and unbeatable versatility in the most demanding applications. EV-engineered components ensure superior sound quality and the utmost reliability.
| Frequency Response (-3 dB) |
48 Hz - 20 kHz |
| Frequency Range (-10 dB) |
40 Hz - 20 kHz |
| Maximum SPL |
135 dB peak |
| Coverage (H x V) |
90° x 60° |
| Power Rating |
2000 W |
| LF Transducer |
SMX2150 380 mm (15 in) |
| HF Transducer |
DH3-B 1.25-in titanium compression driver |
| Crossover Frequency |
1500 Hz |
| Connectors |
(2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure |
18mm Plywood with EVCoat |
| Grille |
16AWG steel with powdercoat |
| Suspension |

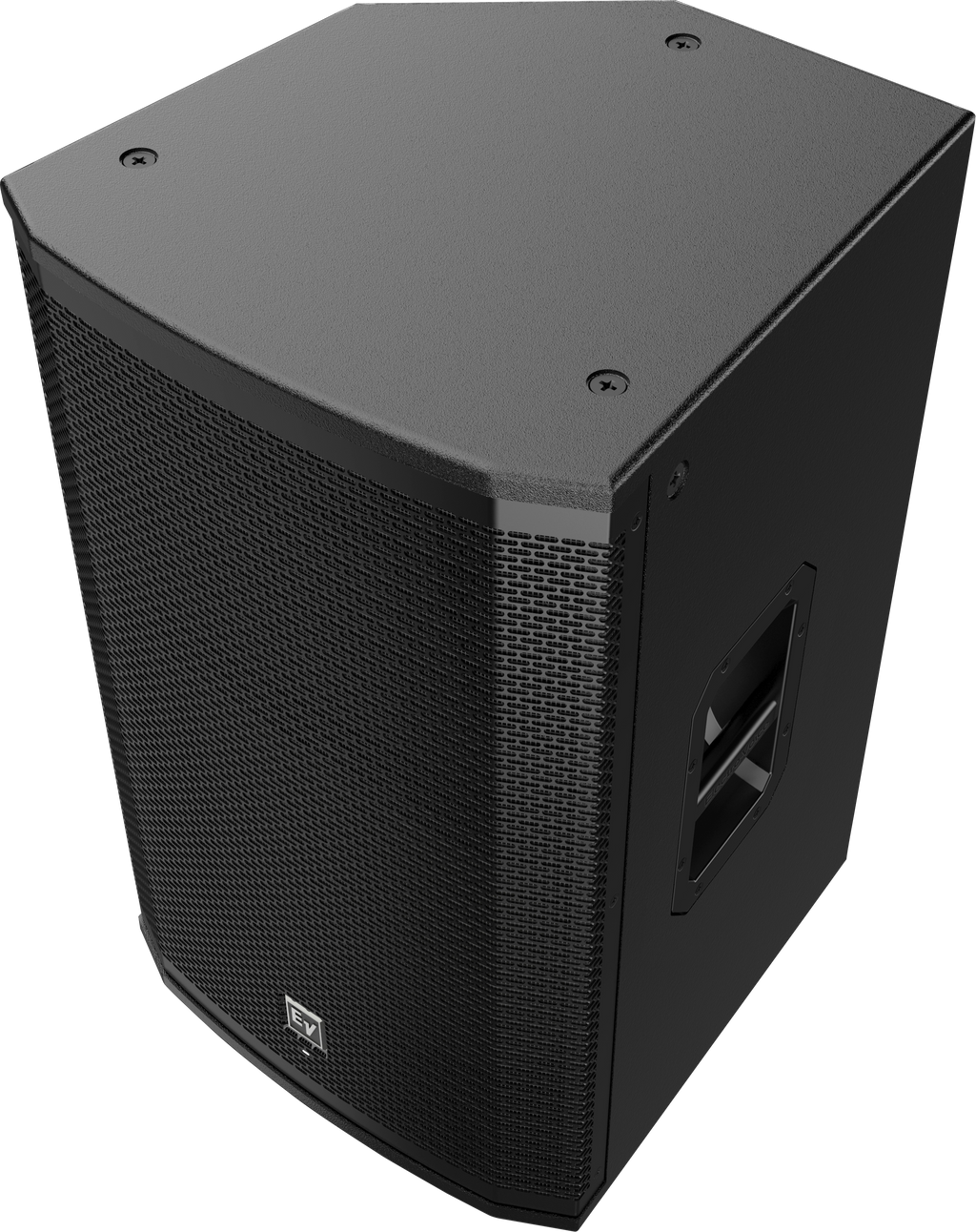

(8) M10 suspension points |
| Dimensions (H x W x D) |
691 mm x 431 mm x 447 mm (27 in x 17 in x 18 in) |
| Net Weight |
27.7 kg (61.1 lb) |
| Shipping Weight |
31.5 kg (69.5 lb) |
| Power Consumption |
100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A |
