Electro-Voice ELX200-18SP 18-inch 1200W Powered Subwoofer (Black)
ELX200-18SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (18-inch EVS-18L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole mount plate, and two-handle design for easy lifting. The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
| Frequency Range (-10 dB) |
38 Hz – 200 Hz |
| Frequency Response (-3 dB) |
45 Hz – 150 Hz |
| Maximum SPL |
132 dB peak |
| Power Rating |
1200 W Class-D |
| LF Transducer |
18" EVS-18L |
| Connectors |
(2) XLR/TRS combo jack, (1) XLR sub/satellite link |
| Enclosure Material |
15 mm plywood with EVCoat |
| Suspension |

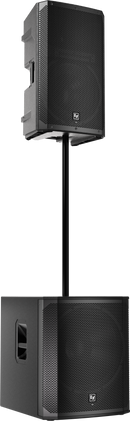

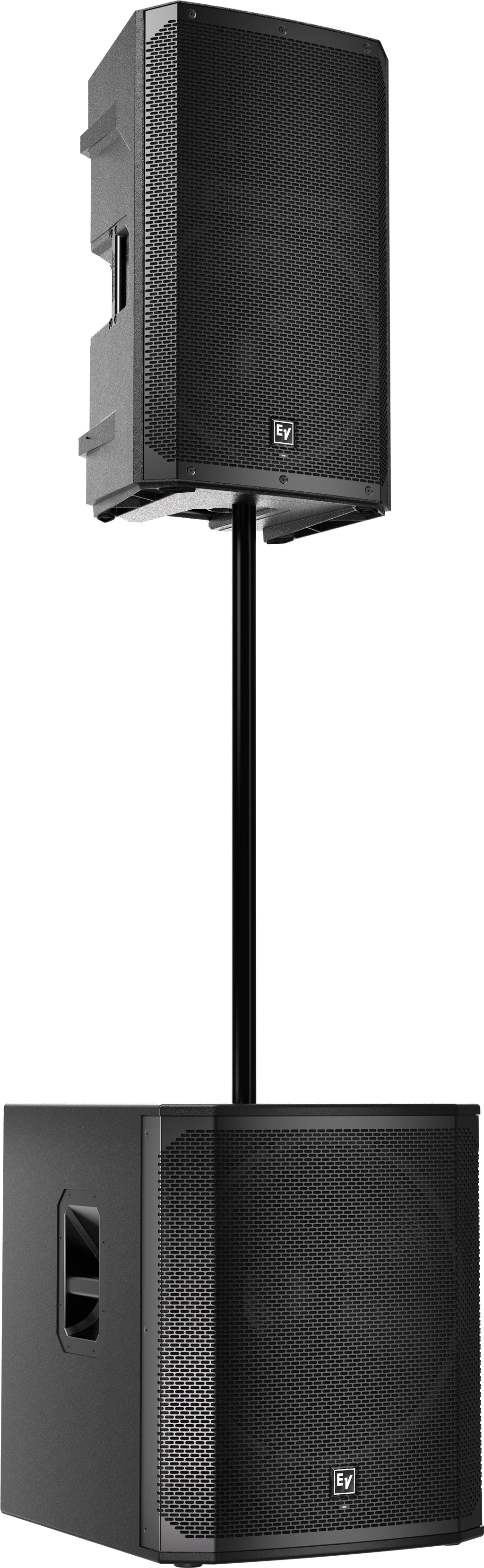

Integrated M20 pole mount; two-handle design |
| Dimensions |
558x544x602 mm |
| Net Weight |
26.0 kg (57.3 lb) |
| Shipping Weight |
30.0 kg (66.1 lb) |
