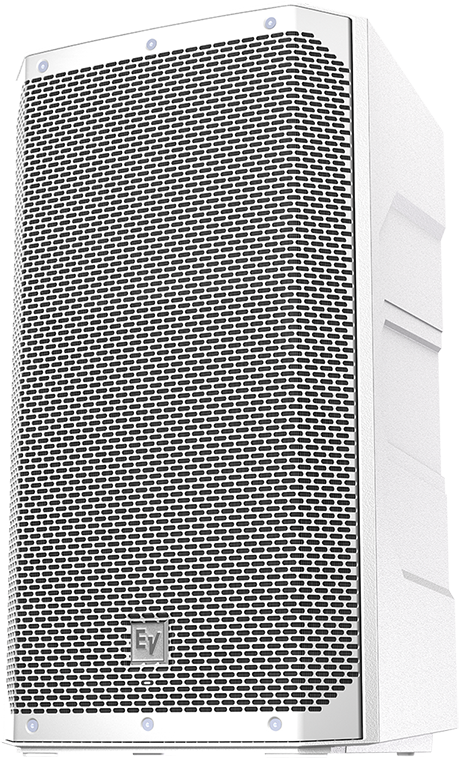

Electro-Voice ELX200-12P 12-inch 1200W Powered Two-Way Loudspeaker (White)
ELX200-12P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1L 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX three-handle design for easy lifting. The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
| Frequency Range (-10 dB) |
55 Hz – 20 kHz |
| Frequency Response (-3 dB) |
70 Hz – 18 kHz |
| Maximum SPL |
130 dB peak |
| Power Rating |
1200 W Class-D |
| LF Transducer |
12" EVS-12M |
| HF Transducer |
DH-1L 1.4" exit titanium compression driver |
| Crossover Frequency |
2 kHz |
| Connectors |
(2) XLR/TRS combo jack, (1) XLR link output, (1) XLR sub/satellite link |
| Enclosure Material |
Composite polypropylene |
| Suspension |
(3) M10 threaded mounting points |
| Dimensions |
622x365x363 mm |
| Net Weight |
11.3 kg (24.9 lb) |
| Shipping Weight |
15.0 kg (33.1 lb) |
