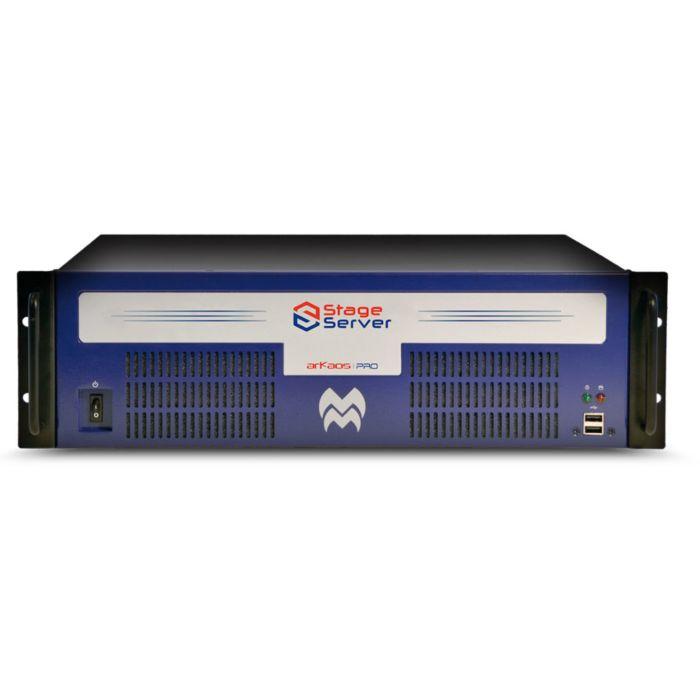

Elation Lighting STAGE SERVER PRO

Plug and Play Simplicity
Vast library of high quality digital media from world’s best visual content providers
Comes installed with MediaMaster Pro
Quick and easy setup
DMX or MIDI trickering

Smart Design
Runs full HD video on two outputs
Fast SSD drive as standard
Fast recovery system by Acronis allows extremely simple reset from the boot menu
Pre-configured to work directly with all market leading DMX lighting desks

Blistering Performance
Shock-resistant up to 2G
Thoroughly tested in structural strength, and toleration of heat and vibration
Compact design
Scalability and creativity at an unbeatable price

I/O
Interface Output: 1 (DVI/DP/HDMI)
Output: 2 (DVI)
EDID Management: No
Input (Standard): No
Input (Upgrade): Up to 2 x HD-SDI or 2 x DVI
Output Resolution: 2 x Full HD
DMX 5pin Connectors: Yes
Genlock: No
Framelock: No
USB: 4 x USB 3.0 + 4 x USB 2
Balanced Audio In/Out (XLR): No
Network: 2

STORAGE
System Drive: SSD 256 GB
Separate Drive: No

SOFTWARE
MediaMaster Pro
CuePlayer (Theater mode): Yes
LED Mapper: Yes
Kling-Net Mapper: Yes
Video Mapper: Yes (Pro version only)
Acronis Backup System: Yes
Layers Full HD: 3
Layers HD: 5
Soft-Edge / Geometrical Correction; Yes (Pro version only)

CONTROL
Control Display (Front Panel): No
LED Strip (Front Panel): No
DMX / MIDI / Keyboard: Yes
ArtNet / MA-Net: Yes

HARDWARE
Voltage: 107-240V Auto Switching
Professional Connectors: No

SIZE / WEIGHT
Height: 5.2” (132mm)
Length: 16.8” (426mm)
Depth: 15.7” (400mm)
Weight: 23.1 lbs. (10.5kg)

Specifications and documentation subject to change without notice.
