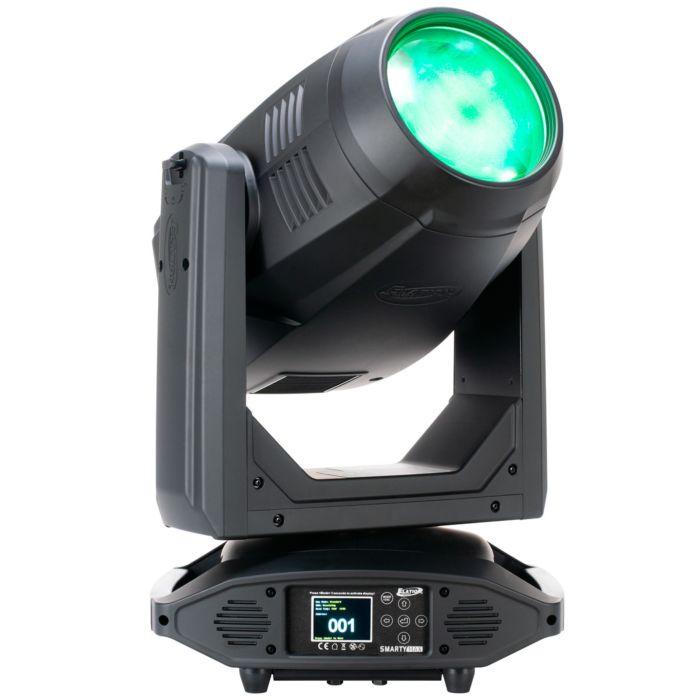

Elation Lighting Smarty MAX

Save $1,700.00
Elation LightingSKU: ESM166

Price:
Sale price$6,800.00 Regular price$8,500.00

Description


The SMARTY MAX™ combines high output and long lamp life in a feature packed compact and lightweight Hybrid fixture. SMARTY MAX is the Extreme Output Hybrid featuring the new Philips MSD Platinum FLEX 400 lamp and Elation's 2 year / 4,000 hours Ultimate Warranty.** Rated at 480W and up to 4,000 hours smart lamp life the SMARTY MAX includes CMY and variable CTO and is the world’s first Hybrid incorporating a full Iris for dynamic beam effects. Four prisms on two planes, dual frosts plus dual gobo wheel and the unique dual track animation round out the comprehensive FX package in a compact and lightweight housing. Delivering 21,000 lumens from its large 160mm front aperture, the SMARTY MAX has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.


Features

Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology from 370 to 480W plus Smart Hibernation with up to 4,000 Hour Lamp Life
Full CMY Color Mixing System, Variable CTO, Color Wheel
Creative FX Package: 8 Rotating and 15 Static Gobos, Dual Track Animation, Iris 4x Prism on Dual Planes, 2x Frost
Ultra-Fast Zoom: Beam 1.5° - 6° | Spot 3° - 26.5° | Wash 12° - 39°
2 Years / 4,000 Hours Ultimate Warranty**
**First 2 Years of operation or 4,000 hours of use, whichever comes first, based on regular fixture/lamp maintenance.


Specifications

SOURCE

Philips MSD Platinum 400 Flex 480W Lamp

Variable Lamp Power 370/440/480W

Automated Lamp Hibernation with Instant Recovery

Up to 4,000 Hour Lamp Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.


PHOTOMETRIC DATA

21,000+ Lumen Total Fixture Output

1.5° Beam: 1,784,448 LUX (165,781 FC) @5m (16.4ft)

3° Spot: 462,508 LUX (42,968 FC) @5m (16.4ft)


EFFECTS

Beam, Spot and Wash Modes

Motorized Zoom 1.5° Beam to 39° Wash

Dual Frost Filter for Light Frost/ Full Wash

4 Prisms on Dual Planes

Iris

CMY Color, Gobo, Prism Macros

Motorized Focus with Auto-Focus Feature

High Speed Shutter and Strobe


COLOR

Full CMY Color Mixing System

Variable CTO

13 Position Color Wheel


GOBOS

2 Gobo Wheels

8 Interchangeable-Rotating / Indexing Glass Gobos

14 Static-Stamped Metal Gobos

Dual Track Animation Wheel


CONTROL / CONNECTIONS

2 DMX Channel Modes (27 / 44 Channels)

(6) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

DMX, RDM, Art-Net and sACN Protocol Support

5pin DMX In/Out

RJ45 EtherCon In/Out

Neutrik powerCON True1 Power In/Out

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 15.34” (389.8mm)

Width: 17.53” (445.3mm)

Height: 25.27” (642mm)

Weight: 60.0 lbs. (27.2kg)


ELECTRICAL / THERMAL

AC 100-240V 50/60Hz

700 W Max Power Consumption (estimated)

14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS

CE | cETLus | IP20


Specifications and documentation subject to change without notice.
