Elation Lighting SEVEN BATTEN 42*

Save $583.00
Elation LightingSKU: SEV042

Price:
Sale price$2,332.00 Regular price$2,915.00

Description

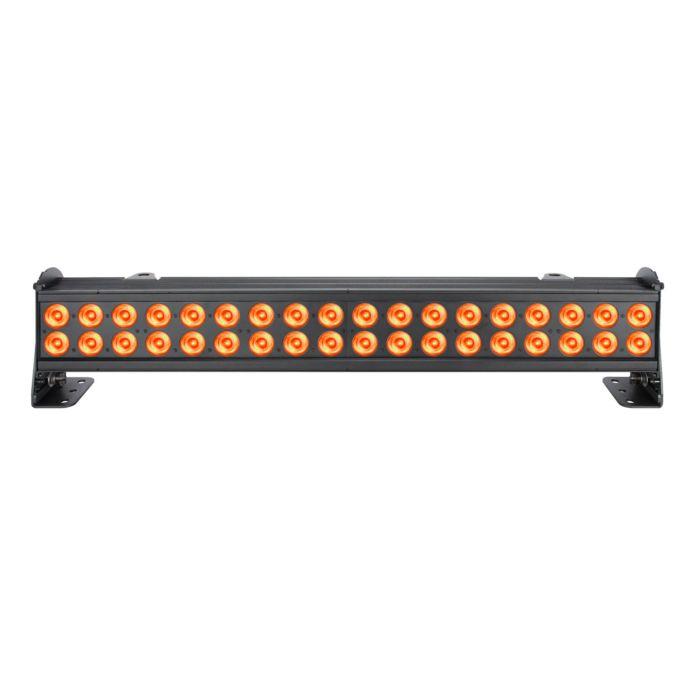

The SEVEN Batten 42™ is a seven color 3.5 foot (1m) long batten wash luminaire with (36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 6 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 etherCON, and power in/out connections, dual 220° manual tilt adjustable mounting brackets, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot



Features

3.5 Foot (1m) Seven Color Batten Wash Luminaire

(36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs

Individual Hue, Saturation, and Intensity Control

Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)

6 Pixel Mapping Zones with Pixel Flip Mode

Smooth Color Mixing, Internal Programs with Speed and Fade Control

64 Unique 7-Color Macros

Selectable 16-bit Dimming Curve Modes

Adjustable LED Refresh Rate + Gamma Brightness

Flicker Free Operation for TV and FILM

Art-Net, Kling-Net, and RDM Protocol Support

Dual 220° Manual Tilt Adjustable Mounting Brackets

Rugged Powder Coated Die-Cast Aluminum Exterior

Integrated Gel / Frost Filter Slot



Specifications

SOURCE

(36) 25W 7-IN-1 RGBAW + Lime + UV LEDs

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


EFFECTS

Individual Hue, Saturation, and Intensity Control

Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)

6 Pixel Mapping Zones with Pixel Flip Mode

12 Internal Program Macros with Speed and Fade Control

64 Unique 7-Color Macros

Selectable 16-bit Dimming Curve Mode


COLOR

RGBAW + Lime + UV (395nm)


CONTROL / CONNECTIONS

10 DMX Channel Modes (50 total channels)

DMX and Manual Control

4 Button Control Panel

180° Reversible OLED Menu Display

Adjustable Refresh Rate (900-28,800 (Hz)

Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)

Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support

3/5pin DMX, RJ45 etherCON, and Power In/Out

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 42.0” (1066.8mm)

Width: 4.5” (114.3mm)

Vertical Height: 9.0” (228.6mm)

Weight: 39.0 lbs. (17.7kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

614W Max Power Consumption

5°F to 113°F (-15°C to 45°C)


APPROVALS / RATINGS

CE | cETLus | IP20

Specifications and documentation subject to change without notice.
