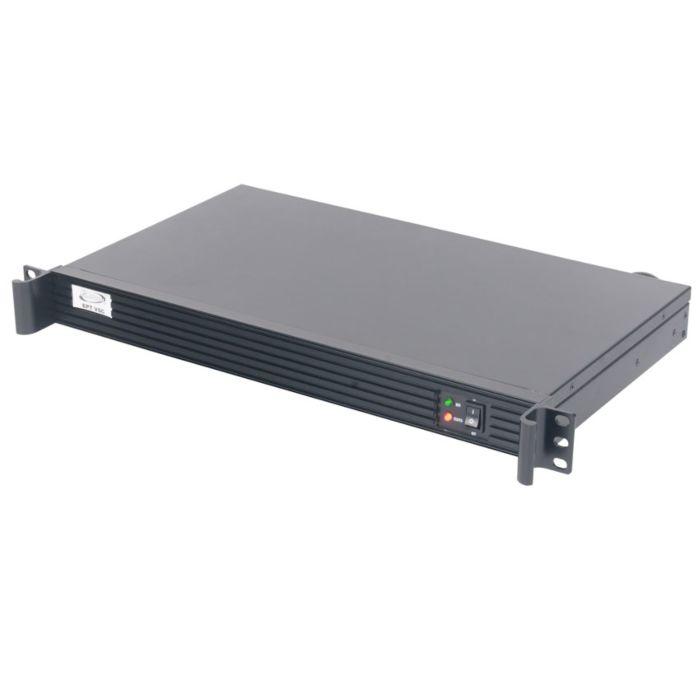

Elation Lighting EPT VSC

Elation LightingSKU: EPT435

Price:
Sale price$850.00

Description


The EPT VSC™ is a 19” rack mount, full-color, synchronous video processor for EPT and EZ series and eMAG4 video screens. Control is via standard Windows PC with DVI or HDMI output connection. It includes four RJ45 signal output ports on the rear, which allows connection for up to four LED video displays. Using a standard CAT6E ethernet cable, the EPT VSC™ transmits up to 2048 x 1152 pixel resolution within a max distance of 100m. The EPT VSC™ includes the NOVA™ management software, which allows for all configuration, sizing, mapping and calibration of EPT and EZ series and eMAG4 panels.


Features

The EPT VSC™ is a 19” rack mount, full-color, synchronous video processor for EPT and EZ series and eMAG4 video screens. Control is via standard Windows PC with DVI or HDMI output connection. It includes four RJ45 signal output ports on the rear, which allows connection for up to four LED video displays. Using a standard CAT6E ethernet cable, theEPT VSC™ transmits up to 2048 x 1152 pixel resolution within a max distance of 100m. The EPT VSC™ includes the NOVA™ management software, which allows for all configuration, sizing, mapping and calibration of EPT and EZ series and eMAG4 panels.





Specifications

HDMI/DVI input
HDMI/external audio input
12bit/10bit/8bit HD video source
Supported Resolutions: 2048×1152, 1920×1200, 2560×960
Supports Cascading
18bit gray scale processing
Video format: RGB, YCrCb4:2:2, YCrCb4:4:4
Standard 1U housing
Front Panel Controls: On / Off switch
Rear Panel Connections: AC input, 4x LAN output, USB, audio input, Light Sensor input, Cascade Input & Output, DVI input, HDMI input.
Command Communication: USB
Composition: Powder coated steel
Mounting: Free standing on rubber feet or 19” rack mount
1 light sensor input (Light sensor sold separately)
Dimensions: 19" x 1.75" x 9.84

Specifications are subject to change without any prior written notice.
