Description

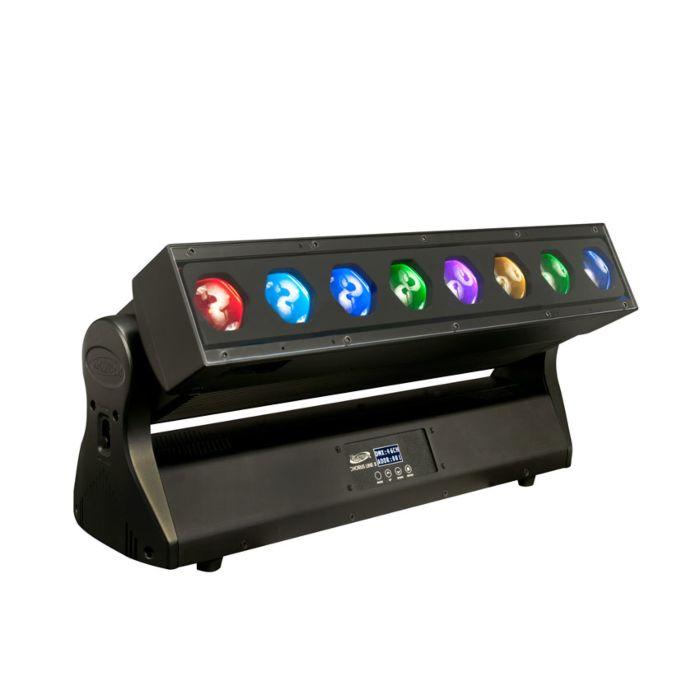

CHORUS LINE 8™ is a 8 pixel bar wash luminaire featuring 40W 4-in-1 RGBW LEDs, motorized 4° to 40° zoom and 220° tilt movement, full pixel control, 2,700K - 7,000K adjustable linear color temperature, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, adjustable LED refresh rate frequency and gamma brightness for flicker free operation for TV and FILM, DMX, RDM, Kling-NET, and Art-NET protocol support, DMX, RJ45 etherCON, and powerCON in/out connections, 4 button LCD control panel display, dual quick-lock omega bracket rigging, and a multi-voltage universal auto switching power supply (100-240v).and provides enhanced impact protection during transport. |
Features8 Pixel Bar Wash Luminaire with 40W 4-in-1 RGBW LEDs Motorized 4° to 40° Zoom and 220° Tilt Movement RGBW Color Mixing and Full Pixel Control 2,700K - 7,000K Linear Color Temperature Range 64 Color Presets and 14 Unique Color Macros Electronic Strobe, 16-bit Variable Dimming Curve Modes Adjustable LED Refresh Rate Frequency Adjustable LED Gamma Brightness Flicker Free Operation for TV and FILM DMX, RDM, Kling-Net, Art-Net Protocol Support |
SpecificationsSOURCE (8) 40W 4-in-1 RGBW LEDs 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA 3,000+ Total Lumens 8,702 LUX 809 FC @16.4 ft (5m) (Full ON (4° Min Zoom) 318 LUX 21 FC @16.4 ft (5m) (Full ON (37° Max Zoom)
EFFECTS Motorized 4° to 40° Zoom and 220° Tilt Movement RGBW Color Mixing and Full Pixel Control 2,700K - 7,000K Linear Color Temperature 64 Color Presets and 14 Unique Color Macros Electronic Strobe, 16-bit Variable Dimming Curve Modes
COLOR RGBW
CONTROL / CONNECTIONS 3 DMX Channel Modes (46 total channels) DMX, RDM, Kling-Net, and Art-Net Protocol Support Adjustable LED Refresh Rate (900-25,000 Hz) Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8) 4 Button Touch Control Panel 180° Reversible LCD Menu Display 8 / 16-Bit Resolution Zoom and Tilt Movement 5pin DMX In/Out RJ45 EtherCON In/Out powerCON Power In/Out With Wired Digital Communication Network
SIZE / WEIGHT Length: 21.28" (540.5mm) Width: 7.44" (189mm) Vertical Height: 11.46" (291mm) Weight: 25.0 lbs (11.3 kg)
ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 359W Max Power Consumption 5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS CE | cETLus | IP30 Specifications and documentation subject to chance without notice.
|
