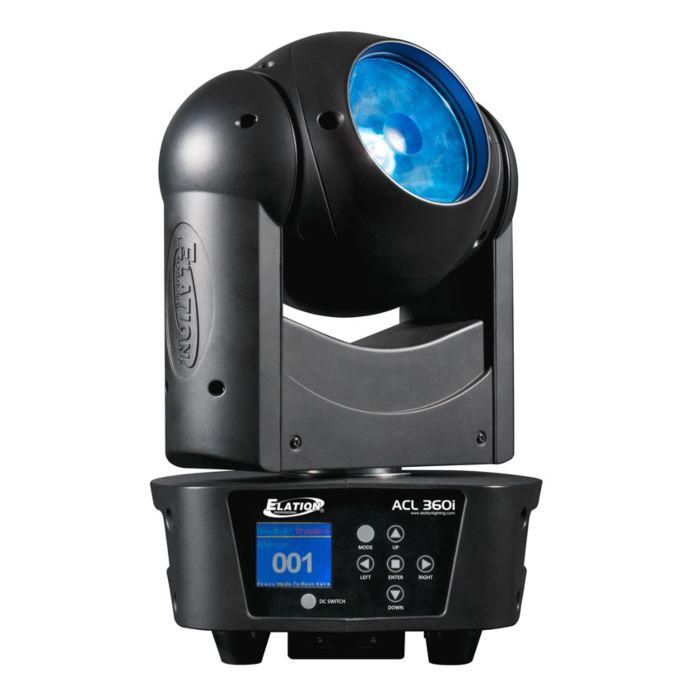

Elation Lighting ACL 360i

Save $198.00
Elation LightingSKU: ACL078

Price:
Sale price$792.00 Regular price$990.00

Description



The ACL 360i™ is an amazing single beam moving effect luminaire featuring a single 60W RGBW 4-in-1 LED and the new advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam. Features 10 and 45 degree frost lens options (included), fast and precise16-bit continuous full 360° pan and tilt rotation, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin XLR, powerCON, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 110W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).



Features

Amazing 4° Single Beam Moving Effect Luminaire
New Advanced Collimator Optic Lens
60W RGBW 4-in-1 LED
Laser-Like Homogenized Color Changing Beam
10° and 45° Frost Lens Options Included
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe and Selectable Dimming Curve Effects
RDM, KlingNET™ and Art-NET (DMX Over Ethernet)
Flicker Free Operation for Broadcast TV and FILM



Specifications

SOURCE
60W RGBW 4-in-1 LED
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
30,601 LUX 2,843 FC @6.6’ (2m)
12,955 LUX 1,204 FC @9.8’ (3m)
7,687 LUX 714 FC @13.1’ (4m)
5,112 LUX 475 FC @16.4’ (5m)

EFFECTS
Strobe and Selectable Dimming Curves
Color Macros

COLOR
RGBW

CONTROL / CONNECTIONS
(3) DMX Channel Modes (16 / 18 / 20)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
powerCON Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 8.7” (222mm)
Width: 7.3” (186mm)
Vertical Height: 13.0” (330mm)
Weight: 11.5 lbs. (5.2 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
5F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP30

INCLUDED ITEMS
10° Frost Lens
45° Frost Lens
Omega Bracket
powerCON Cable



Specifications and documentation subject to chance without notice.
